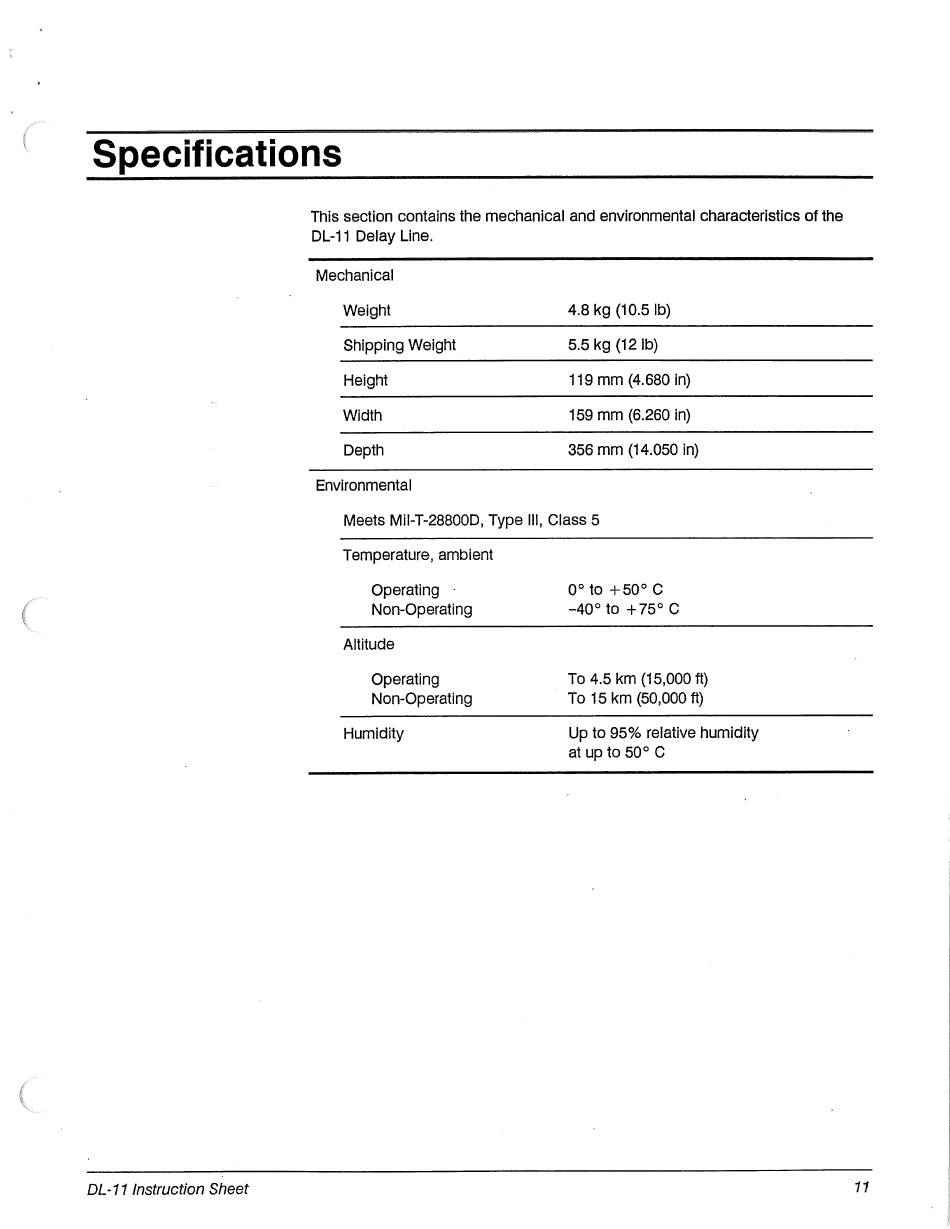

Specifications
This section contains the mechanical and environmental characteristics of the
DL-11 Delay Line.
Mechanical
Weight 4.8 kg (10.5 Ib)
Shipping Weight 5.5 kg (12 Ib)
Height 119 mm (4.680 in)
Width 159 mm (6.260 in)
Depth 356 mm (14.050 in)
Environmental
Meets Mil-T-28800D, Type Ill, Class 5
Temperature, ambient
Operating - 0° to +50°C
Non-Operating -40° to + 75° C
Altitude
Operating To 4.5 km (15,000 ft)
Non-Operating To 15 km (50,000 ft)
Humidity Up to 95% relative humidity
at up to 50° C
