Removing and Replacing FRUs
Trigger Pickoff
and Compensator
Assembly
Remove the Trigger Pickoff and Compensator assembly as follows:
m Step 1: Remove the delay line attached to the Trigger Pickoff and Compen-
sator assembly (see the delay line removal procedure).
m Step 2: Use a5/16-inch open-end wrench to remove the trigger pickoff ca-
ble from the Trigger Pickoff and Compensator assembly.
m Step 3: Remove the two Torx screws and withdraw the Trigger Pickoff and
Compensator assembly from the chassis.
To replace the Trigger Pickoff and Compensator assembly, follow Steps 1
through 3 in reverse order. Use an open-end torque wrench to tighten the connec-
tor nuts to 110 N-cm (10 in-Ib).
Zz Torx Head
Screws (2)

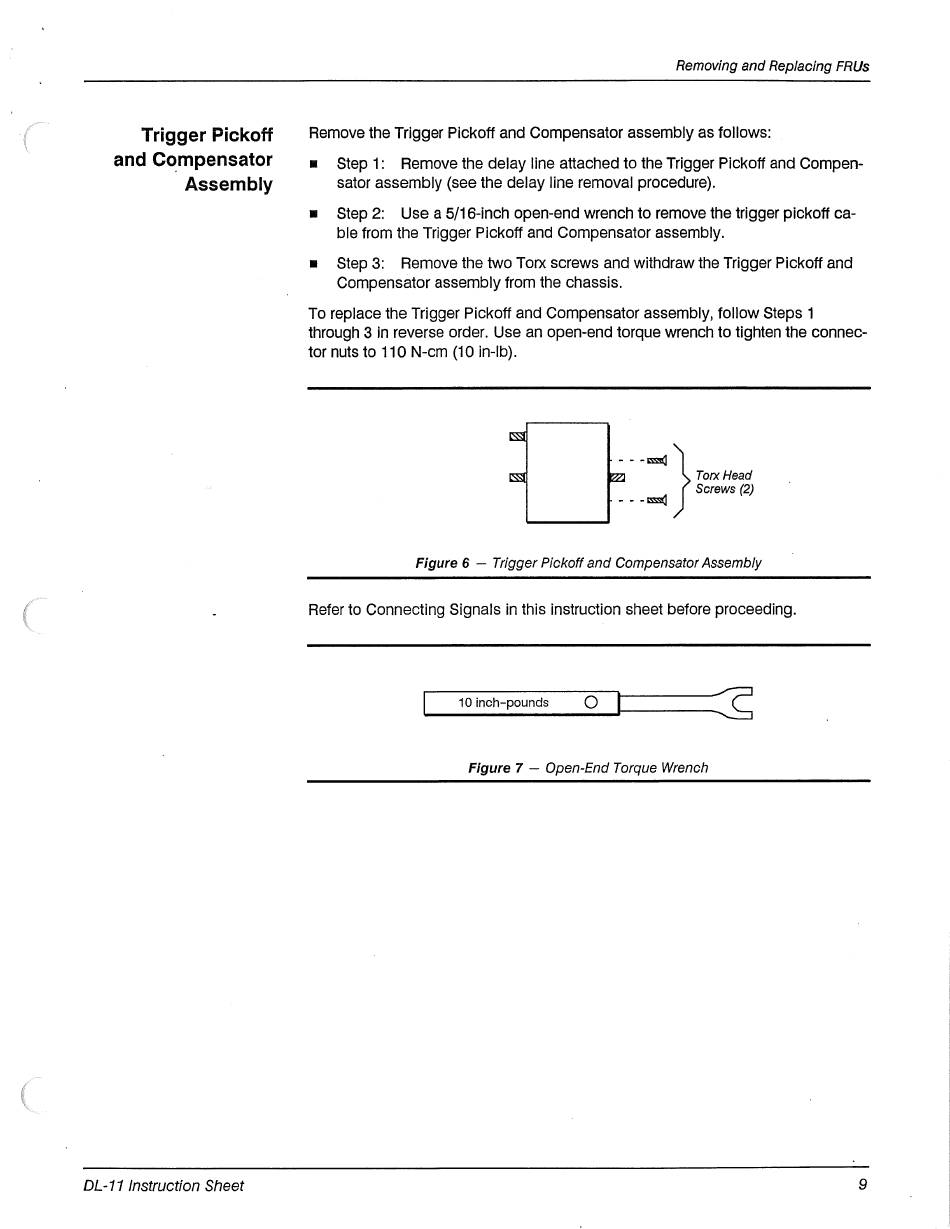

Figure 6 — Trigger Pickoff and Compensator Assembly
Refer to Connecting Signals in this instruction sheet before proceeding.
10 inch-pounds Oo |
Figure 7 — Open-End Torque Wrench
