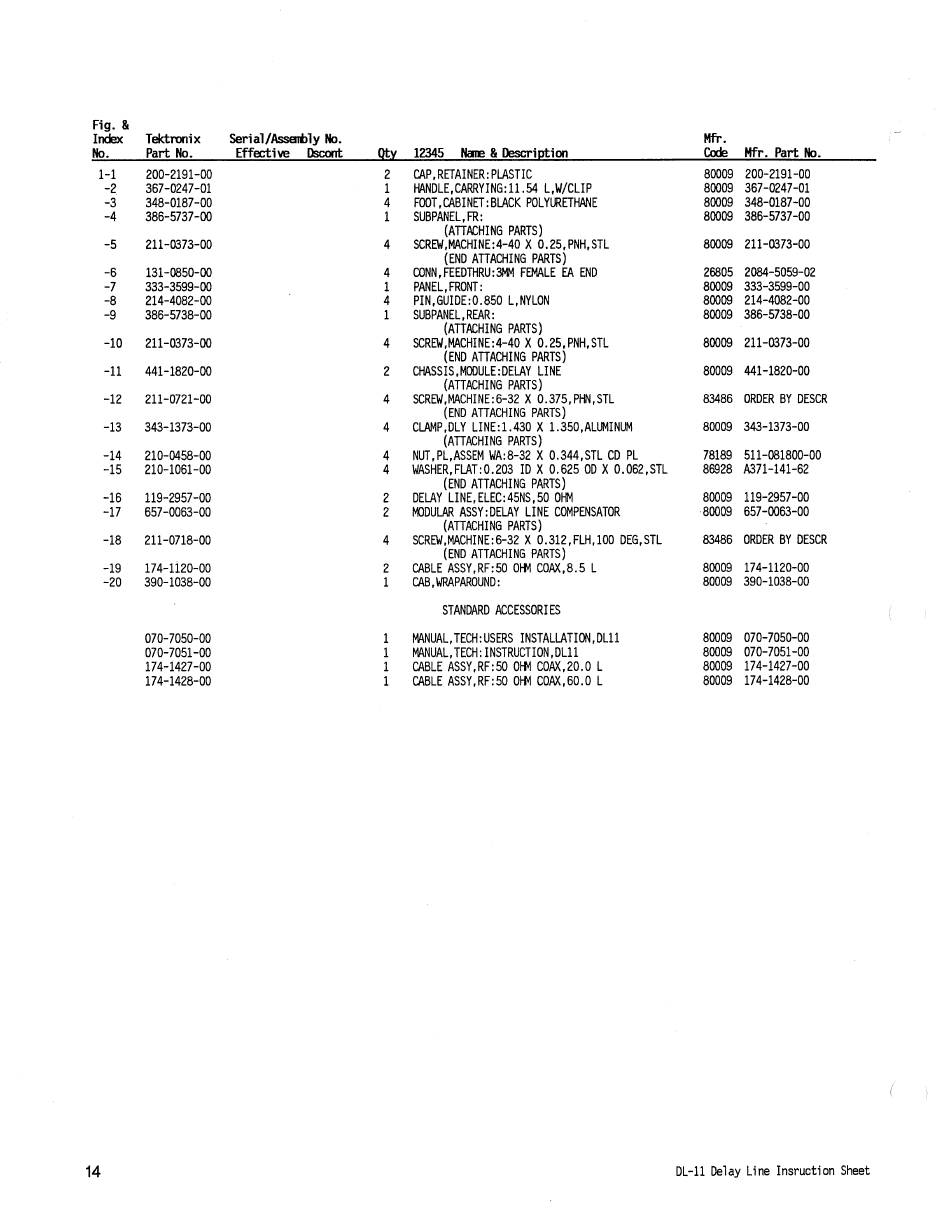

Tektronix DL-11 DELAY LINE Instruction Sheet page 18

Index Tektronix Serial/Assenbly No. Mfr.
No. Part No. Effective Dscont Qty 12345 Name & Description Code__- Mfr. Part No.
1-1 200-2191-00 2 CAP, RETAINER: PLASTIC 80009 200-2191-00
-2 367-0247-01 1 —_- HANDLE, CARRYING: 11.54 L,W/CLIP 80009 367-0247-01
-3 348-0187-00 4 FOOT ,CABINET: BLACK POLYURETHANE 80009 348-0187-00
~4 386-5737-00 1 SUBPANEL , FR: 80009 386-5737-00
(ATTACHING PARTS)
-5 211-0373-00 4 SCREW MACHINE: 4-40 X 0.25, PNH,STL 80009 211-0373-00
(END ATTACHING PARTS)
-6 131-0850-00 4 CONN, FEEDTHRU:3MM FEMALE EA END 26805 2084-5059-02
~7 333-3599-00 1 PANEL, FRONT: 80009 333-3599-00
-8 214-4082-00 4 PIN, GUIDE:0.850 L,NYLON 80009 214-4082-00
-9 386-5738-00 1 SUBPANEL , REAR: 80009 386-5738-00
(ATTACHING PARTS)
-10 =211-0373-00 4 — SCREW,MACHINE:4-40 X 0.25,PNH,STL 80009 211-0373-00
(END ATTACHING PARTS)
-11 441-1820-00 2 CHASSIS,MODULE:DELAY LINE 800098 441-1820-00
(ATTACHING PARTS)
-12 211-0721-00 4 SCREW, MACHINE: 6-32 X 0.375,PHN,STL 83486 ORDER BY DESCR
(END ATTACHING PARTS)
~13 343-1373-00 4 CLAMP,DLY LINE:1.430 X 1.350,ALUMINUM 80009 343-1373-00
(ATTACHING PARTS)
-14 = 210-0458-00 4 —NUT,PL,ASSEM WA:8-32 X 0.344,STL CD PL 78189 511-081800-00
-15 = 210-1061-00 4 WASHER, FLAT:0.203 ID X 0.625 OD X 0.062,STL 86928 A371-141-62
(END ATTACHING PARTS)
~16 119-2957-00 2 DELAY LINE, ELEC: 45NS,50 OHM 80009 119-2957-00
-17 657-0063-00 2 MODULAR ASSY:DELAY LINE COMPENSATOR '80009 657-0063-00
(ATTACHING PARTS)
-18 211-0718-00 4 SCREW, MACHINE:6-32 X 0.312,FLH,100 DEG,STL 83486 ORDER BY DESCR
; (END ATTACHING PARTS)
-19 174-1120-00 2 CABLE ASSY,RF:50 OHM COAX,8.5 L 80009 174-1120-00
-20 390-1038-00 1 CAB, WRAPAROUND: 80009 390-1038-00
STANDARD ACCESSORIES
070-7050-00 1 MANUAL, TECH: USERS INSTALLATION, DL1i1 80009 070-7050-00
070-7051-00 i MANUAL, TECH: INSTRUCTION ,DL11 80009 070-7051-00
174-1427-00 1 CABLE ASSY,RF:50 OHM COAX,20.0 L 80009 174-1427-00
174-1428-00 1 CABLE ASSY,RF:50 OHM COAX,60.0 L 80009 174-1428-00
14
DL-11 Delay Line Insruction Sheet
