Installation
. The illustration below shows the connections between the DL-11 Delay Line, a
signal source, and an 11801 Digital Sampling Oscilloscope.
=
Connect the signal source to a DL-11 INPUT.
™
Connect the matching DL-11 OUTPUT to the 11801 Oscilloscope sampling
head input using the provided 60-inch cable.
=
Connect the DL-11 TRIGGER to the 11801 Oscilloscope trigger input using
the provided 20-inch cable.
11801
Input
Signal
Source
_ 60" Cable
20" Cable
Va
/
( /
.
50 Q, Coaxial Cable

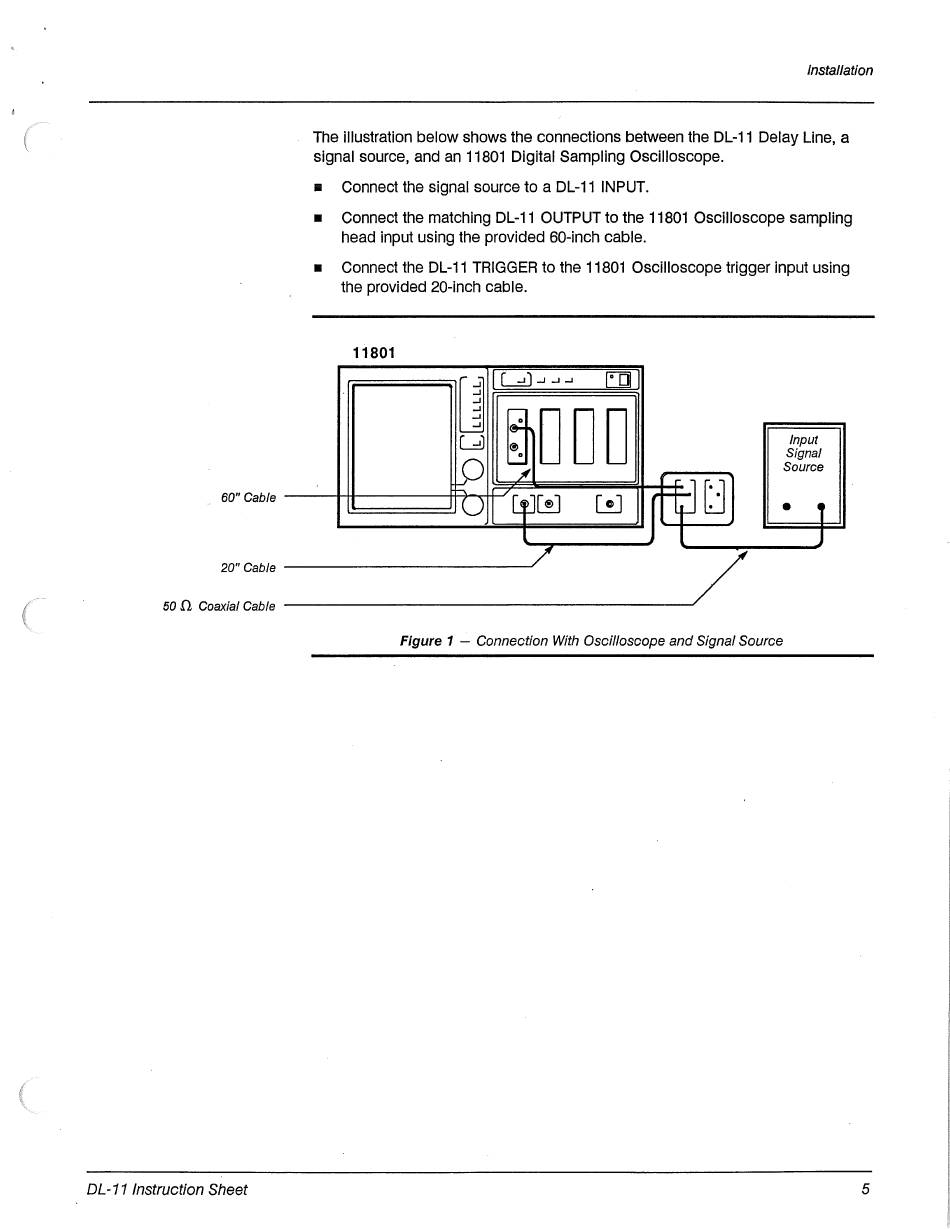

Figure
1 — Connection With Oscilloscope and Signal Source
DL-11 Instruction Sheet
5
