Removing and Replacing FRUs

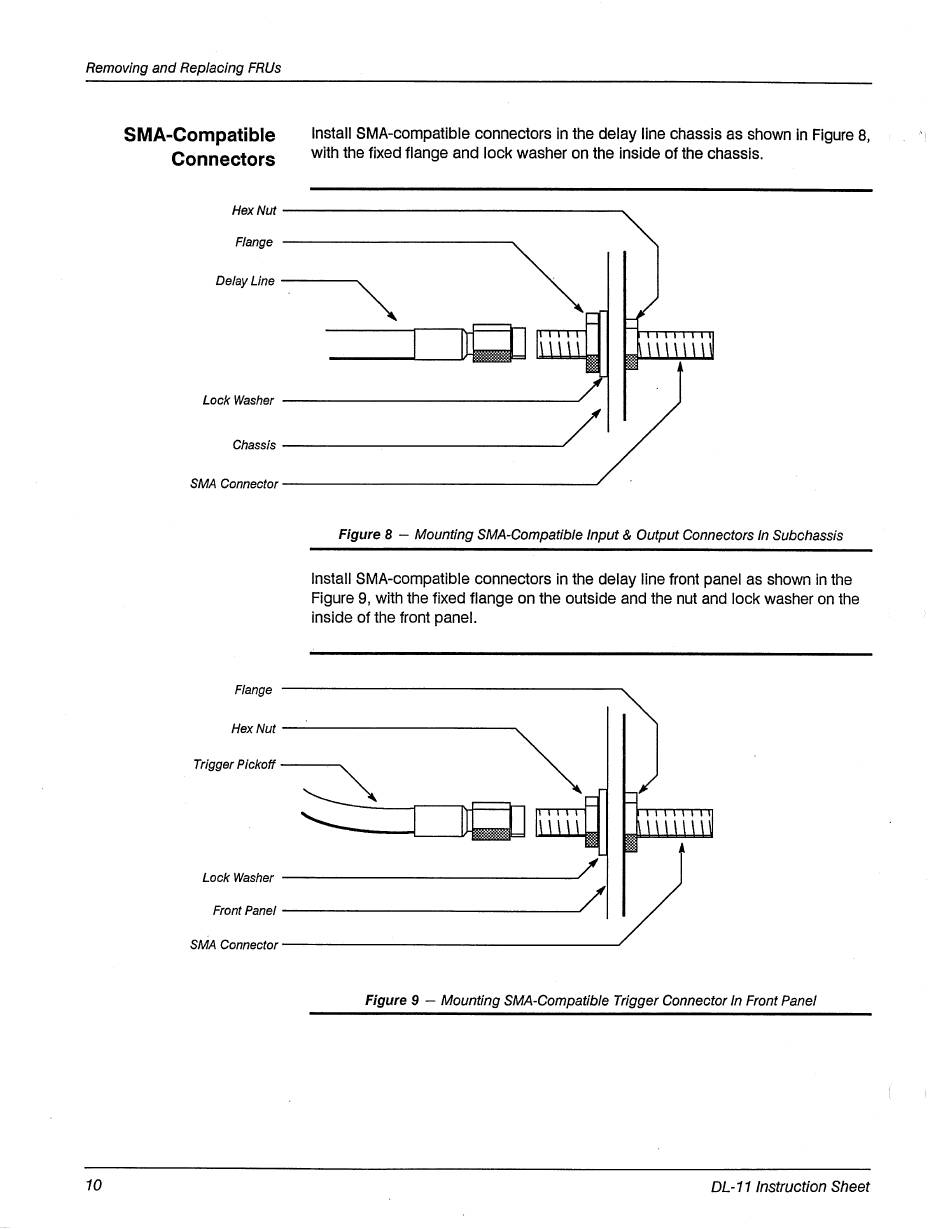

SMA-Compatible Install SMA-compatible connectors in the delay line chassis as shown in Figure 8,
Connectors with the fixed flange and lock washer on the inside of the chassis.
Hex Nut
Flange
Delay Line aN
Lock Washer
Chassis Va
SMA Connector
Figure 8 — Mounting SMA-Compatible input & Output Connectors In Subchassis
Install SMA-compatible connectors in the delay line front panel as shown in the
Figure 9, with the fixed flange on the outside and the nut and lock washer on the
inside of the front panel.
Flange
Hex Nut
Trigger Pickoff ON \
Va
/
"SS
Lock Washer
Front Panel
SMA Connector
Figure 9 — Mounting SMA-Compatible Trigger Connector In Front Panel
