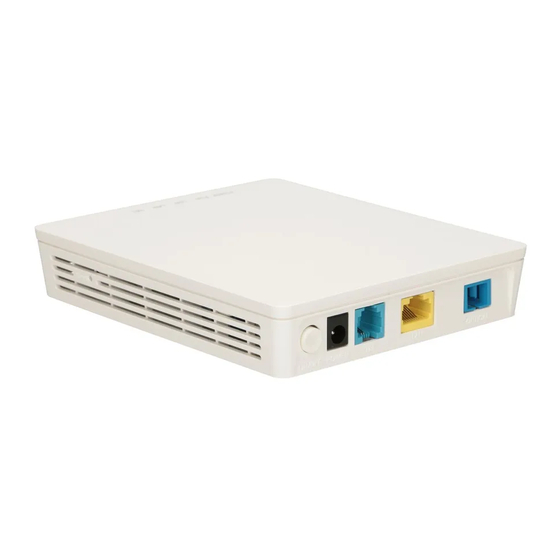

Huawei EchoLife HG8110 Service Manual

Gpon terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

EchoLife HG8010/HG8110/HG8240/HG8245/
HG8247/HG8447 GPON Terminal
V100R002C06&C07
Service Manual
Issue
02
Date
2011-12-08
HUAWEI TECHNOLOGIES CO., LTD.

Advertisement

Table of Contents
loading

Related Manuals for Huawei EchoLife HG8110

Summary of Contents for Huawei EchoLife HG8110

  • Page 1 EchoLife HG8010/HG8110/HG8240/HG8245/ HG8247/HG8447 GPON Terminal V100R002C06&C07 Service Manual Issue Date 2011-12-08 HUAWEI TECHNOLOGIES CO., LTD.
  • Page 2 All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope.

  • Page 3: About This Document

    Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Updates in Issue 02 (2011-12-08) Modified the figure of VoIP Basic Configuration. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 4 HG8447 GPON Terminal Service Manual About This Document Updates in Issue 01 (2011-03-02) This is the first release for the HG8010/HG8110/HG8240/HG8245/HG8247/HG8447 V100R002C06&C07. It is the first archive. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 5: Table Of Contents

    3.4.3 Locally Logging in to the Web Interface....................215 3.4.4 Configuring the Internet Access Service on the Web Page..............217 3.4.5 Configuring the SIP-based Voice Service on the Web Page..............220 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 6 5.1 Status................................303 5.1.1 WAN Information..........................303 5.1.2 VoIP Information...........................303 5.1.3 Wi-Fi Information..........................304 5.1.4 Eth Port Information..........................304 5.1.5 DHCP Server Information........................305 5.1.6 Optic Information..........................305 5.1.7 Battery Information..........................306 5.1.8 Device Information..........................306 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 7 5.9.1 VoIP Interface Configuration........................334 5.9.2 VoIP User Configuration........................341 5.10 System Tools..............................342 5.10.1 Reboot..............................343 5.10.2 Configuration File..........................343 5.10.3 USB Backup Restore CFG........................344 5.10.4 Firmware Upgrade..........................344 5.10.5 Restore Default Configuration......................345 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 8 5.10.9 Time Setting............................347 5.10.10 TR-069...............................349 5.10.11 Advanced Power Management......................350 5.10.12 Modify Login Password........................350 6 Technical Specifications......................352 6.1 Physical Specifications...........................353 6.2 Protocols and Standards..........................353 7 Acronyms and Abbreviations....................355 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 9: Safety Precautions

    Instructions for Use Use the accessories delivered with the device, or use those recommended by the vendor, such as the power adapter and battery. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 10 Instructions for Environment Protection Put the retired device and batteries at the specified recycle place. Abide by local laws and regulations to handle packaging materials, run-out batteries and retired devices. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 11: System Overview

    This topic provides the appearance and describes the ports and LEDs of the HG8010/HG8110/ HG8240/HG8245/HG8247/HG8447. 2.2 Typical Network Applications This topic describes the typical network applications of the HG8010/HG8110/HG8240/ HG8245/HG8247/HG8447. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 12: Product Introduction

    The HG8010/HG8110/HG8240/HG8245/HG8247/ HG8447 supports ONT Management and Control Interface (OMCI) protocol and the U2560 (Huawei TR-069 server) and manages all home terminals in a unified manner, thus implementing remote fault diagnosis, service provisioning, and performance statistics measurement.
  • Page 13 EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/ HG8447 GPON Terminal Service Manual 2 System Overview Figure 2-1 Appearance of the HG8010 Figure 2-2 Appearance of the HG8110 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 14 EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/ HG8447 GPON Terminal Service Manual 2 System Overview Figure 2-3 Appearance of the HG8240 Figure 2-4 Appearance of the HG8245 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 15: Ports

    Figure 2-6 Appearance of the HG8447 2.1.2 Ports This topic provides the appearance of the ports on the HG8010/HG8110/HG8240/HG8245/ HG8247/HG8447 and describes the functions of the ports. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 16 Table 2-2 Descriptions of the ports on the side panel of the HG8010 Port and Button Function Indicates the power button. It is used to power on or power off the device. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 17 Indicates the power port, used for connecting to the power POWER adapter or backup battery. Figure 2-10 Ports on the side panel of the HG8110 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 18 Indicates the power-on/power-off button, used for powering on ON/OFF or powering off the device. Indicates the power port, used for connecting to the power POWER adapter or backup battery. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 19 Figure 2-13 Figure 2-14 show the ports on the rear panel and side panel of the HG8245 respectively. Figure 2-13 Ports on the rear panel of the HG8245 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 20 Indicates the power port, used for connecting to the power POWER adapter or backup battery. Figure 2-14 Ports on the side panel of the HG8245 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 21 Table 2-9 Descriptions of the ports on the rear panel of the HG8247 Port and Button Function Indicates the radio frequency (RF) port, used for connecting to CATV a TV set. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 22 Indicates the external backup battery monitoring port, used for connecting to the backup battery for monitoring the battery. Indicate the USB host port, used for connecting to a USB storage device. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 23 The type of the optical connector connected to the OPTICAL port is SC/APC. Indicate auto-sensing 10/100/1000M Base-T Ethernet ports LAN1-LAN4 (RJ-45), used for connecting to PCs or IP STBs. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 24 Indicates the reset button. Press the button for a short time to reset the device; press the button for a long time (longer than RESET 10s) to restore the device to the default settings and reset the device. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 25: Leds

    Figure 2-21, Figure 2-22, Figure 2-23 Figure 2-24 show the LEDs on the HG8010, HG8110, HG8240, HG8245, HG8247 and HG8447 respectively. Figure 2-19 LEDs on the HG8010 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 26 EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/ HG8447 GPON Terminal Service Manual 2 System Overview Figure 2-20 LEDs on the HG8110 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 27 EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/ HG8447 GPON Terminal Service Manual 2 System Overview Figure 2-21 LEDs on the HG8240 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 28 EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/ HG8447 GPON Terminal Service Manual 2 System Overview Figure 2-22 LEDs on the HG8245 Figure 2-23 LEDs on the HG8247 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 29 The Ethernet connection is in the Always on normal state. Ethernet port Data is being transmitted on the LAN1-LAN4 Blinks Ethernet port. The Ethernet connection is not set Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 30 The CATV function is disabled or CATV signals are not received. Table 2-14 Indications of PON and LOS LEDs LED Status Indication The ONT is disabled by the OLT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 31: Typical Network Applications

    SOHO users. Network Topology of the HG8010 Figure 2-25 shows the position of the HG8010 in a network. Figure 2-25 Network topology of the HG8010 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 32 IP (VoIP), fax over IP (FoIP), and modem over IP (MoIP) services. Network Topology of the HG8240 Figure 2-27 shows the position of the HG8240 in a network. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 33 IP (VoIP), fax over IP (FoIP), and modem over IP (MoIP) services. Network Topology of the HG8245 Figure 2-28 shows the position of the HG8245 in a network. Figure 2-28 Network topology of the HG8245 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 34 PCs, STBs, and video phones to provide the high-speed data and video services. – Two TEL ports, which can be connected to telephone sets or fax machines to provide superior and cost-effective VoIP, FoIP, and MoIP services. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 35 – One USB port, which can be connected to a USB storage device to provide convenient storage and file sharing services within a home network. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 36: Configuration

    U2560. 3.6 Operation Guide on the XML Configuration File This topic describes how to issue the XML configuration files on the Web page and on the U2000. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 37: Before Your Start

    OLT commands or the U2000 is required. This method is not recommended because it is complex. Table 3-2 lists configuration methods supported in the FTTH service. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 38 OMCI supports configuring an ONT offline and restoring the ONT configuration after the ONU goes online. With this management mechanism, ONTs do not need to save their own configuration information. This facilitates service provisioning and ONT maintenance. The Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 39: Configuring The Service By Using The Nms

    Configuration rolls back or even factory defaults are restored if an incorrect XML configuration file is imported. When configuration parameters of an XML configuration file need to be modified, please contact Huawei technical engineers for help. 3.2 Configuring the Service by Using the NMS This topic describes how to configure Internet access service, VoIP service and IPTV service by using the NMS.
  • Page 40 Name: FTTx l Mapping Mode: VLAN l Qos Mode: Priority Queue l T-CONT Index: 1 l DBA Profile: FTTx l GEM Port Index: 1 l Priority Queue:1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 41 Priority: 1 l NAT function: enable l Bound port: LAN1 (LAN1 is a Layer 3 LAN) IPTV VLAN l VLAN ID: 1000 service l Type: Smart VLAN Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 42 V1R002C07 l WAN VLAN ID: 30 l Priority: 4 l Service Type: INTERNET l Connection Type: IP_Bridged l Bound port: LAN3 (LAN3 is a Layer 3 LAN) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 43 Signaling Protocol: H248 l Primary MGC: 200.200.200.200 l MID Format: Domain name l MGC Port: 2944 l MGC Domain name: 6877687714852901 l TID: A0 and A1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 44: Configuring Gpon Ftth Layer 2 Internet Access Service On The Nms

    OLT through a GPON port. Context For details of the data plan, see Data Plan. Example Network The PC gains access to the Internet in PPPoE dialup mode. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 45 Click the MEF IP Traffic Profile tab. Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx – CIR: 20480 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 46 Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx – T-CONT type: Maximum Bandwidth – Maximum Bandwidth: 32768 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 47 In the dialog box that is displayed, set the parameters. – Set Name to FTTx. – Choose Base Info. from the navigation tree and set the parameters. – Mapping Mode: VLAN – Qos Mode: Priority Queue Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 48 – Right-click T-CONT1 in the navigation tree and choose Add GEM Port from the shortcut menu. In the dialog box that is displayed, set the parameters. – GEM Port Index: 1 – Priority Queue: 1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 49 Connection from the shortcut menu. In the dialog box that is displayed, set the parameter. – GEM Connection Index: 1 (this parameter is set to 1 automatically) – VLAN ID: 20 (Voice user-side VLAN ID) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 50 The number of ports configured in the service profile must be the same as the actual number of ONT ports. The flowing table lists the port capabilities ofHG8010/HG8110/ HG8240/HG8245/HG8247/HG8447. The HG8247 is used as an example. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 51 In the dialog box that is displayed, set the parameters. – In the dialog box that is displayed, right-click and choose Add, and configure the parameters of VLAN switch. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 52 In the information list, right-click the record and choose Download to NE from the shortcut menu. In the dialog box that is displayed, select the required NE(s), and click OK. Confirm the ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 53 The prerequisite for performing operations in the navigation tree is to navigate to the NE Explorer of the OLT. To navigate to the NE Explorer of the OLT, do as follows: In the Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 54 – VLAN ID: 100 – Type: Smart VLAN – Attribute: Stacking Click Next. Click the Upstream Port tab and add upstream port 0/19/0 as the upstream port of the VLAN. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 55 – Upstream Traffic Name: ip-traffic-table_6 (it is recommended that you use the default profile ip-traffic-table_6 because the OLT does not limit the rates of service streams in the management VLAN) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 56: Configuring Gpon Ftth Layer 3 Internet Access Service On The Nms

    The ONT is connected to the GPBC card of the OLT through an optical fiber. The broadband remote access server (BRAS) provides the authentication, authorization, and accounting (AAA) functions. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 57 Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx – CIR: 20480 – Outer Priority: 1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 58 Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx – T-CONT type: Maximum Bandwidth – Maximum Bandwidth: 32768 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 59 In the dialog box that is displayed, set the parameters. – Set Name to FTTx. – Choose Base Info. from the navigation tree and set the parameters. – Mapping Mode: VLAN – Qos Mode: Priority Queue Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 60 – Right-click T-CONT1 in the navigation tree and choose Add GEM Port from the shortcut menu. In the dialog box that is displayed, set the parameters. – GEM Port Index: 1 – Priority Queue: 1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 61 Connection from the shortcut menu. In the dialog box that is displayed, set the parameter. – GEM Connection Index: 1 (this parameter is set to 1 automatically) – VLAN ID: 20 (Voice user-side VLAN ID) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 62 The number of ports configured in the service profile must be the same as the actual number of ONT ports. The flowing table lists the port capabilities ofHG8010/HG8110/ HG8240/HG8245/HG8247/HG8447. The HG8247 is used as an example. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 63 In the information list, right-click the record and choose Download to NE from the shortcut menu. In the dialog box that is displayed, select the required NE(s), and click OK. Confirm the ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 64 The prerequisite for performing operations in the navigation tree is to navigate to the NE Explorer of the OLT. To navigate to the NE Explorer of the OLT, do as follows: In the Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 65 Add a service virtual port on the OLT side. On the VLAN tab page, select the record where VLAN ID is set to 100 and click the ServicePort tab in the lower pane. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 66 On the ONT VAS Profile tab page, right-click, and choose Add from the shortcut menu. In the dialog box that is displayed, set relevant parameters. – Profile Name: ONT-HSI – Vendor ID: HWTC(2011) – Terminal Type: 247 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 67 By default, the system has one LAN Ethernet Configuration 1 node. To add nodes, select LAN Interface, right-click, and choose Add from the shortcut menu. Configure parameters of a WAN port. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 68 In the navigation tree, choose Layer 3 Forwarding > Policy Route. Select Policy Route, right-click, and choose Add. Choose Policy Route 1 and enter proper values. – Physical Port Name: LAN1 – WAN Interface Name: WAN1(ONT-HSI) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 69 Interface 1. Select WAN PPP Interface 1, and set User Name to iadtest@pppoe and Password to iadtest. The user name and password must be the same as those configured on the BRAS. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 70: Configuring Gpon Ftth Voice Service (H.248 Protocol) On The Nms

    For details of the data plan, see Data Plan. Example Network The phones connected to different ONTs can communicate with each other. The ONT obtains an IP address in Dynamic Host Configuration Protocol (DHCP) mode. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 71: Right-Click And Choose Add Global Profile From The Shortcut Menu

    Click the MEF IP Traffic Profile tab. Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 72: Click Ok

    Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx – T-CONT type: Maximum Bandwidth – Maximum Bandwidth: 32768 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 73 In the dialog box that is displayed, set the parameters. – Set Name to FTTx. – Choose Base Info. from the navigation tree and set the parameters. – Mapping Mode: VLAN – Qos Mode: Priority Queue Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 74 – Right-click T-CONT1 in the navigation tree and choose Add GEM Port from the shortcut menu. In the dialog box that is displayed, set the parameters. – GEM Port Index: 1 – Priority Queue: 1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 75 Connection from the shortcut menu. In the dialog box that is displayed, set the parameter. – GEM Connection Index: 1 (this parameter is set to 1 automatically) – VLAN ID: 20 (Voice user-side VLAN ID) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 76 The number of ports configured in the service profile must be the same as the actual number of ONT ports. The flowing table lists the port capabilities ofHG8010/HG8110/ HG8240/HG8245/HG8247/HG8447. The HG8247 is used as an example. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 77: Confirm The Ont

    In the information list, right-click the record and choose Download to NE from the shortcut menu. In the dialog box that is displayed, select the required NE(s), and click OK. Confirm the ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 78 The prerequisite for performing operations in the navigation tree is to navigate to the NE Explorer of the OLT. To navigate to the NE Explorer of the OLT, do as follows: In the Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 79 – VLAN ID: 200 – Type: Smart VLAN Click Next. Click the Upstream Port tab and add upstream port 0/19/0 as the upstream port of the VLAN. Click Done. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 80 On the ONT VAS Profile tab page, right-click, and choose Add from the shortcut menu. In the dialog box that is displayed, set relevant parameters. – Profile Name: ONT-VoIP Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 81 VLAN ID configured on the OLT.) – Priority: 6 – Addressing Type: DHCP – Service List: VOIP (For configuring the VoIP service, VoIP or a combination containing VoIP needs to be selected.) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 82 Interface configuration > Interface 1. Select Interface 1 and select a proper value. – Signaling Protocol: H248 – Region: China – Associate WAN Interface: WAN1(ONT-VoIP) (binding the created voice WAN port) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 83 – MID Format: Domain name NOTE l If dual-homing is configured, Secondary MGC must be set. l MID Format can be set to Domain Name, IP, or Device name. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 84 Configure the ONT value-added service. On the GPON ONU tab page, select an ONT, right-click, and choose Configure Value-Added Service from the shortcut menu. Configure the domain name of the MG. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 85 Interface configuration > Interface 1 > User. Click User 1 > H248 and set TID to A0. Click User 2 > H248 and set TID to A1. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 86: Configuring Gpon Ftth Voice Service (Sip Protocol) On The Nms

    This topic describes how to configure the voice service when an ONT is connected to an OLT through a GPON port. Example Network The phones connected to different ONTs can communicate with each other. The ONT obtains an IP address in DHCP mode. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 87 Click the MEF IP Traffic Profile tab. Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 88 Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx – T-CONT type: Maximum Bandwidth – Maximum Bandwidth: 32768 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 89 In the dialog box that is displayed, set the parameters. – Set Name to FTTx. – Choose Base Info. from the navigation tree and set the parameters. – Mapping Mode: VLAN – Qos Mode: Priority Queue Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 90 – Right-click T-CONT1 in the navigation tree and choose Add GEM Port from the shortcut menu. In the dialog box that is displayed, set the parameters. – GEM Port Index: 1 – Priority Queue: 1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 91 Connection from the shortcut menu. In the dialog box that is displayed, set the parameter. – GEM Connection Index: 1 (this parameter is set to 1 automatically) – VLAN ID: 20 (Voice user-side VLAN ID) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 92 The number of ports configured in the service profile must be the same as the actual number of ONT ports. The flowing table lists the port capabilities ofHG8010/HG8110/ HG8240/HG8245/HG8247/HG8447. The HG8247 is used as an example. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 93 In the information list, right-click the record and choose Download to NE from the shortcut menu. In the dialog box that is displayed, select the required NE(s), and click OK. Confirm the ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 94 The prerequisite for performing operations in the navigation tree is to navigate to the NE Explorer of the OLT. To navigate to the NE Explorer of the OLT, do as follows: In the Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 95 – VLAN ID: 200 – Type: Smart VLAN Click Next. Click the Upstream Port tab and add upstream port 0/19/0 as the upstream port of the VLAN. Click Done. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 96 On the ONT VAS Profile tab page, right-click, and choose Add from the shortcut menu. In the dialog box that is displayed, set relevant parameters. – Profile Name: ONT-VoIP Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 97 VLAN ID configured on the OLT.) – Priority: 6 – Addressing Type: DHCP – Service List: VOIP (For configuring the VoIP service, VoIP or a combination containing VoIP needs to be selected.) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 98 Interface configuration > Interface 1. Select Interface 1 and select a proper value. – Signaling Protocol: SIP – Region: China – Associate WAN Interface: WAN1(ONT-VoIP) (binding the created voice WAN port) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 99 Interface configuration > Interface 1 > SIP. Select SIP and enter (or select) a proper value. – Proxy Server: 200.200.200.200 – Home Domain: softx3000.huawei.com NOTE If dual-homing is configured, Secondary Proxy Server must be set. Configure the voice users. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 100 Configure ONT value-added services. On the GPON ONU tab page, select an ONT, right-click, and choose Configure Value-Added Service from the shortcut menu. Configure parameters of the SIP-based voice users. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 101 Select SIP below User 1 and enter a proper value. – Auth User Name: 88001234@softx3000.huawei.com – Auth Password: iadtest1 Set parameters of User 2 using the same method. – Directory Number: 88001235 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 102: Configuring Gpon Ftth Layer 2 Multicast Service On The Nms

    The ONT is connected to the OLT in Layer 2 mode. The OLT uses IGMP proxy, which is a Layer 2 multicast protocol. The IGMP version of the multicast VLAN is IGMPv3. Multicast programs are configured statically. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 103 Click the MEF IP Traffic Profile tab. Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 104: Right-Click And Choose Add Global Profile From The Shortcut Menu

    Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx – T-CONT type: Maximum Bandwidth – Maximum Bandwidth: 32768 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 105: Set Name To Fttx

    In the dialog box that is displayed, set the parameters. – Set Name to FTTx. – Choose Base Info. from the navigation tree and set the parameters. – Mapping Mode: VLAN – Qos Mode: Priority Queue Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 106 – Right-click T-CONT1 in the navigation tree and choose Add GEM Port from the shortcut menu. In the dialog box that is displayed, set the parameters. – GEM Port Index: 1 – Priority Queue: 1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 107 Connection from the shortcut menu. In the dialog box that is displayed, set the parameter. – GEM Connection Index: 1 (this parameter is set to 1 automatically) – VLAN ID: 20 (Voice user-side VLAN ID) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 108 The number of ports configured in the service profile must be the same as the actual number of ONT ports. The flowing table lists the port capabilities ofHG8010/HG8110/ HG8240/HG8245/HG8247/HG8447. The HG8247 is used as an example. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 109: Number Of Eth Ports

    In the dialog box that is displayed, set the parameters. – In the dialog box that is displayed, right-click and choose Add, and configure the parameters of VLAN switch. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 110: Click Ok

    In the information list, right-click the record and choose Download to NE from the shortcut menu. In the dialog box that is displayed, select the required NE(s), and click OK. Confirm the ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 111 The prerequisite for performing operations in the navigation tree is to navigate to the NE Explorer of the OLT. To navigate to the NE Explorer of the OLT, do as follows: In the Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 112 – VLAN ID: 1000 – Type: Smart VLAN Click Next. Click the Upstream Port tab and add upstream port 0/19/0 as the upstream port of the VLAN. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 113 – Keep the upstream and downstream settings the same: selected – Upstream Traffic Name: ip-traffic-table_6 (it is recommended that you use the default profile ip-traffic-table_6 because the OLT does not limit the rates of service streams) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 114 In the information list, right-click and choose Add from the shortcut menu. In the dialog box that is displayed, set the parameters. – IGMP Version: IGMP V3 – Work Mode: igmp_proxy – VLAN ID: 1000 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 115 In the information list, right-click and choose Add from the shortcut menu. In the dialog box that is displayed, set the parameters. – VLAN ID: 1000 – Frame: 0 – Slot: 19 – Port: 0 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 116 – Source IP Address: 10.10.10.20 (IP address of the multicast server) – Preview Profile: 0 (the default value) Click OK. In the information list, right-click the record and choose Download to NE from the shortcut menu. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 117 Add from the shortcut menu. In the dialog box that is displayed, select the record where Multicast VLAN ID is set to 1000 and click OK. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 118: Configuring Gpon Ftth Layer 3 Bridge Multicast Service On The Nms

    The ONT is connected to the OLT in Layer 3 bridge mode. The OLT uses IGMP proxy, which is a Layer 2 multicast protocol. The IGMP version of the multicast VLAN is IGMPv3. Multicast programs are configured statically. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 119 Click the MEF IP Traffic Profile tab. Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 120 Right-click and choose Add Global Profile from the shortcut menu. In the dialog box that is displayed, set the parameters. – Name: FTTx – T-CONT type: Maximum Bandwidth – Maximum Bandwidth: 32768 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 121 In the dialog box that is displayed, set the parameters. – Set Name to FTTx. – Choose Base Info. from the navigation tree and set the parameters. – Mapping Mode: VLAN – Qos Mode: Priority Queue Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 122 – Right-click T-CONT1 in the navigation tree and choose Add GEM Port from the shortcut menu. In the dialog box that is displayed, set the parameters. – GEM Port Index: 1 – Priority Queue: 1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 123 Connection from the shortcut menu. In the dialog box that is displayed, set the parameter. – GEM Connection Index: 1 (this parameter is set to 1 automatically) – VLAN ID: 20 (Voice user-side VLAN ID) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 124 The number of ports configured in the service profile must be the same as the actual number of ONT ports. The flowing table lists the port capabilities ofHG8010/HG8110/ HG8240/HG8245/HG8247/HG8447. The HG8247 is used as an example. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 125 In the information list, right-click the record and choose Download to NE from the shortcut menu. In the dialog box that is displayed, select the required NE(s), and click OK. Confirm the ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 126 The prerequisite for performing operations in the navigation tree is to navigate to the NE Explorer of the OLT. To navigate to the NE Explorer of the OLT, do as follows: In the Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 127 On the VLAN tab page, select the record where VLAN ID is set to 1000 and click the ServicePort tab in the lower pane. In the information list, right-click and choose Add from the shortcut menu. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 128 In the information list, right-click and choose Add from the shortcut menu. In the dialog box that is displayed, set the parameters. – IGMP Version: IGMP V3 – Work Mode: igmp_proxy – VLAN ID: 1000 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 129 3 Configuration Click Finish. Add a virtual upstream port for the multicast service on the OLT side. Choose Multicast > Virtual Uplink Port from the navigation tree. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 130 – Start IP Address: 224.0.1.1 (IP address of the multicast program) – End IP Address: 224.0.1.1 – Source IP Address: 10.10.10.20 (IP address of the multicast server) – Preview Profile: 0 (the default value) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 131 In the dialog box that is displayed, set the parameters. – Alias: IGMPUserA – Unlimited Band Width: selected – Select Service Port: service virtual port named IGMP Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 132 On the ONT VAS Profile tab page, right-click, and choose Add from the shortcut menu. In the dialog box that is displayed, set relevant parameters. – Profile Name: ONT-IPTV – Vendor ID: HWTC(2011) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 133 LAN Port two three-port enable is defaulted to disable. By default, the system has one LAN Ethernet Configuration 1 node. To add multiple nodes, select LAN Interface, right-click, and choose Add from the shortcut menu. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 134 – Priority: 4 – MultiCast VLAN ID: 1000 (The multicast VLAN ID of the ONT must be the same as the multicast VLAN ID configured on the OLT.) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 135 Configure a routing policy. In the navigation tree, choose Layer 3 Forwarding > Policy Route. Select Policy Route, right-click, and choose Add from the shortcut menu. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 136 In the dialog box that is displayed, choose the created profile, and click OK to complete profile binding. ----End Result The user can watch program1 on TV. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 137: Configuration By Using Olt Commands

    VoIP service Priority: 6; queue scheduling: descending order. l Generally, the priority is set on the ONT, and the OLT inherits the priority set on the ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 138 Generally, in the case of FTTH, limit the rate on the OLT. IPTV Multicast protocol l OLT: IGMP proxy service data l ONT: IGMP snooping Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 139 This example uses 6877687714852901 mandatory. ONT's SN as the domain name. TID: A0 and A1 The phone numbers of terminals A0 and A1 are 88001234 and 88001235. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 140: Configuring The Gpon Ftth Layer 2 Internet Access Service On The Olt Cli

    The high-speed Internet access service is identified by two precisely-bound VLAN tags. On the ONT, each user is allocated with a CVLAN; on the OLT, each slot is allocated with an SVLAN. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 141 For details, see Configuring Upstream Link Aggregation. Configure GPON ONT profiles. GPON ONT profiles include the DBA profile, line profile, service profile, and alarm profile. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 142 Set the DBA profile ID to 10, type to type4, and maximum bandwidth to 100 Mbit/s. huawei(config)#dba-profile add profile-id 10 type4 max 102400 Configure an ONT line profile. Create GPON ONT line profile 10 and bind T-CONT 4 to DBA profile 10.
  • Page 143 HG8110 HG8240 HG8245 HG8247 HG8447 huawei(config)#ont-srvprofile gpon profile-id 10 huawei(config-gpon-srvprofile-10)#ont-port eth 4 pots 2 catv 1 huawei(config-gpon-srvprofile-10)#port vlan eth 1 10 After the configurations are complete, run the commit command to make the configured parameters take effect. huawei(config-gpon-srvprofile-10)#commit huawei(config-gpon-srvprofile-10)#quit (Optional) Configure an alarm profile.
  • Page 144 ONTs in batches to simplify the operation and increase the configuration efficiency. For example, the preceding command can be modified as follows: huawei(config-if-gpon-0/1)#ont confirm 1 all sn-auth omci ont- lineprofile-id 10 ont-srvprofile-id 10 (Optional) Bind an alarm profile to the ONT.
  • Page 145 The profile ID is 8, the CIR is 4 Mbit/s, the priority is 1, and packets are scheduled according to the priority carried. huawei(config-if-gpon-0/1)#quit huawei(config)#traffic table ip index 8 cir 4096 priority 1 priority- policy tag-In-Package Create service ports. Set the service port indexes to 1 and 2, SVLAN ID to 100, GEM port ID to 1, and CVLAN ID to 10.
  • Page 146 Configure the mapping between queues and 802.1p priorities. Priorities 0-7 map queues 0-7 respectively. huawei(config)#cos-queue-map cos0 0 cos1 1 cos2 2 cos3 3 cos4 4 cos5 5 cos6 6 cos7 7 For the service board that supports only four queues, the mapping between 802.1p priorities and queue IDs is as follows: priorities 0 and 1 map queue 1;...

  • Page 147: Configuring The Gpon Ftth Layer 3 Internet Access Service On The Olt Cli

    Type of the port on the ONT that is connected to the PC: VLAN ID of the port on the ONT that is connected to the PC: 10 User name for PPPoE dialup: iadtest@pppoe; password: iadtest Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 148 Set the DBA profile ID to 10, type to type4, and maximum bandwidth to 100 Mbit/s. huawei(config)#dba-profile add profile-id 10 type4 max 102400 Configure an ONT line profile. Create GPON ONT line profile 10 and bind T-CONT 4 to DBA profile 10.
  • Page 149 HG8110 HG8240 HG8245 HG8247 HG8447 huawei(config)#ont-srvprofile gpon profile-id 10 huawei(config-gpon-srvprofile-10)#ont-port eth 4 pots 2 catv 1 After the configurations are complete, run the commit command to make the configured parameters take effect. huawei(config-gpon-srvprofile-10)#commit huawei(config-gpon-srvprofile-10)#quit (Optional) Configure an alarm profile. – The ID of the default GPON alarm profile is 1. The thresholds of all the alarm parameters in the default alarm profile are 0, which indicates that no alarm is reported.
  • Page 150 If the password or SN of an ONT is obtained, you can run the ont add command to add the ONT offline. huawei(config)#interface gpon 0/1 huawei(config-if-gpon-0/1)#ont add 1 1 sn-auth 6877687714852900 omci ont-lineprofile-id 10 ont-srvprofile-id 10 huawei(config-if-gpon-0/1)#ont add 1 2 sn-auth 6877687714852901 omci ont-lineprofile-id 10 ont-srvprofile-id 10 Automatically find an ONT.
  • Page 151 ONTs in batches to simplify the operation and increase the configuration efficiency. For example, the preceding command can be modified as follows: huawei(config-if-gpon-0/1)#ont confirm 1 all sn-auth omci ont- lineprofile-id 10 ont-srvprofile-id 10 (Optional) Bind an alarm profile to the ONT.
  • Page 152 Configure the mapping between queues and 802.1p priorities. Priorities 0-7 map queues 0-7 respectively. huawei(config)#cos-queue-map cos0 0 cos1 1 cos2 2 cos3 3 cos4 4 cos5 5 cos6 6 cos7 7 For the service board that supports only four queues, the mapping between 802.1p priorities and queue IDs is as follows: priorities 0 and 1 map queue 1;...
  • Page 153 – User Name: iadtest@pppoe, Password: iadtest (The user name and password must be the same as the user name and password configured on the BRAS.) – Binding options: LAN1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 154 From the main menu, choose Configuration > Access Profile Management. In the navigation tree of the tab page that is displayed, choose PON Profile > ONT VAS Profile. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 155 LAN port two three-port enable is defaulted to disable. By default, the system has one LAN Ethernet Configuration 1 node. To add nodes, select LAN Interface, right-click, and choose Add from the shortcut menu. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 156 – VLAN ID: 10 (The VLAN ID of the ONT must be the same as the user- side VLAN ID configured on the OLT.) – Priority: 1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 157 LAN1,...,LANx. For example, to bind WAN 1 to LAN 1 and LAN 2, set Physical Port Name to LAN1,LAN2. Click OK to complete the configuration of the new profile. Bind the value-added service profile. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 158 ONT, the PC can automatically obtain the IP addresses allocated by the ONT through DHCP. Then, the Internet access service is provisioned after Websites are entered into Internet Explorer (IE) address bars of the PC. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 159: Configuring The Gpon Ftth Voip Service (H.248 Protocol) On The Olt Cli

    Table 3-7 Data plan Item Data S-VLAN ID: 200 S-VLAN type: smart VLAN Upstream port: 0/19/0 C-VLAN ID: 20 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 160 – Line profile: A line profile describes the binding between the T-CONT and the DBA profile, the QoS mode of the traffic stream, and the mapping between the GEM port and the ONT-side service. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 161 DBA profile. Set the DBA profile ID to 20, type to Type3, assured bandwidth to 15 Mbit/s, and maximum bandwidth to 30 Mbit/s. huawei(config)#dba-profile add profile-id 20 type3 assure 15360 max 30720 Configure an ONT line profile.
  • Page 162 CATV Ports HG8240 HG8245 HG8247 HG8447 huawei(config)#ont-srvprofile gpon profile-id 10 huawei(config-gpon-srvprofile-10)#ont-port eth 4 pots 2 catv 1 After the configurations are complete, run the commit command to make the configured parameters take effect. huawei(config-gpon-srvprofile-10)#commit huawei(config-gpon-srvprofile-10)#quit (Optional) Configure an alarm profile.
  • Page 163 ONTs in batches to simplify the operation and increase the configuration efficiency. For example, the preceding command can be modified as follows: huawei(config-if-gpon-0/1)#ont confirm 1 all sn-auth omci ont- lineprofile-id 10 ont-srvprofile-id 10 (Optional) Bind an alarm profile to the ONT.
  • Page 164 Set the service port indexes to 3 and 4, SVLAN ID to 200, GEM port ID to 2, and CVLAN ID to 20. Use traffic profile 9. huawei(config)#service-port 3 vlan 200 gpon 0/1/1 ont 1 gemport 2 multi- service user-vlan 20 rx-cttr 9 tx-cttr 9...
  • Page 165 Configure the mapping between queues and 802.1p priorities. Priorities 0-7 map queues 0-7 respectively. huawei(config)#cos-queue-map cos0 0 cos1 1 cos2 2 cos3 3 cos4 4 cos5 5 cos6 6 cos7 7 For the service board that supports only four queues, the mapping between 802.1p priorities and queue IDs is as follows: priorities 0 and 1 map queue 1;...
  • Page 166 MGC type. Profile Index is set to Default (indicating interconnection with Huawei MGC) in this example. If the settings do not meet requirements, configure UserDefine. For details about how to configure this parameter, contact Huawei technical support.
  • Page 167 ONT is bound. Save the configuration. In the navigation tree, choose System Tools > Configuration File. In the right pane, click Save Configuration to save the configuration. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 168 From the main menu, choose Configuration > Access Profile Management. In the navigation tree of the tab page that is displayed, choose PON Profile > ONT VAS Profile. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 169 VLAN ID configured on the OLT.) – Priority: 6 – Addressing Type: DHCP – Service List: VOIP (For configuring the VoIP service, VoIP or a combination containing VoIP needs to be selected.) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 170 Interface configuration > Interface 1. Select Interface 1 and select a proper value. – Signaling Protocol: H248 – Region: China – Associate WAN Interface: WAN1(ONT-VoIP) (binding the created voice WAN port) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 171 – MID Format: Domain name NOTE l If dual-homing is configured, Secondary MGC must be set. l MID Format can be set to Domain Name, IP, or Device name. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 172 Configure the ONT value-added service. On the GPON ONU tab page, select an ONT, right-click, and choose Configure Value-Added Service from the shortcut menu. Configure the domain name of the MG. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 173 Interface configuration > Interface 1 > User. Click User 1 > H248 and set TID to A0. Click User 2 > H248 and set TID to A1. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 174 1 ont confirm 1 ontid 1 sn-auth 6877687714852900 omci ont-lineprofile-id 10 ont- srvprofile-id 10 ont confirm 1 ontid 2 sn-auth 6877687714852901 omci ont-lineprofile-id 10 ont- Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 175: Configuring The Gpon Ftth Voip Service (Sip Protocol) On The Olt Cli

    Table 3-8 Data plan Item Data S-VLAN ID: 200 S-VLAN type: smart VLAN Upstream port: 0/19/0 C-VLAN ID: 20 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 176 Therefore, the ARP proxy function of the OLT needs to be enabled. huawei(config)#arp proxy enable huawei(config)#interface vlanif 200 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 177 DBA profile. Set the DBA profile ID to 20, type to Type3, assured bandwidth to 15 Mbit/s, and maximum bandwidth to 30 Mbit/s. huawei(config)#dba-profile add profile-id 20 type3 assure 15360 max 30720 Configure an ONT line profile.
  • Page 178 HG8110 HG8240 HG8245 HG8247 HG8447 huawei(config)#ont-srvprofile gpon profile-id 10 huawei(config-gpon-srvprofile-10)#ont-port eth 4 pots 2 catv 1 After the configurations are complete, run the commit command to make the configured parameters take effect. huawei(config-gpon-srvprofile-10)#commit huawei(config-gpon-srvprofile-10)#quit (Optional) Configure an alarm profile. – The ID of the default GPON alarm profile is 1. The thresholds of all the alarm parameters in the default alarm profile are 0, which indicates that no alarm is reported.
  • Page 179 ONTs in batches to simplify the operation and increase the configuration efficiency. For example, the preceding command can be modified as follows: huawei(config-if-gpon-0/1)#ont confirm 1 all sn-auth omci ont- lineprofile-id 10 ont-srvprofile-id 10 (Optional) Bind an alarm profile to the ONT.
  • Page 180 The profile ID is 9, no rate limitation in the upstream and downstream directions, the priority is 6, and packets are scheduled according to the priority carried. huawei(config-if-gpon-0/1)#quit huawei(config)#traffic table ip index 9 cir off priority 6 priority-policy tag-In-Package Create service ports.
  • Page 181 Configure the mapping between queues and 802.1p priorities. Priorities 0-7 map queues 0-7 respectively. huawei(config)#cos-queue-map cos0 0 cos1 1 cos2 2 cos3 3 cos4 4 cos5 5 cos6 6 cos7 7 For the service board that supports only four queues, the mapping between 802.1p priorities and queue IDs is as follows: priorities 0 and 1 map queue 1;...
  • Page 182 OLT, create different WAN ports on the ONT, and bind the created WAN ports to Media Port and Signaling Port. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 183 If Associated POTS is 1, port TEL1 on the ONT is bound. If Associated POTS is 2, port TEL2 on the ONT is bound. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 184 Check the registration status of the voice user. In the navigation tree, choose Status > VoIP Information. In the right pane, User Status is Up. Configure the ONT on the U2000. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 185 Connection from the shortcut menu. Select WAN IP Interface 1 and enter (or select) a proper value. – WAN Interface Name: ONT-VoIP – WAN Enable: enable – Connection Type: IP_Routed Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 186 Interface configuration > Interface 1. Select Interface 1 and select a proper value. – Signaling Protocol: SIP – Region: China – Associate WAN Interface: WAN1(ONT-VoIP) (binding the created voice WAN port) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 187 Interface configuration > Interface 1 > SIP. Select SIP and enter (or select) a proper value. – Proxy Server: 200.200.200.200 – Home Domain: softx3000.huawei.com NOTE If dual-homing is configured, Secondary Proxy Server must be set. Configure the voice users. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 188 Configure ONT value-added services. On the GPON ONU tab page, select an ONT, right-click, and choose Configure Value-Added Service from the shortcut menu. Configure parameters of the SIP-based voice users. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 189 Select SIP below User 1 and enter a proper value. – Auth User Name: 88001234@softx3000.huawei.com – Auth Password: iadtest1 Set parameters of User 2 using the same method. – Directory Number: 88001235 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 190: Configuring The Gpon Ftth Layer 2 Multicast Service On The Olt Cli

    The OLT is connected to the remote ONT through a GPON port to provide users with the IPTV service. Service Requirements The ONT is connected to the OLT in Layer 2 mode. The OLT adopts IGMP proxy multicast protocol. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 191 For details, see Configuring Upstream Link Aggregation. Configure GPON ONT profiles. GPON ONT profiles include the DBA profile, line profile, service profile, and alarm profile. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 192 DBA profile. Set the DBA profile ID to 30, type to type4, and maximum bandwidth to 60 Mbit/ huawei(config)#dba-profile add profile-id 30 type4 max 61440 Configure an ONT line profile. Create GPON ONT line profile 10 and bind T-CONT 3 to DBA profile 30.
  • Page 193 HG8110 HG8240 HG8245 HG8247 HG8447 huawei(config)#ont-srvprofile gpon profile-id 10 huawei(config-gpon-srvprofile-10)#ont-port eth 4 pots 2 catv 1 huawei(config-gpon-srvprofile-10)#port vlan eth 3 30 After the configurations are complete, run the commit command to make the configured parameters take effect. huawei(config-gpon-srvprofile-10)#commit huawei(config-gpon-srvprofile-10)#quit (Optional) Configure an alarm profile.
  • Page 194 ONTs in batches to simplify the operation and increase the configuration efficiency. For example, the preceding command can be modified as follows: huawei(config-if-gpon-0/1)#ont confirm 1 all sn-auth omci ont- lineprofile-id 10 ont-srvprofile-id 10 (Optional) Bind an alarm profile to the ONT.
  • Page 195 The profile ID is 10, no rate limitation in the upstream and downstream directions, the priority is 4, and packets are scheduled according to the priority carried. huawei(config-if-gpon-0/1)#quit huawei(config)#traffic table ip index 10 cir off priority 4 priority- policy tag-In-Package Create service ports.
  • Page 196 Configure the mapping between queues and 802.1p priorities. Priorities 0-7 map queues 0-7 respectively. huawei(config)#cos-queue-map cos0 0 cos1 1 cos2 2 cos3 3 cos4 4 cos5 5 cos6 6 cos7 7 For the service board that supports only four queues, the mapping between 802.1p priorities and queue IDs is as follows: priorities 0 and 1 map queue 1;...
  • Page 197 Configure users of service ports 5 and 6 as multicast users and bind right profile profile0 to the service ports. huawei(config-btv)#igmp policy service-port 5 normal huawei(config-btv)#igmp policy service-port 6 normal huawei(config-btv)#igmp user add service-port 5 auth huawei(config-btv)#igmp user add service-port 6 auth huawei(config-btv)#igmp user bind-profile service-port 5 profile-name profile0...

  • Page 198: Configuring The Gpon Ftth Layer 3 Bridge Multicast Service On The Olt Cli

    Service VLAN ID: 1000 Service VLAN type: smart VLAN Upstream port: 0/19/0 Multicast protocol: IGMP Proxy Multicast version: IGMP V3 IP address of the multicast server: 10.10.10.10 Multicast program: 224.1.1.10 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 199 ONT lines. When a statistical value reaches the threshold, the host is notified and an alarm is reported to the log host and the NMS. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 200 DBA profile. Set the DBA profile ID to 30, type to type4, and maximum bandwidth to 60 Mbit/ huawei(config)#dba-profile add profile-id 30 type4 max 61440 Configure an ONT line profile. Create GPON ONT line profile 10 and bind T-CONT 3 to DBA profile 30.
  • Page 201 EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/ HG8447 GPON Terminal Service Manual 3 Configuration huawei(config)#ont-srvprofile gpon profile-id 10 huawei(config-gpon-srvprofile-10)#ont-port eth 4 pots 2 catv 1 After the configurations are complete, run the commit command to make the configured parameters take effect. huawei(config-gpon-srvprofile-10)#commit huawei(config-gpon-srvprofile-10)#quit (Optional) Configure an alarm profile.
  • Page 202 ONTs in batches to simplify the operation and increase the configuration efficiency. For example, the preceding command can be modified as follows: huawei(config-if-gpon-0/1)#ont confirm 1 all sn-auth omci ont- lineprofile-id 10 ont-srvprofile-id 10 (Optional) Bind an alarm profile to the ONT.
  • Page 203 10 10 20 20 40 0 0 0 Configure the mapping between queues and 802.1p priorities. Priorities 0-7 map queues 0-7 respectively. huawei(config)#cos-queue-map cos0 0 cos1 1 cos2 2 cos3 3 cos4 4 cos5 5 cos6 6 cos7 7 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright ©...
  • Page 204 Configure the IP address of the multicast program to 224.1.1.10, program name to program1, IP address of the program source to 10.10.10.10. huawei(config-btv)#multicast-vlan 1000 huawei(config-mvlan1000)#igmp program add name program1 ip 224.1.1.10 sourceip 10.10.10.10 14. Configure the right profile. Configure the profile name to profile0, with the right of watching program 1.
  • Page 205 VLAN ID configured on the OLT.) – Bridge Type: IP_Bridged – Binding options: LAN3 Click Apply to apply the configuration. Enable DHCP replay. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 206 On the ONT VAS Profile tab page, right-click, and choose Add from the shortcut menu. In the dialog box that is displayed, set relevant parameters. – Profile Name: ONT-IPTV – Vendor ID: HWTC(2011) – Terminal Type: 247 – Version: V1R002C06-Later Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 207 LAN Port two three-port enable is defaulted to disable. By default, the system has one LAN Ethernet Configuration 1 node. To add multiple nodes, select LAN Interface, right-click, and choose Add from the shortcut menu. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 208 – Priority: 4 – MultiCast VLAN ID: 1000 (The multicast VLAN ID of the ONT must be the same as the multicast VLAN ID configured on the OLT.) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 209 Configure a routing policy. In the navigation tree, choose Layer 3 Forwarding > Policy Route. Select Policy Route, right-click, and choose Add from the shortcut menu. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 210 In the dialog box that is displayed, choose the created profile, and click OK to complete profile binding. ----End Result The user can watch program1 on the TV. Configuration File vlan 1000 smart port vlan 1000 0/19 0 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 211: Configuration On The Web Page

    Before configuring services on the Web page, plan data of the entire network in a unified manner and enable Layer 2 service channels between the OLT and ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 212 U2560 management Priority: 7; queue scheduling: l Generally, the channel priority is set on the ONT, and the OLT inherits the priority set on the ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 213 Generally, in the case of FTTH, limit the rate on the OLT; in the case of FTTB/ FTTC, limit the rate on the ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 214 For different users of the same SVLAN, because the service ports of the smart VLAN are isolated from each other, the voice media streams cannot interchange normally. Therefore, the ARP proxy function of the OLT needs to be enabled. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 215 U2560 management channel: Set the DBA profile ID to 40, type to Type2, assured bandwidth to 15 Mbit/s. huawei(config)#dba-profile add profile-id 10 type4 max 102400 huawei(config)#dba-profile add profile-id 20 type3 assure 30720 max 102400 huawei(config)#dba-profile add profile-id 30 type4 max 204800 huawei(config)#dba-profile add profile-id 40 type2 assure 30720 Configure an ONT line profile.
  • Page 216 (no rate limitation); when the QoS mode is gem-car, traffic profile 6 is bound to the port by default (no rate limitation). huawei(config-gpon-lineprofile-10)#gem add 1 eth tcont 1 huawei(config-gpon-lineprofile-10)#gem add 2 eth tcont 2...
  • Page 217 If the password or SN of an ONT is obtained, you can run the ont add command to add the ONT offline. huawei(config)#interface gpon 0/1 huawei(config-if-gpon-0/1)#ont add 1 1 sn-auth 6877687714852900 omci ont- lineprofile-id 10 ont-srvprofile-id 10 huawei(config-if-gpon-0/1)#ont add 1 2 sn-auth 6877687714852901 omci ont- lineprofile-id 10 ont-srvprofile-id 10 Automatically find an ONT.
  • Page 218 Ont EquipmentID : 247 Ont autofind time : 2010-12-10 14:59:12 ------------------------------------------------------------------------ huawei(config-if-gpon-0/1)#ont confirm 1 ontid 1 sn-auth 6877687714852900 omci ont-lineprofile-id 10 ont-srvprofile-id 10 huawei(config-if-gpon-0/1)#ont confirm 1 ontid 2 sn-auth 6877687714852901 omci ont-lineprofile-id 10 ont-srvprofile-id 10 NOTE If multiple ONTs of the same type are connected to a port and the same line profile or service profile is bound to the ONTs, you can add ONTs in batches by confirming the auto discovered ONTs in batches to simplify the operation and increase the configuration efficiency.
  • Page 219 7, and packets are scheduled according to the priority carried. huawei(config-if-gpon-0/1)#quit huawei(config)#traffic table ip index 8 cir 4096 priority 1 priority-policy tag-In- Package huawei(config)#traffic table ip index 9 cir off priority 6 priority-policy tag-In- Package...
  • Page 220 Configure the mapping between queues and 802.1p priorities. Priorities 0-7 map queues 0-7 respectively. huawei(config)#cos-queue-map cos0 0 cos1 1 cos2 2 cos3 3 cos4 4 cos5 5 cos6 6 cos7 For the service board that supports only four queues, the mapping between 802.1p priorities and queue IDs is as follows: priorities 0 and 1 map queue 1;...

  • Page 221: Data Plan

    FTTH GPON access mode. Subsequent examples are configured based on the following data plan. Table 3-12 shows the unified data plan for the HSI service, VoIP service and Wi-Fi service in an FTTH network. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 222 Layer 2 iadtest@pppoe, password: mode. iadtest) l The Wi-Fi service does l 802.1p: 1 not support the Layer 2 mode. l NAT function: enable l Bound port: SSID1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 223: Locally Logging In To The Web Interface

    Key: chinahuawei mode 3.4.3 Locally Logging in to the Web Interface This topic describes the data plan and procedure for logging in to the Web configuration interface. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 224 "√" sign). If the check box is selected, deselect it, and then click OK. Step 3 Set the IP address and subnet mask of the PC. For details, see Table 3-13. Step 4 Log in to the Web configuration interface. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 225: Configuring The Internet Access Service On The Web Page

    You do not need to configure the Layer 2 Internet access service on the ONT, but you need to only enable the Layer 2 service channels between the OLT and ONT. This topic describes only how to configure the Layer 3 Internet access service. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 226 User Name: iadtest@pppoe, Password: iadtest (The user name and password must be the same as the user name and password configured on the BRAS.) l Binding options: LAN1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 227 Step 4 Check the ONT connection status. In the navigation tree, choose Status > WAN Information. In the right pane, Status is Connected and the obtained IP address is displayed at IP. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 228: Configuring The Sip-Based Voice Service On The Web Page

    WAN port as follows: l WAN Connection: Enable l Service List: VoIP (For configuring the VoIP service, VoIP or a combination containing VoIP needs to be selected.) l Mode: Route Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 229 OLT, create different WAN ports on the ONT, and bind the created WAN ports to Media Port and Signaling Port. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 230 The parameters of the SIP-based voice user must be consistent with the corresponding configuration on the softswitch. l If Associated POTS is 1, port TEL1 on the ONT is bound. If Associated POTS is 2, port TEL2 on the ONT is bound. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 231 Step 6 Check the ONT connection status. In the navigation tree, choose Status > WAN Information. In the right pane, Status is Connected and the obtained IP address is displayed at IP. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 232: Configuring The H.248-Based Voice Service On The Web Page

    Some voice parameters cannot be configured on the Web page but can be configured by importing an XML configuration file. For details about how to import an XML configuration file, see 3.6.1 Operation Guide on the XML Configuration File (on the Web Page). Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 233 (other parameters use the default settings): l Set MGC Address below Primary Server to 200.200.200.200. l MID Format: DomainName l MG Domain: 6877687714852901 l Signaling Port: 1_VOIP_R_VID_20 l Region: CN – China Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 234 Profile Index can be set to Default, BT, FT, KPN, PCCW, ZTE, or BELL. Choose the value based on the MGC type. Profile Index is set to Default (indicating interconnection with Huawei MGC) in this example. If the settings do not meet requirements, configure UserDefine. For details about how to configure this parameter, contact Huawei technical support.
  • Page 235 Choose System Tools > Configuration File from the navigation tree. In the right pane, click Save Configuration. Step 5 Restart the voice process. In the navigation tree, choose Status > VoIP Information. In the right pane, click Restart VoIP. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 236: Configuring The Wi-Fi Access Service On The Web Page

    3.4.7 Configuring the Wi-Fi Access Service on the Web Page This topic provides an example of how to configure the Wi-Fi access service on the Web page. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 237 Select Enable Wireless to enable the Wi-Fi function. Then, set the parameters as follows: – SSID: ChinaNet-huawei – Authentication Mode: WPA Pre-Shared Key – Encryption Mode: TKIP&AES – WPA PreSharedKey: chinahuawei Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 238 – VLAN ID: 40 (The VLAN ID of the ONT must be the same as the user-side VLAN ID configured on the OLT.) – 802.1p: 1 – Bridge Type: PPPoE_Bridged – Binding options: SSID1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 239 Choose System Tools > Configuration File from the navigation tree. In the right pane, click Save Configuration. Check the ONT connection status. In the navigation tree, choose Status > WAN Information. In the right pane, User Status is Connected. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 240 Select Enable Wireless to enable the Wi-Fi function. Then, set the parameters as follows: – SSID: ChinaNet-huawei – Authentication Mode: WPA Pre-Shared Key – Encryption Mode: TKIP&AES – WPA PreSharedKey: chinahuawei Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 241 – User Name: iadtest@pppoe, Password: iadtest (The user name and password must be the same as the user name and password configured on the BRAS.) – Binding options: SSID1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 242: Configuring The Service By Using U2560

    If so, replace the old version with a new one. 3.5 Configuring the Service by Using U2560 This topic describes how to configure the Internet access service, VoIP service and Wi-Fi service by using U2560. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 243: Preparations

    It can be the IP address, port ID, domain name of the 10.11.11.1:9070 ACS server. Periodical 43200 It is the default value of the system. notification interval Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 244 In the pane on the right, click New. In the dialog box that is displayed, configure the parameters of the WAN interface as follows: l WAN Connection: Enable Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 245 In the pane on the right, set the TR-069 client parameters (other parameters use the default values) as follows: l ACS URL: http://10.11.11.1:9070 l Connection Request User Name: server l Connection Request Password: server Click Apply to apply the configuration. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 246: Data Plan

    FTTH GPON access mode. Subsequent examples are configured based on the following data plan. Table 3-15 shows the unified data plan for the HSI service, VoIP service and Wi-Fi service in an FTTH network. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 247 Layer 2 iadtest@pppoe, password: mode. iadtest) l The Wi-Fi service does l 802.1p: 1 not support the Layer 2 mode. l NAT function: enable l Bound port: SSID1 Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 248: Configuring The Internet Access Service Through The U2560

    Key: chinahuawei mode 3.5.3 Configuring the Internet Access Service Through the U2560 This topic provides an example of how to configure the Internet access service through the U2560. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 249 Choose InternetGatewayDevice > LANDevice > 1 > LANEthernetInterfaceConfig > 1 from the navigation tree. In the right pane, set X_HW_L3Enable to 1, indicating that port LAN1 works in the L3 mode. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 250 Set X_HW_VLAN to 10, indicating the VLAN ID of the WAN interface is 10. l Set X_HW_PRI to 1, indicating the priority level of the WAN interface is 1. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 251 Step 5 Bind a LAN port. Choose 1X_HW_LANBIND from the navigation tree. In the right pane, set Lan1Enable to 1 to bind the WAN interface to LAN port 1. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 252: Configuring Sip-Based Voice Service Through The U2560

    GPON ONT (on the OLT CLI). The ONT is auto discovered on the U2560. For details, see Commissioning Interoperation Between the U2560 and the ONT Through the Web Page. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 253 WAN interface. l If the WAN interface obtains IP addresses in PPPoE mode, choose WANPPPConnection to set parameters of the voice WAN interface. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 254 Set SignalingProtocol to SIP, indicating that the SIP protocol is used. l Set Region to CN, indicating the country code of China. l Set X_HW_PortName to wan2, indicating that the new WAN interface 2 is bound. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 255 Choose InternetGatewayDevice > Services > VoiceService > 1 > VoiceProfile > 1 > SIP from the navigation tree. In the right pane, set the parameters as follows: l Set ProxyServer to softx3000.huawei.com, indicating that the address of the SIP proxy server is softx3000.huawei.com.
  • Page 256 Choose InternetGatewayDevice > Service > VoiceService > 1 > VoiceProfile > 1 > Line > 1 from the navigation tree. In the right pane, set DirectoryNumber to 88001234, indicating that the telephone number of SIP user 1 is 88001234. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 257 Service Manual 3 Configuration Choose 1 > SIP from the navigation tree. In the right pane, set AuthUserName to 88001234@softx3000.huawei.com and AuthPassword to iadtest1, indicating that the user name and password of user 1 for authentication are 88001234@softx3000.huawei.com and iadtest1 respectively.
  • Page 258 SIP user 2 is 88001235. Choose 2 > SIP from the navigation tree. In the right pane, set AuthUserName to 88001235@softx3000.huawei.com and AuthPassword to iadtest2, indicating that the user name and password of user 2 for authentication are 88001235@softx3000.huawei.com and iadtest2 respectively.

  • Page 259: Configuring The H.248-Based Voice Service Through The U2560

    Between the U2560 and the ONT Through the Web Page. Two telephone sets must be available and each must be connected to ports TEL1 and TEL2 respectively on the ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 260 WAN interface. l If the WAN interface obtains IP addresses in PPPoE mode, choose WANPPPConnection to set parameters of the voice WAN interface. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 261 Set SignalingProtocol to H248, indicating that the H.248 protocol is used. l Set Region to CN, indicating the country code of China. l Set X_HW_PortName to wan2, indicating that the new WAN interface 2 is bound. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 262 Domain is ONT's domain name registered on the MGC. It is globally unique. Domain in this example is ONT's SN. l Set MIDFormat to DomainName, indicating that the MG uses its domain name to register. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 263 Line > 1 > X_HW_H248 from the navigation tree. In the right pane, set LineName to A0, indicating that the TID of H.248 voice user 1 is A0. The user telephone number set on the MGC is 88001234. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 264 X_HW_H248 from the navigation tree. In the right pane, set LineName to A1, indicating that the TID of H.248 voice user 2 is A1. The user telephone number set on the MGC is 88001235. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 265 Choose InternetGatewayDevice > Services > VoiceService > 1 > VoiceProfile > 1 from the navigation tree. In the right pane, set Reset to 1, indicating that the voice process will be restarted. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 266: Configuring The Wi-Fi Access Service Through The U2560

    GPON ONT (on the OLT CLI). The ONT is auto discovered on the U2560. For details, see Commissioning Interoperation Between the U2560 and the ONT Through the Web Page. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 267 Set BeaconType to WPA and WPAEncryptionModes to TKIPandAESEncryption, indicating that the encryption mode of the WPA is TKIP&AES. l Set WPAAthenticationMode to PSKAuthentication, indicating that the authentication mode is Pre-Shared Key. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 268 3 Configuration Choose PreSharedKey > 1, 1 from the navigation tree. In the right pane, set PreSharedKey to chinahuawei, indicating that the WPA encryption key is chinahuawei. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 269 – Set X_HW_VLAN to 40, indicating that the VLAN ID of the WAN interface is – Set X_HW_PRI to 1, indicating that the priority level of the WAN interface is 1. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 270 – Set X_HW_VLAN to 40, indicating that the VLAN ID of the WAN interface is – Set X_HW_PRI to 1, indicating that the priority level of the WAN interface is 1. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 271 WANIPConnection > 1 > X_HW_LANBIND from the navigation tree. In the right pane, set SSID1Enable to 1, indicating that the WAN interface is bound to SSID 1. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 272: Operation Guide On The Xml Configuration File

    OMCI protocol and cannot be configured on the Web page or the U2000. Issuing the XML configuration file functions as a supplement to completing all ONT configurations. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 273: Operation Guide On The Xml Configuration File (On The Web Page)

    Configuration rolls back or even factory defaults are restored if an incorrect XML configuration file is imported. When configuration parameters of an XML configuration file need to be modified, please contact Huawei technical engineers for help. 3.6.1 Operation Guide on the XML Configuration File (on the Web Page) This topic describes how to issue the XML configuration file on the Web page.

  • Page 274: Operation Guide On The Xml Configuration File (On The U2000)

    Configuration will roll back or even factory defaults are restored if an incorrect XML configuration file is issued. When configuration parameters need to be modified for an XML configuration file, please contact Huawei technical engineers for help. Save the modified XML configuration file.
  • Page 275 Value-Added Service from the shortcut menu. In the dialog box that is displayed, click Export to export the XML configuration file, as shown in the following figure. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 276 Configuration will roll back or even factory defaults are restored if an incorrect XML configuration file is issued. When configuration parameters need to be modified for an XML configuration file, please contact Huawei technical engineers for help. Save the modified XML configuration file.
  • Page 277 Select Switch to ONT Load Task and click OK to issue the XML configuration file to the ONT on the U2000. The configurations take effect without the requirement of restarting the ONT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 278 In the Add ONT VAS Profile dialog box, click Export to export the XML configuration files, as shown in the following figure. Figure 3-14 Exporting the XML configuration files Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 279 Configuration will roll back or even factory defaults are restored if an incorrect XML configuration file is issued. When configuration parameters need to be modified for an XML configuration file, please contact Huawei technical engineers for help. Save the modified XML configuration file.
  • Page 280 Select an ONT from the list, right-click, and choose Bind VAS Profile from the shortcut menu. In the dialog box that is displayed, choose the created profile, and click OK. ----End Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 281: Maintenance And Troubleshooting

    This topic describes how to maintain and troubleshoot the ONT on the NMS. 4.6 Maintenance and Troubleshooting on the OLT CLI This topic describes how to maintain and troubleshoot the ONT on the OLT CLI. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 282: Frequently Used Methods For Troubleshooting

    4.2 General Troubleshooting Flowchart and Methods This topic describes the general troubleshooting flowchart and the methods of preliminarily locating faults. Context Figure 4-1 shows the general troubleshooting flowchart. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 283 Step 1 Locate a fault preliminarily. Find the fault location and determine the cause of the fault. Table 4-2 lists the possible causes during preliminary fault locating. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 284 The codec and authentication configured on the ONT are incorrect. l A phone number conflict occurs during the registration. l The voice IP address fails to be obtained. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 285 If Control Flag is deactive, the ONT registration is disabled. In this case, run the ONT activate command in the GPON mode to activate the control flag. l If Config State is normal, it indicates that the ONT configuration recovery is successful. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 286: Tools Used For Troubleshooting

    Turn on the power supply. (If a digital multimeter without a dedicated power switch is used, skip this step.) Select the items to be tested. Choose a proper measurement range. Perform the measurement correctly. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 287: Optical Power Meter

    As shown in Figure 4-2, the PPM-350B optical power meter is different from common optical power meters. Specifically, the PPM-350B has a downstream input optical port and an upstream Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 288 Connect optical fibers to optical ports correctly in upstream and downstream directions. Turn on the power supply. Choose the measurement unit (dB or dBm). Perform the measurement. Figure 4-4 shows the measurement interface of the optical power meter. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 289 1490 nm (1 km) 0.25 Optical channel loss = L x a + n1 x b + n2 x c + n3 x d + e + f (dB) Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 290: Remote Maintenance And Troubleshooting On The Web Page

    Step 3 On the GPON ONU tab page, set the search criteria to find the GPON ONU records. Step 4 Select a required record from the ONT list, right-click, and choose Configure Value-Added Service from the shortcut menu. Step 5 Configure static WAN parameters. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 291 Step 6 Enable the access rights on the WAN. In the navigation tree, choose Security > ACL Services. On the right pane, set HTTP WAN Enables to enable. For details, see Figure 4-6. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 292: Maintenance And Troubleshooting On The Nms

    This topic describes how to maintain and troubleshoot the ONT on the NMS. 4.5.1 PPPoE Dialup Emulation After enabling PPPoE dialup emulation, you can emulate PPPoE dialup on the ONT and locate faults. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 293 Step 5 Select a record from the ONT list, right-click, and then choose PPPoE Test. Step 6 In the dialog box that is displayed, set the related PPPoE emulation parameters, as shown in the following figure. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 294: Querying The Physical State Of A Pots Port

    Step 1 In the Physical Map navigation tree on the Main Topology tab page, double-click the target OLT, or select the target OLT, right-click, and choose NE Explorer. Step 2 In the navigation tree, choose GPON > GPON Management. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 295 Figure 4-8 Querying the physical state of a POTS port For the icon meanings, right-click an icon, and choose Lengend from the shortcut menu, as shown in the following figure. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 296: Querying The Status Of A Voip User

    Step 3 In the window on the right, choose GPON ONU. Step 4 On the GPON ONU tab page, set the search criteria to find the GPON ONU records. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 297: Querying And Deleting Voip Statistics

    Select a record from the list, right-click, and then choose Performance Statistic. In the dialog box that is displayed, view the VoIP statistics, as shown in the following figure. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 298: Caller Emulation Test

    The caller emulation test verifies the basic calling services and preliminarily locates a fault. Prerequisite The OLT and the NMS communicate with each other properly. The NMS is able to discover an online ONT and VoIP service parameters are configured. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 299 Step 6 Select a record from the list whose UNI Type is Pots, right-click, and choose Caller Emulation Test from the shortcut menu. Step 7 In the dialog box that is displayed, set Callee Number, as shown in the following figure. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 300: Callee Emulation Test

    The NMS is able to discover an online ONT and VoIP service parameters are configured. The user connected to the POTS port that is enabled with callee emulation successfully registers with the softswitch. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 301 Step 6 Select a record from the list whose UNI Type is Pots, right-click, and choose Callee Emulation Test from the shortcut menu. Step 7 In the dialog box that is displayed, click Start, as shown in the following figure. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 302: Automatic Emulation Test

    Context The call emulation test verifies the basic calling services during service provisioning, and works with the POTS line test to preliminarily locate a fault. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 303 Emulation Test from the shortcut menu. In the dialog box that is displayed, set Callee Number to the number of the callee, as shown in the following figure. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 304: Local Loopback And Remote Loopback On A Pots Port

    The NMS is able to discover an online ONT and VoIP service parameters are configured. Impact on the System After loopback is set on a POTS port, normal communication is interrupted and an echo is heard by the caller. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 305 ONT is faulty. The communication recovers after loopback is cancelled or the phone is placed on the hook. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 306: Voip Loop-Line Test

    Test from the shortcut menu. Step 7 In the dialog box that is displayed, set Busy Processing to No Test or Force, as shown in the following figure. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 307: Maintenance And Troubleshooting On The Olt Cli

    Procedure Query the performance statistics of an ETH port. In GPON mode, run the display statistics ont-eth command to query the performance statistics of an ETH port. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 308 ETH port. ----End Example To query the performance statistics of ETH port 1 on ONT 1 that is connected to GPON port 0/2/0, do as follows: huawei(config-if-gpon-0/2)#display statistics ont-eth 0 1 ont-port 1 ----------------------------------------------------------------------- Received frames 98 100% Received unicast frames...

  • Page 309: Web Page Reference

    This topic describes how to query the information about the WAN interface, VoIP interface, and Wi-Fi port through the Web page. 5.2 WAN This topic describes how to configure the WAN interface through the Web page. 5.3 LAN Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 310 This topic describes how to use the system tools on the Web page, including using the tools to restart the device, restore the default configuration, and conduct the test. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 311: Status

    The SIP configuration page is slightly different from the H.248 configuration page, as shown in Figure 5-2 Figure 5-3. Figure 5-2 VoIP Information - SIP Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 312: Wi-Fi Information

    In the navigation tree on the left, choose Status > Eth Port Information. In the pane on the right, you can view the duplex mode, speed, and status of the ETH port, as shown in Figure 5-5. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 313: Dhcp Server Information

    In the navigation tree on the left, choose Status > Optic Information. In the pane on the right, you can view the optical status, transmit optical power, receive optical power of the optical module, as shown in Figure 5-7. Figure 5-7 Optic Information Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 314: Battery Information

    Click the Status tab and then choose Remote Manage from the navigation tree. In the right pane, view the remote management status and service application status, as shown in Figure 5-10. Figure 5-10 Remote management Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 315: Wan

    WAN in route mode. Table 5-1 Parameters related to the WAN in route mode Parameter Description Enable Indicates whether to enable the WAN connection. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 316 SSID is successfully set. For details, see 5.3.1 LAN Port Work Mode 5.4.1 WLAN Configuration. WAN Configuration - bridge Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 317 MultiCast VLAN ID The multicast VLAN ID ranges from 1 to 4094. The multicast VLAN ID must be the same as the multicast VLAN ID on the OLT. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 318: Lan

    In the navigation tree on the left, choose LAN > LAN Port Work Mode. In the pane on the right, determine whether the LAN port works in layer 3 mode, as shown in Figure 5-13. Figure 5-13 LAN Port Work Mode Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 319: Lan Host Configuration

    After the configuration, the PC connected to the LAN port can automatically obtain an IP address from the address pool, as shown in Figure 5-15. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 320 Parameter Description Enable primary DHCP server Indicates whether to enable the primary DHCP server. If the check box is selected, you can set the primary DHCP server. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 321 Indicates the subnet mask of the secondary DHCP server. Start IP Address Indicates the start IP address in the IP address pool on the secondary DHCP server. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 322: Wlan

    Enable WLAN option box. In the dialog box that is displayed, set the basic Wi-Fi parameters, including the SSID, authentication mode, and encryption mode, as shown in Figure 5-16. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 323 SSID1, named WirelessNet is created after the creation of an ONT. The system can configure up to four SSIDs at a time and cannot assign IP addresses to Wi-Fi terminals by SSID. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 324 ONT and press the WPS icon included with the STA within two minutes, or run the WPS setup program in the STA to install the WPS software. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 325: Security

    Extranet IP address segment. The IP address filter configuration is used to limit communication between an Intranet device and an Extranet device. Table 5-5 describes the parameters related to the IP address filter. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 326: Mac Filter Configuration

    MAC filter rule for the PC to access the Internet, as shown in Figure 5-18. Figure 5-18 MAC Filter Configuration Click Apply to apply the configuration. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 327: Url Filter Configuration

    In the pane on the right, after enabling URL filter and selecting the filter mode, click New. On the dialog box that is displayed, configure the URL filter rule for the PC to access the Internet, as shown in Figure 5-19. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 328: Dos Configuration

    Internet service. As a result, the network service fails. Table 5-7 describes the parameters related to the DoS. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 329: Ont Access Control Configuration

    In the navigation tree on the left, choose Security > ONT Access Control Configuration. In the pane on the right, configure the rule of ONT access control, as shown Figure 5-21. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 330: Route

    WAN interface must obtain the IP address. Therefore, the parameters of the WAN interface must be correctly set. For details, see 5.2.1 WAN Configuration. Click Apply to apply the configuration. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 331: Static Route Configuration

    In the navigation tree on the left, choose Route > Policy Route Configuration. In the pane on the right, click New. In the dialog box that is displayed, set the parameters related to the policy route, as shown in Figure 5-24. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 332: Forward Rules

    Internet. In this way, many applications can run on the host with the specified IP address. The host with the specified IP address receives all connections and files that can be identified. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 333: Portmapping Configuration

    Port mapping indicates that the Intranet server is allowed to be open to the Extranet (for example, the Intranet provides the Extranet with a WWW server or FTP server). Port mapping is to map Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 334: Porttrigger Configuration

    In the pane on the right, click New. In the dialog box that is displayed, set the parameters related to the port trigger, as shown in Figure 5-27. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 335 Indicates the destination start port of the open packet. Open End Port Indicates the destination end port of the open packet. Enable Indicates whether to enable the port trigger. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 336: Network Applications

    Indicates the path of the file downloaded through FTP. Port Number Indicates the FTP port number. It is set to 21 by default. Generally, the setting is not required. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 337: Alg Configuration

    In the navigation tree on the left, choose Network Applications > UPnP Configuration. In the pane on the right, determine whether to enable the UPnP, as shown in Figure 5-30. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 338: Arp Configuration

    ARP entry prevents a device from learning an incorrect ARP entry in the case of malicious attacks. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 339: Portal Configuration

    Click the Network Application tab and then choose DDNS Configuration from the navigation tree. In the right pane, configure DDNS parameters, including Service Provider, Host Name, Service Port, Domain Name, Username, and Password, as shown Figure 5-33. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 340: Igmp Configuration

    Click the Network Application tab and then choose IGMP Configuration from the navigation tree. In the right pane, configure the IGMP parameters, as shown in Figure 5-34. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 341: Qos Configuration

    Click the Network Application tab and then choose Terminal Limit Configuration from the navigation tree. In the right pane, configure relative parameters, as shown in Figure 5-36. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 342: Voice

    VoIP interface can be configured, including the IP addresses of the primary server and secondary server, and digitmap. Configured the Interface Basic Parameters. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 343 Figure 5-38 User Basic Parameters Configuration - SIP protocol Click Apply to apply the configuration. Table 5-13 describes the parameters used for configuring a VoIP interface based on the SIP protocol. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 344 1s to 65534s, and the default value is 600s. Signaling Port Indicates the signaling WAN port used for connecting the VoIP terminal to the SIP server. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 345 VoIP interface can be configured, including the primary MGC server, secondary MGC server, and digitmap. Configured the Interface Basic Parameters. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 346 Figure 5-40 User Basic Parameters Configuration - H.248 protocol Click Apply to apply the configuration. Table 5-14 describes parameters used for configuring a VoIP interface based on the H.248 protocol. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 347 RTP TID Prefix Indicates the prefix of the ephemeral termination. The default prefix on Huawei softswitches is A100. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 348 1-3: Indicates the start version of the H.248 protocol for negotiation. Enable Echo Enables or disables echo cancellation. By default, echo Cancellation cancellation is enabled. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 349: Voip User Configuration

    Indicates whether to enable a voice user. Auth User Name Indicates the authentication user name of a voice user. Password Indicates the authentication password of a voice user. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 350: System Tools

    This topic describes how to use the system tools on the Web page, including using the tools to restart the device, restore the default configuration, and conduct the test. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 351: Reboot

    Click Save and Reboot to save the current configuration to the flash memory and then reboot the device. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 352: Usb Backup Restore Cfg

    In the navigation tree on the left, choose System Tools > Firmware Upgrade. In the pane on the right, click Browse. In the dialog box that is displayed, select the target software Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 353: Restore Default Configuration

    In the navigation tree on the left, choose System Tools > Ping Test. In the pane on the right, enter the destination IP address for the ping test in the IP Address text box, and then click Start, as shown in Figure 5-48. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 354: Log

    Download log File. In the dialog box that is displayed, click Save, specify the path of saving the log file, and save the file to the local disk, as shown in Figure 5-49. Figure 5-49 Log Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 355: Ont Authentication

    In the navigation tree on the left, choose System Tools > Time Setting. In the pane on the right, set the parameters related to the system time, including the SNTP server, time zone, and daylight saving time (DST), as shown in Figure 5-51. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 356 If the static route or default route is not configured, the ONT will fail to obtain time from the SNTP sever. For detailed procedures, see Route. If the SNTP server is configured based on IP address format, you can skip the operation above. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 357: Tr-069

    Indicates the interval for the ONT to send a connection request to the TR-069 server. Period Inform Time Indicates the time for the ONT to send a connection request to the TR-069 server. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 358: Advanced Power Management

    Click the System Tools tab and then choose Modify Login Password from the navigation tree. In the right pane, change the password of the root user, as shown in Figure 5-54. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 359 EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/ HG8447 GPON Terminal Service Manual 5 Web Page Reference Figure 5-54 Modify Login Password Click Apply to apply the configuration. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 360: Technical Specifications

    This topic describes the physical specifications of the ONT, including its dimensions, weight, voltage range, and environment parameters. 6.2 Protocols and Standards This topic provides the protocols and standards which the ports of the ONT comply with. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 361: Physical Specifications

    This topic provides the protocols and standards which the ports of the ONT comply with. GPON: ITU-T G.984 VoIP: H.248, SIP, G.711A/u, G.729a/b, and T.38 Multicast: IGMPv2, IGMPv3, and IGMP snooping Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 362 Routing: NAT, NAPT, and ALG Ethernet: IEEE 802.3ab USB: USB 1.1/USB 2.0 Wi-Fi: IEEE 802.11n NOTE The USB protocol and Wi-Fi protocol are applicable to the HG8245 and HG8247 only. Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

  • Page 363: Acronyms And Abbreviations

    Network Address Translation Network Management System Optical Line Terminal OMCI Optical Network Termination Management and Control Interface Passive Optical Network PPPoE Point to Point Protocol over Ethernet Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
  • Page 364 Universal Plug and Play Uniform Resource Locator VLAN Virtual Local Area Network VoIP Voice over IP WLAN Wireless Local Area Network Wired Equivalent Privacy Wi-Fi Protected Access Wi-Fi Protected Setup Issue 02 (2011-12-08) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
