ESYLUX EP10426155 Manual

GB PRESENCE DETECTOR
GB
D PRESENCE DETECTOR PRäSENzmElDER
Congratulations on your purchase of this high-quality ESYLUX product. To ensure proper operation,
please read these user instructions carefully and keep them for future reference
1 • SAFETY INSTRUCTIONS
CAUTION: Work on the 230 V power system must be carried out by authorised personnel only
with due regard to the applicable installation regulations. Switch off the power supply before
installing the system.
Use this product only as intended (as described in the user instructions). Changes or
modifications to the product or painting it will result in loss of warranty.
You should check the device for damage immediately after unpacking it.
If there is any damage, you should not install the device under any circumstances.
If you suspect that safe operation of the device cannot be guaranteed, you should turn
the device off immediately and make sure that it cannot be operated unintentionally.
2 • DESCRIPTION

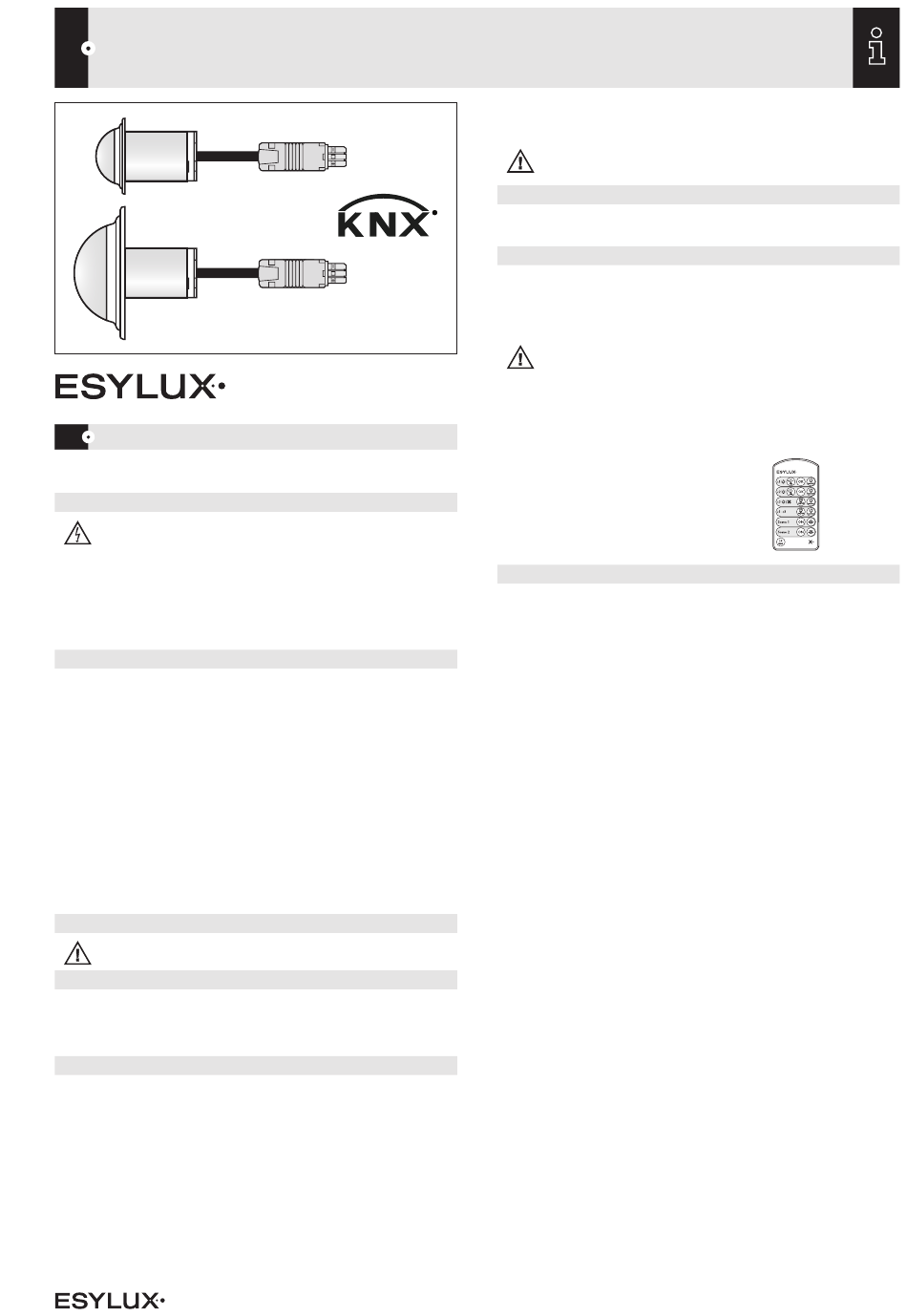

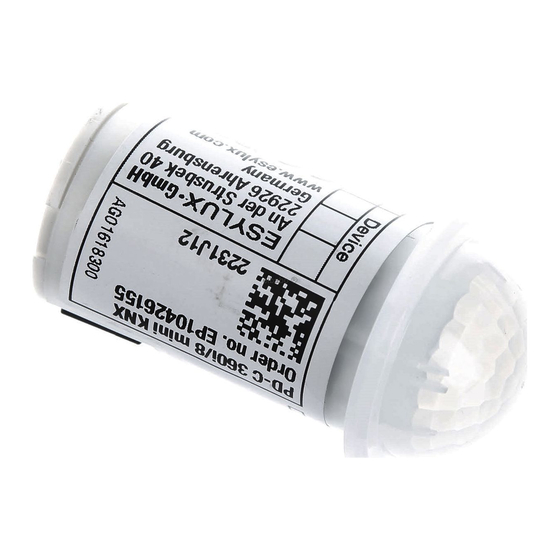

The ESYLUX PD-C360i/8 and 12 mini KNX are presence detectors with a 360° field of
detection and integrated bus coupler for ceiling mounting. The detector is able to control
lighting (switching or constant light control features).
For further features, please refer to the operating instructions "Description of applications".
With a range of up to 8 m or 12 m in diameter, the presence detector is suitable for use
in offices, classrooms, conference facilities and halls with natural lighting.
The PD-C360i/8 and 12 mini KNX are intended to be used in a KNX (EIB), TP bus system
in conjunction with other KNX components.
If the ESYLUX PD-C360i/8 or 12 mini KNX detects that persons are present in its field of
detection, it transmits controlling telegrams for light outputs, depending on ambient bright-
ness, and for HVAC (heating, ventilation and air conditioning) objects.
• Blended light measurement is suitable for FL, PL, halogen and incandescent lamps.
Certified KNX/EIB training centres provide specialist training on how to plan, install,
activate, document and apply the ETS (Engineering Tool Software) that is required for
parameter setting.
3 • INSTAllATION / ASSEmBlY / CONNECTION
See separate assembly instructions.
4 • START-UP
All parameter setting is carried via the ETS (Engineering Tool Software). Thanks to the
supplied magnet, it is possible to activate the programming status for the physical address
for the PD-C360i/8 and 12 mini KNX detectors. The red LED then lights up. The product
database and application description are available to download at www.esylux.com.
5 • SWITCH-ON CHARACTERISTIC / lED INDICATIONS
• Connect the bus supply
A warm-up phase of approx. 60 sec. is initiated.
The red LED and green LED flash slowly (f = 1 Hz).
• LED display after warm-up
Each time motion is detected, this is indicated by 2 x flashes of the green LED.
PD-C360i/8 mini KNX
PD-C360i/12 mini KNX
• PD-C360i/8 mini KNX
•
• PD-C360i/12 mini KNX
•
www.esylux.com
(EP10426155)
(EP10426162)
• In the Master function, the remote control entries will be acknowledged as follows:
acknowledged 3 x with the red LED
• In the Slave function, each detection is acknowledged 2 x with the green LED.
NOTE: The green LED will only light up when motion is detected if it has been
enabled by the ETS (Engineering Tool Software).
6 • TEST mODE
Parameters can be set via the ETS (Engineering Tool Software).
Test mode changes to RUN state after "storing" or 10 min. after activating the test mode.
7 • REmOTE CONTROl
The optional user remote control Mobil-PDi/User (EM10425547) can be used to
control lighting.
The Mobil-PDi/User adjusts the value for the period that persons are present plus
switch-off delay time. Thereafter the values set via the ETS (Engineering Tool Software)
will apply.
NOTE: In the Slave function the detector does not respond to the remote control.
The lighting can be controlled as follows via the Mobil-PDi/User:
• Switching on or off
• Dimming (only with "Controlling" feature)
• Storing and calling up of 2 scenes
• Pressing the Reset button resets the KNX presence detector to the values set
via ETS (Engineering Tool Software).
The stored light scenes 1 + 2 are kept.
For further information, please refer to the operating
instructions for the remote control Mobil-PDi/User.
8 • ESYlUX mANUFACTURER'S GUARANTEE
ESYLUX products are tested in accordance with applicable regulations and manufac-
tured with the utmost care. The guarantor, ESYLUX Deutschland GmbH, Postfach 1840,
D-22908 Ahrensburg, Germany (for Germany) or the relevant ESYLUX distributor in your
country (visit www.esylux.com for a complete overview) provides a guarantee against
manufacturing/material defects in ESYLUX devices for a period of three years from the
date of manufacture.
This guarantee is independent of your legal rights with respect to the seller of the device.
The guarantee does not apply to natural wear and tear, changes/interference caused by
environmental factors or damage in transit, nor to damage caused as a result of failure to
follow the user or maintenance instructions and/or as a result of improper installation. Any
illuminants or batteries supplied with the device are not covered by the guarantee.
The guarantee can only be honoured if the device is sent back with the invoice/receipt,
unchanged, packed and with sufficient postage to the guarantor, along with a brief
description of the fault, as soon as a defect has been identified.
If the guarantee claim proves justified, the guarantor will, within a reasonable period,
either repair the device or replace it. The guarantee does not cover further claims; in par-
ticular, the guarantor will not be liable for damages resulting from the device's defective-
ness. If the claim is unfounded (e.g. because the guarantee has expired or the fault is not
covered by the guarantee), then the guarantor may attempt to repair the device for you for
a fee, keeping costs to a minimum.
Mobil-PDi/User
www.esylux.com
1 / 13
