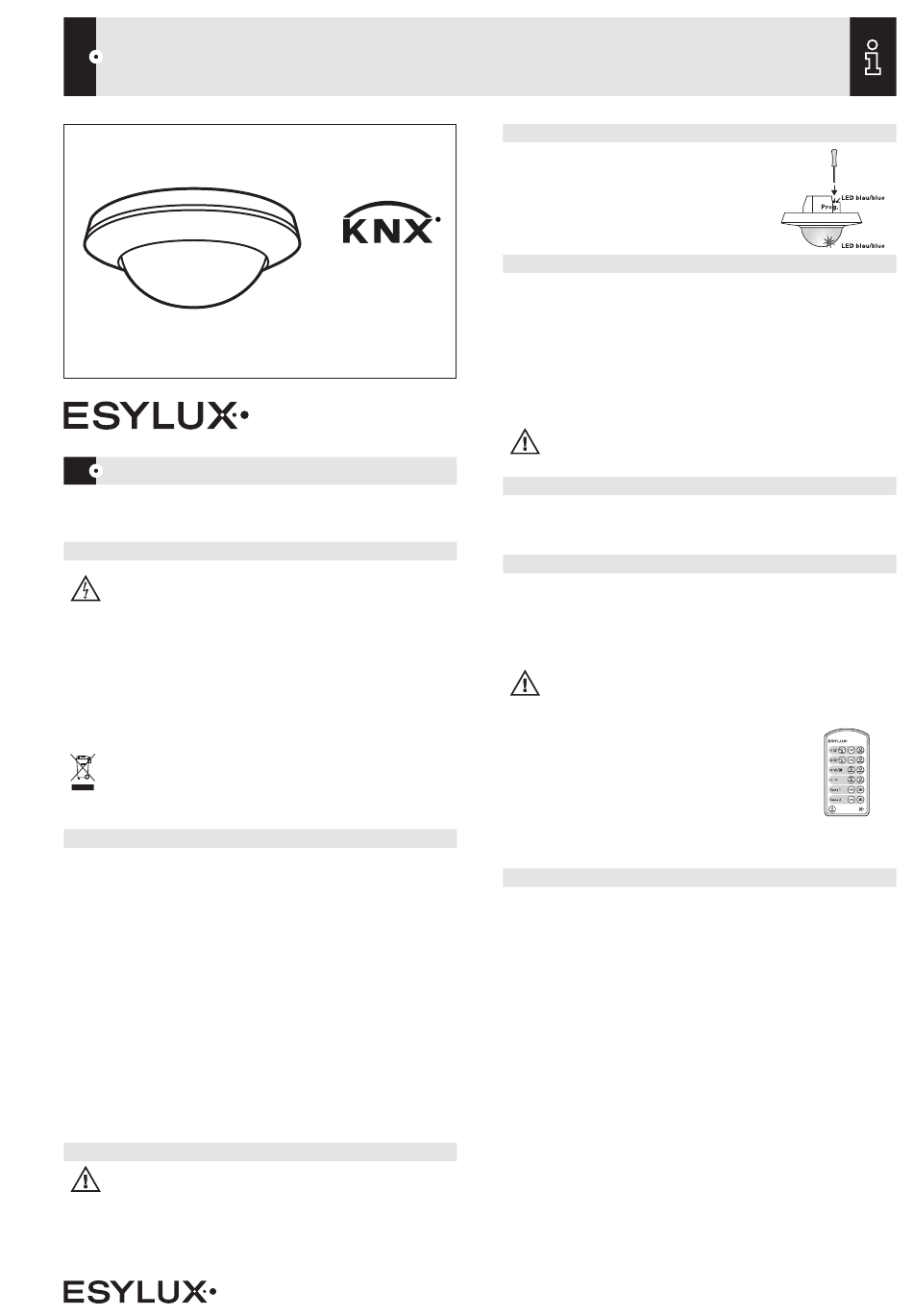

Congratulations on your purchase of this high-quality ESYLUX product. To ensure correct device operation,
please read these installation/operating instructions carefully and keep them in a safe place for future
reference.
1 • SAFETY INSTRUCTIONS
WARNING! Work on electrical systems must be carried out by authorised personnel only, with due
regard to the applicable installation regulations. Switch off the power supply before installing the
system. Please observe the installation regulations laid out in the safety measure for separated
extra-low voltage (SELV).
Use this product only as intended (as described in the user instructions). Do not make any
changes or alterations as this will render any warrantees null and void. You should check the
device for damage immediately after unpacking it. If there is any damage, you should not
install the device under any circumstances.
If you suspect that safe operation of the device cannot be guaranteed, you should turn the
device off immediately and make sure that it cannot be operated unintentionally.
For correct use of the device, ensure that the UC network (or KNX/EIB) to be connected is
designed for protection class 3.
NOTE: this device must not be disposed of as unsorted household waste. Used devices must be
disposed of correctly. Contact your local town council for more information.
2 • DESCRIPTION

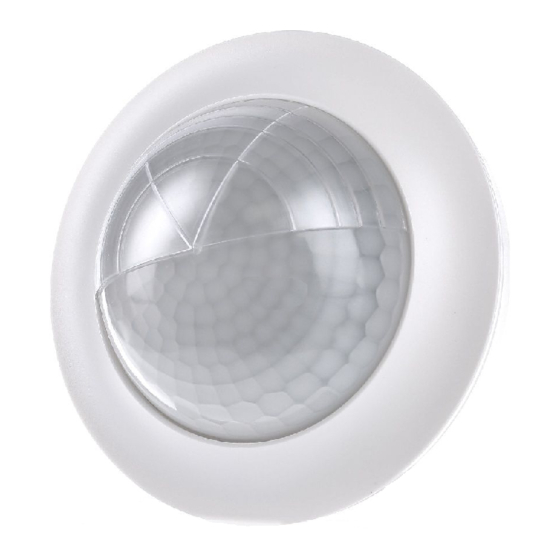

The ESYLUX PD-C360i/24 KNX UP and 24 KNX ECO UP are presence detectors with a
360° field of detection and integrated bus coupler designed for ceiling mounting. Follow the
installation instructions provided when installing the device. The detector is able to control
lighting ("switching" or "constant light control" features).
For additional features, please refer to the "Description of applications" section of the operating
instructions. With a range of up to 24 m in diameter, the presence detector is suitable for use
in offices, classrooms, conference facilities and halls with natural lighting.
The PD-C360i/24 KNX UP / 24 KNX ECO UP is intended to be used in a KNX (EIB), TP bus
system in conjunction with other KNX components.
If the PD-C360i/24 KNX UP / 24 KNX ECO UP detects that persons are present in its
field of detection, it transmits controlling telegrams for light outputs, depending on ambient
brightness, and for HVAC (heating, ventilation and air conditioning) objects.
• Mixed light measurement is suitable for FL, PL, halogen and incandescent lamps.
Certified KNX/EIB training centres provide specialist training on how to plan, install,
activate, document and use the ETS (Engineering Tool Software) that is required for
parameter setting.
3 • INSTALLATION / ASSEMBLY / CONNECTION
See separate installation instructions.
PD-C360i/24 KNX UP
PD-C360i/24 KNX ECO UP
www.esylux.com
PD-C360i/24 KNX UP
(EP10427428)
PD-C360i/24 KNX ECO UP (EP10427435)
4 • START-UP
All parameter settings are carried out via the ETS
(Engineering Tool Software). Pressing the programming
button activates the programming status for the physical
address on the PD-C360i/24 KNX UP / 24 KNX ECO UP.
This is indicated by the blue LED.
The product database and application description are
available to download at www.esylux.com.
5 • SWITCH-ON BEHAVIOUR / LED DISPLAY
• Connect the bus supply
This initiates a warm-up phase that lasts approx. 10 seconds.
The red LED and green LED will slowly flash alternately (f = 1 Hz).
• LED display after warm-up
Each time motion is detected, this is indicated by 2 flashes of the preset LED colour.
• In the "Master" function, the remote control entries will be acknowledged
by 3 flashes from the blue LED.
• In the "Slave" function, each detection is acknowledged by 2 flashes of the green LED.
NOTE: The green LED will only light up when motion is detected if it has been enabled by the ETS
(Engineering Tool Software).
6 • TEST MODE
Parameters can be set via the ETS (Engineering Tool Software).
Test mode switches to the RUN status after "storing", or 10 minutes after activating the test
mode. The blue LED flashes to indicate movement.
7 • REMOTE CONTROL
The optional user remote control Mobil-PDi/User (EM10425547) can be used to regulate/
control the lighting.
The Mobil-PDi/User remote control adjusts the lighting value for the period that persons are
present plus the switch-off delay time. Thereafter, the values set via the ETS (Engineering Tool
Software) will apply.
NOTE: In the "Slave" function the detector does not respond to the remote control!
The Mobil-PDi/User can be used to control the lighting as follows:
• switching on or off
• dimming (only with "controlling" feature)
• storing and calling up of 2 scenes
• pressing the "Reset" button resets the KNX presence detector to the
values set via ETS (Engineering Tool Software). The stored light scenes
1 + 2 are kept.
For further information, please refer to the operating instructions for
the Mobil-PDi/User remote control.
8 • ESYLUX MANUFACTURER'S GUARANTEE
ESYLUX products are tested in accordance with applicable regulations and manufactured
with the utmost care. The guarantor, ESYLUX Deutschland GmbH, Postfach 1840, D-22908
Ahrensburg, Germany (for Germany) or the relevant ESYLUX distributor in your country (visit
www.esylux.com for a complete overview) provides a guarantee against manufacturing/
material defects in ESYLUX devices for a period of three years from the date of manufacture.
This guarantee is independent of your legal rights with respect to the seller of the device.
The guarantee does not apply to natural wear and tear, changes/interference caused by
environmental factors or damage in transit, nor to damage caused as a result of failure to
follow the user or maintenance instructions and/or as a result of improper installation. Any
illuminants or batteries supplied with the device are not covered by the guarantee.
The guarantee can only be honoured if the device is sent back with the invoice/receipt,
unchanged, packed and with sufficient postage to the guarantor, along with a brief
description of the fault, as soon as a defect has been identified.
If the guarantee claim proves justified, the guarantor will, within a reasonable period, either
repair the device or replace it. The guarantee does not cover further claims; in particular,
the guarantor will not be liable for damages resulting from the device's defectiveness. If the
claim is unfounded (e.g. because the guarantee has expired or the fault is not covered by the
guarantee), then the guarantor may attempt to repair the device for you for a fee, keeping
costs to a minimum.
Mobil-PDi/User
www.esylux.com 1/13
