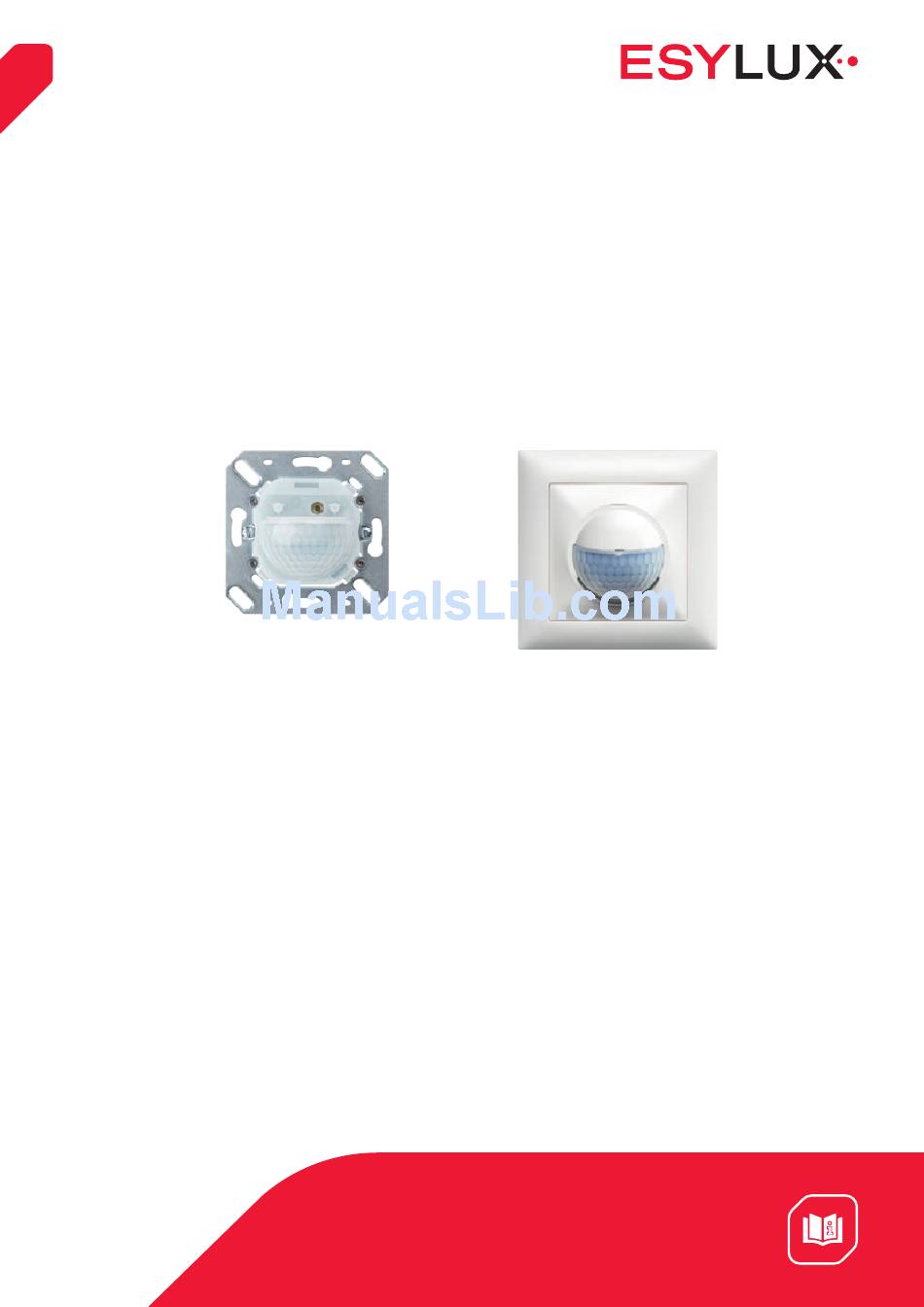

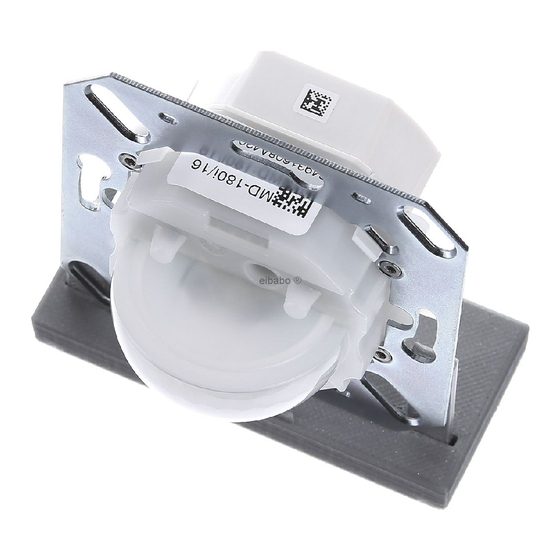

- Page 1 MA00564901 06/2017 Operating instructions MD 180i/16 BASIC MD 180i/16 BASIC CH EB10430459 EB10430602 ESYLUX GmbH | An der Strusbek 40 22926 Ahrensburg | Germany info@esylux.com | www.esylux.com...
-
Page 2: Table Of Contents
Configuring parameters via remote control Mobil-PDi/MDi Mobil-PDi/MDi temporary settings Programming the Mobil-PDi/MDi Mobil-PDi/MDi-universal Mobil-PDi/MDi-universal temporary settings Programming the Mobil-PDi/MDi-universal “12 h ON / OFF” function Technical data Troubleshooting Maintenance Cleaning ESYLUX manufacturer's guarantee MD 180i/16 BASIC 2 / 19 MD 180i/16 BASIC CH... -
Page 3: Description
OPERATING INSTRUCTIONS Description The ESYLUX wall-mounted motion detector is a passive infrared presence detector which responds to moving heat sources, such as people walking. The motion detector is designed for areas with low levels of natural light, such as hallways, cellars, staircases, changing rooms, toilets, garages etc. -
Page 4: Operation / Functionality
OPERATING INSTRUCTIONS Operation / functionality • The ESYLUX wall-mounted motion detector, which has a 180° field of detection, is only suitable for wall mounting • The range is up to 16 m in diameter at a recommended installation height of 1.10 - 2.20 m •... -
Page 5: Switching Delay - Not In Pulse Mode
• Movement crossways to the detector is optimal for triggering the detector; head-on approaches to the detector are more difficult to detect and therefore the range of the detector is significantly reduced 12 m 16 m MD 180i/16 BASIC 5 / 19 MD 180i/16 BASIC CH... -
Page 6: Masking The Field Of Detection
Push button Masking the field of detection Part of the field of detection can be specifically masked off using the lens mask to avoid false alarms being caused by e.g. pets. MD 180i/16 BASIC 6 / 19 MD 180i/16 BASIC CH... -
Page 7: Activation
The lighting is switched on or off continuously for 4 hours Acknowledgement: red LED Press button for approx. 5 second: The lighting is switched on or off continuously for 12 hours Acknowledgement: blue LED MD 180i/16 BASIC 7 / 19 MD 180i/16 BASIC CH... -
Page 8: Configuring Parameters Via Remote Control
Please note that if the sensor is exposed to direct sunlight, the standard detection range of approx. 8 m may be dramatically reduced due to the sun's infrared rays. Mobil-PDi/MDi (EM10425509) MD 180i/16 BASIC 8 / 19 MD 180i/16 BASIC CH... -
Page 9: Mobil-Pdi/Mdi Temporary Settings
Note: The “4 h ON / OFF” mode can be cancelled by pressing the “Reset” button. MD 180i/16 BASIC 9 / 19 MD 180i/16 BASIC CH... -
Page 10: Programming The Mobil-Pdi/Mdi
1 second and off for approx. 9 seconds. This function can be used to control automatic stairwell lights, for example. Acknowledgement: The red LED is switched on for approx. 5 seconds and off for 5 seconds. MD 180i/16 BASIC 10 / 19 MD 180i/16 BASIC CH... - Page 11 Note: The “12 h ON / OFF” mode can only be exited by entering the programming mode and using the “Reset” function. Acknowledgement: The red and blue LEDs flash three times. MD 180i/16 BASIC 11 / 19 MD 180i/16 BASIC CH...
-
Page 12: Mobil-Pdi/Mdi-Universal
“ON” acknowledgement: Movement detected in the field of detection is acknowledged with two short flashes of the red LED. Bat ok “OFF” acknowledgement: Movement detected in the field of detection is acknowledged with one short flash of the red LED. MD 180i/16 BASIC 12 / 19 MD 180i/16 BASIC CH... -
Page 13: Programming The Mobil-Pdi/Mdi-Universal
Channel 1 Channel 2 System Bat ok 2. Then press the button to enter programming mode. Acknowledgement: The blue LED lights up permanently and the lighting is switched on continuously. MD 180i/16 BASIC 13 / 19 MD 180i/16 BASIC CH... - Page 14 3 x = 45 min. Acknowledgement: The blue LED flashes three times in 5-sec. cycles 4 x = 60 min. Acknowledgement: The blue LED flashes four times in 5-sec. cycles MD 180i/16 BASIC 14 / 19 MD 180i/16 BASIC CH...
- Page 15 Acknowledgement: The blue LED is switched off for approx. 2 seconds. MD 180i/16 BASIC 15 / 19 MD 180i/16 BASIC CH...
-
Page 16: 12 H On / Off Function
Note: The “12 h ON / OFF” mode can only be exited by entering programming mode and using the “Reset” function. Bat ok Acknowledgement: The red and blue LEDs flash three times. MD 180i/16 BASIC 16 / 19 MD 180i/16 BASIC CH... -
Page 17: Technical Data
Protection type / protection class IP 40 / II Operating temperature range 0 °C to +50 °C CE according to the following guidelines EMC standard 2004/108/EC LVD standard 2006/95/EC RoHS 2011/65/EU MD 180i/16 BASIC 17 / 19 MD 180i/16 BASIC CH... -
Page 18: Troubleshooting
The device can only be replaced as a complete unit. Note: This device must not be disposed of as unsorted household waste. Used devices must be disposed of correctly. Contact your local town council for more information. MD 180i/16 BASIC 18 / 19 MD 180i/16 BASIC CH... -
Page 19: Cleaning
The guarantor, ESYLUX Deutschland GmbH, Postfach 1840, 22908 Ahrensburg, Germany (for Germany) or the relevant ESYLUX distributor in your country (visit www.esylux.com for a complete overview) provides a guarantee against manufacturing/material defects in ESYLUX devices for a period of three years from the date of manufacture.
