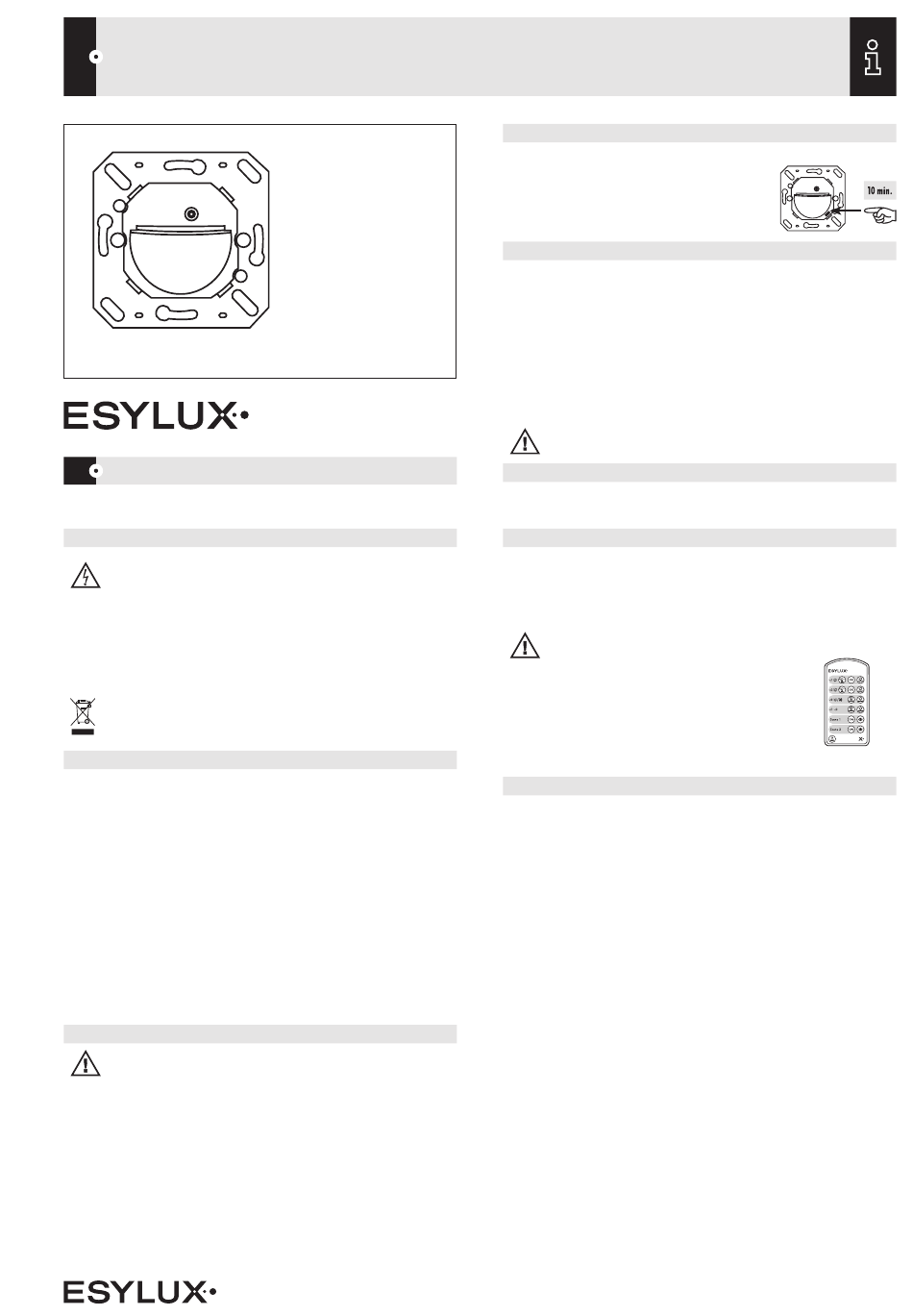

GB OPERATING INSTRUCTIONS
GB
OPERATING INSTRUCTIONS
Congratulations on your purchase of this high-quality ESYLUX product. To ensure proper operation,
please read these user instructions carefully and keep them for future reference.
1 • SAFETY INSTRUCTIONS
CAUTION: work on the 230 V power system must be carried out by authorised personnel only with
due regard to the applicable installation regulations. Switch off the power supply before installing
the system.
Use this product only as intended (as described in the user instructions). Changes or
modifications to the product or painting it will result in loss of warranty. You should check
the device for damage immediately after unpacking it. If there is any damage, you should
not install the device under any circumstances.
If you suspect that safe operation of the device cannot be guaranteed, you should turn the
device off immediately and make sure that it cannot be operated unintentionally.
NOTE: this device must not be disposed of as unsorted household waste. Used devices must be
disposed of correctly. Contact your local town council for more information.
2 • DESCRIPTION

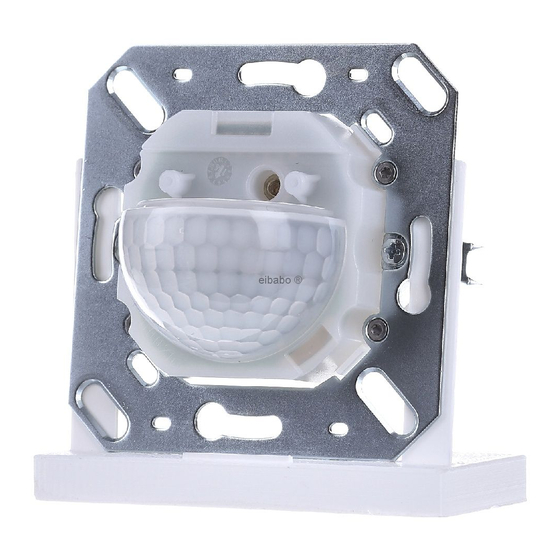

The ESYLUX PD-C180i KNX ECO... is a presence detector with a 180° field of detection
and integrated bus coupler for wall mounting. Perform the installation in accordance with
enclosed installation instructions. The device is able to control lighting ("switching" function).
For further features, refer to "Description of the applications" in the operating instructions.
With a range of up to 8 m in diameter for use in corridors, staircases and passageways
with natural lighting.
The PD-C180i KNX ECO... is only intended to be used in a KNX (EIB), TP bus system in
conjunction with other KNX components.
The ESYLUX PD-C180i KNX ECO... detects that persons are present in its field of detection
and sends controlling telegrams for light outputs depending on ambient brightness.
• Blended light measurement is suitable for FL, PL, halogen and incandescent lamps.
Certified KNX/EIB training centres provide specialist training on how to plan,
install, activate, document and use the ETS (Engineering Tool Software) required
for parameter setting.
3 • INSTALLATION / ASSEMBLY / CONNECTION
See separate installation instructions.
• •
PD-C180i KNX ECO
• •
PD-C180i KNX ECO DK
• •
PD-C180i KNX ECO CH
www.esylux.com
PD-C180i KNX ECO EP10426452
PD-C180i KNX ECO DK EP10426476
PD-C180i KNX ECO CH EP10426490
4 • START-UP
All parameter settings are carried out via the ETS (Engineering
Tool Software). Pressing the recessed touch area (bottom
right next to the lens) activates the programming mode for
the physical address and this is indicated by the blue LED.
The product database and application description can be
downloaded from www.esylux.com.
5 • SWITCH-ON BEHAVIOUR / LED DISPLAY
• Connect the bus supply
A warm-up phase of approx. 10 seconds is initiated.
The red LED and green LED slowly flash alternately (f = 1 Hz).
• LED display after warm-up
Each time motion is detected this is indicated by 2 x flashes of the set LED colour.
• In the "Master" function, the remote control entries are acknowledged as follows:
acknowledged 3 x with the blue LED.
• In the "Slave" function, each detection is acknowledged 2 x with the green LED.
NOTE: When motion is detected, the green LED will only light up if it has been enabled
by the ETS (Engineering Tool Software).
6 • TEST MODE
Parameters can be set via the ETS (Engineering Tool Software).
Switches to the RUN state after "storing", or 10 minutes after activating test mode.
7 • REMOTE CONTROL
The optional user remote control Mobil-PDi/User (EM10425547) can be used to control
the lighting.
The Mobil-PDi/User adjusts the value for the period in which persons are present plus
the switch-off delay time. Thereafter the values set via the ETS (Engineering Tool Software)
will apply.
NOTE: In the "Slave" function, the detector does not respond to the remote control.
The lighting can be controlled as follows via the Mobil-PDi/User:
• switched on or off
• pressing the "Reset" button resets the KNX presence detector
to the values set via ETS (Engineering Tool Software).
For further information, please refer to the remote control
Mobil-PDi/User's operating instructions.
8 • ESYLUX MANUFACTURER'S GUARANTEE
ESYLUX products are tested in accordance with applicable regulations and manufactured
with the utmost care. The guarantor, ESYLUX Deutschland GmbH, Postfach 1840,
D-22908 Ahrensburg, Germany (for Germany) or the relevant ESYLUX distributor in your
country (visit www.esylux.com for a complete overview) provides a guarantee against
manufacturing/material defects in ESYLUX devices for a period of three years from the
date of manufacture.
This guarantee is independent of your legal rights with respect to the seller of the device.
The guarantee does not apply to natural wear and tear, changes/interference caused by
environmental factors or damage in transit, nor to damage caused as a result of failure to
follow the user or maintenance instructions and/or as a result of improper installation.
Any illuminants or batteries supplied with the device are not covered by the guarantee.
The guarantee can only be honoured if the device is sent back with the invoice/receipt,
unchanged, packed and with sufficient postage to the guarantor, along with a brief
description of the fault, as soon as a defect has been identified.
If the guarantee claim proves justified, the guarantor will, within a reasonable period,
either repair the device or replace it. The guarantee does not cover further claims;
in particular, the guarantor will not be liable for damages resulting from the device's
defectiveness. If the claim is unfounded (e.g. because the guarantee has expired or
the fault is not covered by the guarantee), then the guarantor may attempt to repair
the device for you for a fee, keeping costs to a minimum.
Mobil-PDi/User
