- Page 1 AUTOMATION FOR INDOOR AREAS DUO DALI PRESENCE DETECTOR OPERATING MANUAL DUO DALI PRESENCE DETECTOR...
- Page 2 An der Strusbek 40, 22926 Ahrensburg, Germany Details may be subject to change. Copying is only permitted with the written consent of ESYLUX GmbH. This includes translation into other languages and reuse of content for other purposes. 2 / 40...
-
Page 3: Table Of Contents
Table of contents 1. Introduction Information about the document ......................5 Manufacturer/Contact .........................5 Product identification ...........................5 Labelling information ........................... 6 2. Safety Safety instructions ..........................7 Intended use ............................8 Qualification ............................9 3. Overview Product description ..........................9 Included in delivery ..........................10 System overview ...........................10 Accessories .............................11 4. - Page 4 Parametrising light regulation ......................36 Adjusting the level of brightness ......................37 Adjusting the light factor ........................37 6.10 Afterglow............................... 38 6.11 Orientation light ..........................38 7. Maintenance 8. Disposal 9. EU Declaration of Conformity 10. ESYLUX manufacturer's warranty 4 / 40...
-
Page 5: Introduction
The current version of this document is available on the Internet at www .esylux.com as a PDF file. It can be printed out if required. Read the document carefully before using the product. -
Page 6: Labelling Information

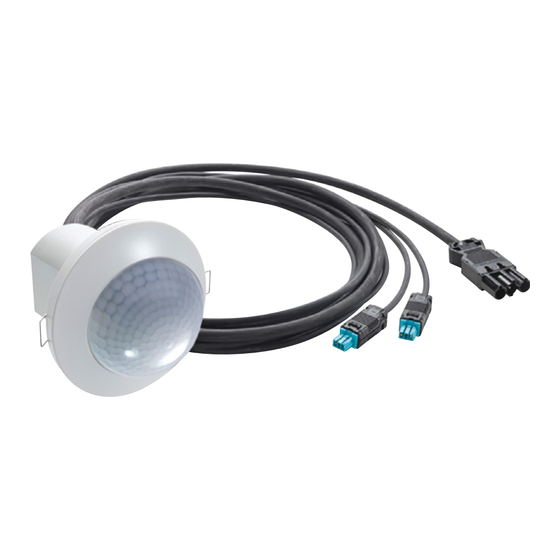

PD-C 360i/24 DUO DALI WAGO WINSTA CodeA/I PD-C 360i/8 DUO DALI WAGO WINSTA CodeB PD-C 360i/24 DUO DALI WAGO WINSTA CodeB PD-C 360i/8 DUO DALI WIELAND GST18 PD-C 360i/24 DUO DALI WIELAND GST18 The item number and product name are located on the name plate of the products. -
Page 7: Safety
Safety Safety Safety instructions Electrical devices connected to a 230 V mains supply may only be Specialist personnel assembled and commissioned by electrical installation technicians or trained electricians, taking country-specific regulations into account. The following residual risks exist: DANGER! Risk of fatal injury from electric shock! Always observe the five safety rules: ¾... -
Page 8: Intended Use
Safety CAUTION! Damage due to improper connection. Reverse polarity or short-circuiting of the bus cable can result in malfunctions or damage to the components. CAUTION! Damage due to improper cleaning. Cleaning with alcohol-based, corrosive or abrasive cleaning agents or scouring pads can damage the surface and lens of the device and cause malfunctions. -
Page 9: Qualification
Exclusively suitable for light regulation in a DALI system • Two independent DALI buses for channel 1 (C1) and channel 2 (C2) • Two additional virtual channels C3 and C4 for ESYLUX DALI switching actuator • Sends DALI commands as broadcast message •... -
Page 10: Included In Delivery
Overview Included in delivery The scope of delivery of the product includes: • Presence detector • Lens mask • Quick installation guide • Safety instructions System overview Connection diagram of a simple room automation system for controlling light Connection and HVAC: 10 / 40... -
Page 11: Accessories
Overview Accessories The following accessories are available for this product: Item no. Item designation Description EP10425356 ESY-Pen Bluetooth remote control + ESY Control app: Parametrisation, remote control, light measurement and project management. EP10425370 Surface-mounted box Not for WAGO, WIELAND and FM versions EP1045929 Recessed ceiling Not for WAGO, WIELAND... -
Page 12: Installation
Installation Installation Installation Possible installation types: • Installation in suspended ceilings and flush-mounted boxes • Installation using the surface-mounted box • Installation using the recessed ceiling mounting set (required accessories only included in the scope of delivery for WAGO, WIELAND and FM versions) with accessory with accessory Installation types... - Page 13 Installation The presence detector is a control device with an integrated interface supply. • Addressing of the DALI operating devices is not required. • All DALI operating devices are addressed at the same time via the broadcast address. • Max. 25 DALI operating devices per channel can be connected. •...
-
Page 14: Connection
Installation C2 = window side C1 = wall side Connection 4.2.1 Preparing the connection Connecting Observe the following when connecting the devices. DANGER! Risk of fatal injury from electric shock! Connect the mains voltage. ¾ Check that the relevant components have been de-energised. ¾... -
Page 15: Connecting Dali Devices
Wiring diagram for DUO DALI devices 4.2.2 Connecting DALI devices DALI operating devices that control luminaires and ESYLUX ACTUATORS that convert digital commands from DALI presence detectors and other ESYLUX lighting controllers (such as the lighting systems) into switching actions can be connected to the DALI interface. -
Page 16: Commissioning
Commissioning Commissioning Warm-up phase The presence detector initiates a warm-up phase each time the mains voltage is connected. Connect the mains voltage. ¾ Initialisation A warm-up phase of approx. 25 s begins. During this time, the lighting is switched on. The red (channel 1 = C1), green (channel 2 = C2) and blue LEDs flash alternately. -
Page 17: Functions
5.3.2 Presence-dependent switching Channels 3 (C3) and 4 (C4) for the ESYLUX DALI switch actuators are controlled exclusively via motion, regardless of the ambient light. Use for HVAC or other devices (e.g. panel light). -
Page 18: Switching On - Automatic (Fully Automatic)
Commissioning 5.3.3 Switching on – automatic (fully automatic) When the detector has been triggered by motion and the ambient light has fallen below the preset light value. The red and green LEDs are active as indicators for motion detection = two short flashes when motion is detected (only in control mode) / one short flash when movement is detected after manual override. -
Page 19: Automatic Switch-Off
Commissioning 5.3.6 Automatic switch-off If motion is no longer detected, the preset switch-off delay time will start. After this time has elapsed, the detector switches to the switch-off warning (factory setting = 60 s). However, should the natural lighting level increase and the ambient lighting level exceed the preset light value, the detector automatically switches the lighting off after 5 min regardless of any motion/ presence. -
Page 20: Afterglow
Commissioning 5.3.9 Afterglow Afterglow is an additional function for light regulation or light control. It can be set via the ESY Control app in the range 0 … 240 min. Afterglow starts after the switch-off delay time of light regulation or light control has elapsed and prevents unwanted darkness. The light output of the afterglow corresponds to the light output of the orientation light. -
Page 21: Configuration
It enables communication between mobile end devices (smart phone, tablet) and ESYLUX automation and lighting solutions without the need for physical interfaces. In combination with the free ESY Control app, all remote- controlled ESYLUX products can be easily put into operation. 21 / 40... - Page 22 Configuration Item no. Item designation EP10425899 Remote Control PDi DALI IR remote control for DALI presence and motion detectors. EM10425547 Remote Control PDi User IR remote control for end users of presence detectors. 22 / 40...
-
Page 23: Adjustable Parameters And Functions
Configuration 6.1.2 Adjustable parameters and functions These parameters and functions can be set temporarily: Channels 1 + 2 Luminous efficiency On/Off DIM stop Channels 3 + 4 On/Off 4 h on/off Channels 1 – 4 On/Off 4h on/off Light/time values and operating modes 6.1.3 DIP switch settings DIP switches on the detector... -
Page 24: Setting Fully Automatic Operation
Configuration DIP switch 2 - Remote lock off; remote control possible at any time - Remote lock on; remote control possible for 30 min after the warm- up phase; then locked (sabotage protection) DIP switch 3 - 2-button operation, buttons 1 and 2 control C1 and C2 - 1-button operation, button 1 controls both channels... -
Page 25: Settings Via App
Configuration Situation 2: If the light value is above the set level of brightness, the light is switched on by pressing a button (manual override) and remains switched on until no more motion is detected. Semi-automatic Classic: In the variant semi-automatic Classic, the detector switches to control mode by pressing a button. -
Page 26: Operating Groups
Configuration 6.2.2 Operating groups Configurations can be made in three operating groups: 26 / 40... -
Page 27: Installing The App
Configuration User Advanced Expert 6.2.3 Installing the app: Download the app from the app store ¾ Install and open the app ¾ (Check for updates and the latest versions of the app) Note on data protection: The data used by the app is not stored or used outside the mobile device. 6.2.4 Operation of the USER menu < User >... -
Page 28: Operation Of Advanced Menu
Configuration 6.2.5 Operation of ADVANCED menu < ADVANCED > Operating mode Fully automatic Light regulation/light control is started automatically by presence detection. Semi-automatic Classic By pressing a button, the detector goes into control mode and the lighting is automatically switched off when the set level of brightness is exceeded or presence is no longer detected. - Page 29 Configuration < ADVANCED > Orientation light on/off The orientation light enables discreet illumination in the dark, regardless of presence in the room. The orientation light can be activated and deactivated at this point. Minimum illumination of a room, even if no presence is detected. Luminous efficiency of Can be parametrised to 10 % to 50 % of orientation light...
-
Page 30: Operation Of Expert Menu
Configuration < ADVANCED > Activate/deactivate night light Enable switching the night light on or off. See also "6.4.1 Starting and stopping the night light" on page 34 Luminous efficiency of Can be parametrised from 10 %… 100 %. night light Value of the light output in relation to the set level of brightness. - Page 31 Configuration < EXPERT > Fast fade time Can be parametrised from 0 … 675 ms. Time in which the LED operating device dims from level to level. Dimming curve Setting value for operating device. logarithmic = factory setting linear = if the operating device can only dim linearly.
-
Page 32: Settings Via Button
Configuration < EXPERT > Configuration of push button Adjustable values: inputs/2-button mode - Master - individual Master = when first switched on by push button (S1 or S2), both channels C1 and C2 are switched on together. The channels can then be controlled separately using buttons S1 = C1 and S2 = C2. -
Page 33: Setting 2-Button Operation
Configuration The desired ambient brightness can be selected by pressing the button for longer (> 2 s). Press and hold the button until the desired ambient brightness ¾ is reached. This preset ambient brightness level will be maintained for as long as people are present in the room. -
Page 34: Starting And Stopping The Night Light
Configuration Activating the night light Deactivating the night light 6.4.1 Starting and stopping the night light When the night light function is activated, the night light can be switched on and off by briefly pressing a button on the S1. When the night light is switched on, the factory-set night light output of the detector (10 %) is permanently switched on (the sensor LED lights up green) –... -
Page 35: 1-Button Operation
Configuration 1-button operation Status brief press long press Night light Push Night light ON Manual dimming button 1 (green LED lights up) (OFF, 10 … 100 %) With switch-off delay time Night light Push Night light OFF Manual dimming button 1 (green LED OFF) (OFF, 10 …... -
Page 36: Parametrising Light Regulation
Configuration Increase the orientation light [%] : The light output of the night light [%] must first be set to at least the ¾ same value as the orientation light. The detector will not accept light outputs that deviate from this. Examples: Orientation light 10 % and night light 30 % = permissible Orientation light 10 % and night light 10 % = permissible... -
Page 37: Adjusting The Level Of Brightness
Configuration Adjusting the level of brightness The level of brightness is the target value for light regulation. Calculation example – adjusting the level of brightness: The factory-set level of brightness is 500 lx. The measured illuminance at the workplace is 450 lx. Level of brightness −... -
Page 38: Afterglow
Configuration 6.10 Afterglow Afterglow is an additional function for light regulation or light control. It can be set via the ESY Control app from 0 … 240 min. % max. % min. The afterglow duration determines how long – after the switch-off delay time – the afterglow is activated. -
Page 39: Maintenance
Maintenance Switching on: • No motion is detected in the field of detection. • The preset switch-off delay time for the lighting duration has elapsed. • The ambient light is below the set brightness setpoint. The motion detector switches the orientation light on. Switching off: •... - Page 40 ESYLUX manufacturer's warranty ESYLUX manufacturer's warranty The ESYLUX manufacturer's guarantee can be found on the relevant product page at www.esylux.com. 40 / 40...
