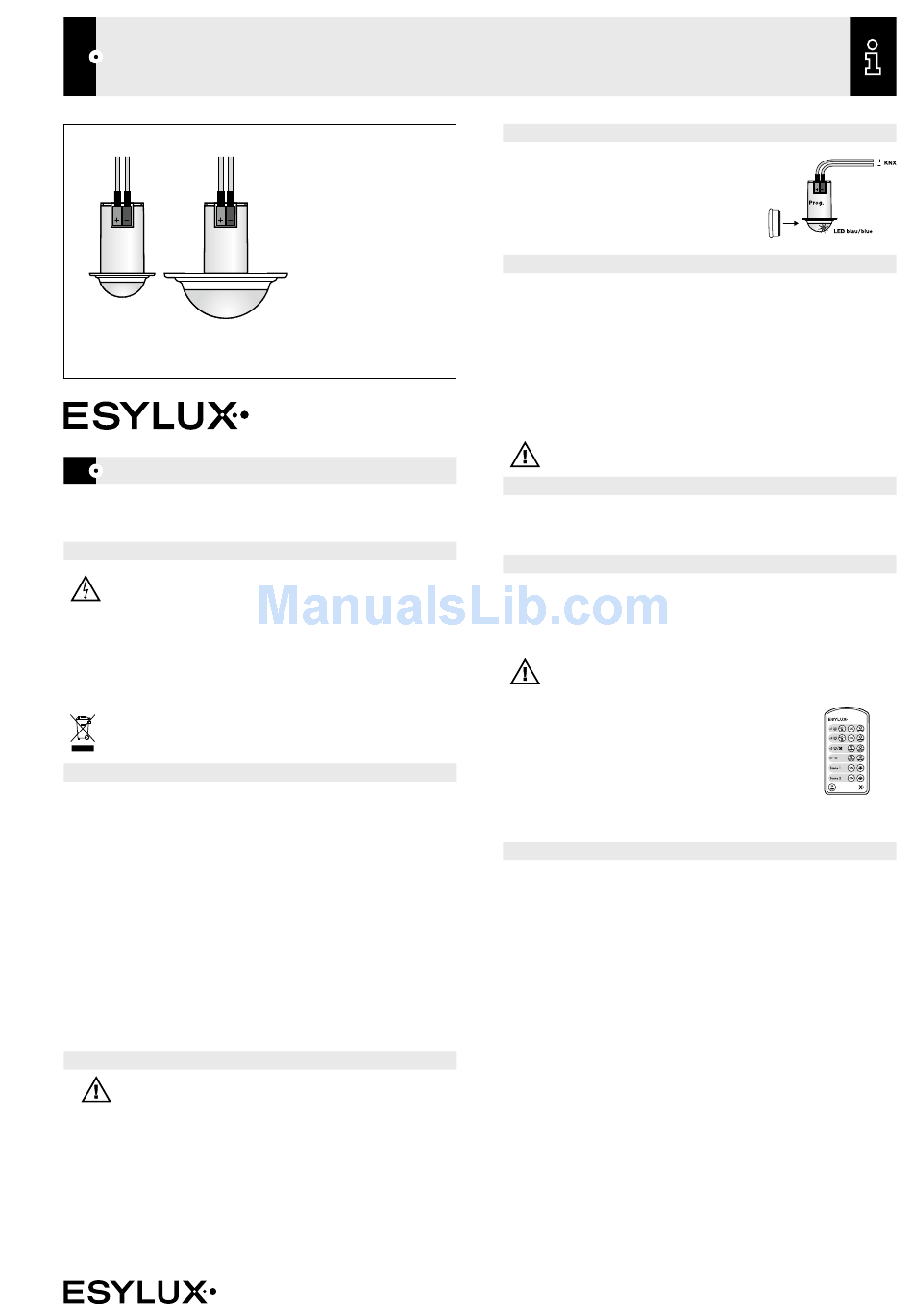

OPERATING INSTRUCTIONS
GB
OPERATING INSTRUCTIONS
Congratulations on your purchase of this high-quality ESYLUX product. To ensure correct device operation,
please read these installation/operating instructions carefully and keep them in a safe place for future
reference.
1 • SAFETY INSTRUCTIONS
CAUTION: work on the 230 V power system must be carried out by authorised personnel only with
due regard to the applicable installation regulations. Switch off the power supply before installing
the system.
Use this product only as intended (as described in the user instructions). Changes or
modifications to the product or painting it will result in loss of warranty. You should check the
device for damage immediately after unpacking it. If there is any damage, you should not
install the device under any circumstances.
If you suspect that safe operation of the device cannot be guaranteed, you should turn the
device off immediately and make sure that it cannot be operated unintentionally.
NOTE: this device must not be disposed of as unsorted household waste.
Used devices must be disposed of correctly. Contact your local town council
for more information.
2 • DESCRIPTION
The ESYLUX PD-C360i/8 and 12 mini KNX are presence detectors with a 360° field of
detection and integrated bus coupler designed for ceiling mounting. Follow the installation
instructions provided when installing the device. The detector is able to control lighting
("switching" or "constant light control" features).
For additional features, please refer to the "Description of applications" section of the operating
instructions. With a range of up to 8 m or 12 m in diameter, the presence detector is suitable for
use in offices, classrooms, conference facilities and passageways with natural lighting.
The PD-C360i/8 and 12 mini KNX are only intended for use in a KNX (EIB), TP (twisted pair)
bus system in conjunction with other KNX components.
If the PD-C360i/8 or 12 mini KNX detects that persons are present in its field of detection, it
transmits regulating or controlling telegrams for light outputs, depending on ambient brightness,
and for HVAC (heating, ventilation and air conditioning) objects.
• Blended light measurement is suitable for FL, PL, halogen and incandescent lamps.
Certified KNX/EIB training centres provide specialist training on how to plan, install, activate,
document and use the ETS (Engineering Tool Software) that is required for parameter setting.
3 • INSTALLATION / ASSEMBLY / CONNECTION
See separate installation instructions.
••
PD-C360i/8 mini KNX
••
PD-C360i/12 mini KNX
www.esylux.com
PD-C360i/8 mini KNX
(EP10426155)
PD-C360i/12 mini KNX
(EP10426162)
from version D
4 • START-UP
All parameter settings are carried out via the ETS
(Engineering Tool Software). The magnet provided
can be used to activate the programming status for the
physical address on the PD-C360i/8 and 12 mini KNX.
This is indicated by the blue LED. The product database
and application description are available to download
at www.esylux.com.
5 • SWITCH-ON BEHAVIOUR / LED DISPLAY
• Connect the bus supply
This initiates a warm-up phase that lasts approx. 10 seconds.
The red LED and green LED will slowly flash alternately (f = 1 Hz).
• LED display after warm-up
Each time motion is detected, this is indicated by 2 x flashes of the preset LED colour.
• In the "Master" function, the remote control entries will be acknowledged
by 3 flashes from the blue LED .
• In the "Slave" function, each detected movement is acknowledged by 2 flashes from the green LED.
NOTE: The green LED will only light up when motion is detected if it has been enabled by the ETS
(Engineering Tool Software).
6 • TEST MODE
Parameters can be set via the ETS (Engineering Tool Software).
Test mode switches to the RUN status after "storing", or 10 minutes after activating the test
mode. The blue LED flashes to indicate movement.
7 • REMOTE CONTROL
The optional user remote control Mobil-PDi/User (EM10425547) can be used to regulate/
control the lighting.
The Mobil-PDi/User remote control adjusts the value for the period that persons are present plus
the switch off time. Thereafter, the values set via the ETS (Engineering Tool Software) will apply.
NOTE: In the "Slave" function the detector does not respond to the remote control!
The Mobil-PDi/User can be used to control the lighting as follows:
• switching on or off
• dimming (only with "controlling" feature)
• storing and calling up of 2 scenes
• pressing the "Reset" button resets the KNX presence detector
to the values set via ETS (Engineering Tool Software). The stored
light scenes 1 + 2 are kept.
For further information, please refer to the operating instructions
for the Mobil-PDi/User remote control.
8 • ESYLUX MANUFACTURER'S GUARANTEE
ESYLUX products are tested in accordance with applicable regulations and manufactured
with the utmost care. The guarantor, ESYLUX Deutschland GmbH, Postfach 1840, D-22908
Ahrensburg, Germany (for Germany) or the relevant ESYLUX distributor in your country (visit
www.esylux.com for a complete overview) provides a guarantee against manufacturing/
material defects in ESYLUX devices for a period of three years from the date of manufacture.
This guarantee is independent of your legal rights with respect to the seller of the device.
The guarantee does not apply to natural wear and tear, changes/interference caused by
environmental factors or damage in transit, nor to damage caused as a result of failure to
follow the user or maintenance instructions and/or as a result of improper installation. Any
illuminants or batteries supplied with the device are not covered by the guarantee.
The guarantee can only be honoured if the device is sent back with the invoice/receipt,
unchanged, packed and with sufficient postage to the guarantor, along with a brief
description of the fault, as soon as a defect has been identified.
If the guarantee claim proves justified, the guarantor will, within a reasonable period, either
repair the device or replace it. The guarantee does not cover further claims; in particular,
the guarantor will not be liable for damages resulting from the device's defectiveness. If the
claim is unfounded (e.g. because the guarantee has expired or the fault is not covered by the
guarantee), then the guarantor may attempt to repair the device for you for a fee, keeping
costs to a minimum.
Mobil-PDi/User
www.esylux.com 1/12
