Summary of Contents for Jaypro Sports FNFB-30

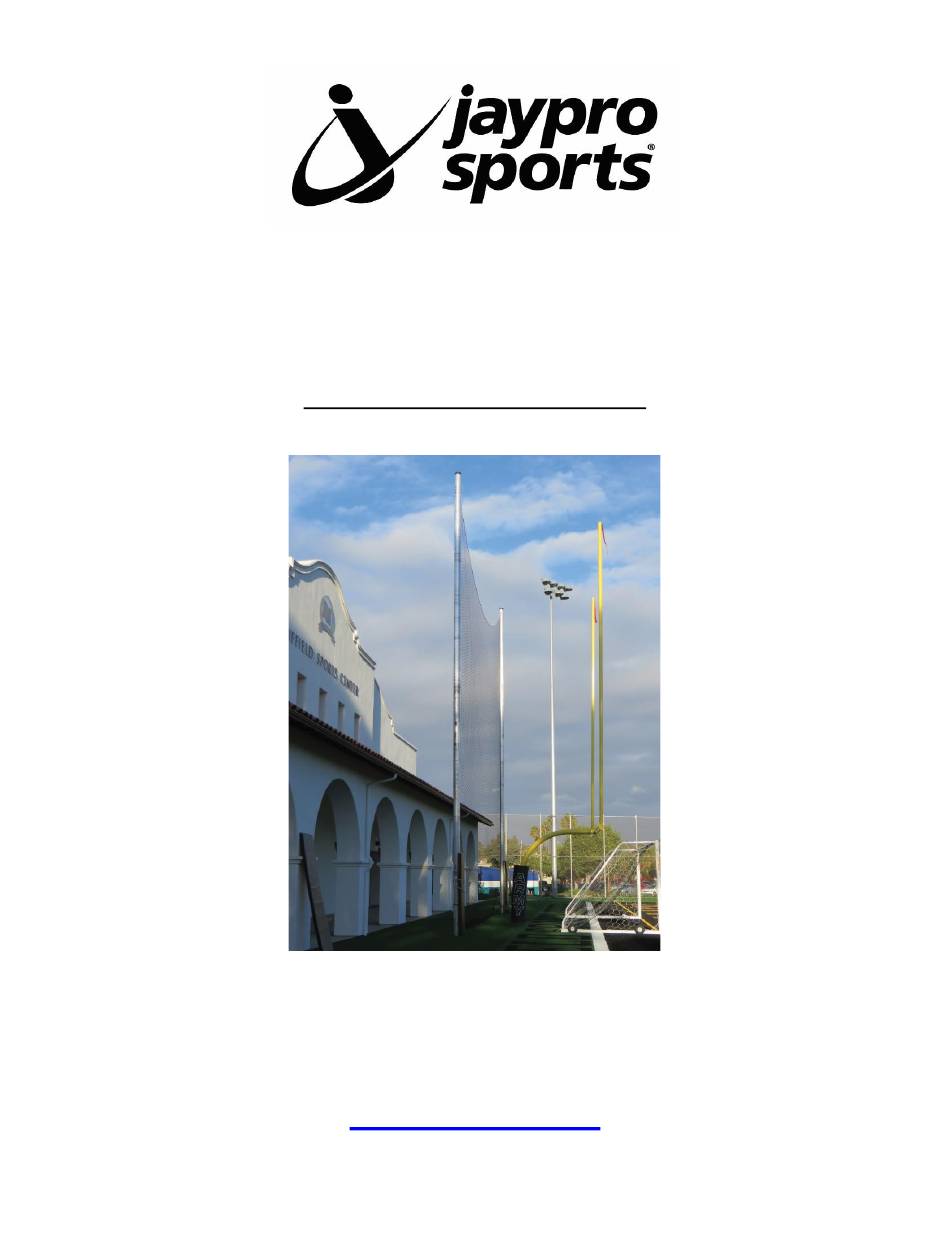

- Page 1 FNFB-30 (30 FT FIELDPRO FOOTBALL BACKSTOP SYSTEM) Installation Instructions Call Jaypro Sports Equipment at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com Rev: C Page 1 of 8...
- Page 2 2) USE OF THIS EQUIPMENT OTHER THAN INTENDED MAY BE HAZARDOUS. 3) ALTERATION OR MODIFICATION OF THIS EQUIPMENT MAY BE HAZARDOUS AND RESULT IN INJURY. FOR REPAIR OR REPLACEMENT, CONTACT YOUR DEALER OR JAYPRO SPORTS. Rev: C Page 2 of 8...
- Page 3 TOOLS REQUIRED: (1) 3/8” Socket Wrench and Box Wrench (1) 7/16” Nut Driver (1) 9/16” Socket Wrench and Box Wrench (1) Cable Cutters (1) 3/16 in Rivet Gun SPECIAL NOTES: • Spacing between poles is 41 ft. • It is recommended, but not required, that poles be placed 25’ to 30’ behind goalposts. •...
- Page 4 Figure 2 Install Pole Hardware: The pole is assembled prior to lifting into the ground sleeve. Assemble 1/2” eye nut hardware & 1/4" cleat hardware and pole cap onto the poles as shown in Figure 3 & 4. Route the hoisting rope through the pulley. Attach the snap hook to the hoisting rope with a bowline knot.
- Page 5 POLE ~ BACK SIDE ~ 1/4"-20 x 8" HEX HD SCREW 1/4"-20 NYLON LOCK NUT 1/4" FLAT WASHER 6" LONG CLEAT 1/2" FLAT WASHER 1/2" LOCK WASHER 1/2”-13 x 8” HEX HD 1/2”-13 EYE NUT 1/2" FLAT WASHER ~ BACK SIDE ~ 5/16"...
- Page 6 Net: Lay the net out lengthwise and cut the 3/16” coated aircraft cable to length, extending each end enough to make up the loop. Make up a loop, as shown in Figure 5, on both ends of the cable. Attach a cable to both the top and bottom edges of the net using the cable ties.
- Page 7 Install Net: Lay the net sections out lengthwise along the base of the poles. Attach the hoisting ropes to each cable end. Slowly raise the net up once the net is fully raised, secure the bottom edge of net to the pole as shown in Figure 6. END OF JOISTING ROPE TIE KNOT TO 5/16"...
- Page 8 MAINTENANCE: • Before and after each season, thoroughly inspect the net for wear. Repair any holes to prevent them from getting wider. • Remove and store the net after the seasons use. • Remove and or lower and secure all netting if a major storm or extreme winds more than 50 mph are forecasted.
