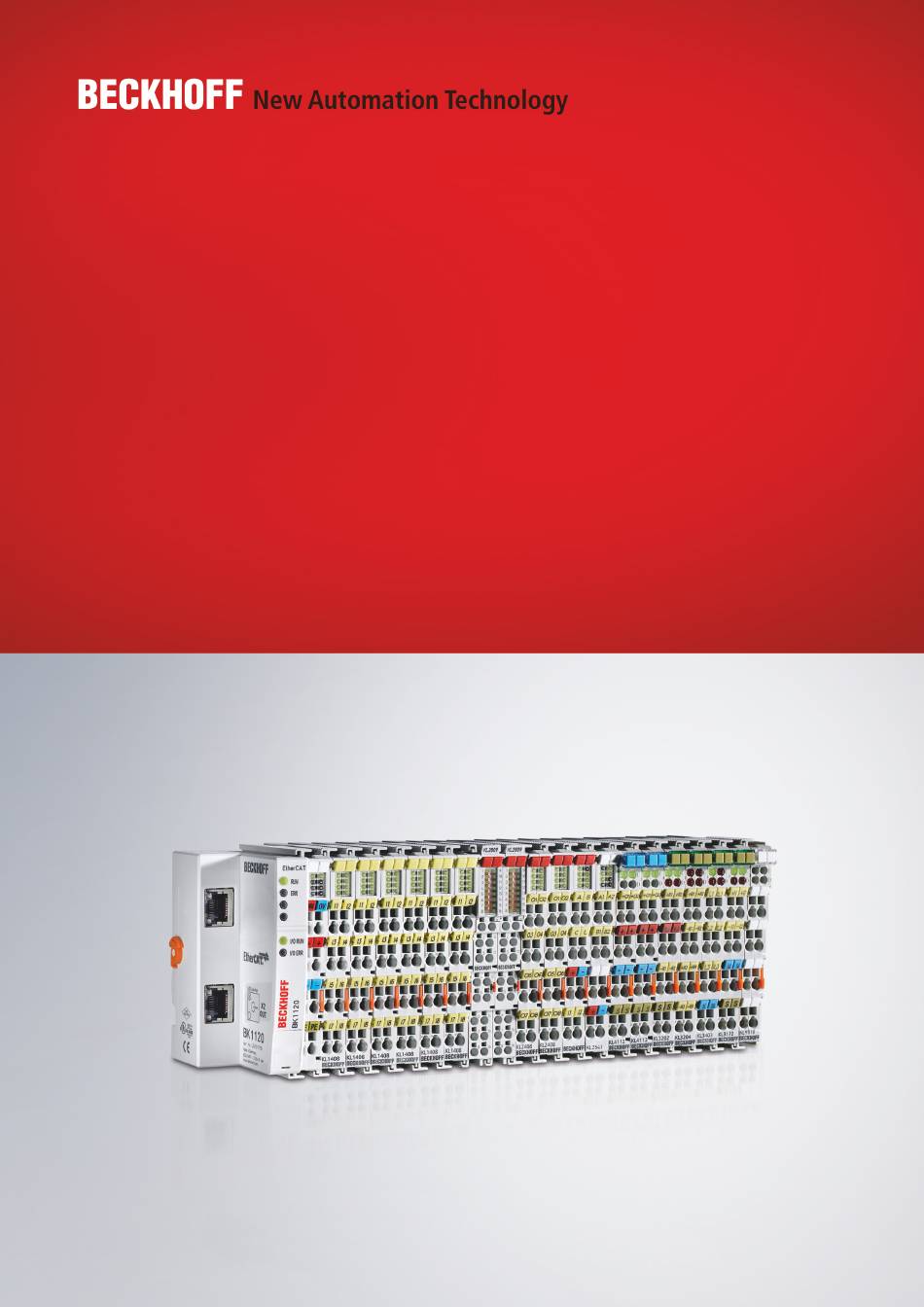

- Page 1 Documentation | EN KL2502/KS2502, KL2512/KS2512 Dual Channel Pulse Width Output Terminals, 24 V DC 2021-08-23 | Version: 4.4.0...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Foreword .............................. 5 Notes on the documentation...................... 5 Safety instructions .......................... 6 Documentation issue status ...................... 7 Beckhoff Identification Code (BIC) .................... 8 2 Product overview............................. 10 KL2502/KS2502 - Introduction ...................... 10 2.1.1 KL2502-0010 ........................ 11 KL2512/KS2512 - Introduction ...................... 12 Technical data .......................... 13... - Page 4 Table of contents Version: 4.4.0 KL2502/KS2502, KL2512/KS2512...
-
Page 5: Foreword
, XTS and XPlanar are registered trademarks of and licensed by Beckhoff Automation GmbH. Other designations used in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owners. Patent Pending... -
Page 6: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards. -
Page 7: Documentation Issue Status
• Chapter cFMus - Special conditions added • Chapter Disposal added • New title page • Chapter Instructions for ESD protection updated • Chapter Beckhoff Identification Code (BIC) added • Structure update • Technical data updated • Revision status updated •... -
Page 8: Beckhoff Identification Code (Bic)
Foreword Beckhoff Identification Code (BIC) The Beckhoff Identification Code (BIC) is increasingly being applied to Beckhoff products to uniquely identify the product. The BIC is represented as a Data Matrix Code (DMC, code scheme ECC200), the content is based on the ANSI standard MH10.8.2-2016. - Page 9 Example of composite information from item 1 to 4 and 6. The data identifiers are marked in red for better display: An important component of the BIC is the Beckhoff Traceability Number (BTN, item no. 2). The BTN is a unique serial number consisting of eight characters that will replace all other serial number systems at Beckhoff in the long term (e.g.
-
Page 10: Product Overview
Fig. 2: KL2502 - Two-channel pulse width output terminal 24 V The KL2502/KS2502 output terminals modulate the pulse width of a binary signal, and outputs it electrically isolated from the K-bus. The mark/space ratio is prescribed by a 16 bit value from the automation device. -
Page 11: Kl2502-0010
Number of output pulses. If the frequency setting is positive, the pulses are counted forward, if it is negative, the pulses are counted backward. DIN of the terminal: Frequency setting with 8 Hz/digit and sign as direction setting. KL2502/KS2502, KL2512/KS2512 Version: 4.4.0... -
Page 12: Kl2512/Ks2512 - Introduction
30,000 steps. The PWM frequency can be changed. The power transistors switch the ground connection and are electrically isolated from the internal K-bus. Version: 4.4.0 KL2502/KS2502, KL2512/KS2512... -
Page 13: Technical Data
II 3 D Ex tc IIIC T135 °C Dc IECEx Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx/Ex ec IIC T4 Gc KL2502/KS2502, KL2512/KS2512 Version: 4.4.0... -
Page 14: Basic Function Principles
In the delivery state the KL2502 terminal occupies 6 bytes in the process image. The mapping of the KL2502 can be set by means of the controller or by the Bus Coupler's configuration interface using the Beckhoff KS2000 configuration software. - Page 15 Status bit 1 remains set as long as the output is active and status bit 2 returns the status of channel 1. KL2502/KS2502, KL2512/KS2512 Version: 4.4.0...
-
Page 16: Mounting And Wiring
• Each assembly must be terminated at the right hand end with a KL9010 bus end terminal, to ensure the protection class and ESD protection. Fig. 4: Spring contacts of the Beckhoff I/O components Version: 4.4.0 KL2502/KS2502, KL2512/KS2512... -
Page 17: Installation On Mounting Rails
To mount the mounting rails with a height of 7.5 mm under the terminals and couplers, you should use flat mounting connections (e.g. countersunk screws or blind rivets). KL2502/KS2502, KL2512/KS2512 Version: 4.4.0... -
Page 18: Fig. 6 Disassembling Of Terminal
EL91xx, EL92xx) interrupt the power contacts and thus represent the start of a new supply rail. PE power contact The power contact labeled PE can be used as a protective earth. For safety reasons this contact mates first when plugging together, and can ground short-circuit currents of up to 125 A. Version: 4.4.0 KL2502/KS2502, KL2512/KS2512... -
Page 19: Fig. 7 Power Contact On Left Side
Power Feed Terminals can be released and pulled at least 10 mm from the group of terminals. WARNING Risk of electric shock! The PE power contact must not be used for other potentials! KL2502/KS2502, KL2512/KS2512 Version: 4.4.0... -
Page 20: Connection
Insert the new component and plug in the connector with the wiring. This reduces the installation time and eliminates the risk of wires being mixed up. The familiar dimensions of the terminal only had to be changed slightly. The new connector adds about 3 mm. The maximum height of the terminal remains unchanged. Version: 4.4.0 KL2502/KS2502, KL2512/KS2512... -
Page 21: Fig. 10 High Density Terminals
Ultrasonically “bonded” (ultrasonically welded) conductors Ultrasonically “bonded” conductors It is also possible to connect the Standard and High Density Terminals with ultrasonically “bonded” (ultrasonically welded) conductors. In this case, please note the tables concerning the wire-size width! KL2502/KS2502, KL2512/KS2512 Version: 4.4.0... -
Page 22: Wiring
The cables are released, as usual, using the contact release with the aid of a screwdriver. See the following table for the suitable wire size width. Version: 4.4.0 KL2502/KS2502, KL2512/KS2512... -
Page 23: Shielding
Wire size width (conductors with a wire end sleeve) 0.14 ... 0.75 mm Wire size width (ultrasonically “bonded" conductors) only 1.5 mm Wire stripping length 8 ... 9 mm 3.3.3 Shielding Shielding Encoder, analog sensors and actors should always be connected with shielded, twisted paired wires. KL2502/KS2502, KL2512/KS2512 Version: 4.4.0... -
Page 24: Contact Assignment And Leds
Risk of injury through electric shock and damage to the device! Bring the Bus Terminal system into a safe, voltage-free state before starting mounting, disassembly or wiring of the Bus Terminals! Fig. 12: KL2502, KL2512 - Contact assignment and LEDs KL2502/KS2502, KL2512/KS2512 Contact assignment Terminal point Comment Output 1... -
Page 25: Atex - Special Conditions (Standard Temperature Range)
80°C at the wire branching points, then cables must be selected whose tempera- ture data correspond to the actual measured temperature values! • Observe the permissible ambient temperature range of 0 to 55°C for the use of Beckhoff fieldbus compo- nents standard temperature range in potentially explosive areas! •... -
Page 26: Iecex - Special Conditions
• EN 60079-31:2013 (only for certificate no. IECEx DEK 16.0078X Issue 3) Marking Beckhoff fieldbus components that are certified in accordance with IECEx for use in areas subject to an explosion hazard bear the following markings: Marking for fieldbus components of certificate IECEx DEK 16.0078 X... -
Page 27: Continuative Documentation For Atex And Iecex
IECEx Pay also attention to the continuative documentation Ex. Protection for Terminal Systems Notes on the use of the Beckhoff terminal systems in hazardous areas according to ATEX and IECEx that is available for download on the Beckhoff homepage www.beckhoff.com! KL2502/KS2502, KL2512/KS2512 Version: 4.4.0... -
Page 28: Cfmus - Special Conditions
• CAN/CSA C22.2 No. 60079-7:2016 • CAN/CSA C22.2 No.61010-1:2012 Marking Beckhoff fieldbus components that are certified in accordance with cFMus for use in areas subject to an explosion hazard bear the following markings: FM20US0111X (US): Class I, Division 2, Groups A, B, C, D... -
Page 29: Continuative Documentation For Cfmus
Pay also attention to the continuative documentation Control Drawing I/O, CX, CPX Connection diagrams and Ex markings that is available for download on the Beckhoff homepage www.beckhoff.com! 3.10 Disposal Products marked with a crossed-out wheeled bin shall not be discarded with the normal waste stream. -
Page 30: Configuration Software Ks2000
Fieldbus Box modules with the aid of which settings can be modified easily. Alternatively, you have full access to all internal registers of the bus couplers and intelligent terminals. Refer to the register description for the meanings of the registers. Version: 4.4.0 KL2502/KS2502, KL2512/KS2512... - Page 31 • Process values can be specified in the output image for commissioning of the output modules. All possibilities in the online mode can be used in parallel with the actual fieldbus mode of the terminal station. The fieldbus protocol always has the higher priority in this case. KL2502/KS2502, KL2512/KS2512 Version: 4.4.0...
-
Page 32: Access From The User Program
In delivery state, the BK4000 Interbus Coupler maps the terminals with 6 bytes of input data and 6 bytes of output data. Parameterization via the fieldbus is not possible. If the control and status byte is to be used, the KS2000 configuration software is required. Version: 4.4.0 KL2502/KS2502, KL2512/KS2512... -
Page 33: Mapping In The Bus Coupler
Ch2 D0 Default mapping for: Profibus and Interbus Coupler Conditions Word offset High byte Low byte Complete evaluation: any Ch1 D1 Ch1 CB/SB Motorola format: yes Ch2 CB/SB Ch1 D0 Word alignment: no Ch2 D0 Ch2 D1 KL2502/KS2502, KL2512/KS2512 Version: 4.4.0... - Page 34 Channel n, data byte 1 (byte with the highest value) "-" This byte is not used or occupied by the terminal. res. Reserved: this byte is assigned to the process data memory, although it has no function. Version: 4.4.0 KL2502/KS2502, KL2512/KS2512...
-
Page 35: Control And Status Byte
: Access to register structure W/R = 0 : Read register W/R = 1 : Write register A5..A0 = register address Addresses A5...A0 can be used to address a total of 64 registers. Fig. 17: Register mode control byte KL2502/KS2502, KL2512/KS2512 Version: 4.4.0... - Page 36 The code word [} 42] is set, and the terminal returns the register address with bit 7 for register access as acknowledgment. Byte Byte 3 Byte 2 Byte 1 Byte 0 Name Data in, low byte Data in, high byte Not used Status byte Value 0x00 0x00 0x00 0x9F Version: 4.4.0 KL2502/KS2502, KL2512/KS2512...
-
Page 37: Examples Of Register Communication
0xDF (1101 1111 0x12 0x35 Explanation: • Bit 0.7 set means: Register communication switched on. • Bit 0.6 set means: writing to the register. • Bits 0.5 to 0.0 specify the register number 31 with 01 1111 KL2502/KS2502, KL2512/KS2512 Version: 4.4.0... - Page 38 • Bit 0.6 set means: writing to the register. • Bits 0.5 to 0.0 indicate register number 32 with 10 0000 • The output data word (byte 1 and byte 2) contains the new value for the feature register. Version: 4.4.0 KL2502/KS2502, KL2512/KS2512...
- Page 39 • Bit 0.6 set means: writing to the register. • Bits 0.5 to 0.0 specify the register number 31 with 01 1111 • The output data word (byte 1 and byte 2) contains 0x0000 for reactivating write protection. KL2502/KS2502, KL2512/KS2512 Version: 4.4.0...
-
Page 40: Register Overview
0x0000 (0 SEEPROM Maximum frequency step size (F_delta) 0x0010 (16 SEEPROM R38 [} 43] Start frequency (F_start) 0x0080 (128 SEEPROM R39 [} 43] Time base (T_delta) 0x0010 (16 SEEPROM R40 [} 43] ) for KL2502-0000 and KL2512-0000 ) for KL2502-0010 Version: 4.4.0 KL2502/KS2502, KL2512/KS2512... -
Page 41: Register Description
The particular byte contains the minimum data length for a channel that is to be transferred. If the MSB is set, the control and status byte is not necessarily required for the terminal function and is not transferred to the control, if the Bus Coupler is configured accordingly. KL2502/KS2502, KL2512/KS2512 Version: 4.4.0... - Page 42 If any other value is entered into this register, the write-protection is active. When write protection is not active, the code word is returned when the register is read. If the write protection is active, the register contains a zero value. Version: 4.4.0 KL2502/KS2502, KL2512/KS2512...
- Page 43 Above the start frequency the interpolation starts with the maximum frequency step size. • R40: Time base (T_delta), KL2502-0010 only [0x0010] Time base for frequency interpolation in 64 µs/digit Value range: 0 ... 255 Values smaller than 250 µs are not possible. KL2502/KS2502, KL2512/KS2512 Version: 4.4.0...
-
Page 44: Appendix
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: https://www.beckhoff.com You will also find further documentation for Beckhoff components there. - Page 45 KL2502 - Two-channel pulse width output terminal 24 VDC ............Fig. 3 KL2512 - Two-channel pulse width output terminal 24 VDC, ground switching ......Fig. 4 Spring contacts of the Beckhoff I/O components................. Fig. 5 Attaching on mounting rail ......................Fig. 6 Disassembling of terminal......................
- Page 47 More Information: www.beckhoff.com/KL2xxx Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
