Intel NUC Kit NUC5i7RYH User Guide

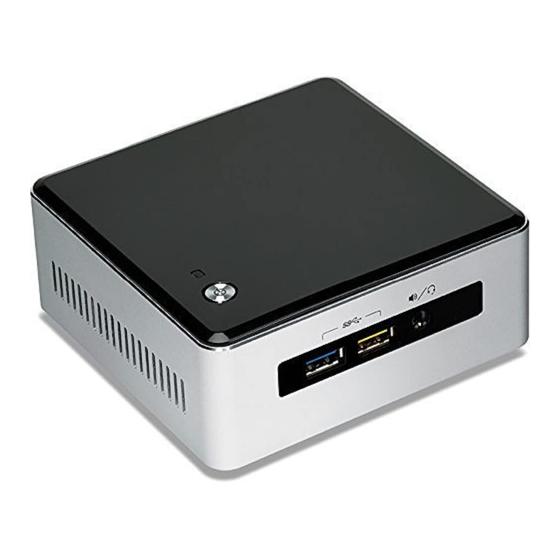

Intel® NUC Kit NUC5i7RYH
User Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOXNUC5i7RYH and is the answer not in the manual?

Questions and answers

Related Manuals for Intel BOXNUC5i7RYH

Summary of Contents for Intel BOXNUC5i7RYH

  • Page 1 Intel NUC Kit NUC5i7RYH User Guide Intel® NUC Kit NUC5i7RYH User Guide...

  • Page 2: Before You Begin

    If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Installation Precautions When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions. To avoid injury, be careful of: ...

  • Page 3: Installing And Removing Memory

    To open the Intel NUC chassis, follow these steps: 1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover. Installing and Removing Memory The Intel NUC Kit NUC5i7RYH has two 204-pin DDR3L SO-DIMM sockets. Memory requirements:  1.35V low voltage memory ...
  • Page 4 7. Reinstall and reconnect any parts you removed or disconnected to reach the SO-DIMM sockets. 8. Replace the computer’s cover and reconnect the AC power cord. Install an M.2 SSD The Intel NUC Kit NUC5i7RYH supports 80mm, 60mm, and 42mm M.2 SSDs. For a list of tested M.2 SSDs, go to the Tested Peripherals page on the Support site.
  • Page 5 Intel NUC Kit NUC5i7RYH User Guide 3. Insert the bottom edge of the M.2 card into the connector (B). 4. Secure the card to the standoff with the small silver screw (C). If you are installing a 60mm or 42mm M.2 SSD: 1.
  • Page 6 Intel NUC Kit NUC5i7RYH User Guide 2. Slide the 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into the connectors of the SATA daughter card (A). 3. Secure the drive into the drive bay with the two small silver screws that were included in the box (B).

  • Page 7: Close The Chassis

    Intel NUC Kit NUC5i7RYH User Guide Close the Chassis After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws. Attach and Use the VESA Bracket (Optional) Follow these instructions to attach and use the VESA mount bracket: 1.

  • Page 8: Install An Operating System

    Intel NUC Kit NUC5i7RYH User Guide 2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC. 3. Slide the Intel NUC onto the VESA mount bracket. Install an Operating System Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems, as well as versions of Linux that have been reported as compatible by Intel NUC owners.
  • Page 9 Intel NUC Kit NUC5i7RYH User Guide Install Intel NUC Drivers To download the latest Microsoft* Windows* drivers and BIOS updates, go to Download Center: Drivers are available for the following features:  Audio  Bluetooth  Chipset  Consumer Infrared ...
