- Page 1 UNDERGROUND OPERATOR 119AS45EN FOR SWING GATES Installation manual FROG-A / FROG-AV / FROG-AE English www.metalines.com sales@metalines.com...
- Page 2 WARNING! important safety instructions: READ CAREFULLY! • REMISE PREVENT POTENTIALLY HAZARDOUS SITUATIONS EAD THE INSTRUCTIONS IF THE POWER • E MPLOY THIS PRODUCT ONLY FOR THE USE FOR WHICH IT WAS EXPRESSLY MADE SUPPLY CABLE IS DAMAGED IT MUST BE REPLACED BY THE MANUFACTURER OR AUTHORIZED .A.
-
Page 3: Intended Use
Max. leaf length (m) Max. leaf weight (kg) Model FROG-AV Max. leaf length (m) Max. leaf weight (kg) With swing gates it is always advisable to install and electro-lock. This is to ensure a reliable closing and to protect the gearmotor’s inner workings. -
Page 4: Description Of The Components

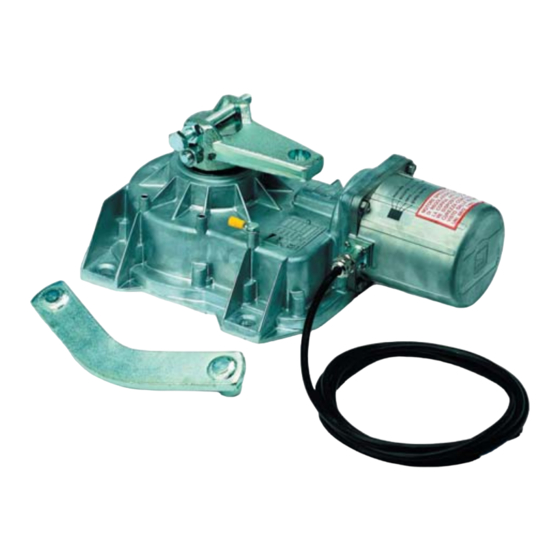

Packing lis 1. 1 x Gearmotor 2. 1 x UNI 5588 M8 nut 3. 1 x UNI 5739 M4 x 100 screw 4. 1 x Transmission lever 5. 1 x installation manual Description of the components 1. Gearmotor 2. Transmission lever 3. - Page 5 Example of a system 1. Gearmotor with foundation box 2. Control panel 3. Junction box 4. Key selector 5. Antenna 6. Flashing light 7. Photocells 8. Photocell post 9. Latch 10. Inspection chamber 11. Drainage chamber 12. Mechanical stop Dimensions www.metalines.com sales@metalines.com...
-
Page 6: General Installation Instructions
GENERAL INSTALLATION INSTRUCTIONS Installation must be carried out by qualified and experienced personnel in compliance with applicable regulations. ⚠ Preliminary checks Before installing the operator: ⚠ • Provide a suitable single-pole disconnection device, with a maximum of 3 mm between the contacts, to disconnect the power supply; •... -
Page 7: Installation
INSTALLATION The following illustrations are only examples, given that the space for securing the operator and accessories varies depending on the overall dimensions. ⚠ The installation technician is responsible for choosing the most suitable solution. The following drawings refer to a standard installation of an inward opening gate. Laying the corrugated pipes and inspection chambers Make the hole for the box. - Page 8 Lubricate the foundation case pin, the latch and the gate bracket pin. Install the gate leaf, inserting the upper hinge. Check that the leaf opens and closes without difficulty. Carefully fix or weld the door to the gate fixing bracket. Securing the release It is important to lubricate the release tab;...
- Page 9 Fastening the gearmotor Fit the ⓐ adjusting bolt into the gearmotor. The direction in which to insert the bolt depends on the operator’s position. LEFT SIDE RIGHT SIDE ⓐ OUTER OUTER ⬇ ⬇ entry entry exit exit 90° 90° 110° 110°...
-
Page 10: Electrical Connections
- tighten the nut (3) to lock the screw into position. Electrical connections ⚠ For electrical connection operations follow the information in the control panel technical documents. Gearmotor Control panel FROG-A ZA3N - ZM3E FROG-AV ZA3N - ZM3E FROG-AE ZM3E www.metalines.com sales@metalines.com... -
Page 11: Final Operations
M2 - 230 V AC delayed-closing gearmotor M1 - 230 V AC delayed-opening gearmotor. FROG-A FROG-A FROG-AV FROG-AV Blue Blue Brown or black Brown or black Black or brown Black or brown ZA3N - ZM3E ☞ If the gate fails to open after an opening command, invert cables U-V and X-Y. - Page 12 Leaf manual release Insert the key/lever into the release lock and turn it counter-clockwise. Open the leaf until reaching end run To relock the door, return it to its closed position. INSTALLING AND CONNECTIONS FOR OUTWARD-OPENINGS Below are the only procedures that vary compared to standard installations: Fastening the gearmotor Fit the ⓐ...
-
Page 13: Periodic Maintenance
MAINTENANCE Before any maintenance, disconnect power to prevent any possible dangerous situations that can be caused by accidental movement of the operator. ☞ Lubricate the pivot points with grease whenever abnormal vibrations or squeaking occurs, as shown in the figure. Periodic maintenance Periodic maintenance log to be completed by the user (every six months) Date... -
Page 14: Troubleshooting
Extraordinary maintenance ⚠ The table below is used to note any extraordinary maintenance, repairs or improvements carried out by specialist companies. ⚠ Extraordinary maintenance must be carried out by specialist technicians. Extraordinary maintenance log Installation technician stamp Operator name Date of intervention Technician signature Customer signature Intervention carried out _________________________________________________________________________________... -
Page 15: Dismantling And Disposal
CAME S.p.A. implements an EN ISO 14001-certified and compliant Environmental Management System at its plants, to ensure environmental protection. ☞ Please continue our efforts to protect the environment, something that CAME considers to be one of the foundations in developing its business and market strategies, simply by observing brief recommendations as regards disposal: DISPOSAL OF PACKAGING Packaging components (cardboard, plastic, etc.) can be disposed of together with normal household waste without any difficulty, by simply separating the... - Page 16 Came S.p.A. Came S.p.A. Via Martiri Della Libertà, 15 Via Cornia, 1/b - 1/c 31030 Dosson di Casier Dosson di Casier 33079 Sesto al Reghena Sesto al Reghena Treviso Treviso - Italy Pordenone Pordenone - Italy (+39) 0422 4940 (+39) 0434 698111...
