- Page 1 Swing-gate operator FA01569-EN FROG FROG-A24 FROG-A24E INSTALLATION MANUAL EN English...
- Page 3 Machinery Directive (2006/42/EC) and with the reference harmonised technical standards are specified in the general CAME product catalogue or on the website www.came.com. • Make sure the mains power supply is disconnected during all installation procedures. • Check that the temperature ranges given are suitable for the installation site. • When excavating to lay the foundation box, ensure there is sufficient drainage to prevent water from stagnating inside it.
- Page 4 • Any residual risks must be indicated clearly with proper signage affixed in visible areas, and explained to end users. • Put the machine’s ID plate in a visible place when the installation is complete. • If the power supply cable is damaged, it must be immediately replaced by the manufacturer or by an authorised technical assistance centre, or in any case, by qualified staff, to prevent any risk.
-
Page 5: Intended Use

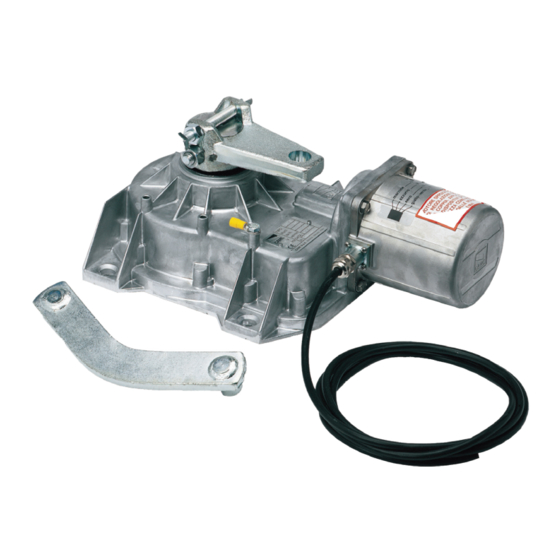

This symbol shows what to tell users. The measurements, unless otherwise stated, are in millimetres. Description FROG-A24 Underground irreversible 24 V gearmotor with adjustable leaf-stop during closing, for swing gates with leaves up to 3.5 m in length and 400 kg in weight. FROG-A24E Underground irreversible 24 V gearmotor with encoder and adjustable leaf-stop during closing, for swing gates with leaves up to 3.5 m in length and 400 kg in weight. -
Page 6: Usage Limitations
For multiple, sequential loads along the same line, recalculate the values in the table according to the actual power draw and distances. For information on connecting products not covered in this manual, please see the documentation accompanying the products themselves. To connect the encoder, use a FRORPU 3 x 0.5 mm² cable or a cable supplied by CAME on request (item code 801XA-0020). -
Page 7: Installation
INSTALLATION The following illustrations are examples only. The space available for fitting the operator and accessories varies depending on the area where it is installed. It is up to the installer to find the most suitable solution. The drawings refer to the right-side gearmotor. Preliminary operations The preliminary operations for installation concern the foundation box installation and the release devices fastening. - Page 8 Lubricate the transmission lever. Fit the transmission lever as shown in the drawings. Determining the travel end points with mechanical limit switches Manually open the leaf to the desired point. The leaf maximum opening is 110°. Unscrew the opening limit-switch point adjustment screw until it touches the foundation box. Tighten the nut to lock the screw into position.
-
Page 9: Electrical Connections
ELECTRICAL CONNECTIONS Before working on the control panel, disconnect the mains power supply and remove the batteries, if any. Gear motor with encoder White cable Power supply cable Brown cable Encoder cable Green cable 801XA-0020 cable M1 N1 E1 + E - M2 N2 E2 + E -... - Page 10 Gearmotor without Encoder Brown cable Power supply cable Blue cable Cable for slowing down during opening Cable for slowing down during closing M1 N1 E1 M2 N2 E2 2 FA1 FC1 FA2 FC2...
- Page 11 RA1 RC1 C RA2 RC2 C FA1 FC1 C FA2 FC2 C M1 N1 M2 N2 RA1 RC1 C RA2 RC2 C FA1 FC1 C FA2 FC2 C M1 N1 M2 N2...
- Page 12 Establishing the slow-down points* Only for the FROG-A24 Give an opening command and stop the leaves at about 600 mm from the strike plate. Position the magnetic microswitches as shown in the images. Give an closing command and stop the leaves at about 600 mm from the strike plate.
-
Page 13: Final Operations
FINAL OPERATIONS OUTWARDS OPENING The operations other than the standard installation are described below. Setting up the gearmotor Insert the closing limit-switch point adjustment screw into the gearmotor arm. Gearmotor installed on the left Gearmotor installed on the right... - Page 14 Establishing the slow-down points* Only for the FROG-A24 Give an opening command and stop the leaves at about 600 mm from the strike plate. Position the magnetic microswitches as shown in the images. Give an closing command and stop the leaves at about 600 mm from the strike plate.
- Page 16 CAME S.p.A. Via Martiri della Libertà, 15 31030 Dosson di Casier Treviso - Italy Tel. (+39) 0422 4940 Fax (+39) 0422 4941...
