First Use
Before applying power to the router, connect all the components you need for your appli-
cations.
Do not run the router without an antenna connected to the main antenna connector. The
energy from the transmission is effectively reflected by the open end and can damage
the equipment.
XR5i v2 routers are not equipped with a cellular module, which means that SIM card
readers and antenna connectors are not available on the router.
1. Antenna

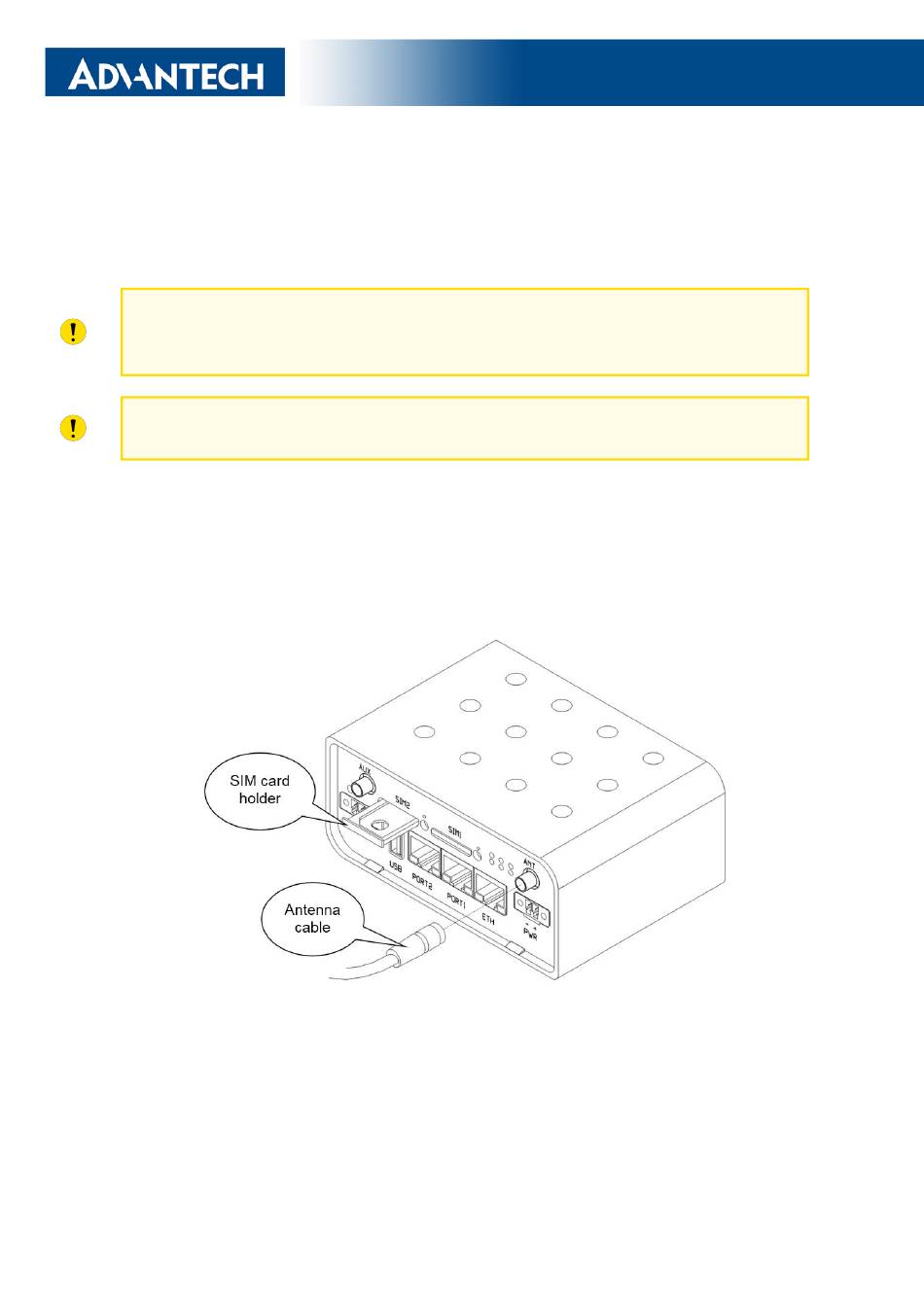

Use an SMA connector to connect the antennas to the router; see the figure below. First,
connect the main antenna to the ANT connector. Next, connect the second diversity antenna
to the DIV connector to improve the quality and reliability of a wireless link.
