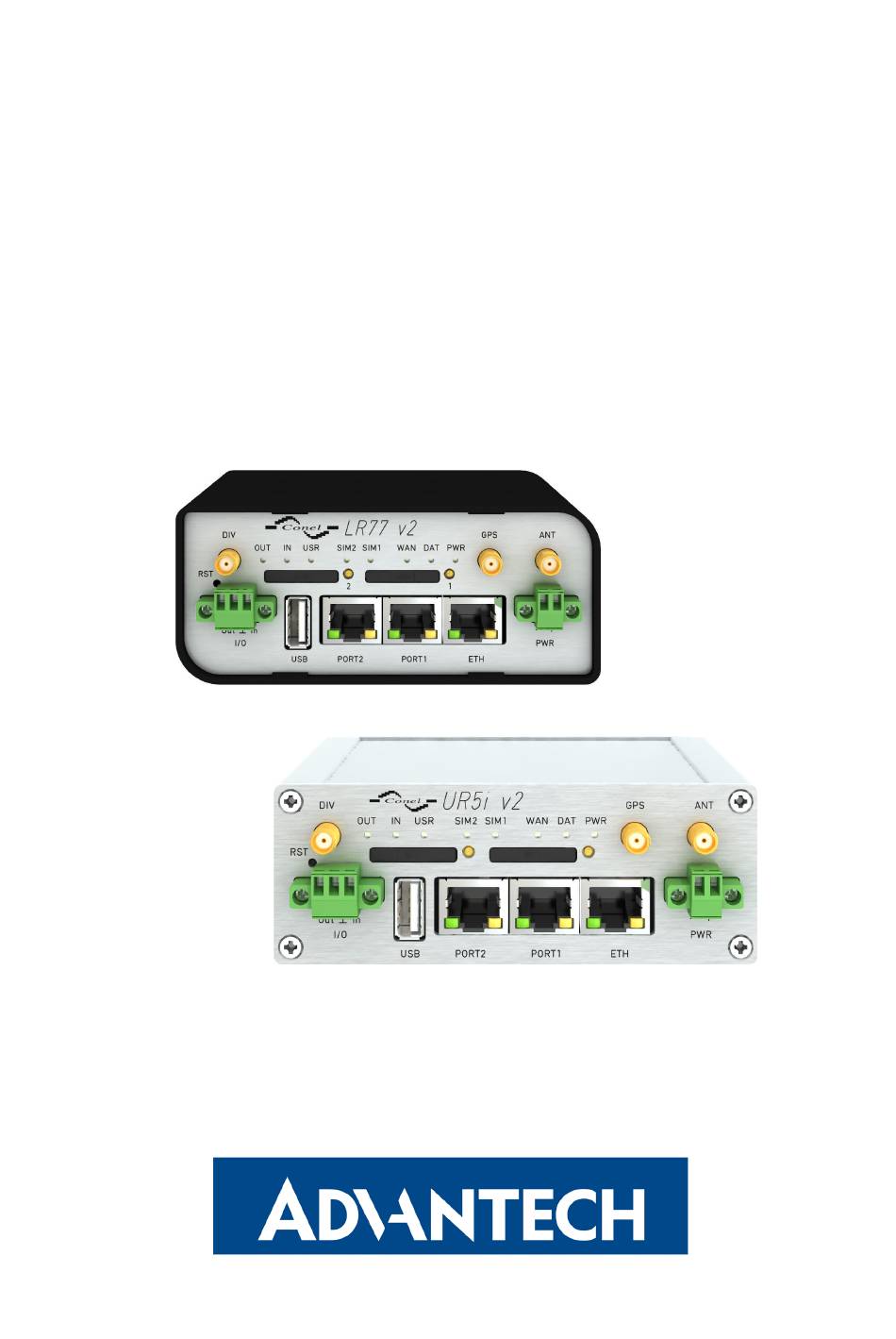

  • Page 1 Expansion Port Mounting for v2 Routers APPLICATION NOTE...
  • Page 2 Source codes under GPL licence are available free of charge by sending an email to: techSupport@advantech-bb.com Advantech B+B SmartWorx s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic. Document No. APP-0001-EN, revision from November 21, 2018. Released in the Czech Republic.

  • Page 3: Table Of Contents

    Expansion Port Mounting Contents 1 Safety Instruction 2 Product Disposal Instructions 3 Expansion Port Mounting 3.1 Plastic Enclosure ........3.2 Metal Enclosure .

  • Page 4: List Of Figures

    Expansion Port Mounting List of Figures Router in plastic enclosure ......Router in metal enclosure .

  • Page 5: Safety Instruction

    Use only the original Advantech B+B SmartWorx company accessories. Thus you will prevent possible health risks and damage to the devices and ensure compliance with all relevant provisions.

  • Page 6: Expansion Port Mounting

    Expansion Port Mounting 3. Expansion Port Mounting 3.1 Plastic Enclosure Attention! Expansion port PORT1 and PORT2 can be connected only when the router is switched off. At first, it is necessary to remove (snap out) front panel (position 5) and then take out the B-RB-v2 motherboard (position 1).

  • Page 7: Part List For Routers In Plastic Enclosure

    Expansion Port Mounting Part Description Count Router motherboard Expansion port PORT 1 Expansion port PORT 2 Router box Front panel of the router Spacers for attaching the expansion port to the motherboard Table 1: Part list for routers in plastic enclosure...

  • Page 8: Metal Enclosure

    Expansion Port Mounting 3.2 Metal Enclosure Attention! Expansion port PORT1 and PORT2 can be connected only when the router is switched off. Unscrew four screws (position 11) on the rear panel (position 6) and remove it. Then take out the B-RB-v2 motherboard (position 1). The expansion port PORT1 (position 2) has to be connected to connector J8 (see figure below) of the router motherboard (B-RB-v2, position 1) from TOP side.

  • Page 9: Part List For Routers In Metal Enclosure

    Expansion Port Mounting Part Description Count Router motherboard Expansion port PORT 1 Expansion port PORT 2 Left sidewall Right sidewall Rear panel of the router Front panel of the router Bottom cover Top cover Spacers for attaching the expansion port to the motherboard Screw for assembling the router enclosure Table 2: Part list for routers in metal enclosure...

  • Page 10: Recommended Literature

    Expansion Port Mounting 4. Recommended Literature Advantech B+B SmartWorx: Configuration Manual – Cellular Industrial v2 Routers (MAN-0021-EN) Advantech B+B SmartWorx: User guide – Expansion port RS232 (MAN-0020-EN) Advantech B+B SmartWorx: User guide – Expansion port RS485/422 (MAN-0025-EN) Advantech B+B SmartWorx: User guide –...
