HSPA+ Industrial Router
UR5i v2 Libratum
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UR5i v2 Libratum and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech UR5i v2 Libratum

Summary of Contents for Advantech UR5i v2 Libratum

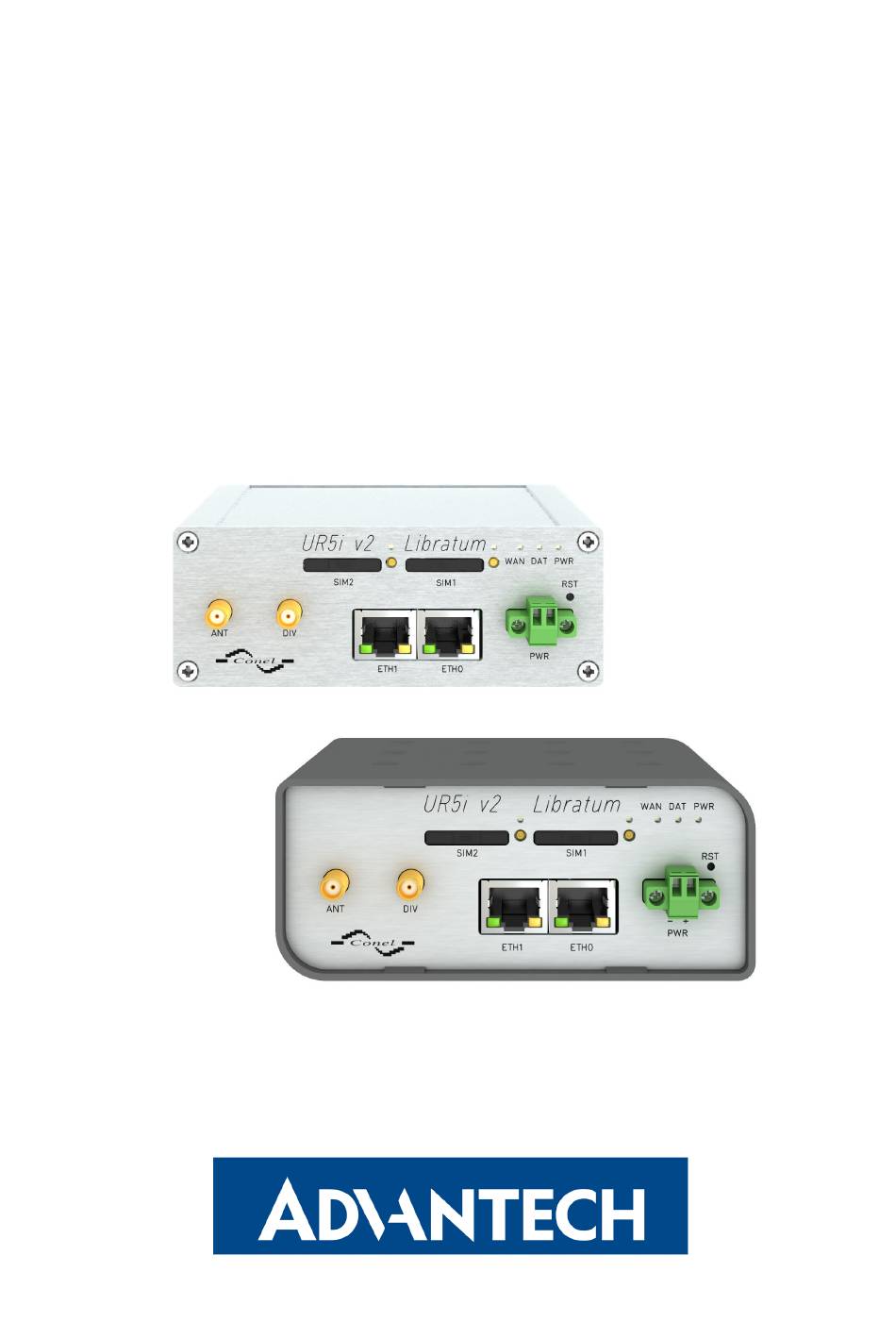

  • Page 1 HSPA+ Industrial Router UR5i v2 Libratum USER MANUAL...
  • Page 2 Website www.advantech-bb.com c 2020 Advantech B+B SmartWorx s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and does not represent a commitment on the part of Advantech B+B SmartWorx.
  • Page 3 Source codes under GPL licence are available free of charge by sending an email to: techSupport@advantech-bb.com. Please see http://ep.advantech-bb.cz/devzone for more information. Advantech B+B SmartWorx s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0017-EN, revision from January 9, 2020. Released in the Czech Republic.

  • Page 4: Table Of Contents

    UR5i v2 Libratum Contents 1 Safety Instructions 2 WEEE directive 3 Router Description 4 Contents of Package 5 Router Design 5.1 Router versions ........
  • Page 5 UR5i v2 Libratum 7.4 Technical Parameters of WiFi ......7.5 Other Technical Parameters .
  • Page 6 ......Front panel UR5i v2 Libratum ......
  • Page 7 UR5i v2 Libratum List of Tables Router versions ........

  • Page 8: Safety Instructions

    UR5i v2 Libratum 1. Safety Instructions Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments.

  • Page 9: Weee Directive

    UR5i v2 Libratum 2. Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) directive was in- troduced to ensure that electrical/electronic products are recycled using the best available recovery techniques in order to minimize impact on the environment. This product contains high quality materials and components which can be recycled.

  • Page 10: Router Description

    LAN networks, automatic teller machines (ATM) and other self-service terminals, etc. As a standard, cellular router UR5i v2 Libratum is equipped with two Ethernet 10/100 and two SIM cards. This wireless router is supplied either in a plastic or metal casing, based on the requirements of the customer.

  • Page 11: Contents Of Package

    UR5i v2 Libratum 4. Contents of Package Basic delivered set of router includes: router, power supply, crossover UTP cable, up to three external antennas, clip for the DIN rail, paper start guide. Figure 1: Contents of package Temperature range for power supply is reduced to 0 C to +40 C!

  • Page 12: Router Design

    UR5i v2 Libratum 5. Router Design 5.1 Router versions UR5i v2 Libratum router is supplied in the following versions (see table below). All versions are available in plastic or metal box according to customer requirements. Router versions Router Box UR5i v2 Libratum...

  • Page 13: Delivery Identification

    BB-UR2L61071y-zzzz Version with WiFi in the plastic box UR5i v2 Libratum SL BB-UR2L61002y-zzzz Version in the metal box UR5i v2 Libratum SL with WiFi BB-UR2L61072y-zzzz Version with WiFi in the metal box Table 2: Delivery identification Figure 6: Label examples 5.3 Order codes...

  • Page 14: Order Code Examples

    UR5i v2 Libratum Letter "x" – type of the router box Type of router box Letter "x" in code Plastic Metal Table 4: Type of router box Letter"y" – type of the power supply Type of power supply Letter "y" in code...

  • Page 15: Basic Dimensions Of The Router Box

    UR5i v2 Libratum 5.4 Basic dimensions of the router box 5.4.1 Plastic box Figure 7: Basic dimensions of plastic box (bottom and front view) 5.4.2 Metal box Figure 8: Basic dimensions of metal box (bottom and front view)

  • Page 16: Mounting Recommendations

    UR5i v2 Libratum 5.5 Mounting recommendations possibility to be put on a work surface, DIN rail EN 60715 with included plastic or metal clip. For the most of applications with a built-in router in a switch board it is possible to recognize...

  • Page 17: Cable Routing (Plastic)

    UR5i v2 Libratum For every cables we recommend to bind the bunch, we recommend for this use: – Length of the bunch (combination of power supply and data cables) can be maxi- mum 1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable leads towards the switch –...

  • Page 18: Removal From The Din Rail

    UR5i v2 Libratum 5.6 Removal from the DIN rail The DIN rail clip is suitable for a DIN rail according to EN 60715 standard only. The default position of plastic or metal rail clip, which is used for mounting the router on a DIN rail, is shown in the following figure.

  • Page 19: Description Of The Front Panel

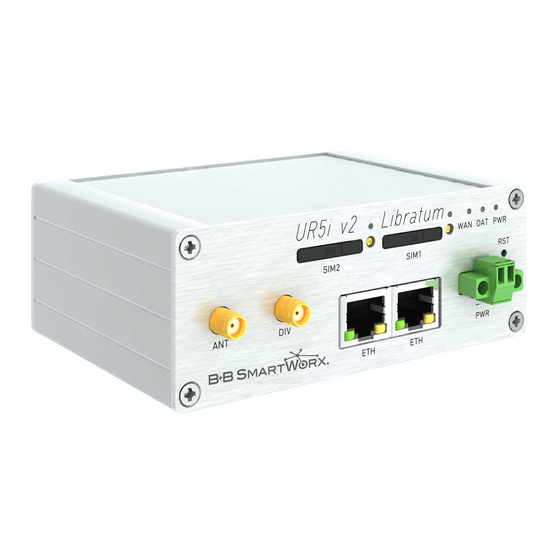

    Connector for WIFI antenna. Available only when the router is equipped with WIFI module. SIM1 — Holder for the first SIM card. SIM2 — Holder for the second SIM card. Table 8: Front panel description Figure 17: Front panel UR5i v2 Libratum...

  • Page 20: Status Indication

    UR5i v2 Libratum 5.7.1 Status indication About router status inform three LED indicators on the front panel. ETH0 and ETH1 ports have two additional LEDs that provide information about port status. Caption Color State Description Green Blinking Router is ready.

  • Page 21: Power Connector Pwr

    UR5i v2 Libratum 5.7.2 Power connector PWR Panel socket 2-pin. Pin number Signal mark Description VCC(+) Positive pole of DC supply voltage (+9 to +36 V DC) GND(-) Negative pole of DC supply voltage Table 11: Connection of power connector Figure 18: Power connector Power supply for router is required between +9 V to +36 V DC supply.

  • Page 22: Antenna Connector Ant, Div (And Wifi)

    5.7.3 Antenna connector ANT, DIV (and WIFI) Main and diversity antennas are connected to the router using the SMA connector on the front panel. For UR5i v2 Libratum with WiFi module is also available reverse SMA antenna connector, through which the WIFI antenna can be connected.

  • Page 23: Sim Card Reader

    UR5i v2 Libratum 5.7.4 SIM card reader The SIM card reader for 3 V and 1.8 V SIM cards is located on the front panel of the router. In order for the router to function, it is necessary to insert an activated SIM card with an unblocked PIN code.

  • Page 24: Ethernet Port (Eth0 And Eth1)

    UR5i v2 Libratum 5.7.5 Ethernet port (ETH0 and ETH1) Panel socket RJ45. Signal mark Description Data flow direction TXD+ Transmit Data – positive pole Input/Output TXD- Transmit Data – negative pole Input/Output RXD+ Receive Data – positive pole Input/Output —...

  • Page 25: Reset

    UR5i v2 Libratum 5.7.6 Reset When PWR LED starts flashing on the front panel, it is possible to restore the default con- figuration of the router by pressing the RST button on the front panel. After pressing this button the default configuration is restored and then router reboots (green LED will be on).

  • Page 26: First Use

    UR5i v2 Libratum 6. First Use 6.1 Connecting the router before first use Before putting the router into operation it is necessary to connect all components which are required to run your applications. Don’t forget to insert SIM card. The router can not operate without connected antenna, SIM card and power supply. If the antenna is not connected, router can be damaged.

  • Page 27: Start

    UR5i v2 Libratum 6.2 Start The router is put into operation when the power supply is connected to this router. By default, the router will automatically start to log on to the default APN. DHCP server will start to assign addresses for devices on the Ethernet port ETH0. Router’s behavior can be changed via the web interface.

  • Page 28: Configuration Over Telnet

    UR5i v2 Libratum After successfully entering login information user gains access to the router via his internet browser. Figure 28: Router web interface A detailed description of the router settings via the Web interface can be found in the document Configuration manual for v2 routers.

  • Page 29: Technical Parameters

    Metal box 42 x 87 x 113 mm (DIN 35 mm) Weight UR5i v2 Libratum – 150 g UR5i v2 Libratum SL – 280 g Antenna connector 2x SMA – 50 Ohm 1x R-SMA – 50 Ohm (only for WiFi)

  • Page 30: Technical Parameters Of Module

    UR5i v2 Libratum Continued from previous page Standards and regulations Safety EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 + AC:2011, EN 62311:2008 E-Mark – EMC for de- E-Mark homologation number: 10R – 04 7055 vices in transportation RCM –...

  • Page 31: Technical Parameters Of Wifi

    UR5i v2 Libratum 7.4 Technical Parameters of WiFi WiFi Antenna connector R-SMA – 50 Supported WiFi band 2.4 GHz Standards 802.11b, 802.11g, 802.11n 2.4 GHz supported channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 RX Sensitivity 11b, 11 Mbps: typ.

  • Page 32: Recommended Literature

    UR5i v2 Libratum 8. Recommended Literature Advantech B+B SmartWorx: Start guide for v2 routers, Advantech B+B SmartWorx: Configuration manual for v2 routers, Advantech B+B SmartWorx: Application note – Programmer guide.

  • Page 33: Troubleshooting

    UR5i v2 Libratum 9. Troubleshooting If you cannot connect to the router from your PC, your network card may be configured in such a way that it is not possible to connect to the router. Take one or more of the following steps in order to solve the problem: Make sure your PC’s network card is configured to obtain the IP address form the...
  • Page 34 UR5i v2 Libratum In a private APN it is not recommended to get the DNS settings from operator (on "Mobile WAN" page) Go to "System Log" page in "Status" section and observe where the error occurs. I cannot connect from the Internet to the device behind the router. I have NAT enabled.
  • Page 35 UR5i v2 Libratum Serial communication is not working. Verify that the router model supports serial communications. Also verify the serial communication settings. To do so, open the router’s configuration menu via the web browser, select the appropriate "Expansion Port" from "Configuration" part of the menu and verify the settings.

  • Page 36: Customers Support

    During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners! Hereby, Advantech B+B SmartWorx s.r.o. company declares that the radio equipment narrated in this user’s guide is in compliance with EU Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address:...
