HSPA+ Industrial Router
UR5i v2
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UR5i v2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech UR5i v2

Summary of Contents for Advantech UR5i v2

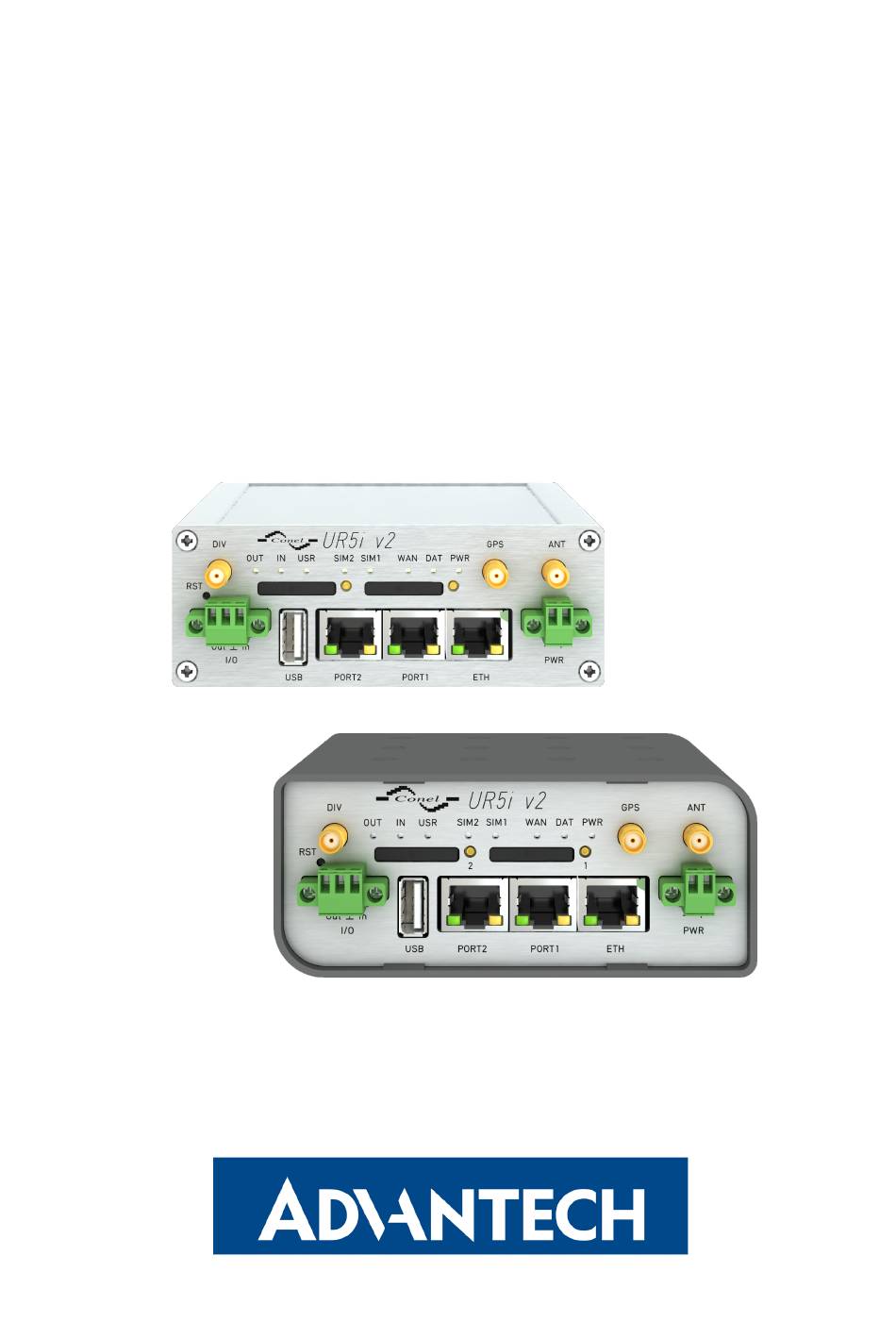

  • Page 1 HSPA+ Industrial Router UR5i v2 USER MANUAL...
  • Page 2 Website www.advantech-bb.com c 2020 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and does not represent a commitment on the part of Advantech.
  • Page 3 Source codes under GPL licence are available free of charge by sending an email to: techSupport@advantech-bb.com. Please see http://ep.advantech-bb.cz/devzone for more information. Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0016-EN, revision from May 19, 2020. Released in the Czech Republic.

  • Page 4: Table Of Contents

    UR5i v2 Contents 1 Safety Instructions 2 WEEE directive 3 Router Description 4 Contents of Package 5 Router Design 5.1 Router versions ........
  • Page 5 UR5i v2 7.1 Basic parameters ........
  • Page 6 UR5i v2 List of Figures Contents of package ....... . .
  • Page 7 UR5i v2 List of Tables Router versions ........

  • Page 8: Safety Instructions

    UR5i v2 1. Safety Instructions Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments.

  • Page 9: Weee Directive

    UR5i v2 2. Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) directive was in- troduced to ensure that electrical/electronic products are recycled using the best available recovery techniques in order to minimize impact on the environment. This product contains high quality materials and components which can be recycled.

  • Page 10: Router Description

    (ATM) and other self-service terminals, etc. As a standard, this exceptionally fast 3G router UR5i v2 is equipped with one Ethernet 10/100, one USB Host port, one binary input/output (I/O) port and one SIM card. To save and backup communication data a version with two SIM cards is available.

  • Page 11: Contents Of Package

    UR5i v2 4. Contents of Package Basic delivered set of router includes: router, power supply, crossover UTP cable, up to three external antennas, clip for the DIN rail, paper start guide. Figure 1: Contents of package Temperature range for power supply is reduced to 0 C to +40 C!

  • Page 12: Router Design

    UR5i v2 5. Router Design 5.1 Router versions UR5i v2 router is supplied in the following versions (see table below). All versions are available in plastic or metal box according to customer requirements. Router versions Router Box UR5i v2B Plastic...

  • Page 13: Label Examples

    UR5i v2 5.2 Delivery identification Trade name Order code Description UR5i v2B BB-UR2B61v01y-zzzz Basic version in the plastic box UR5i v2B SL BB-UR2B61v02y-zzzz Basic version in the metal box UR5i v2F BB-UR2F61vw1y-zzzz Full version in the plastic box UR5i v2F SL...

  • Page 14: Type Of Port #1

    UR5i v2 5.3 Order codes 5.3.1 Order code structure Order code for basic version has following structure: BB-UR2B61v0xy-zzzz , where: v = port #1, x = type of router box, y = type of power supply, z = specific variation.

  • Page 15: Type Of Port #2

    UR5i v2 Letter "w" – port #2 Port type Letter "w" in code none RS232 RS485 RS422 MBUS WiFi WMBUS Table 4: Type of port #2 Letter "x" – type of the router box Type of router box Letter "x" in code...

  • Page 16: Specific Variation

    UR5i v2 Letter "z" – specific variation Variation Letter "z" in code basic variation not specified v2F3 (2x SMA, 1x R-SMA: ANT + GPS + WiFi, router does not have diversity antenna) v2F4 (2x SMA, 1x R-SMA: ANT + DIV + WMBUS, router has...

  • Page 17: Basic Dimensions Of Plastic Box (Bottom And Front View)

    UR5i v2 5.4 Basic dimensions of the router box 5.4.1 Plastic box Figure 7: Basic dimensions of plastic box (bottom and front view) 5.4.2 Metal box Figure 8: Basic dimensions of metal box (bottom and front view)

  • Page 18: Space Around Antennas (Plastic)

    UR5i v2 5.5 Mounting recommendations possibility to be put on a work surface, DIN rail EN 60715 with included plastic or metal clip. For the most of applications with a built-in router in a switch board it is possible to recognize...

  • Page 19: Cable Routing (Plastic)

    UR5i v2 For every cables we recommend to bind the bunch, we recommend for this use: – Length of the bunch (combination of power supply and data cables) can be maxi- mum 1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable leads towards the switch –...

  • Page 20: Default Position Of Plastic And Metal Din Rail Clip

    UR5i v2 5.6 Removal from the DIN rail The DIN rail clip is suitable for a DIN rail according to EN 60715 standard only. The default position of plastic or metal rail clip, which is used for mounting the router on a DIN rail, is shown in the following figure.

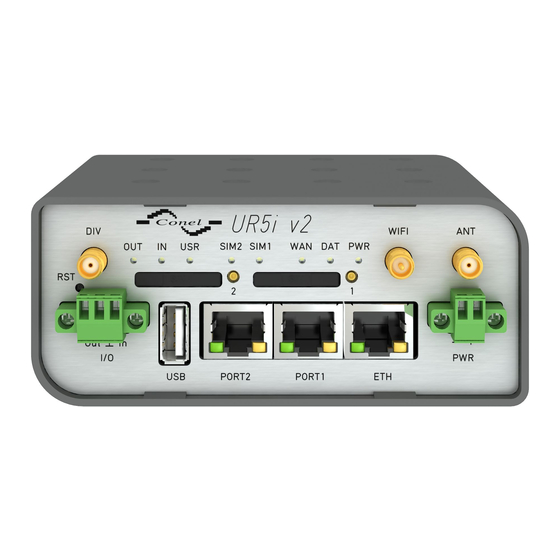

  • Page 21: Front Panel Ur5I V2F

    UR5i v2 5.7 Description of the front panel On the front panel is the following: Caption Connector Description 2-pin Connector for the power supply. RJ45 Connector for connection into the local computer network. PORT1 RJ45 Connector for expansion port RS232, RS458/422, MBUS, ETHERNET, CNT or SWITCH.

  • Page 22: Status Indication

    UR5i v2 5.7.1 Status indication About router status inform eight LED indicators on the front panel. ETH port, PORT1 and PORT2 have two additional LEDs that provide information about port status. Caption Color State Description Green Blinking Router is ready.

  • Page 23: Power Connector

    UR5i v2 5.7.2 Power connector PWR Panel socket 2-pin. Pin number Signal mark Description VCC(+) Positive pole of DC supply voltage (+9 to +36 V DC) GND(-) Negative pole of DC supply voltage Table 11: Connection of power connector Figure 18: Power connector Power supply for router is required between +9 V to +36 V DC supply.

  • Page 24: Connecting Of The Antenna

    UR5i v2 5.7.3 Antenna connector ANT, DIV and GPS (alternatively WIFI or WMBUS) Main and diversity antennas are connected to the router using the SMA connector on the front panel. Full version of the router also contains the third SMA antenna connector, through which the additional antenna can be connected (if WIFI expansion port is used, this connector is reverse –...

  • Page 25: Ejected Sim Holder

    UR5i v2 5.7.4 SIM card reader The SIM card reader for 3 V and 1,8 V SIM cards is placed on the front panel of the router. For getting the router to work is necessary to insert an activated SIM card with an unblocked PIN code.

  • Page 26: Ethernet Connector

    UR5i v2 5.7.5 Ethernet Port ETH The panel socket RJ45 is used for this interface. The isolation barrier of the Ethernet signal ports against the ground is 1500 V. Signal mark Description Data flow direction TXD+ Transmit Data – positive pole...

  • Page 27: Port1 Cable Connection

    UR5i v2 5.7.6 PORT1 The PORT1 is equipped on customer’s request with one of the offered expansion ports: RS232 MBUS RS485 RS422 SWITCH (together with PORT2) ETHERNET Description and examples of expansion ports connection can be found in user’s guide for corresponding expansion port.

  • Page 28: Port2 Cable Connection

    UR5i v2 Plug cable for the second expansion port into the RJ45 connector labeled as PORT2 (see the figure below). Figure 25: PORT2 cable connection 5.7.8 USB Port Panel socket USB-A. Signal mark Description Data flow direction +5 V Positive pole of 5 V DC supply voltage, 0.5 A USB data - USB data signal –...

  • Page 29: O Connector

    UR5i v2 5.7.9 I/O Port Panel socket 3-pin. Signal mark Description Data flow direction BIN0 Binary input Input Signal ground OUT0 Binary output Output Table 14: Connection of I/O port Figure 27: I/O connector I/O user interface is designed for processing of binary input and control (setting) binary output.

  • Page 30: Connection Of Input And Output To The Router

    UR5i v2 Example of a circuit describing connection of binary input and output to the router: Figure 29: Connection of input and output to the router...

  • Page 31: Router Reset

    UR5i v2 5.7.10 Reset When PWR LED starts flashing on the front panel, it is possible to restore the default con- figuration of the router by pressing the RST button on the front panel. After pressing this button the default configuration is restored and then router reboots (green LED will be on).

  • Page 32: First Use

    UR5i v2 6. First Use 6.1 Connecting the router before first use Before putting the router into operation it is necessary to connect all components which are required to run your applications. Don’t forget to insert SIM card. The router can not operate without connected antenna, SIM card and power supply. If the antenna is not connected, router can be damaged.

  • Page 33: Entering The Ip Address Of The Router

    UR5i v2 6.2 Start The router is put into operation when the power supply is connected to this router. By default, the router will automatically start to log on to the default APN. DHCP server will start to assign addresses for devices on the Ethernet port ETH0. Router’s behavior can be changed via the web interface.

  • Page 34: Router Web Interface

    UR5i v2 After successfully entering login information user gains access to the router via his internet browser. Figure 34: Router web interface A detailed description of the router settings via the Web interface can be found in the document Configuration manual for v2 routers.

  • Page 35: Technical Parameters

    51 x 87 x 116 mm (DIN 35 mm) Metal box 42 x 87 x 113 mm (DIN 35 mm) Weight UR5i v2 – 150 g UR5i v2 SL – 280 g Antenna connector 3x SMA – 50 Ohm User interface Ethernet (10/100 Mbps) USB 2.0...

  • Page 36: Standards And Regulations

    UR5i v2 7.2 Standards and regulations The router complies with the following standards and regulations. Standards and regulations Telecom and emission ETSI EN 301 511 V12.5.1, ETSI EN 300 440 V2.1.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.1, ETSI EN 300 328 V2.1.1, ETSI EN 300 220-2 V3.1.1...

  • Page 37: Technical Parameters Of Gps

    UR5i v2 7.4 Technical parameters of GPS GPS specifications Antenna SMA 50 – active Protocols NMEA 0183 v3.0 Frequency 1575.42 MHz Sensitivity Tracking: -161 dBm Acquisition (Assisted): -158 dBm Acquisition (Standalone): -145 dBm Acquisition time Hot start: 1 s Warm start: 29 s...

  • Page 38: Other Technical Parameters

    UR5i v2 7.5 Other Technical Parameters Other technical parameters 32b ARM microprocessor 0.25 DMIPS per MHz Flash memory 16 MB DDR SDRAM 64 MB M-RAM 128 kB Table 20: Other technical parameters 7.6 Technical parameters of I/O port Binary input and output...

  • Page 39: Related Documents

    UR5i v2 8. Related Documents Advantech Czech: Start Guide for v2 routers, Advantech Czech: Configuration Manual for v2 Routers, Advantech Czech: User’s manual – Expansion port RS232, Advantech Czech: User’s manual – Expansion port RS485/422, Advantech Czech: User’s manual – Expansion port MBUS, Advantech Czech: User’s manual –...

  • Page 40: Troubleshooting

    UR5i v2 9. Troubleshooting If you cannot connect to the router from your PC, your network card may be configured in such a way that it is not possible to connect to the router. Take one or more of the following steps in order to solve the problem: Make sure your PC’s network card is configured to obtain the IP address form the...
  • Page 41 UR5i v2 In a private APN it is not recommended to get the DNS settings from operator (on "Mobile WAN" page) Go to "System Log" page in "Status" section and observe where the error occurs. I cannot connect from the Internet to the device behind the router. I have NAT enabled.
  • Page 42 UR5i v2 Serial communication is not working. Verify that the router model supports serial communications. Also verify the serial communication settings. To do so, open the router’s configuration menu via the web browser, select the appropriate "Expansion Port" from "Configuration" part of the menu and verify the settings.

  • Page 43: Customers Support

    During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners! Hereby, Advantech Czech s.r.o. company declares that the radio equipment narrated in this user’s guide is in compliance with EU Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address:...
