Summary of Contents for FUNKY MONKEY BARS Floating flying fox

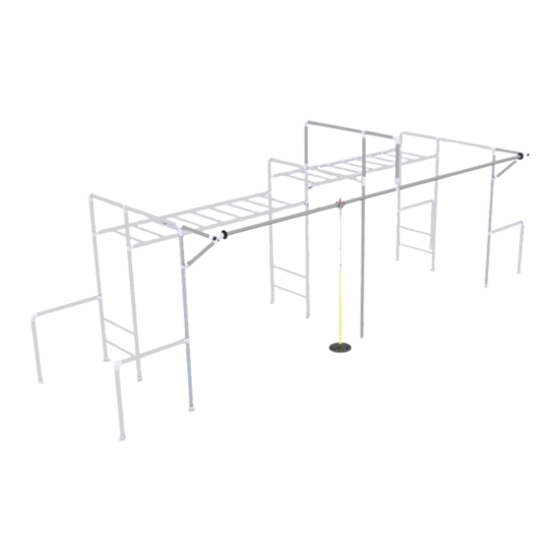

- Page 1 For Button Swing or Flying Fox Handle...
- Page 4 Assemble the Joiner and Fin-D152 with Fin as shown below. The 3 x grub screws are to be inserted only once the Joiner and Fin is inserted inside and between the 2 x 2950 silver poles. Grub screws to be inserted into Joiner and Fin- D152 with Fin after piece has been inserted into and between 2 x 2950mm silver poles...
- Page 6 Replace 2 x outside legs with new fittings After adding new fittings, add the two outside legs back onto unit.
- Page 7 Assembly of Top Supporting Bracket 125-D 1600m 101-D 600mm 125-D 600mm 119-D 530mm 104L-D 173f-D Top bar is in situ Assemble together the top supporting bracket for the 6m Floating Flying Fox pole – Head protection is recommended.
- Page 8 Installing the Top Supporting Bracket to existing Top Swing Frame Bar Make sure the new fitting 119-D is in place as shown, before installing the supporting bracket on to the existing frame. 119-D 104L-D Two People - Using a step ladder, fully insert the assembled top supporting bracket. Place the 600mm silver pole ends into the 119-D fitting and the 104L-D fitting.
- Page 9 104L-D...
- Page 10 Assembly and Install of the 6m Floating Flying Fox Braces Fully insert 2 x 48dia x 600mm silver pole – brace parts, into each 104L-D on the outside Legs. Ensure the pipes make a clunk sound. Fully tighten...
- Page 12 Assembly of 6m Floating Flying Fox Pole onto Support Bar and Fin into Connection Two people will be needed to lift the 6m Floating Flying Fox Pole and secure into position. Head protection is recommended Slide the 173f-D -Fin into the 173f-D 173f-D connection.
- Page 13 Floating Flying Fox Braces Once the 6m Floating Flying Fox Pole is in place and fully tightened, the braces can be completed Taking the 2 remaining 48dia x 600mm poles, insert into the 173m/f-D fittings on the outside legs. Loosely tighten. Insert the...
