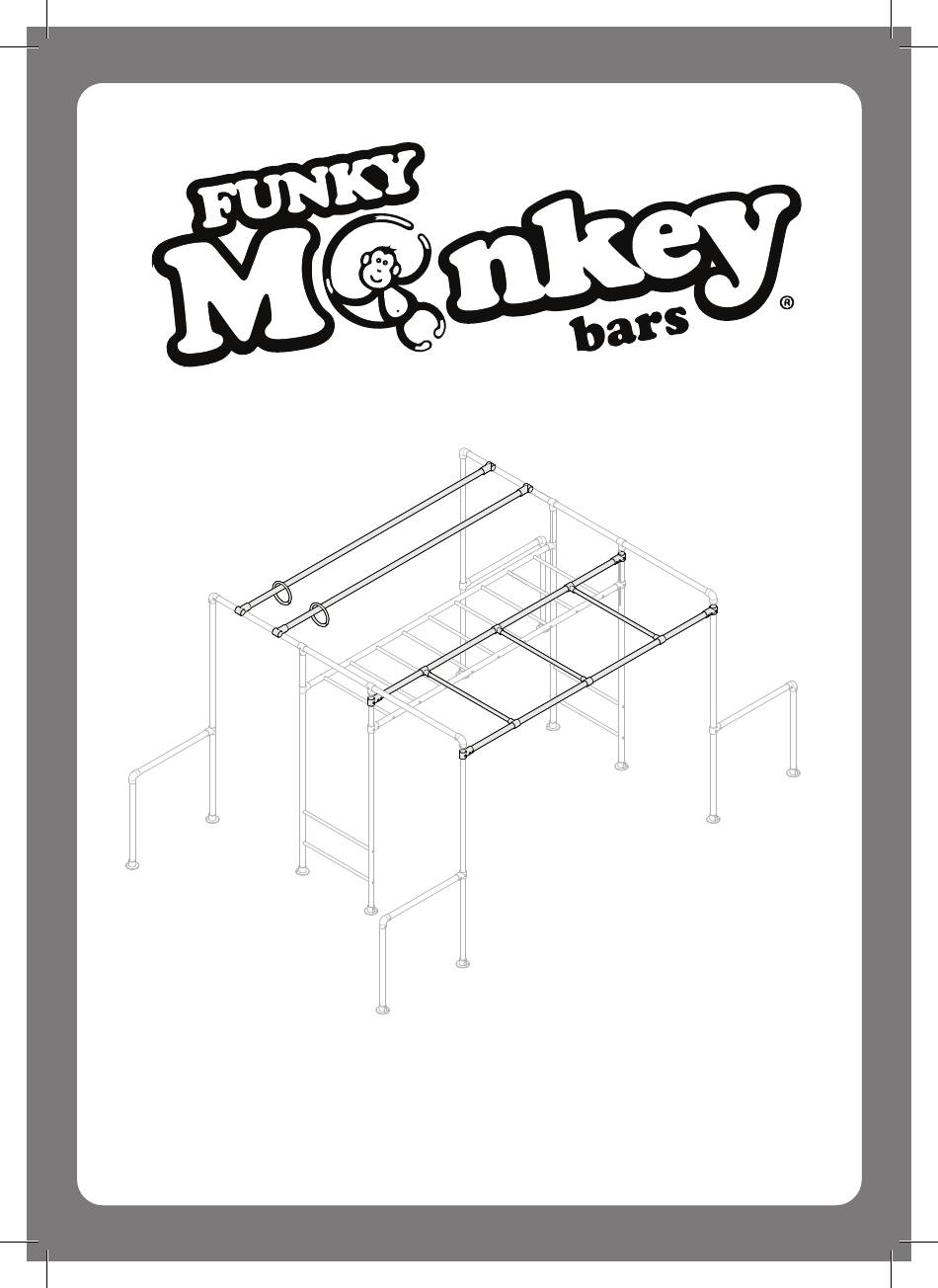

- Page 1 LACHE BARS ROCKET RINGS Section 1 Section 2 ROCKET RINGS &/OR LACHE BARS ADD-ON ASSEMBLY INSTRUCTIONS...
-
Page 2: Table Of Contents
Bars®, especially lower quality products that have not been approved by Funky Monkey Bars®. 15. Ensure the height of your Funky Monkey Bars® (horizontal ladder) are set at a level that is age appropriate. 16. DO NOT install your Funky Monkey Bars® over or near objects that could interfere with users in an unsafe way. - Page 3 Work on flat level surface. LOCATION A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to 6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.
-
Page 4: Assembly Tips
ASSEMBLY TIPS CORRECT INSERTION INTO FITTINGS - (indicative diagram shown) All tubes must be fully inserted until contact is made with adjoining tube. Gap. No gap. CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown) + 360 2. Using other end of the allen key do one full 1. -
Page 5: Inventory
THE INVENTORY AND ASSEMBLY METHOD WILL VARY ACCORDING TO THE PURCHASED ADD-ON SECTION 1 - YOUR SUPPLIED PACK WILL BE THE LACHE BARS. SECTION 2 - YOUR SUPPLIED PACK WILL BE THE ROCKET RINGS. INVENTORY - LACHE BARS - SECTION 1 (PAGES 5-12.) -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS - LACHE BARS SECTION 1 THE FOLLOWING ASSEMBLY INSTRUCTIONS ARE FOR THE LACHE BARS. FOR ROCKET RINGS ASSEMBLY INSTRUCTIONS PLEASE REFER TO SECTION 2 (PAGE 13) SELECT DESIRED LOCATION OF LACHE BARS (Assembly for Gorilla shown in example) -
Page 7: Frame Preparation
ASSEMBLY INSTRUCTIONS - FRAME PREPARATION REMOVE PEGS & LOOSEN ELBOWS Swing bar. 1. On the selected install side remove base plate pegs. Swing leg. 2. Loosen all grub screws on elbows connecting swing bars to swing legs on the install side (A and B). - Page 8 REMOVE SWING BARS Swing bar. 1. Loosen fittings connecting swing bar to legs. 2. Remove swing bars from frame. Adjustable Swing leg. ATTACH FITTINGS 2x Long Short Tee D-101L Accessories Tube 50Dia. x 2950mm 1. On flat level ground slide 3 reducing tees onto the accessories bar, then attach a long short tee to each end.
-
Page 9: Lache Bar Assembly
ASSEMBLY INSTRUCTIONS - LACHE BAR ASSEMBLY ATTACH LACHE TUBES 3x Lache Tube 33Dia. x 1040mm 1. Space reducing tees as shown. (User preference). + 360 2. Attach 3x lache bars and fully tighten fixings ‘A’but leave fixings ‘B’ loose for later adjustment. - Page 10 RE-ATTACH 2x SWING BAR ASSEMBLIES. Swing bar assemblies Re- attach the short tees and elbows on the swing bars removed from step 4. removed in step 2, to the main monkey bar adjustable legs. Check the swing bars are level and square. Fully tighten all grub screws.
-
Page 11: Swing Leg Assembly
ASSEMBLY INSTRUCTIONS - SWING LEG ASSEMBLY ASSEMBLE LEGS & ACCESSORIES BAR. Leg Base Plates. 1. On flat level ground slide 3x reducing tees onto accessories tube, spacing the same as the other lache accessories tube in step 6. Ensure the grub screws are facing the base plates on the legs. - Page 12 ATTACH SWING LEG ASSEMBLY 1. With 2 people slide leg assembly onto swing bar ends (lache tube side). 2. At the same time swivel the lache tubes into position in the leg assembly reducing tees. 3. Fully tighten all grub screws. Lache tube.
- Page 13 SECURE TO GROUND 1. Check frame is level and square. 2. Ensure all grub screws are firmly tightened. 3. Hammer in pegs x4. Pegs FINAL CHECKS 1. Ensure frame is square and level. 2. Firmly tighten all grub screws and bolts. 3.
-
Page 14: Section 2 - Rocket Rings
ASSEMBLY INSTRUCTIONS - ROCKET RINGS SECTION 2 THE FOLLOWING ASSEMBLY INSTRUCTIONS ARE FOR THE ROCKET RINGS. FOR LACHE BARS ASSEMBLY INSTRUCTIONS PLEASE REFER TO SECTION 1 (PAGE 5) SELECT DESIRED LOCATION OF ROCKET RINGS (Assembly for Gorilla shown in example) 1. -
Page 15: Frame Preparation
ASSEMBLY INSTRUCTIONS - FRAME PREPARATION REMOVE PEGS & LOOSEN ELBOWS Swing bar. 1. On the selected install side remove base plate pegs. Swing leg. 2. Loosen top grub screws on elbows connecting swing bars to swing legs on the install side (A and B). -
Page 16: Accessories Bar Assembly
2x Rocket Rings Accessories Tube 50Dia. x 2950mm 1. On flat level ground slide on 4 long short tees. Fit rocket rings onto bar. Long Short Tee D-101L 2. Correctly fit the long short tees as shown then firmly tighten all grub screws. - Page 17 RE-ATTACH SWING BAR LEGS 1. Lift legs and twirly whirly bars back into position. 2. Fully tighten grub screws on swing leg elbows. Swing bar. Swing leg removed in step 3. + 360 Fully tighten all elbow grub screws. Page 16...
- Page 18 SECURE TO GROUND 1. Check frame is level and square. 2. Ensure all grub screws are firmly tightened. 3. Hammer in pegs x4. Pegs FINAL CHECKS 1. Ensure frame is square and level. 2. Firmly tighten all grub screws and bolts. 3.
-
Page 19: Maintenance
MAINTENANCE. At the beginning of each heavy play session (especially a party) and twice a month during play season ensure; 1. Tighten all hardware - grub screws, nuts and bolts. 2. Pegs are in place and fully secure. 3. Lubricate all metallic moving parts with WD40 or Vasaline - (trolley and swing hooks.) 4. - Page 20 72 164 496 520 1300 912 198 info@funkymonkeybars.com www.funkymonkeybars.com ® AUSTRALIAN MADE 9 Cutting Way, we are social monkeys AND OWNED Yangebup WA 6164 All Funky Monkey Bars® designs are registered and protected under IP Australian certification. IP Australia...
