'B'
'a'

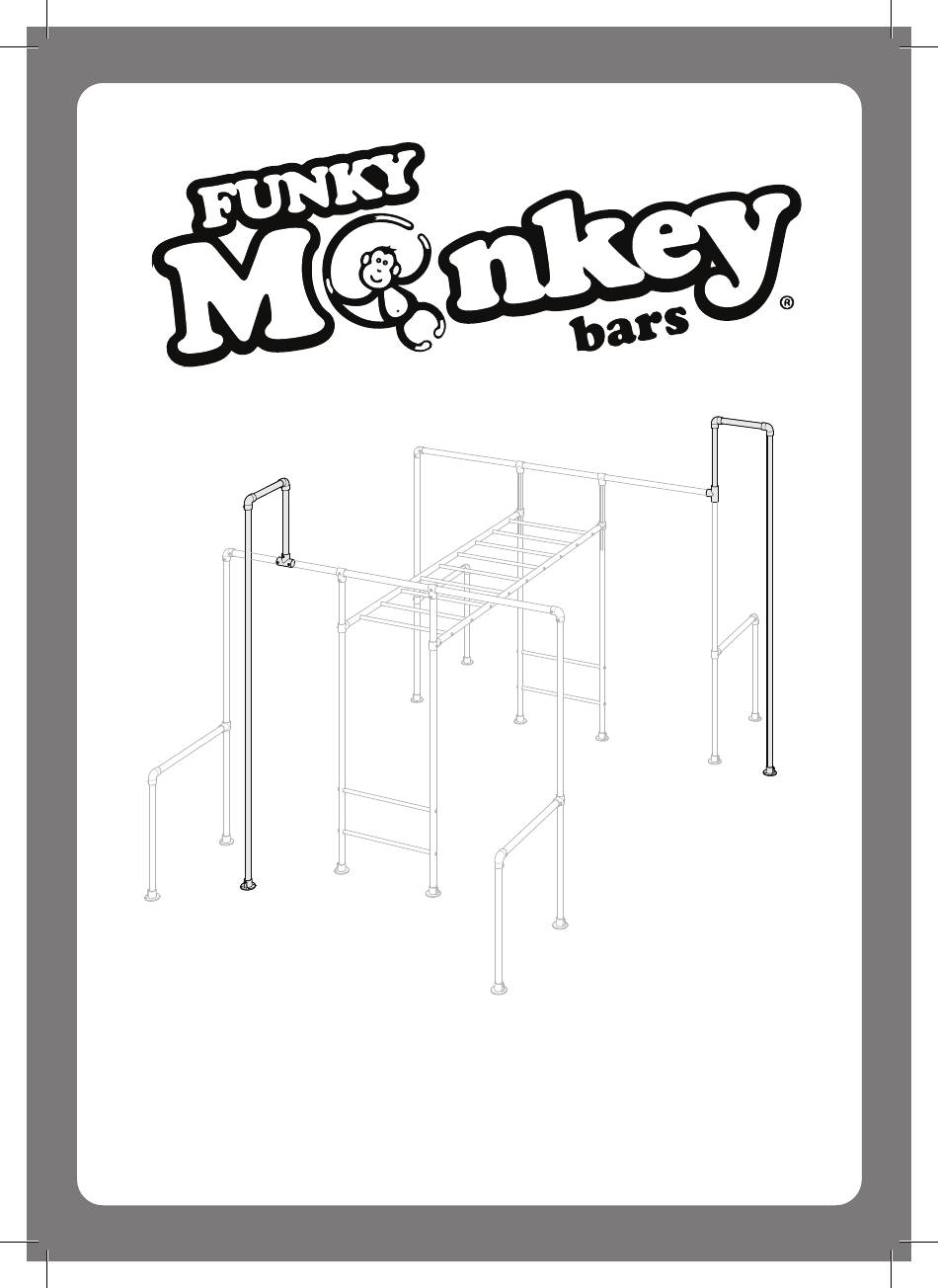

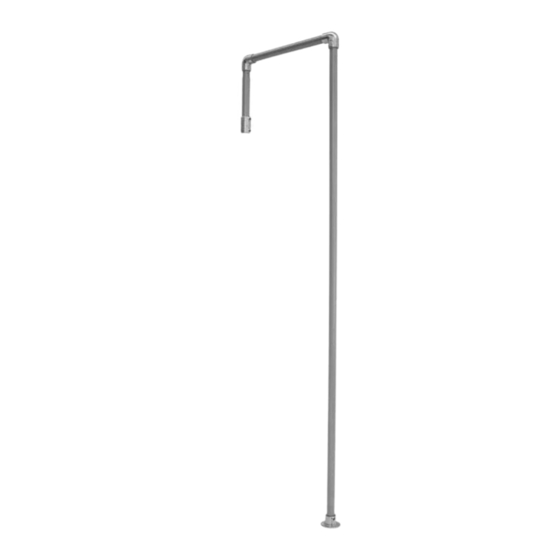

FIREMANS POLE
(add-on) - option 'a' and 'b' positions
ASSEMBLY INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIREMANS POLE and is the answer not in the manual?

Questions and answers

Related Manuals for FUNKY MONKEY BARS FIREMANS POLE

Summary of Contents for FUNKY MONKEY BARS FIREMANS POLE

  • Page 1 ‘B’ ‘a’ FIREMANS POLE (add-on) - option ‘a’ and ’b’ positions ASSEMBLY INSTRUCTIONS...

  • Page 2: Table Of Contents

    Bars®, especially lower quality products that have not been approved by Funky Monkey Bars®. 15. Ensure the height of your Funky Monkey Bars® (horizontal ladder) are set at a level that is age appropriate. 16. DO NOT install your Funky Monkey Bars® over or near objects that could interfere with users in an unsafe way.
  • Page 3 Work on flat level surface. LOCATION A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to 6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.

  • Page 4: Assembly Tips

    ASSEMBLY TIPS CORRECT INSERTION INTO FITTINGS - (indicative diagram shown) All tubes must be fully inserted until contact is made with adjoining tube. Gap. No gap. CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown) + 360 2. Using other end of the allen key do one full 1.

  • Page 5: Inventory And Tools

    INVENTORY TOOLS REQUIRED FOR INSTALLATION 8mm Allen key Soft Hammer Spirit Level (Not included) (Not included) (Included) TUBES Top Tube Extension Tube Firemans Pole FITTINGS Elbow Long Tee 4 hole Base Plate D-125 D-104 D-131 Page 4...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS - ORIENTATION SELECT DESIRED ORIENTATION OF FIREMANS POLE ADD-ON. (Assembly for Gorilla shown in example) FIREMANS POLE ADD-ON POSITION OPTION B. Long tee added as extension to swing leg. REFER TO STEPS 2-5 THEN STEPS 13 ONWARDS Swing leg.

  • Page 7: Firemans Pole Assembly

    ASSEMBLY INSTRUCTIONS - FIREMANS POLE ASSEMBLY ASSEMBLE FIREMANS POLE AND EXTENDER TUBE Elbow D-125 1. On flat level ground, slide fittings onto firemans pole and extender tube, ensure fittings are fully engaged. Extension Tube 2. Fully tighten all grub screws...

  • Page 8: Existing Frame Preparation

    ASSEMBLY INSTRUCTIONS - EXISTING FRAME PREPARATION REMOVE PEGS & LOOSEN ELBOW FITTING 1. Remove pegs from twirly whirly base plate and swing leg on selected firemans pole install location. 2. Loosen grub screw connecting swing leg to swing bar on selected firemans pole install location.

  • Page 9: Position Option 'A' Installation

    ASSEMBLY INSTRUCTIONS - POSITION ‘A’ INSTALLATION POSITION OPTION ‘A’. THE FOLLOWING STEPS 7-10 ARE FOR THE FIREMANS POLE Please refer to page 10 for position option ‘B’. ATTACH LONG TEE Swing bar. Long Tee D-104 1. With grub screws facing outwards slide the long tee onto the swing bar to the desired location for the firemans pole.
  • Page 10 ATTACH FIREMANS POLE Firemans pole from step 3. 1. Fully insert firemans pole extension tube into long tee on swing bar. 2. Fully tighten grub screws. + 360 Tighten all grub screws. SECURE TO GROUND 1. Check level and square.

  • Page 11: Position Option 'B' Installation

    ASSEMBLY INSTRUCTIONS - POSITION ‘B’ INSTALLATION POSITION OPTION ‘B’. THE FOLLOWING STEPS 13-17 ARE FOR THE FIREMANS POLE Please refer to page 8 for position option ‘A’. For drawing clarity the selected install location shown is the same as position A.
  • Page 12 Swing leg. + 360 Firmly tighten all grub screws. ATTACH FIREMANS POLE Firemans pole from step 3. 1. Fully insert firemans pole extension tube into long tee on swing bar. 2. Fully tighten grub screws. + 360 Tighten all grub screws.
  • Page 13 1. Check level and square. 2. Hammer in pegs on re-installed swing leg, twirly whirly bar and newly installed 4 hole firemans pole base plates. NOTE: To reduce movement in your frame load your twirly whirly bar as per original frame assembly instructions or refer to website www.funkymonkeybars.com/pages/videos...

  • Page 14: Maintenance

    MAINTENANCE. At the beginning of each heavy play session (especially a party) and twice a month during play season ensure; 1. Tighten all hardware - grub screws, nuts and bolts. 2. Pegs are in place and fully secure. 3. Lubricate all metallic moving parts with WD40 or Vasaline - (trolley and swing hooks.) 4.
  • Page 15 NOTES. Page 14...
  • Page 16 72 164 496 520 1300 912 198 info@funkymonkeybars.com www.funkymonkeybars.com ® AUSTRALIAN MADE 9 Cutting Way, we are social monkeys AND OWNED Yangebup WA 6164 All Funky Monkey Bars® designs are registered and protected under IP Australian certification. IP Australia...
