MONKEY BAR ADD-ON
ASSEMBLY INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MONKEY BAR ADD-ON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FUNKY MONKEY BARS MONKEY BAR ADD-ON

Summary of Contents for FUNKY MONKEY BARS MONKEY BAR ADD-ON

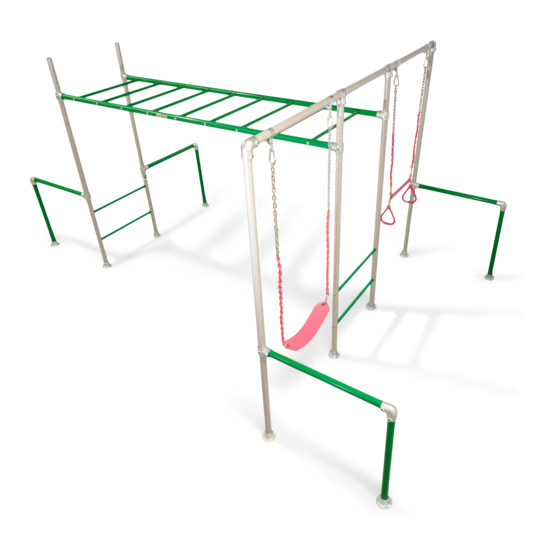

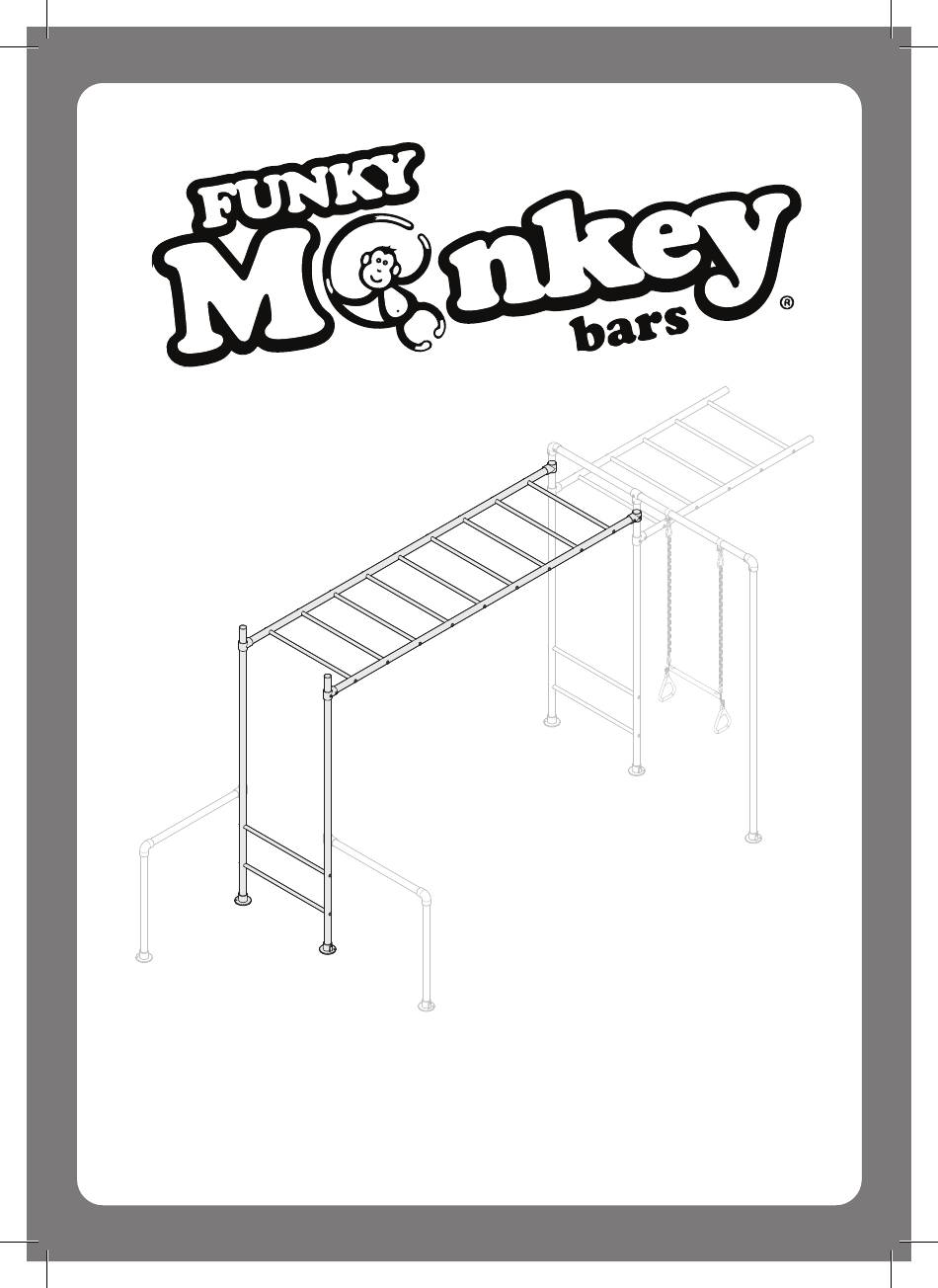

  • Page 1 MONKEY BAR ADD-ON ASSEMBLY INSTRUCTIONS...

  • Page 2: Table Of Contents

    Bars®, especially lower quality products that have not been approved by Funky Monkey Bars®. 15. Ensure the height of your Funky Monkey Bars® (horizontal ladder) are set at a level that is age appropriate. 16. DO NOT install your Funky Monkey Bars® over or near objects that could interfere with users in an unsafe way.
  • Page 3 Work on flat level surface. LOCATION A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to 6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.

  • Page 4: Load Rating

    QUALITY & INDEPENDENT TESTING At Funky Monkey Bars® we take the quality of our designs and safety very seriously. All Funky Monkey Bars® frames go through a stringent, independent structural testing process prior to being made available for release to our customers.

  • Page 5: Dimensions

    FUNKY MONKEY BARS ® EXTRA MONKEY BAR ADD-ON DIMENSIONS A mimimum of 2.0 Metres clear fall zone is recommended around the elevated hanging points of your Funky Monkey Bars®. 4.0 Metres 3.08 Metres 2.0 Metres clear fall zone 2.0 Metres clear fall zone 2.0 Metres clear fall zone...

  • Page 6: Assembly Tips

    ASSEMBLY TIPS CORRECT INSERTION INTO FITTINGS - (indicative diagram shown) Gap. No gap. All tubes must be fully inserted until contact is made with adjoining tube. CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown) + 360 2. Using other end of the allen key do one full 1.
  • Page 7 ASSEMBLY TIPS (continued) IT IS CRITICAL YOUR MAIN FRAME IS 100% SQUARE AND LEVEL (indicative diagram shown) PLAN VIEW Check assembly is 100% level, square & straight. SIDE VIEW If your frame is not straight or level remove pegs, loosen grub screws, re-adjust re-tighten and re-peg the frame.

  • Page 8: Inventory

    INVENTORY TOOLS REQUIRED FOR INSTALLATION Tape Measure Soft Hammer Spirit Level 8mm Allen key (Not included) (Not included) (Not included) (Included) TUBES Rung Tube Adj. Leg Tube Ladder Tube FITTINGS Short Tee Base Plate D-101 D-131 HARDWARE Washer M10 Hex Nut Plastic End Cap M10 Bolt Rung Insert...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS - PRE-INSTALLATION FRAME PREPARATION SELECT THE LOCATION FOR THE ADD-ON MONKEY BAR - (orangutan model shown) 1. Depending on your Funky Monkey Bars© model and configuration select an existing monkey bar end for the add-on monkey bar to be installed.
  • Page 10 NOTE: Every Funky Monkey Bars® frame will vary. At this stage the twirly whirly small tees A & B need to be removed for installation on the extra monkey Twirly whirly bar.
  • Page 11 4. Fully tighten all grub screws. Leg tube. Swing leg. PRE-INSTALLATION CHECKS 1. Adjust top short tees to desired height for extra monkey bar add-on. 2. Ensure the frame is level and square. 3. Fully tighten all grub screws. + 360 Page 10...

  • Page 12: Ladder Bar Assembly

    ASSEMBLY INSTRUCTIONS - LADDER BAR ASSEMBLY RUNG ASSEMBLY (x11) Rung Tube 25Dia x 850mm 1. Assemble plastic rung inserts as shown above. 2. Push inserts into both ends of all rungs. MONKEY BAR LADDER ASSEMBLY M10 Bolts Washers Hand tighten all bolts. Assemble on flat surface.
  • Page 13 ATTACH SECOND LADDER TUBE Hand tighten all bolts Ladder Tube Washers 50Dia x 2950mm M10 Bolts FIRMLY TIGHTEN ALL RUNG BOLTS. See page 5 for correct tightening method. 3-4 turns Page 12...

  • Page 14: Leg Assembly

    ASSEMBLY INSTRUCTIONS - LEG ASSEMBLY LEG ASSEMBLY On a flat level surface insert plastic end caps into leg tubes. Adj. Leg Tube 50Dia x 2300mm Plastic End Cap INSERT RUNGS Tighten all bolts. M10 Bolts Washers Assembled Rungs from step 1 ATTACH SECOND LEG Tighten all bolts.
  • Page 15 ATTACH BASE PLATES Tighten all grub screws. Base Plate D-125 SLIDE ON SHORT TEES Short Tee D-101 Hand tighten grub screws. Temporary location. Page 14...
  • Page 16 APPLY HEIGHT STICKERS. Height Sticker SET LADDER BAR HEIGHT. Short Tee D-101 Set top 2x short tees at same height as top short tees set in step 6. Position Short-Tee measured height from step 6. Page 15...

  • Page 17: Monkey Bar Assembly

    ASSEMBLY INSTRUCTIONS - MONKEY BAR ASSEMBLY FIRMLY TIGHTEN ALL RUNG BOLTS & GRUB SCREWS. Fully Tighten rung bolts. + 360 3-4 turns ATTACH LADDER BAR TO LEG ASSEMBLY. Using two people insert ladder bar assembly from step 10 into short Ladder bar assembly from step 10.
  • Page 18 ATTACH MONKEY BAR ASSEMBLY TO EXISTING FRAME LEGS Existing frame. Using two people flip the monkey bar assembly over and attach to the existing frame. Fully tighten all grub screws. Height set step 6. + 360 Fully tighten all grub screws. CRITICAL : ENSURE YOUR FRAME IS 100% SQUARE AND LEVEL (AS PER PAGE 6) BEFORE MOVING ONTO THE REST OF THE ASSEMBLY.
  • Page 19 SECURE TO GROUND ASSEMBLY INSTRUCTIONS - LOAD TWIRLY WHIRLY BARS 1. Ensure frame is square and level. 2. Firmly tighten all grub screws. 3. Hammer in pegs x2. Pegs RE-ATTACH TWIRLY WHIRLY BARS x2 Adjust height of short tees A & B to align with horizontal twirly whirly bars.

  • Page 20: Load Twirly Whirly Bars

    ASSEMBLY INSTRUCTIONS - LOAD TWIRLY WHIRLY BARS LOAD YOUR TWIRLY WHIRLY BARS x2 To reduce movement in your frame load your twirly whirly bars as follows. . Loosen the grub screw fixing the short tee to the swing leg. Swing leg Twirly Whirly .
  • Page 21 FINAL CHECKS 1. Ensure frame is square and level. 2. Check all grub screws are firmly tightened. 3. Check all base plates are pegged down. Re-install any accessories removed in step 2. Check swing hook bolts are tight with rachet. Add-on accessory not included-(sold seperately) Check all pegs are hammered in.

  • Page 22: Maintenance

    MAINTENANCE. At the beginning of each heavy play session (especially a party) and twice a month during play season ensure; 1. Tighten all hardware - grub screws, nuts and bolts. 2. Pegs are in place and fully secure. 3. Lubricate all metallic moving parts (trolley and swing hooks.) 4.
  • Page 23 NOTES. Page 22...
  • Page 24 72 164 496 520 1300 912 198 info@funkymonkeybars.com www.funkymonkeybars.com ® AUSTRALIAN MADE 9 Cutting Way, we are social monkeys AND OWNED Yangebup WA 6164 All Funky Monkey Bars® designs are registered and protected under IP Australian certification. IP Australia...
