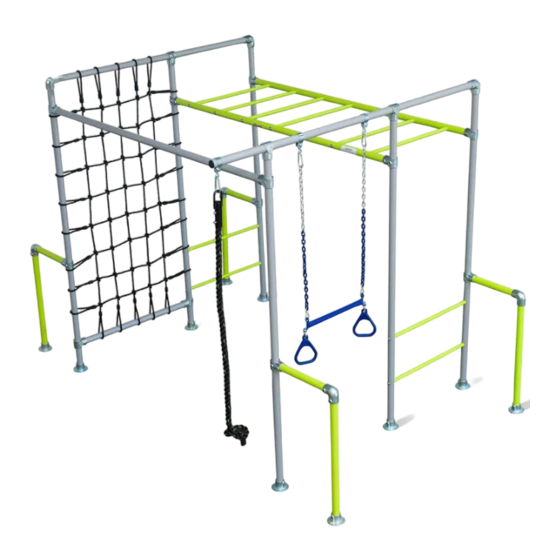

THE CHEEKY LITTLE MONKEY
(WITHOUT NETBALL HOOP)
ASSEMBLY INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THE CHEEKY LITTLE MONKEY and is the answer not in the manual?

Questions and answers

Related Manuals for FUNKY MONKEY BARS THE CHEEKY LITTLE MONKEY

Summary of Contents for FUNKY MONKEY BARS THE CHEEKY LITTLE MONKEY

  • Page 1 THE CHEEKY LITTLE MONKEY (WITHOUT NETBALL HOOP) ASSEMBLY INSTRUCTIONS...

  • Page 2: Table Of Contents

    Bars®, especially lower quality products that have not been approved by Funky Monkey Bars®. 15. Ensure the height of your Funky Monkey Bars® (horizontal ladder) are set at a level that is age appropriate. 16. DO NOT install your Funky Monkey Bars® over or near objects that could interfere with users in an unsafe way.
  • Page 3 Work on flat level surface. LOCATION A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to 6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.

  • Page 4: Load Rating

    QUALITY & INDEPENDENT TESTING At Funky Monkey Bars® we take the quality of our designs and safety very seriously. All Funky Monkey Bars® frames go through a stringent, independent structural testing process prior to being made available for release to our customers.

  • Page 5: Dimensions

    FUNKY MONKEY BARS ® CHEEKY LITTLE MONKEY OVERALL DIMENSIONS A mimimum of 2.0 Metres clear fall zone is recommended around the elevated hanging points of your Funky Monkey Bars®. 3.4 Metres 2.0 Metres 2.35 Metres clear fall zone 2.0 Metres 2.0 Metres...

  • Page 6: Assembly Tips

    ASSEMBLY TIPS CORRECT INSERTION INTO FITTINGS - (indicative diagram shown) Gap. No gap. All tubes must be fully inserted until contact is made with adjoining tube. CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown) + 360 2. Using other end of the allen key do one full 1.
  • Page 7 ASSEMBLY TIPS (continued) IT IS CRITICAL YOUR MAIN FRAME IS 100% SQUARE AND LEVEL (indicative diagram shown) PLAN VIEW Check assembly is 100% level, square & straight. SIDE VIEW If your frame is not straight or level remove pegs, loosen grub screws, re-adjust re-tighten and re-peg the frame.

  • Page 8: Inventory

    INVENTORY TOOLS REQUIRED FOR INSTALLATION 17mm Rachet Spirit Level Tape Measure 8mm Allen key Soft Hammer (Included) (Not included) (Not included) (Not included) (Not included) TUBES Swing Tube Horizontal Short Short Twirly Tube Cargo Tube Swing/Leg Tube/ Accessories Leg Tube Vertical Twirly Tube Rung Tube...
  • Page 9 INVENTORY (continued) HARDWARE M10 Bolt Rung Insert Washer M10 Hex Nut Plastic End Cap Manufacture Sticker Height Sticker COMPONENTS (accessories) Cargo Net 2.3m Swing Hooks Trapeze Jungle Rope One of the best things about a Funky Monkey Bar is the ability to add new equipment and accessories as your child and family grows.

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS - LADDER BAR ASSEMBLY RUNG ASSEMBLY (x22) Rung Tube 25Dia x 850mm 1. Assemble plastic rung inserts as shown above. 2. Push inserts into both ends of all rungs. MONKEY BAR LADDER ASSEMBLY M10 Bolts Washers 1. Assemble on flat surface. 2.
  • Page 11 ATTACH SECOND LADDER TUBE 1. Hand tighten all bolts as per page 5 - Correct tightening method of rung bolts. 7 Rung Ladder Tube 50Dia x 2300mm Washers M10 Bolts FIRMLY TIGHTEN ALL M10 RUNG BOLTS. 3-4 TURNS Ensure rungs do not spin whilst tightening Page 10...

  • Page 12: Leg Assembly

    ASSEMBLY INSTRUCTIONS - LEG ASSEMBLY INSERT RUNGS Leg Tube Dia 50 x 2300mm Tighten all bolts. M10 Bolts Washers Assembled Rungs from step 1 ATTACH SECOND LEG AND CARGO NET Leg Tube Dia 50 x 2300mm 1. Slide cargo net onto second leg tube.
  • Page 13 ATTACH BASE PLATES AND 1x SHORT TEE (cargo net side) Tighten all grub screws on base plates. Leave short tee loose. Short Tee D-101 Base Plate D-125 APPLY HEIGHT STICKERS Height Sticker Move net downwards to allow height sticker application. Page 12...
  • Page 14 SET LADDER BAR HEIGHT. This short tee is for the twirly whirly 200mm supports and is on the other side for step 11. Short Tee D-101 Position top short-tee at measured height. Push through cargo hoops if required. FIRMLY TIGHTEN ALL GRUB SCREWS AND RUNG BOLTS. Hand tighten grub screws A &...
  • Page 15 REPEAT STEPS 5-10 FOR SECOND PAIR OF LEGS. SAME PROCEDURE BUT WITHOUT CARGO NET, LOWER SHORT TEE & TWIRLY WHIIRLY SHORT TEE ON OPPOSITE SIDE, SEE BELOW FOR DESIRED RESULT. LEG ASSEMBLY x 2. Leg with no cargo net and no lower short tee. Leg with cargo net and lower short tee.

  • Page 16: Twirly Whirly Bar Assembly

    ASSEMBLY INSTRUCTIONS - TWIRLY WHIRLY BAR ASSEMBLY ASSEMBLE VERTICAL TWIRLY TUBE Elbow D-125 Tighten all grub screws. Insert Twirly Tube fully into Elbow. Vertical Twirly Tube 50Dia x 900mm Base Plate D-131 ATTACH HORIZONTAL TWIRLY TUBE Horizontal Twirly Tube Firmly tighten all grub screws. 50Dia x 450mm + 360 REPEAT STEPS 13 -14 FOR 3 MORE TWIRLY WHIRLY BARS.

  • Page 17: Main Monkey Bar Assembly

    ASSEMBLY INSTRUCTIONS - MAIN MONKEY BAR ASSEMBLY FLIP LEGS OVER ATTACH 2x LEGS TO LADDER Tighten all grub screws. + 360 Page 16...
  • Page 18 FLIP ASSEMBLY OVER AND MOVE TO DESIRED LOCATION CRITICAL : ENSURE YOUR FRAME IS 100% SQUARE AND LEVEL (AS PER PAGE 6) BEFORE MOVING ONTO THE REST OF THE ASSEMBLY. SECURE TO GROUND Hammer in pegs x4. Pegs Page 17...

  • Page 19: Swing Bar Assembly

    ASSEMBLY INSTRUCTIONS - SWING BARS ASSEMBLE SWING BARS x2 Elbow Swing Tube 1. Insert plastic end caps. D-125 Dia 50 x 2300mm Short Tee 2. Slide on all fittings and firmly tighten D-101 elbows to swing tubes - leave all other fittings loose during fitting.
  • Page 20 ATTACH SWING LEGS 1. Feed leg tube through cargo net hoops and short tees. 2. Tighten grub screws on both leg base plates, short tees & elbows on swing tubes. 3. Ensure the distance between legs is consistant at 1040mm. NOTE: There are 3x short tees on the cargo net side.
  • Page 21 ATTACH CARGO TUBE 1. Loosen grub screws on A,B & C short tees. 2. Thread in bottom cargo tube between cargo net hoops & fully engage into short tees. Cargo Tube Dia 50 x 1040mm + 360 3. Get second person to stand on tube to make cargo net taught, then fully tighten grub screws.
  • Page 22 ATTACH ACCESSORIES TUBE 1. Fully insert cargo net end of accessories tube into short tee until it “clunks” against leg tube. 2. Insert opposite end of accessories bar into short tee by pulling leg outwards. Insert fully until it “clunks” againt leg tube. Accessories Tube Dia 50 x 2300mm LEVEL AND TIGHTEN ACCESSORIES TUBE...
  • Page 23 ATTACH TWIRLY WHIRLY BARS x4 1. Adjust height and orientation of short tees A,B,C & D to align horizontally with twirly whirlys. 2. Fully tighten all grub screws. + 360 SECURE TO GROUND 1. Check frame is level and square. 2.
  • Page 24 ATTACH ACCESSORIES Attach accesories in desired position. Firmly tighten grub screws and tighten swing hook bolts with rachet. 2.3m Jungle Rope Trapeze (centred between legs) FINAL CHECKS Apply your manufacturing sticker to a leg tube. Firmly tighten all grub screws. Page 23...

  • Page 25: Maintenance

    MAINTENANCE. At the beginning of each heavy play session (especially a party) and twice a month during play season ensure; 1. Tighten all hardware - grub screws, nuts and bolts. 2. Pegs are in place and fully secure. 3. Lubricate all metallic moving parts with WD40 or vasaline - (trolley and swing hooks.) 4.
