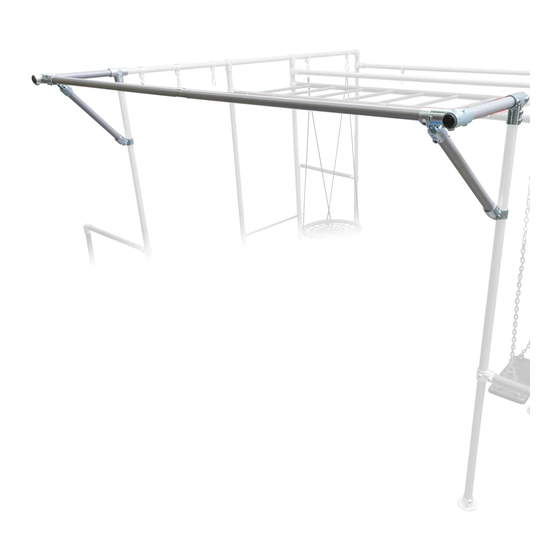

FLOATING ACCESSORIES BAR
(add on)
ASSEMBLY INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Floating Accessories Bar and is the answer not in the manual?

Questions and answers

Related Manuals for FUNKY MONKEY BARS Floating Accessories Bar

Summary of Contents for FUNKY MONKEY BARS Floating Accessories Bar

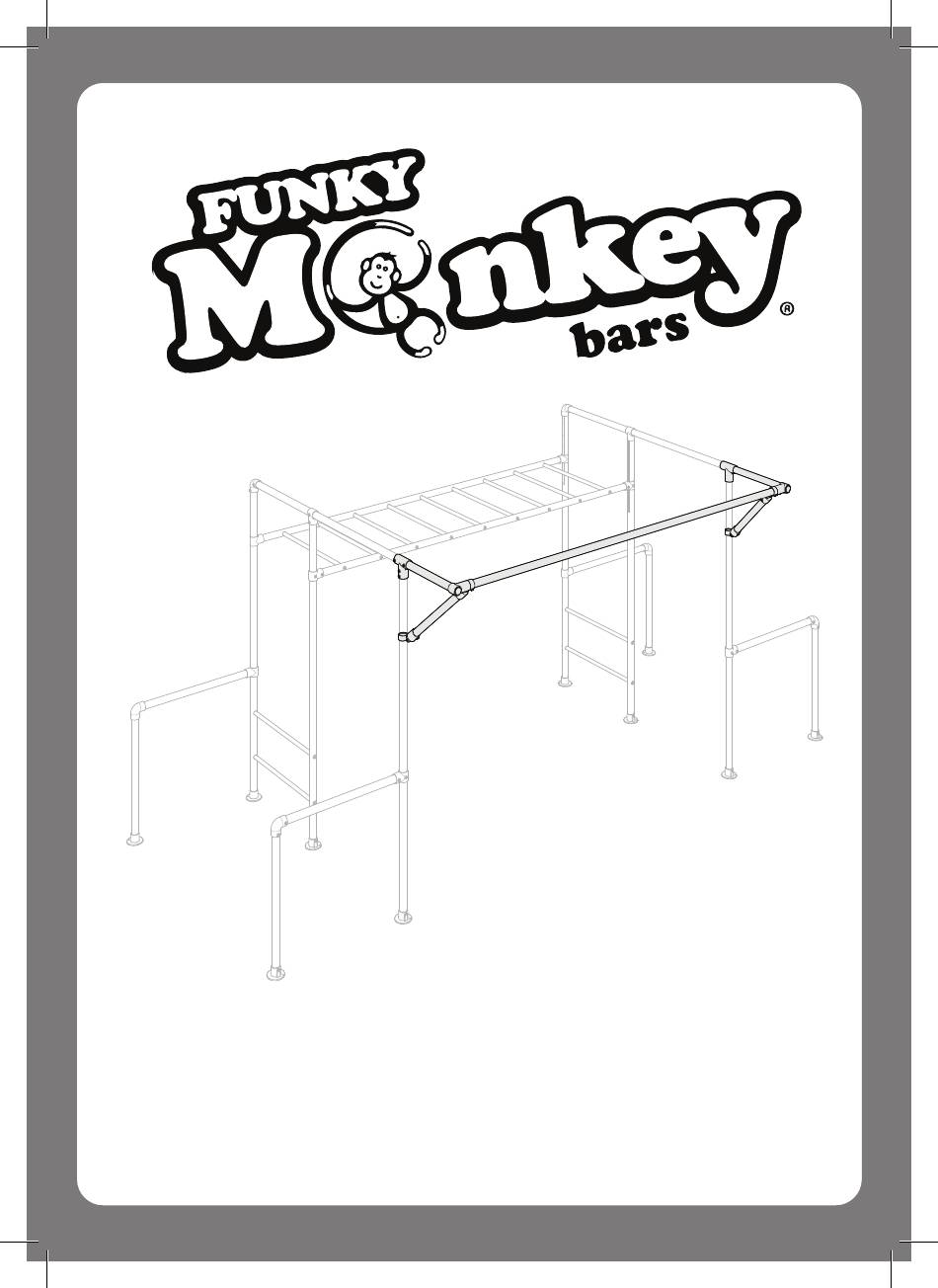

  • Page 1 FLOATING ACCESSORIES BAR (add on) ASSEMBLY INSTRUCTIONS...

  • Page 2: Table Of Contents

    Bars®. Especially lower quality products that have not been approved by Funky Monkey Bars®. 15. Ensure the height of your Funky Monkey Bars® (horizontal ladder) are set at a level that is age appropriate. 16. DO NOT install your Funky Monkey Bars® over or near objects that could interfere with users in an unsafe way.
  • Page 3 Work on flat level surface. LOCATION A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to 6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.

  • Page 4: Load Rating

    QUALITY & INDEPENDENT TESTING At Funky Monkey Bars® we take the quality of our designs and safety very seriously. All Funky Monkey Bars® frames go through a stringent, independent structural testing process prior to being made available for release to our customers.

  • Page 5: Assembly Tips

    ASSEMBLY TIPS CORRECT INSERTION INTO FITTINGS Gap. No gap. All tubes must be fully inserted until contact is made with adjoining tube. CORRECT TIGHTENING METHOD OF GRUB SCREWS 2. Using other end of the allen key do one 1. With long end of allen key, hand full 360 degree turn as a minimum, tighten grub screw as much as possible.
  • Page 6 ASSEMBLY TIPS (continued) IT IS CRITICAL YOUR MAIN FRAME IS 100% SQUARE AND LEVEL PLAN VIEW Check assembly is 100% level, square & straight. SIDE VIEW If your frame is not straight or level remove pegs, loosen grub screws, re-adjust re-tighten and re-peg the frame. INSTALLATION ON A SLOPE If your frame is being installed on a slope ensure the monkey ladder bar is level.

  • Page 7: Inventory

    COMPONENTS Plastic End Cap One of the best things about Funky Monkey Bars® is the ability to add new equipment and accessories as your child and family grows. You can swap or add accessories to your existing frame, or add extra frames that will give you more versatility to attach equipment. Check out what we’ve got in store now at...

  • Page 8: Assembly Instructions

    Swing side NOTE: The Floating Accessories Bar can be assembled on either side of the frame. Funky Monkey Bars® recommends positioning the Floating Accessories Bar on the opposite side to the monkey bar ladder for improved structural integrity and ease of assembly.
  • Page 9 ASSEMBLE EXTENSION TUBES & TIGHTEN + 360 1. Tap end caps into extension tube ends. 2. Insert extension tubes half way into extra long tees and fully tighten all grub screws. 2x Extra Long Tee D104L Extension Tube 50Dia x 600mm 2x End Cap REMOVE PEGS &...
  • Page 10 REMOVE SWING LEGS & ELBOWS 1. Lay swing legs on the ground. 2. Remove leg elbows x2. CONNECT EXTENSION TUBES TO EXISTING LEGS x2 Grub screw facing downwards. 1. Slide swivel braces onto lowered legs ensuring the grub screws are facing the base plate, leave hand tight for later adjustment.
  • Page 11 ASSEMBLE FLOATING ACCESSORIES FRAME 1. Space swing hooks (not included) if applicable along accessories tube as determined by your additional purchased components. NOTE: The number of swing hooks may vary according to the individual components you are adding to the accessories bar. Swing hooks are supplied with accessories. Refer to individual components for maximum load on accessories bar.
  • Page 12 CONNECT THE BRACE TUBES. Fit 2x 600mm brace tubes into position by rotating and sliding swivel brace fittings. 2x Brace Tube 50Dia x 600mm. ORDER OF STEPS: 1. Slide brace tubes into swivel braces (A) & (B). 2. Tighten grub screws on (A) & (B). 3.
  • Page 13 LIFT FLOATING ACCESSORIES FRAME INTO POSITION. With two people lift floating accessories frame assembly into position and fully tighten grub screws on extra long tees. Swing Bar Swing Bar + 360 Ensure swing bar is fully engaged into extra long tee. Fully tighten extra long tee grub screws both ends.
  • Page 14 SECURE TO GROUND 1. Check level and square. 2. Hammer in all removed pegs. Hammer in pegs x 4. FINAL CHECKS E x t s i o 1. Ensure extension tube is level. (If not loosen grub screw (A) & (B) and adjust by raising or lowering lower swivel brace tube.) 2.
  • Page 15 (if applicable)and tighten swing hook bolts with rachet. Refer to individual accessory assembly instructions for details. Funky Monkey Bars® Nest swing and swing hooks shown. Not included. Reload Twirly Whirly bars - refer to step 13 RELOAD TWIRLY WHIRLY BARS.

  • Page 16: Maintenance

    MAINTENANCE. At the beginning of each heavy play session (especially a party) and twice a month during play season ensure; 1. Tighten all hardware - grub screws, nuts and bolts. 2. Pegs are in place and fully secure. 3. Lubricate all metallic moving parts (trolley and swing hooks.) 4.
  • Page 17 NOTES. Page 16...
  • Page 18 72 164 496 520 1300 912 198 info@funkymonkeybars.com www.funkymonkeybars.com ® AUSTRALIAN MADE 9 Cutting Way, we are social monkeys AND OWNED Yangebup WA 6164 All Funky Monkey Bars® designs are registered and protected under IP Australian certification. IP Australia...
