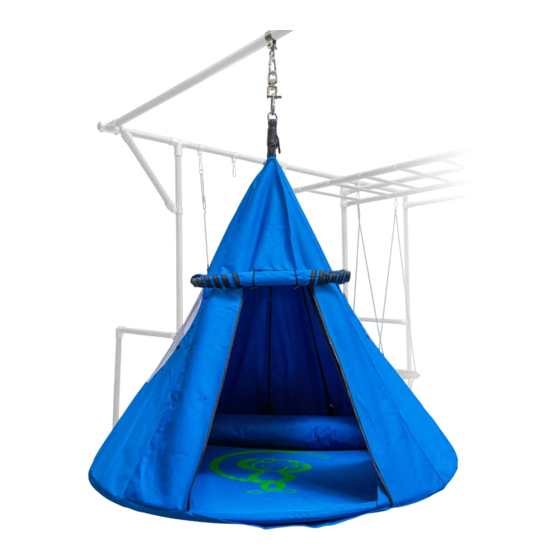

SWINGING CUBBY
ASSEMBLY INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the SWINGING CUBBY and is the answer not in the manual?

Questions and answers

Related Manuals for FUNKY MONKEY BARS SWINGING CUBBY

Summary of Contents for FUNKY MONKEY BARS SWINGING CUBBY

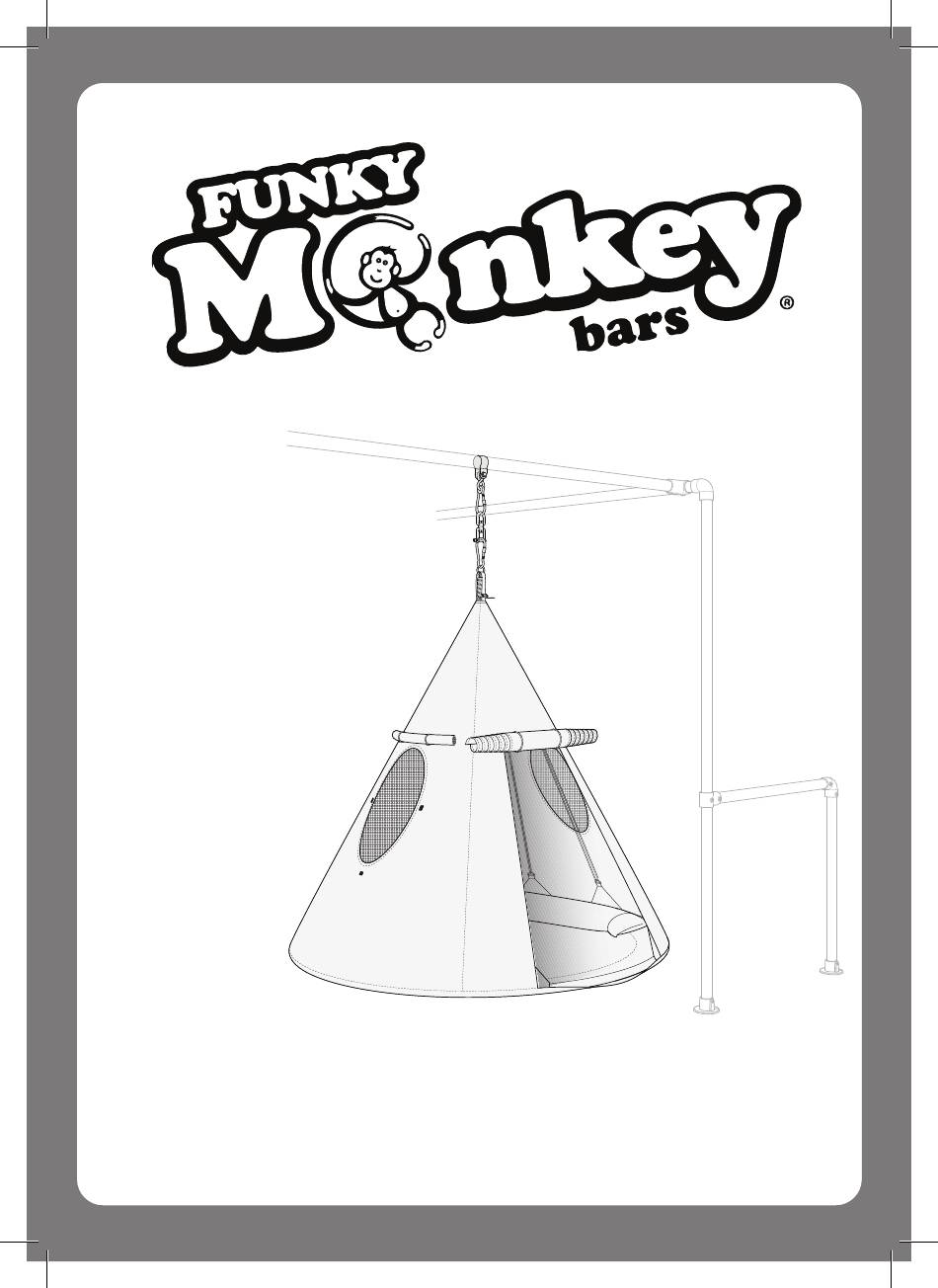

  • Page 1 SWINGING CUBBY ASSEMBLY INSTRUCTIONS...

  • Page 2: Table Of Contents

    11. Equipment should be hung in such a way that a distance of at least 450mm is clear on either side. LOCATION A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to 6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.
  • Page 3 Store the swing in a dry environment away from the elements to prolong life of product. For additional information concerning your Funky Monkey Bars®, please contact our customer service team or check our website for any important updates. Phone 1300 912 198 or www.funkymonkeybars.com...

  • Page 4: Assembly Tips

    ASSEMBLY TIPS CORRECT TIGHTENING OF SWING HOOKS - (indicative diagram shown) 2. Fully tighten bolt on swing hook 1. Slide the swing hook along the to clamp tightly onto tube. Failure tube until the desired location. to do so can result in serious injury. CORRECT INSERTION INTO FITTINGS - (indicative diagram shown) Gap.

  • Page 5: Swing Hook

    INVENTORY TOOLS REQUIRED FOR INSTALLATION - (varies for each accessory) Soft Hammer 17mm Rachet Spirit Level Tape Measure 8mm Allen key 3m Step Ladder (Not included) (Not included) (Not included) (Not included) (Not included) (Not included) INVENTORY - (not to scale) Metal Tubes Pillow Cubby Canopy...
  • Page 6 2. Loosen any necessary fittings and slide swing hook onto accessories tube into central location. Ensure the swing hook is placed away from other approved Funky Monkey Bars® accessories and is spaced 1200mm apart from any other swing hook or fitting.
  • Page 7 ASSEMBLY INSTRUCTIONS - METAL TUBES INSERT METAL TUBE 1. Open zip along back sleeve edge. 2. Insert the first metal tube into the sleeve - push button end first. 3. Insert 3/4 of the way. Cubby Swing Seat from step 2 Metal Tube Insert metal tube into sleeve other end.

  • Page 8: 6X Metal Tubes

    INSERT SECOND METAL TUBE 1. Insert second metal tube into first metal tube in sleeve (small end into large end of first tube). 2. Connect and lock the tubes together by pressing the small button as shown below. Metal Tube INSERT REMAINING METAL TUBES 1.

  • Page 9: Swinging Cubby

    ASSEMBLY INSTRUCTIONS - SWINGING CUBBY ASSEMBLE SWINGING CUBBY 1. Fit the cubby canopy over cubby swing seat by pulling hanging bracket through Undo strap. top hole ‘A, in cubby canopy. 2. Align the door gap on the cubby seat with the cubby canopy.
  • Page 10 ASSEMBLY INSTRUCTIONS - SECURING THE SWINGING CUBBY SECURE SWING CANOPY TO CUBBY SWING SEAT Hanging ring. 1. Ensure the swinging cubby is no higher than 450mm off the ground, no lower than 350mm to the ground and a minimum of 450mm away from Connect and tighten strap.

  • Page 11: Final Checks

    1. Ensure all swing hook bolts are firmly tightened. 2. Check that all other grub screws and rung bolts on your frame are fully tightened. 3. The entire Funky Monkey Bars® frame is pegged down. 4. Check all carabiner shackles are closed and locked.
  • Page 12 72 164 496 520 1300 912 198 info@funkymonkeybars.com www.funkymonkeybars.com ® AUSTRALIAN MADE 9 Cutting Way, we are social monkeys AND OWNED Yangebup WA 6164 All Funky Monkey Bars® designs are registered and protected under IP Australian certification. IP Australia...
