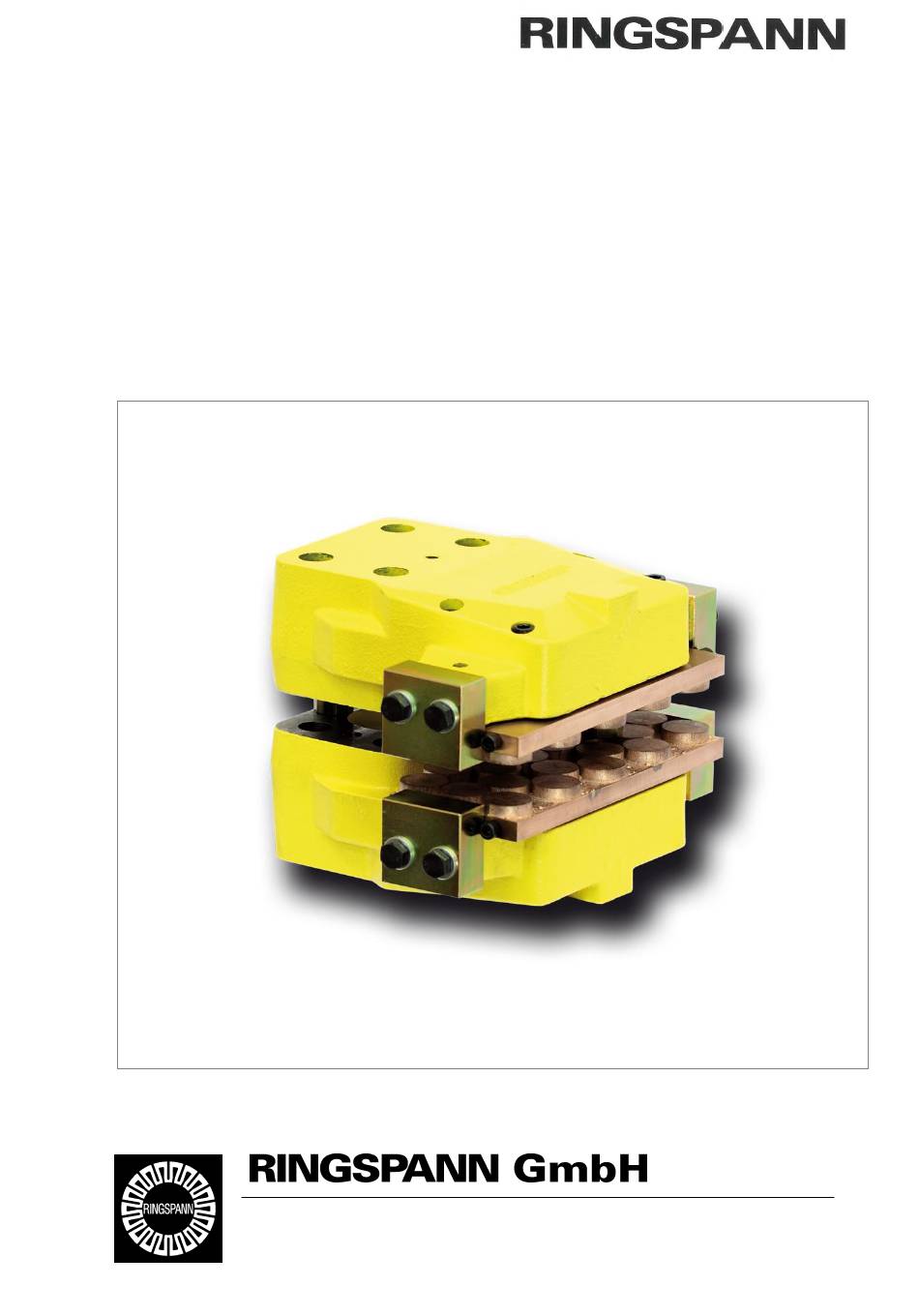

- Page 1 ® ® Power Transmission Installation and Operating Instruction for Brake Caliper HW 075 HFK E 09.741e Schaberweg 30-38 Telephone +49 6172 275-0 www.ringspann.de 61348 Bad Homburg Telefax +49 6172 275-275 info@ringspann.de Germany...
- Page 2 Disregarding or misinterpreting these installation and operating instructions invalidates any product liability or warranty by RINGSPANN; the same applies if the product is taken apart or changed. These installation and operating instructions should be kept in a safe place and should accompany the product if it is passed on to others –...
-
Page 3: Table Of Contents
Improper use Condition on delivery Handling and storage Technical requirements for safe and reliable operation Installation of the RINGSPANN brake caliper 8.1 General instructions regarding assembly and installation 8.2 Assembly description 8.3 Assembling the bolt connection and releasing the brake 8.4 Connecting the signal cable (option) -
Page 4: General Remarks
Configuration and function / Parts list 2.1 Function The brake caliper HW 075 HFK is a machine component used for the purpose of braking accelerated masses safely and reliably. The combination of brake caliper and brake disc provides a complete brake unit capable of securing machines and equipment system effectively. -
Page 5: Drawing And Parts List
As well as these instructions, please also consider the catalogue data for the brake at www.RINGSPANN.com and the drawings in the individual sections. 2.3 Drawing and Parts List Brake saddle HW 075 HFK... - Page 6 Hexagonal socket head cap screw M8x12 DIN EN ISO 4762-10.9 Turcon-Stepseal 2K RSK300750-T46N Turcon-Excluder 2 WE3200750-T46V Stopper plug R ¼“ KAPSTO GPN 700 Piston to HW 075 HFK Hexagonal socket head cap screw M10x70 DIN EN ISO 4762-A2-70 Pressure spring RDF-2199 Holding plate Disc B13 DIN EN ISO 7089-ST galvanized Hexagonal screw M12x50 DIN EN ISO 4014-10.9...
-
Page 7: Proper Use / Specified Purpose
The brake caliper is designed for use as a holding/parking brake, a stopping brake and/or a control brake. Other uses are improper and incompatible with the specified purpose. RINGSPANN assumes no liability for damages resulting from improper use. The risk is assumed by the user alone. - Page 8 Installation and Operating Instructions for E 09.741e HW 075 HFK Brake Caliper hydraulic activated – spring released Date: 13.07.2023 Issue: 6 draw: BAHS checked: EISF Pages: 19 Page: 8 Caution! Oil and rust-proofing-agent residues reduced friction coefficient and thus diminish transmissible braking torque substantially! 8.2 Assembly and installation...
-
Page 9: Assembling The Bolt Connection And Releasing The Brake
Installation and Operating Instructions for E 09.741e HW 075 HFK Brake Caliper hydraulic activated – spring released Date: 13.07.2023 Issue: 6 draw: BAHS checked: EISF Pages: 19 Page: 9 Fig. 8.1 Caution! Check whether the brake disc can be freely rotated. - Page 10 Installation and Operating Instructions for E 09.741e HW 075 HFK Brake Caliper hydraulic activated – spring released Date: 13.07.2023 Issue: 6 draw: BAHS checked: EISF Pages: 19 Page: 10 Fig. 8.2 Mounting to each of the vent holes measuring a mini connector or an automatic ventilation system.
-
Page 11: Connecting The Signal Cable (Option)
Installation and Operating Instructions for E 09.741e HW 075 HFK Brake Caliper hydraulic activated – spring released Date: 13.07.2023 Issue: 6 draw: BAHS checked: EISF Pages: 19 Page: 11 Check to ensure that screws and other connections are tight: • brake caliper to machine component. -
Page 12: Start-Up
Installation and Operating Instructions for E 09.741e HW 075 HFK Brake Caliper hydraulic activated – spring released Date: 13.07.2023 Issue: 6 draw: BAHS checked: EISF Pages: 19 Page: 12 Fig. 8.3 Start-up Full-surface contact between the two brake pads (Pos. 1) and the brake disc as well as brief heating of the brake pads to approx. -
Page 13: Disassembling The Brake
Installation and Operating Instructions for E 09.741e HW 075 HFK Brake Caliper hydraulic activated – spring released Date: 13.07.2023 Issue: 6 draw: BAHS checked: EISF Pages: 19 Page: 13 10. Disassembling the brake Danger to life and limb! When disassembling the brake it is essential to ensure that the entire drive train is secured against inadvertent activation. -
Page 14: Permissible Brake Pad Wear And Replacement Of The Brake Pads
(mounting plate thickness plus remaining pad material). Brake pads must always be replaced in pairs. Only original RINGSPANN brake pads may be used. Before replacing the brake pads (Pos. 1), ensure that the mass by the brake is secured to prevent movement, because parts of the brake must be loosened for replacement. -
Page 15: Replacement Of Gasket, Wiper And Piston Seal
Installation and Operating Instructions for E 09.741e HW 075 HFK Brake Caliper hydraulic activated – spring released Date: 13.07.2023 Issue: 6 draw: BAHS checked: EISF Pages: 19 Page: 15 Fig. 11.1 Caution! The threaded bore in the brake pad is a blind bore with a depth of 10 mm. - Page 16 Installation and Operating Instructions for E 09.741e HW 075 HFK Brake Caliper hydraulic activated – spring released Date: 13.07.2023 Issue: 6 draw: BAHS checked: EISF Pages: 19 Page: 16 Caution! Ensure that no hydraulic pressure is applied to the brake caliper.
-
Page 17: Inductive Proximity Switch (Option)
Installation and Operating Instructions for E 09.741e HW 075 HFK Brake Caliper hydraulic activated – spring released Date: 13.07.2023 Issue: 6 draw: BAHS checked: EISF Pages: 19 Page: 17 Fig. 11.2 Fig. 11.3 12. Inductive proximity switch (option) 12.1. Installing and connecting the inductive proximity switch... - Page 18 Installation and Operating Instructions for E 09.741e HW 075 HFK Brake Caliper hydraulic activated – spring released Date: 13.07.2023 Issue: 6 draw: BAHS checked: EISF Pages: 19 Page: 18 Fig. 12.1 Switching function : PNP (Closer) Switching distance : 2 mm flash Operating voltage : 10..30 V DC...
- Page 19 Installation and Operating Instructions for E 09.741e HW 075 HFK Brake Caliper hydraulic activated – spring released Date: 13.07.2023 Issue: 6 draw: BAHS checked: EISF Pages: 19 Page: 19 Please note! The inductive proximity sensor must be positioned in such a way that it is damped in the absence of hydraulic pressure (the LED on the inductive proximity switch glows).
