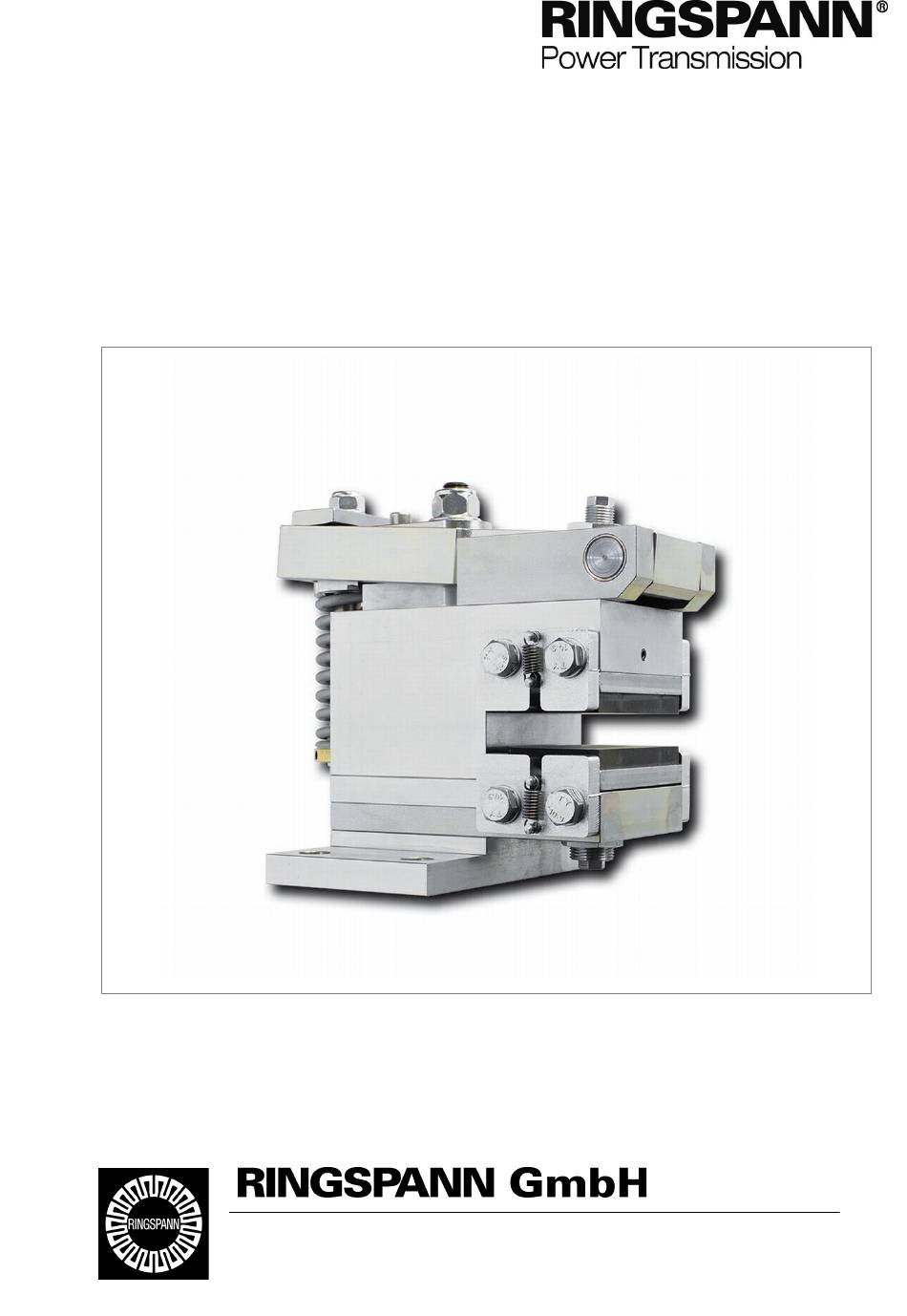

- Page 1 Installation and Operating Instructions for Brake EV/EH 018/024/028/038 EFM-240M/480M E 09.770e Schaberweg 30-38 Phone +49 6172 275 0 www.ringspann.com 61348 Bad Homburg +49 6172 275 275 info@ringspann.com Germany...
- Page 2 Disregarding or misinterpreting these installation and operating instructions invalidates any product liability or guarantee by RINGSPANN; the same applies if the product is taken apart or changed. These installation and operating instructions should be kept in a safe place and should accompany the product if it is passed on to others -either on its own or as part of a machine- to make it accessible to the user.
-
Page 3: Table Of Contents
5. Condition upon Delivery 6. Handling and Storage 7. Technical Requirements for safe and reliable Operation 8. Installation of the RINGSPANN Brake 8.1 General Instruction for Assembly and Installation 8.2 Prior Assembly and Installation 8.3 Adjust to the Brake Disc Thickness and mounting the Brake 8.4 Electrical Connection... -
Page 4: General Remarks
Installation and Operating Instructions for Brake E 09.770e EV/EH 018/024/028/038 EFM, Electromagnetically activated- Spring released issue: 25.08.2021 version: 2 drawn.: MAYA checked.: EISF pages: 20 page: 4 General remarks 1.1 General safety instructions Please read these installation and operating instructions carefully before installing and operating the brake. -
Page 5: Technical Details
No adjustments necessary, the brake can only be used with 50Hz or 60Hz. UL508 or CSA c22.2 No14-13 cover only ambient temperatures between 0° and +40°C. Technically lower or higher temperatures are possible, consultation with Ringspann is necessary. Measured according IEC 61672-2 “Fast”, with max. clamping force. -
Page 6: Proper Use / Specified Purpose
The brake is designed for use as a holding/parking brake and/or stopping brake. Other uses are improper and incompatible with the specified purpose. RINGSPANN assumes no liability for damages resulting from improper use. The risk is assumed by the user alone. - Page 7 Installation and Operating Instructions for Brake E 09.770e EV/EH 018/024/028/038 EFM, Electromagnetically activated- Spring released issue: 25.08.2021 version: 2 drawn.: MAYA checked.: EISF pages: 20 page: 7 Prior to installation, check to ensure that the mounting surface is even and planned run between the brake disc and the mounting surface is within the tolerance range of 0.2 mm.
-
Page 8: Electrical Connection
Installation and Operating Instructions for Brake E 09.770e EV/EH 018/024/028/038 EFM, Electromagnetically activated- Spring released issue: 25.08.2021 version: 2 drawn.: MAYA checked.: EISF pages: 20 page: 8 Fig. 8.2 EH … The brake is attached with 4 screws. The tightening torques refers to screws lubricated with Molycote MoS2. - Page 9 For safe operation of the brake a sufficient grid quality is necessary. See also the standards of grid quality. c) Before replacing the electronics, check the coil of the solenoid to be shure that the coil is not damaged. Please consult RINGSPANN. • Cable bushing or plug is in the scope of delivery.
- Page 10 Installation and Operating Instructions for Brake E 09.770e EV/EH 018/024/028/038 EFM, Electromagnetically activated- Spring released issue: 25.08.2021 version: 2 drawn.: MAYA checked.: EISF pages: 20 page: 10 Strip length for the conductors used with the WAGO connector is 9 … 10 mm The brake can only be used with 50Hz or 60Hz, no adjustment is necessary.
-
Page 11: Commissioning
Installation and Operating Instructions for Brake E 09.770e EV/EH 018/024/028/038 EFM, Electromagnetically activated- Spring released issue: 25.08.2021 version: 2 drawn.: MAYA checked.: EISF pages: 20 page: 11 Attention! If the brake is used as parking brake, the brake torques specified are not met. Reductions of up to 50% of the braking torques are possible. -
Page 12: Disassembling The Brake
Attention! Brake pads must not be worn to a residual thickness (mounting plate thickness plus remaining pad material). Brake pads must always be replaced in pairs. Only original RINGSPANN brake pads may be used Brake pad wear adjustment: Note: If the brake is closed, there should always be an air gap at this point. - Page 13 Installation and Operating Instructions for Brake E 09.770e EV/EH 018/024/028/038 EFM, Electromagnetically activated- Spring released issue: 25.08.2021 version: 2 drawn.: MAYA checked.: EISF pages: 20 page: 13 pad without adjustment is 0,6 mm. A greater gap will reduce braking force up to a complete loss of braking force.
-
Page 14: Accessories: Switches
NC or NO version (see figure 12.2; 12.3 and 12.4). For sensor kits with more than one sensor or for special requirements, such as other voltage ranges or low temperatures below - 25°C, please contact RINGSPANN. Sensor kit:... - Page 15 Installation and Operating Instructions for Brake E 09.770e EV/EH 018/024/028/038 EFM, Electromagnetically activated- Spring released issue: 25.08.2021 version: 2 drawn.: MAYA checked.: EISF pages: 20 page: 15 Brake open (NO) Brake closed (NC) Adjust brake pad wear (NC) size 018 3500-112004-000000 3500-112005-000000 3500-112005-000000...
- Page 16 Installation and Operating Instructions for Brake E 09.770e EV/EH 018/024/028/038 EFM, Electromagnetically activated- Spring released issue: 25.08.2021 version: 2 drawn.: MAYA checked.: EISF pages: 20 page: 16 Connection : M12 connector Ambient temperature : -25 bis +80°C Short-curcuit protection : yes Wiring For inductive proximity switch (NC) 3504-000071-000000: Switching function...
-
Page 17: Ec-Declaration Of Conformity
For the purpose of EC-Low voltage directive 2014/35/EU We hereby declare that the following products, developed, designed and manufactured by our own responsibility, are In accordance with the EC-Low voltage directive 2014/35 / EU RINGSPANN GmbH Schaberweg 30-38 D-61348 Bad Homburg... -
Page 18: Electrical Connection, Drawing 4453-000001
Installation and Operating Instructions for Brake E 09.770e EV/EH 018/024/028/038 EFM, Electromagnetically activated- Spring released issue: 25.08.2021 version: 2 drawn.: MAYA checked.: EISF pages: 20 page: 18 14. Electrical Connection, Drawing No. 4453-000001... -
Page 19: Drawing And Parts List
Installation and Operating Instructions for Brake E 09.770e EV/EH 018/024/028/038 EFM, Electromagnetically activated- Spring released issue: 25.08.2021 version: 2 drawn.: MAYA checked.: EISF pages: 20 page: 19 15. Drawing and Parts List Information! For a clear assignment the 16 digit material number of the brake is necessary. Quantity Part Nomenclature... - Page 20 Installation and Operating Instructions for Brake E 09.770e EV/EH 018/024/028/038 EFM, Electromagnetically activated- Spring released issue: 25.08.2021 version: 2 drawn.: MAYA checked.: EISF pages: 20 page: 20 Threaded pin Slide bushing Wiper Washer DIN125 Hexagon nut DIN985 Hexagon socket head cap screw DIN912 Washer DIN125 Hexagon nut DIN934 Washer DIN125...
