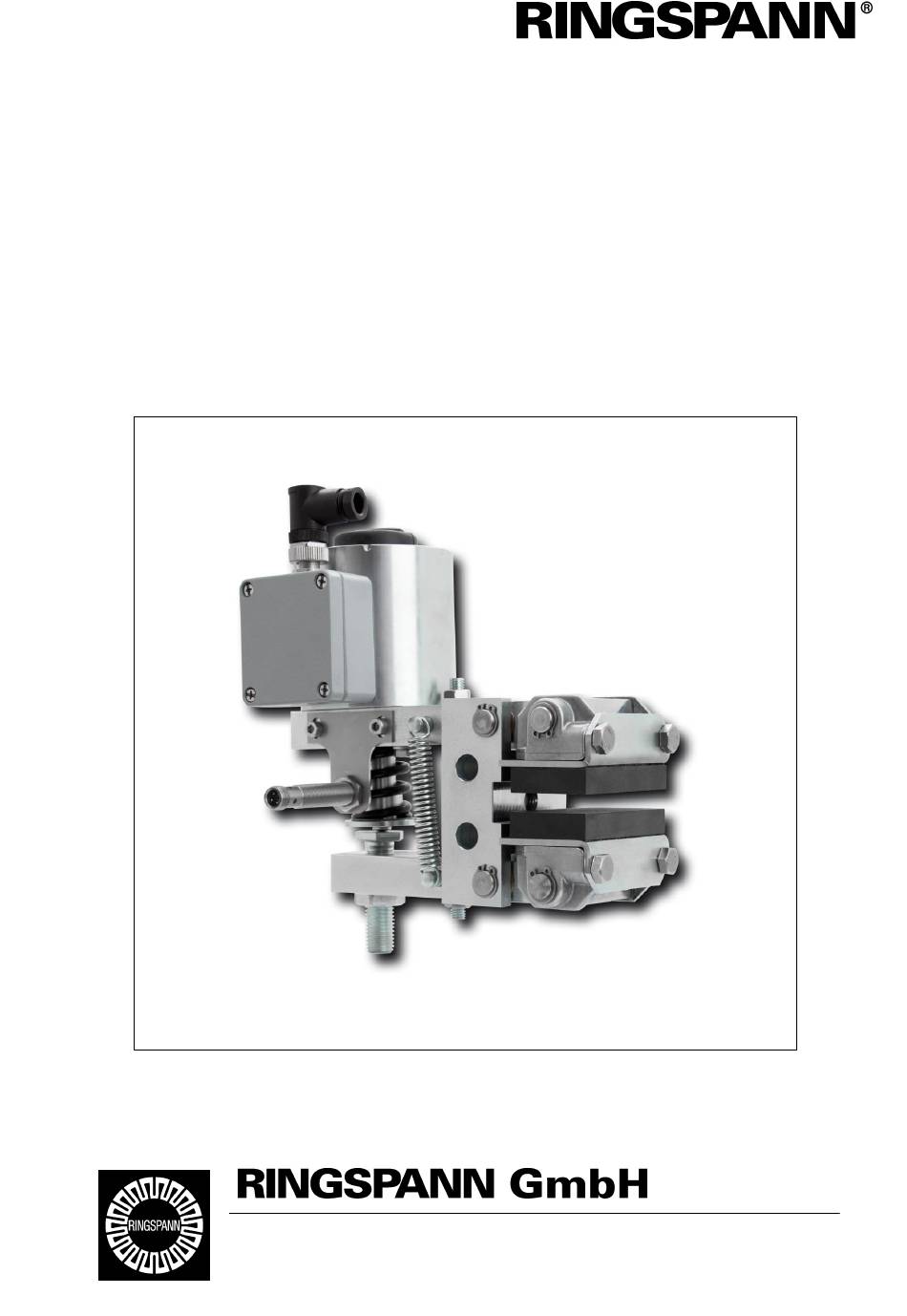

- Page 1 Power Transmission Installation and Operating Instructions for Brake Caliper DH 012 FEM E 09.766e Schaberweg 30-34 Telephone +49 6172 275-0 www.ringspann.com 61348 Bad Homburg Telefax +49 6172 275-275 mailbox@ringspann.com Germany...
- Page 2 Disregarding or misinterpreting these installation and operating instructions invalidates any product liability or warranty by RINGSPANN; the same applies if the product is taken apart or changed. These installation and operating instructions should be kept in a safe place and should accompany the product if it is passed on to others –...
-
Page 3: Table Of Contents
Installation and Operating Instructions for E 09.766e Brake Caliper DH 012 FEM, cCSAus spring activated – electromagnetic released Issue: 20.03.2019 Version : 1 drawn:MAYA checked: Ei Pages: 16 Page: 3 Contents General information 1.1 Safety information 1.2 Special safety information Configuration, mode of operation, standards and parts list 2.1 Function... -
Page 4: General Information
2.2 Identification These installation and operating instructions are valid for: the DH 012 FEM with left-mounted electromagnet as shown in Fig. 2.1, for mounting on a 12.5 mm thick brake disc. the DH 012 FEM with right-mounted electromagnet. -
Page 5: Standards, Guidelines, Protection Class And Certifications
Identification: Example: As well as these instructions, please also consider the catalogue data for the brake at www.ringspann.com and the drawings in the individual sections. 2.3 Standards, guidelines, protection class and certifications The following standards and guidelines have been applied: Electromagnetic devices and components –... -
Page 6: Drawing And Parts List
– electromagnetic released Issue: 20.03.2019 Version : 1 drawn:MAYA checked: Ei Pages: 16 Page: 6 2.4 Drawing and parts list Brake DH 012 FEM Standard with proximity switch (Specials see appendix). Fig. 2.1 Parts list: Part Designation Quantity Electromagnet DH12FEM Friction block... -
Page 7: Intended Use
The brake must not be operated with a voltage higher than the value specified in the technical data or with other media. In addition, unauthorized structural changes to the brake are not permitted. RINGSPANN shall not be liable for any damage resulting from this; the user alone bears the risk of such damage. -
Page 8: Installation Instructions
Installation and Operating Instructions for E 09.766e Brake Caliper DH 012 FEM, cCSAus spring activated – electromagnetic released Issue: 20.03.2019 Version : 1 drawn:MAYA checked: Ei Pages: 16 Page: 8 8.2 Installation instructions The standard brake calliper is attached to the machine part with two M12 - 8.8 screws. -
Page 9: Electrical Connection Of The Brake Caliper
Installation and Operating Instructions for E 09.766e Brake Caliper DH 012 FEM, cCSAus spring activated – electromagnetic released Issue: 20.03.2019 Version : 1 drawn:MAYA checked: Ei Pages: 16 Page: 9 Preparation for installation Before mounting on the 12.5 mm thick brake disc, the brake must be released (opened). This is possible: ... - Page 10 Installation and Operating Instructions for E 09.766e Brake Caliper DH 012 FEM, cCSAus spring activated – electromagnetic released Issue: 20.03.2019 Version : 1 drawn:MAYA checked: Ei Pages: 16 Page: 10 Cable gland: Outer diameter of the connection cable: 5 ... 10 mm.
-
Page 11: Adjustment / Readjustment Of The Friction Block Distance
Installation and Operating Instructions for E 09.766e Brake Caliper DH 012 FEM, cCSAus spring activated – electromagnetic released Issue: 20.03.2019 Version : 1 drawn:MAYA checked: Ei Pages: 16 Page: 11 8.4 Adjustment / readjustment of the friction block distance The friction block distance is adjusted after mounting the brake caliper by adjusting / readjusting with the adjusting screw (3). -
Page 12: Connecting The Signal Cable Of The Friction Block (Option)
Installation and Operating Instructions for E 09.766e Brake Caliper DH 012 FEM, cCSAus spring activated – electromagnetic released Issue: 20.03.2019 Version : 1 drawn:MAYA checked: Ei Pages: 16 Page: 12 8.5 Electrical connection of inductive proximity switch (option) Switching function... -
Page 13: Commissioning
Installation and Operating Instructions for E 09.766e Brake Caliper DH 012 FEM, cCSAus spring activated – electromagnetic released Issue: 20.03.2019 Version : 1 drawn:MAYA checked: Ei Pages: 16 Page: 13 Bild 8.3 Commissioning Only full-face contact of the two friction blocks (2) on the brake disc as well as a rapid heating of the friction linings to approx. -
Page 14: Disassembling The Brake
Installation and Operating Instructions for E 09.766e Brake Caliper DH 012 FEM, cCSAus spring activated – electromagnetic released Issue: 20.03.2019 Version : 1 drawn:MAYA checked: Ei Pages: 16 Page: 14 10. Disassembling the brake Life-threatening danger! When disassembling the brake it is to be ensured that the entire drive train is secured against being switched on unintentionally. -
Page 15: Emergency Release
8 mm, the friction blocks must always be replaced in pairs. Only original RINGSPANN friction blocks may be used. Important! Before replacing the friction blocks, make sure that the mass held by the brake is secured against movement, as the brake must be released (opened) to change the friction blocks. -
Page 16: Ec-Declaration Of Conformity
Installation and Operating Instructions for E 09.766e Brake Caliper DH 012 FEM, cCSAus spring activated – electromagnetic released Issue: 20.03.2019 Version : 1 drawn:MAYA checked: Ei Pages: 16 Page: 16 12. EC-Declaration of Conformity Note regarding EMC Directive 2014/30/EU The brake is an uncritical equipment according to the EMC-Directive because of its passive operation.
