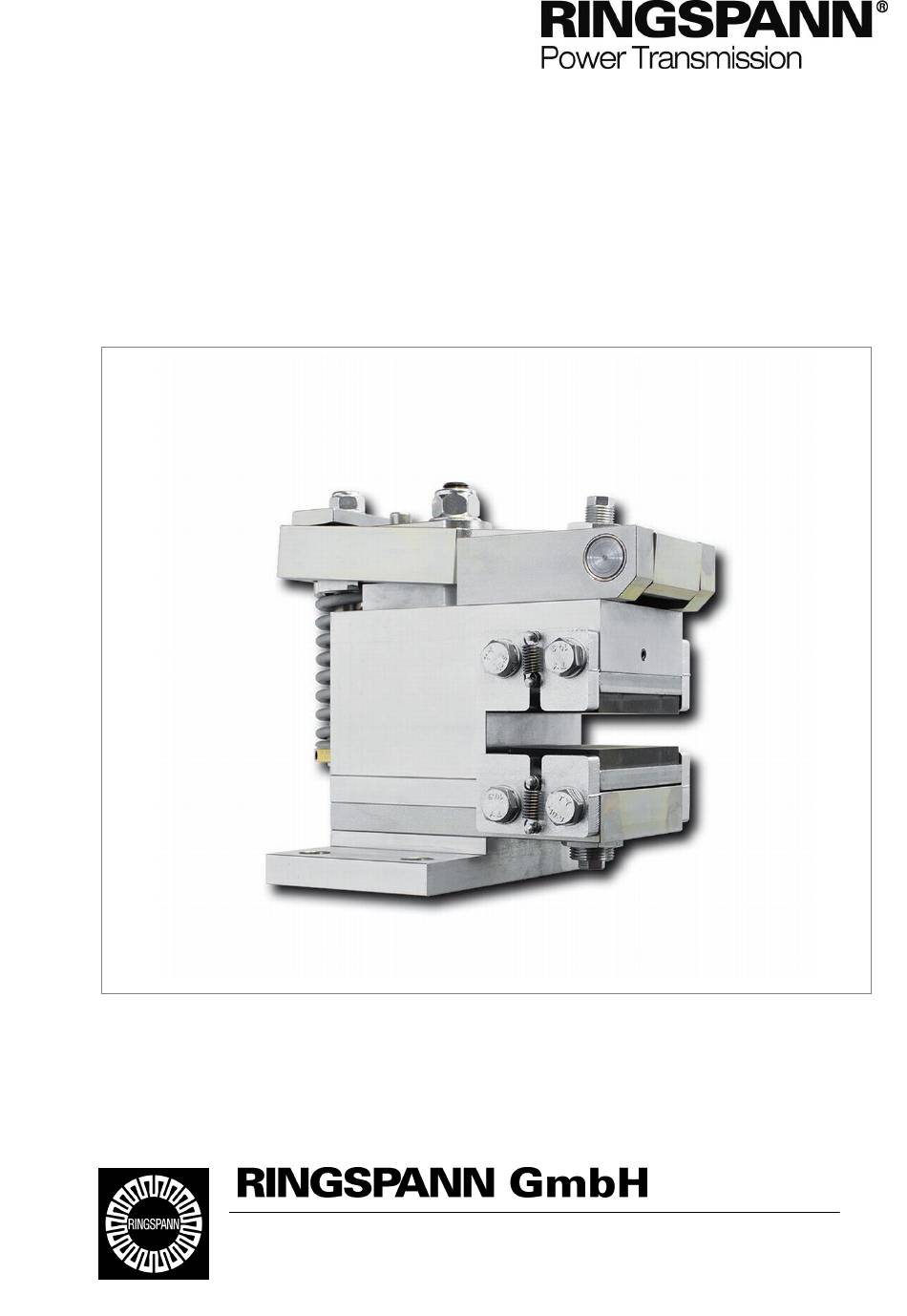

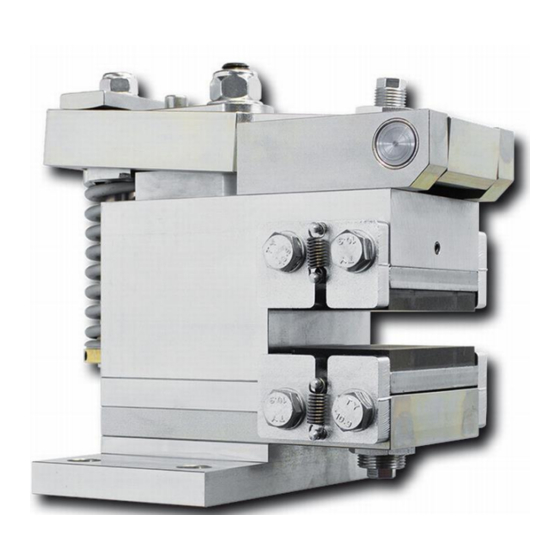

- Page 1 Installation and Operating Instructions for Brake EV/EH 018/024/028/038 EFM - 240M/480M E 09.768e Schaberweg 30-38 Phone +49 6172 275 0 www.ringspann.com 61348 Bad Homburg +49 6172 275 275 info@ringspann.com Germany...
- Page 2 Disregarding or misinterpreting these installation and operating instructions invalidates any product liability or guarantee by RINGSPANN; the same applies if the product is taken apart or changed. These installation and operating instructions should be kept in a safe place and should accompany the product if it is passed on to others -either on its own or as part of a machine- to make it accessible to the user.
-
Page 3: Table Of Contents
5. Condition upon Delivery 6. Handling and Storage 7. Technical Requirements for safe and reliable Operation 8. Installation of the RINGSPANN Brake 8.1 General Instruction for Assembly and Installation 8.2 Prior Assembly and Installation 8.3 Adjust to the Brake Disc Thickness and mounting the Brake 8.4 Electrical Connection... -
Page 4: General Remarks
Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 4 General remarks 1.1 General safety instructions Please read these installation and operating instructions carefully before installing and operating the brake. -
Page 5: Technical Details
Please consult the drawings in each section when using this instructions. As well as these instructions, please also consider the catalogue data for the brake at www.ringspann.com and the drawings in the individual sections. 2.3 Technical details EV / EH... -
Page 6: Drawing And Parts List
Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 6 2.4 Drawing and Parts list Information! For a clear assignment the 16 digit material number of the brake is necessary. Quantity Part Nomenclature... - Page 7 Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 7 Tension spring Retaining plate Washer DIN125 Hexagon head screw ISO4017 Coiled spring pin Bearing pin Slide bushing Slide bushing...
-
Page 8: Proper Use / Specified Purpose
The brake is designed for use as a holding/parking brake and/or stopping brake. Other uses are improper and incompatible with the specified purpose. RINGSPANN assumes no liability for damages resulting from improper use. The risk is assumed by the user alone. -
Page 9: Technical Requirements For Safe And Reliable Operation
For 230 / 400V electric grids e.g., surge protection switch of the brand "Bourns 1250-xS-230" can be used. In 480V mains overvoltage circuit breaker type "Bourns 1250-2S-400" can be used. Installation of the RINGSPANN brake 8.1 General instructions for assembly and installation Before installing the brake, the brake disc must be cleaned with alcohol, e.g. - Page 10 Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 10 The brake is delivered with a distance between the friction pads of 13,1 mm or 25,6 mm. You can adjust the distance between the friction pads with the setting screw Pos.
-
Page 11: Electrical Connection
Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 11 Fig. 8.2 EH…. The brake is attached with 4 screws. The tightening torques refers to screws lubricated with Molycote MoS2. - Page 12 Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 12 Attention! To protect the brake electronics, the installation of surge arresters is mandatory. These surge arresters (per phase one) must be connected between the customer's switching relay and the brake electronics.
- Page 13 13 c) Before replacing the electronic, check the coil of the solenoid to be shure that the coil is not damaged. Please consult RINGSPANN. Brake size 018 For the size 018 the electronic is not attached to the brake, a seperate electronic module is to be used.
- Page 14 Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 14 : 10 A, type „B“ Electrical fuse Supply cable : 1,5..2,5 mm², not longer than 50m; do not lay the supply cable together with other electrical motors in one cable duct.
- Page 15 Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 15 Switching device : Inrush current 10 A (rms) for 0,2s, than smaller 1 A (rms) After the electrical connection you have to check the protective earth conductor function (accord- ing DIN VDE 0113 or EN 60204 8.5 Braking force adjustment...
-
Page 16: Manual Brake Release
Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 16 = 630 1270 2.820 5.320 = 710 1450 3.220 6.090 Clamping force, adjustable [%] 60-100 60-100 70-100... -
Page 17: Maintenance
Attention! Brake pads must not be worn to a residual thickness (mounting plate thickness plus remaining pad material). Brake pads must always be replaced in pairs. Only original RINGSPANN brake pads may be used... - Page 18 Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 18 Brake pad wear adjustment: To counter brake pad wear you can adjust the distance between brake pad and brake disc with set screws Pos.
-
Page 19: Accessories: Switches
Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 19 Pull out the old brake pads and screw out the set screws Pos. 17 and Pos. 41, Fig. 8.1, so that the new brake pads can easily inserted. - Page 20 NC or NO version (see figure 12.2; 12.3 and 12.4). For sensor kits with more than one sensor or for special requirements, such as other voltage ranges or low temperatures below -25°C, please contact RINGSPANN. Sensor kit:...
- Page 21 Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 21 Brake status indication size 018 and 024: Brake closed (NC) Brake open (NO) Brake pad wear adjustment necessary (NC) Fig.
- Page 22 Installation and Operating Instructions for E 09.768e Brake EV/EH 018/024/028/038 EFM – 240M/480M Electromagnetically activated- Spring released issue: 23.01.2020 version: 2 drawn.: MAYA checked.: EISF pages: 23 page: 22 Connection : M12 connector Ambient temperatur : -25 bis +80°C Short-curcuit protection : yes Wiring For inductive proximity switch (NC) 3504-000071-000000:...
-
Page 23: Ec-Declaration Of Conformity
For the purpose of EC-Low voltage directive 2014/35/EU We hereby declare that the following products, developed, designed and manufactured by our own responsibility, are In accordance with the EC-Low voltage directive 2014/35 / EU RINGSPANN GmbH Schaberweg 30-38 D-61348 Bad Homburg...
