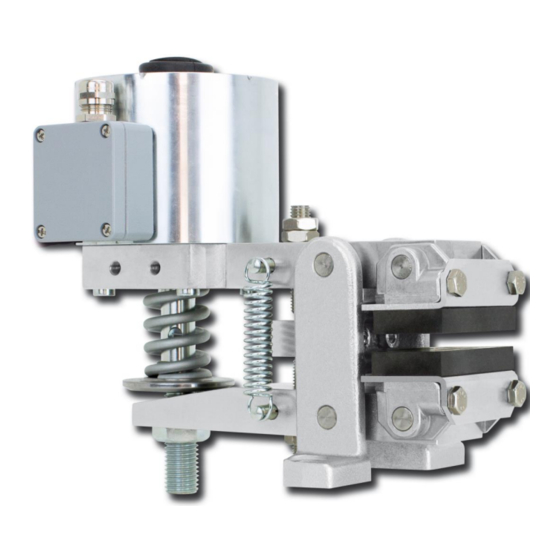

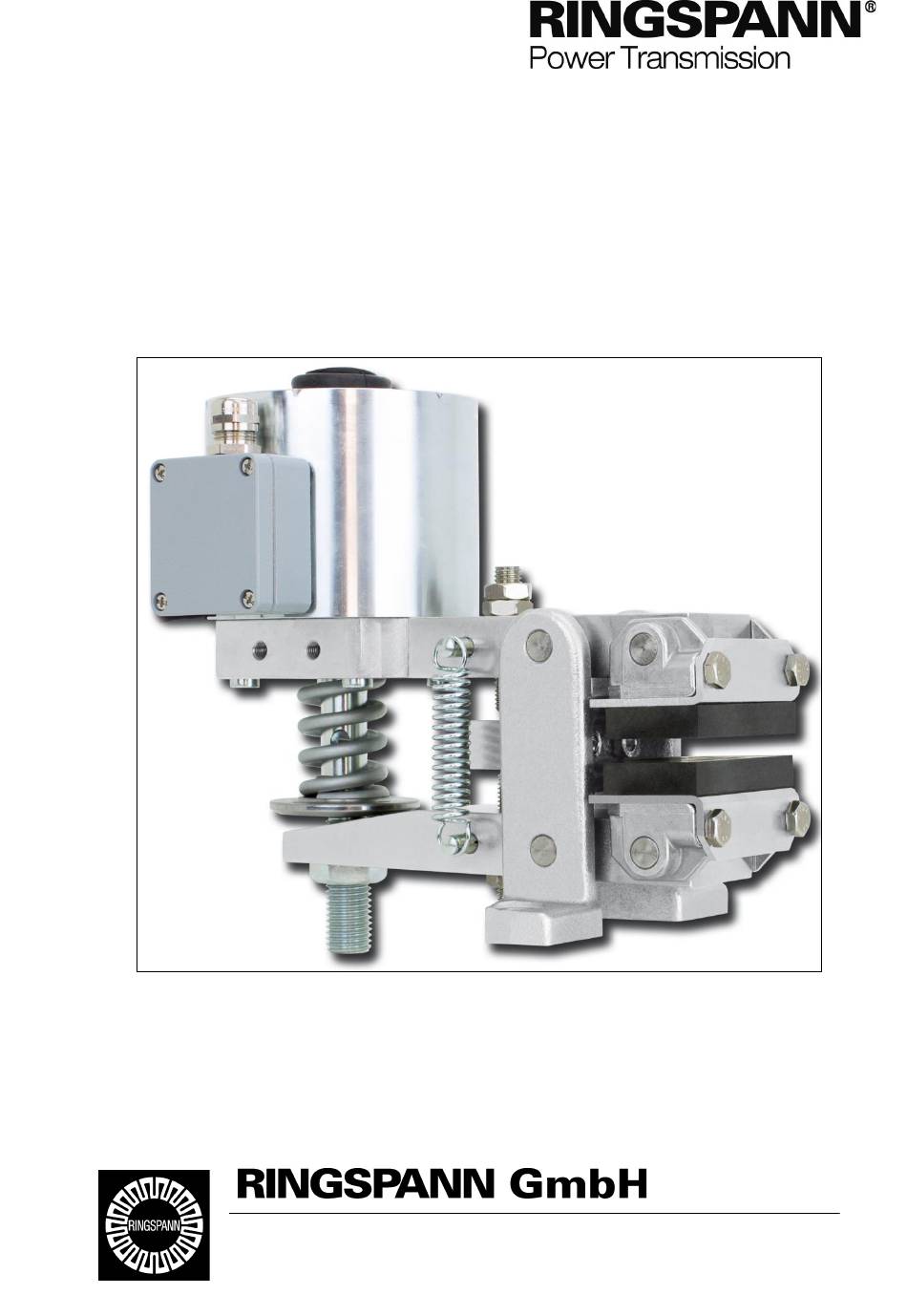

- Page 1 Installation and Operating Instructions for Brake Caliper DV 020 FEM E 09.772e Schaberweg 30-38 Phone +49 6172 275-0 www.ringspann.com 61348 Bad Homburg Fax +49 6172 275-275 info@ringspann.com Germany...
- Page 2 Disregarding or misinterpreting these installation and operating instructions invalidates any product liability or warranty by RINGSPANN; the same applies if the product is taken apart or changed. These installation and operating instructions should be kept in a safe place and should accompany the product if it is passed on to others –...
-
Page 3: Table Of Contents
Installation and Operating Instructions for E 09.772e Brake Caliper DV 020 FEM, spring activated – electromagnetic released Issue: 08.09.2021 Version: 2 drawn:MAYA checked: EISF Pages: 15 Page: 3 Contents General information 1.1 Safety information 1.2 Special safety information Configuration, mode of operation and standards 2.1 Function... -
Page 4: General Information
These installation and operating instructions are valid for: • the version DV 020 FEM, brake caliper attachment parallel to the brake disc. • the DV 020 FEM with left-mounted electromagnet as shown in Fig. 2.1, for mounting on a 12.5 mm thick brake disc. -
Page 5: Identification
Intended use The brake has been designed for use as a holding and stopping brake. Use for any other purpose will be deemed improper. Ringspann is not liable for any damage resulting from this; the user alone bears the risk. -
Page 6: Handling And Storage
Installation and Operating Instructions for E 09.772e Brake Caliper DV 020 FEM, spring activated – electromagnetic released Issue: 08.09.2021 Version: 2 drawn:MAYA checked: EISF Pages: 15 Page: 6 Handling and storage The brake weighs between 14 kg and 18 kg, depending on the version. -
Page 7: Electrical Connection Of The Brake Caliper
Installation and Operating Instructions for E 09.772e Brake Caliper DV 020 FEM, spring activated – electromagnetic released Issue: 08.09.2021 Version: 2 drawn:MAYA checked: EISF Pages: 15 Page: 7 Fig. 8.1 The connecting plate for the brake as well as the brake disc must be checked for dimensional accuracy. -
Page 8: Adjustment / Readjustment Of The Friction Block Distance
Installation and Operating Instructions for E 09.772e Brake Caliper DV 020 FEM, spring activated – electromagnetic released Issue: 08.09.2021 Version: 2 drawn:MAYA checked: EISF Pages: 15 Page: 8 Caution! Danger of damage! Before connecting the brake caliper to the power supply, check that your power supply corresponds to the specifications for rated voltage and mains frequency on the nameplate. -
Page 9: Connecting The Signal Cable Of The Friction Block (Option)
Installation and Operating Instructions for E 09.772e Brake Caliper DV 020 FEM, spring activated – electromagnetic released Issue: 08.09.2021 Version: 2 drawn:MAYA checked: EISF Pages: 15 Page: 9 • Loosen the two lock nuts for the adjustment work and turn the two set screws (3) M12x60 DIN 913 in the lever approx. -
Page 10: Commissioning
Installation and Operating Instructions for E 09.772e Brake Caliper DV 020 FEM, spring activated – electromagnetic released Issue: 08.09.2021 Version: 2 drawn:MAYA checked: EISF Pages: 15 Page: 10 Commissioning Only full-face contact of the two friction blocks (2) on the brake disc as well as a rapid heating of the friction linings to approx. -
Page 11: Emergency Release
When new, the friction lining has a thickness of 12.5 mm. After 4.5 mm of wear or a residual lining thickness of 8 mm, the friction blocks must always be replaced in pairs. Only original RINGSPANN friction blocks may be used. Important! - Page 12 Installation and Operating Instructions for E 09.772e Brake Caliper DV 020 FEM, spring activated – electromagnetic released Issue: 08.09.2021 Version: 2 drawn:MAYA checked: EISF Pages: 15 Page: 12 Operating voltage: 10..30 V DC Operating current: 0...200 mA No load current: < or = 10 mA...
-
Page 13: Ec-Declaration Of Conformity
Installation and Operating Instructions for E 09.772e Brake Caliper DV 020 FEM, spring activated – electromagnetic released Issue: 08.09.2021 Version: 2 drawn:MAYA checked: EISF Pages: 15 Page: 13 13. EC-Declaration of Conformity Note regarding EMC Directive 2014/30/EU The brake is an uncritical equipment according to the EMC-Directive because of its passive operation. -
Page 14: Electrical Connection Drawing 4457-000002
Installation and Operating Instructions for E 09.772e Brake Caliper DV 020 FEM, spring activated – electromagnetic released Issue: 08.09.2021 Version: 2 drawn:MAYA checked: EISF Pages: 15 Page: 14 14. Electrical Connection Drawing 4457-000002... -
Page 15: Drawing And Parts List
Issue: 08.09.2021 Version: 2 drawn:MAYA checked: EISF Pages: 15 Page: 15 15. Drawing and parts list Brake DV 020 FEM Standard with proximity switch (Specials see appendix). Part Designation Quantity Electromagnet DV20FEM Friction block 1 Set Set screw M12x60 DIN 913...
