 Filter the table by using the Views and Options menus in the top toolbar of the page.

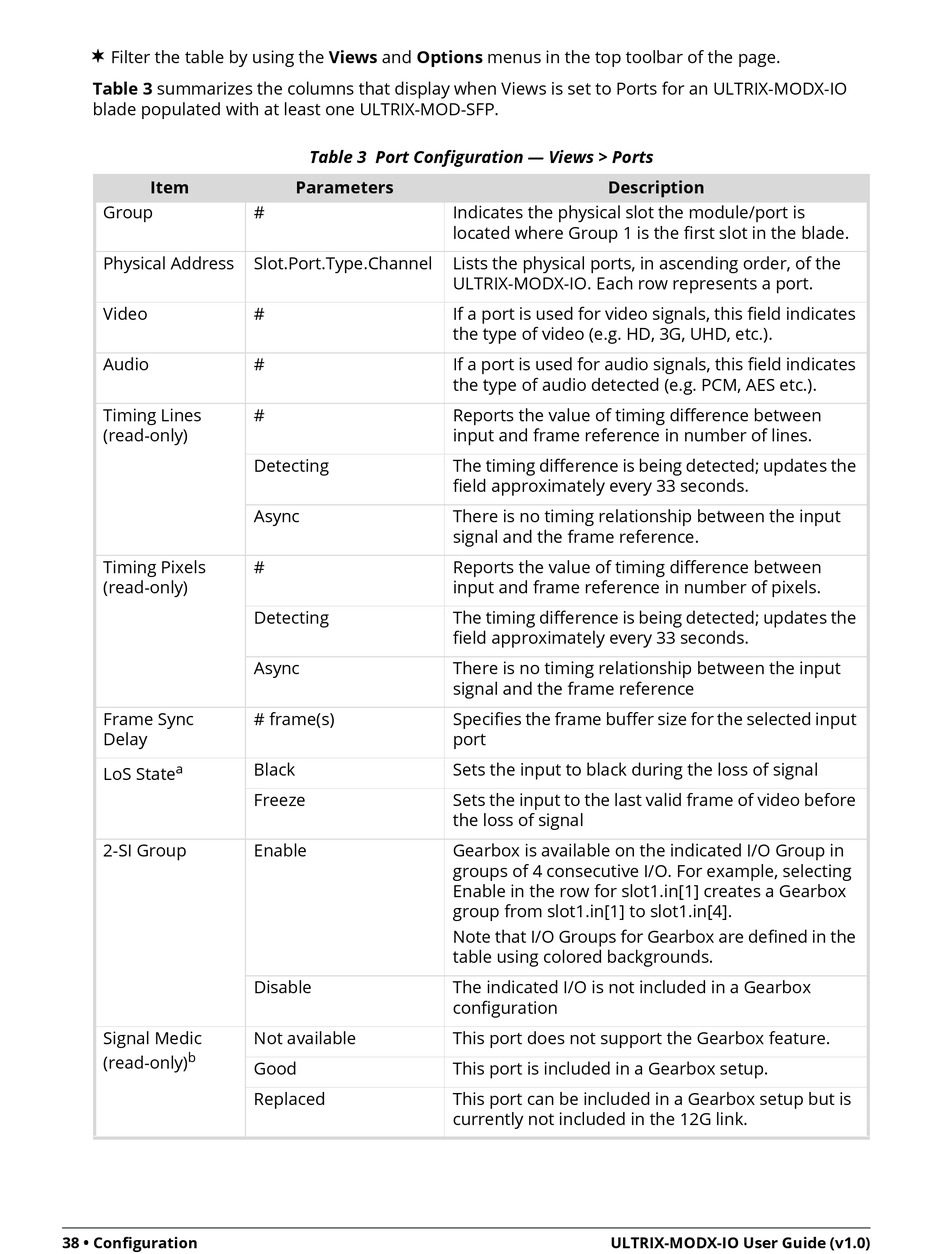

Table 3 summarizes the columns that display when Views is set to Ports for an ULTRIX-MODX-IO
blade populated with at least one ULTRIX-MOD-SFP.
Item
Group
Physical Address
Video
Audio
Timing Lines
(read-only)
Timing Pixels
(read-only)
Frame Sync
Delay
a
LoS State
2-SI Group
Signal Medic
b
(read-only)
38 • Configuration
Table 3 Port Configuration — Views > Ports
Parameters
#
Slot.Port.Type.Channel
#
#
#
Detecting
Async
#
Detecting
Async
# frame(s)
Black
Freeze
Enable
Disable
Not available
Good
Replaced
Description
Indicates the physical slot the module/port is
located where Group 1 is the first slot in the blade.
Lists the physical ports, in ascending order, of the
ULTRIX-MODX-IO. Each row represents a port.
If a port is used for video signals, this field indicates
the type of video (e.g. HD, 3G, UHD, etc.).
If a port is used for audio signals, this field indicates
the type of audio detected (e.g. PCM, AES etc.).
Reports the value of timing difference between
input and frame reference in number of lines.
The timing difference is being detected; updates the
field approximately every 33 seconds.
There is no timing relationship between the input
signal and the frame reference.
Reports the value of timing difference between
input and frame reference in number of pixels.
The timing difference is being detected; updates the
field approximately every 33 seconds.
There is no timing relationship between the input
signal and the frame reference
Specifies the frame buffer size for the selected input
port
Sets the input to black during the loss of signal
Sets the input to the last valid frame of video before
the loss of signal
Gearbox is available on the indicated I/O Group in
groups of 4 consecutive I/O. For example, selecting
Enable in the row for slot1.in[1] creates a Gearbox
group from slot1.in[1] to slot1.in[4].
Note that I/O Groups for Gearbox are defined in the
table using colored backgrounds.
The indicated I/O is not included in a Gearbox
configuration
This port does not support the Gearbox feature.
This port is included in a Gearbox setup.
This port can be included in a Gearbox setup but is
currently not included in the 12G link.
