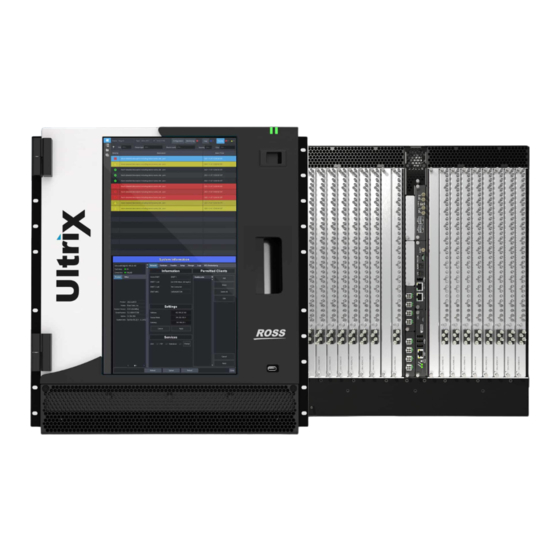

Ross ULTRIX-FR12 Replacing

This document outlines how to replace the Exhaust Fan Module in the ULTRIX-FR12 chassis.
Caution
safety rules of your workplace.
ESD Susceptibility
devices. Avoid handling circuit boards in high static environments such as carpeted areas and when
synthetic fiber clothing is worn. Always exercise proper grounding precautions when working on circuit
boards and related equipment.

Required Equipment

You will need:
• an Ultrix-FR12-EXFAN Replacement Kit
• a #1 Phillips screwdriver

Removing the Failed Exhaust Fan Module

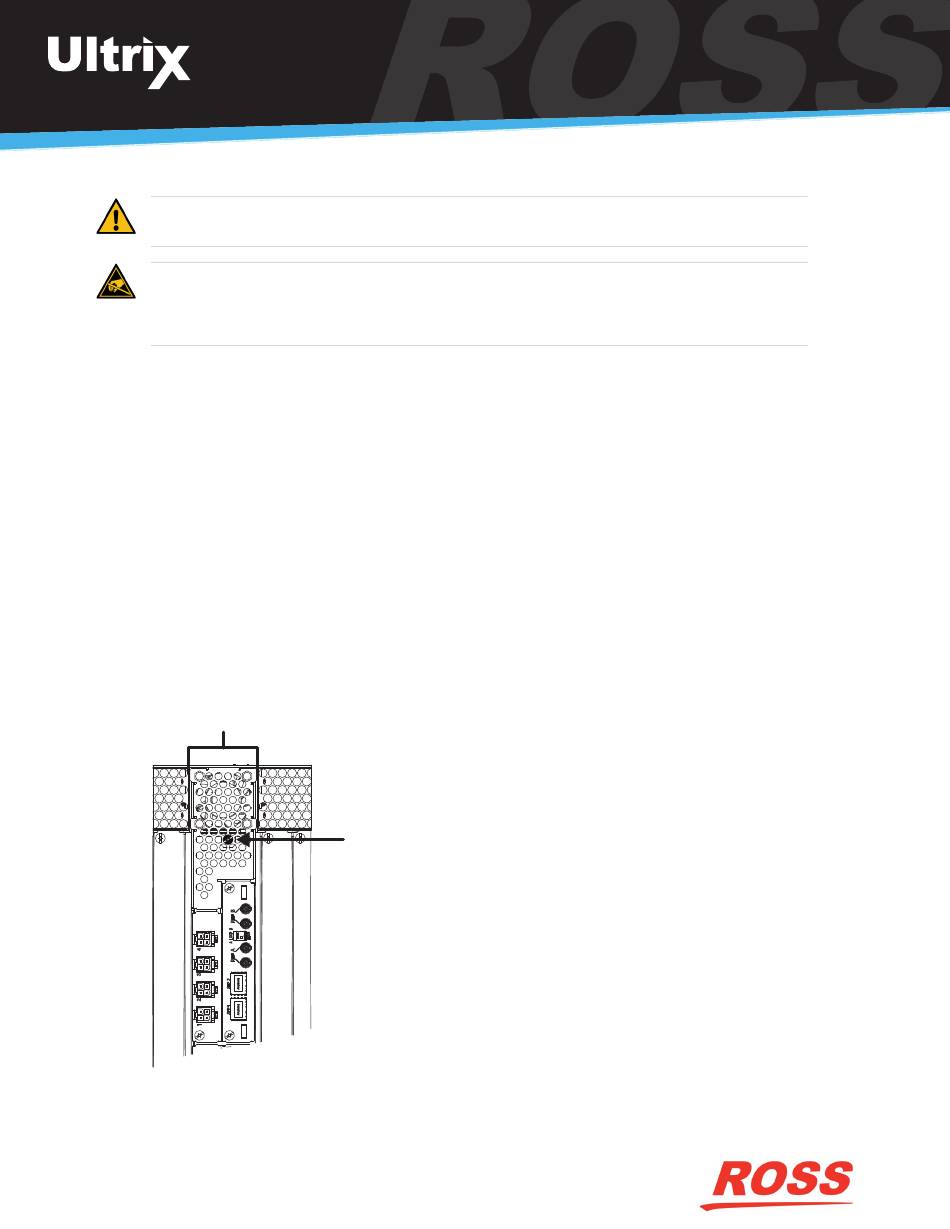

The Exhaust Fan Module is centrally located on the rear panel, near the top of the chassis. Replacing
the Exhaust Fan Module requires you to first loosen the retaining screw on the module, and then
remove the failed module from the chassis.
To remove the failed Exhaust Fan Module
1. Locate the Exhaust Fan Module on the back panel of the ULTRIX-FR12 chassis.
2. Make a note of the module orientation. This will help with positioning and installing the new
module.
3. Locate the retaining screw on the module faceplate.
I/O Fan Module
4. Use a #1 Phillips screwdriver to loosen the retaining screw.
2101DR-608-01
© 2023 Ross Video Limited. Ross® and any related marks are trademarks or registered trademarks of Ross Video Ltd. All other trademarks are the property of their re-
spective companies. PATENTS ISSUED and PENDING. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, mechanical, photocopying, recording or otherwise, without the prior written permission of Ross Video. While every precaution has been taken
in the preparation of this document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use
of the information contained herein.
Replacing the Exhaust Fan Module in the ULTRIX-FR12
— When servicing or moving equipment, always observe safe handling practices. Follow all
— Static discharge can cause serious damage to sensitive semiconductor
Retaining Screw
