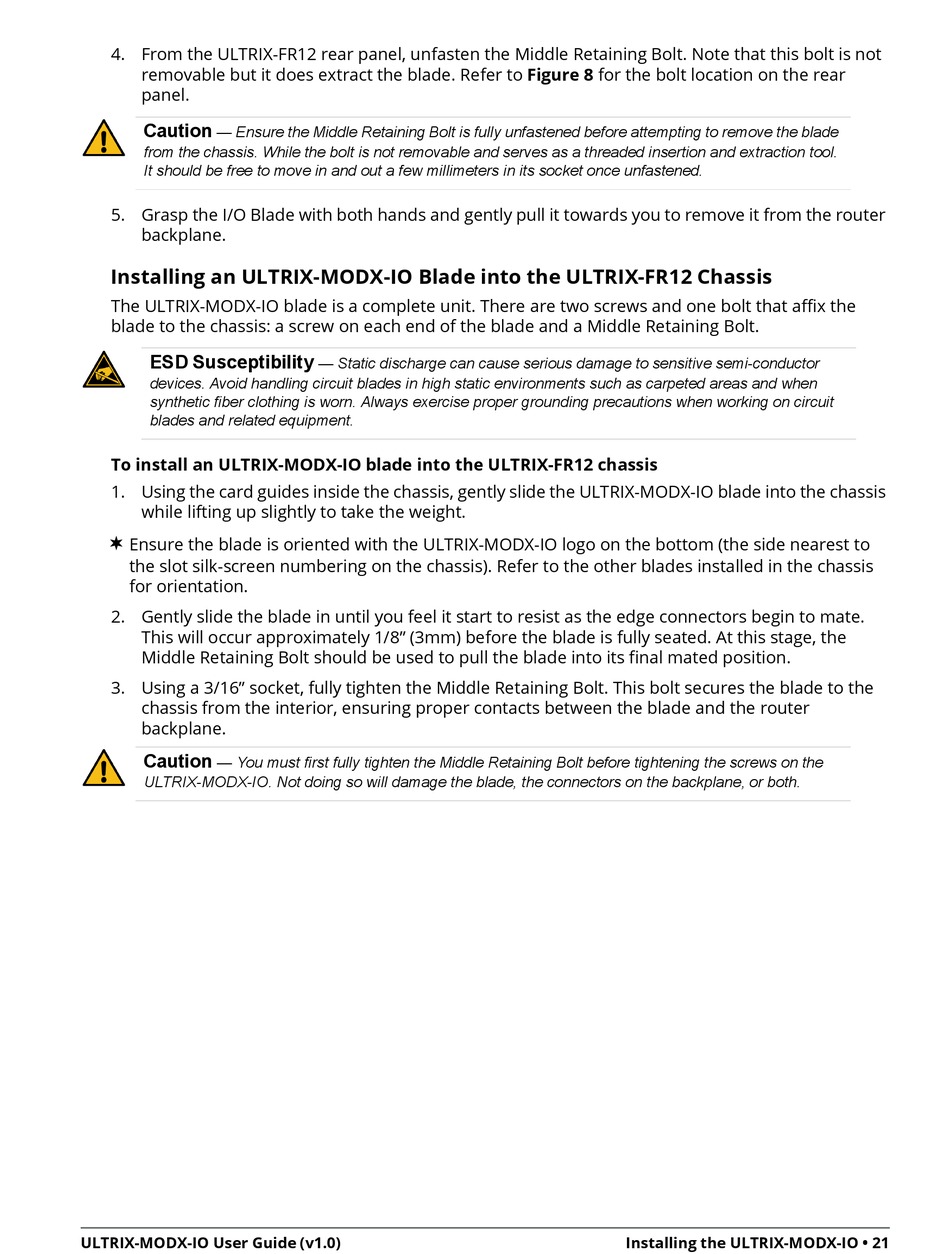

4. From the ULTRIX-FR12 rear panel, unfasten the Middle Retaining Bolt. Note that this bolt is not
removable but it does extract the blade. Refer to Figure 8 for the bolt location on the rear
panel.
Caution
— Ensure the Middle Retaining Bolt is fully unfastened before attempting to remove the blade
from the chassis. While the bolt is not removable and serves as a threaded insertion and extraction tool.
It should be free to move in and out a few millimeters in its socket once unfastened.
5. Grasp the I/O Blade with both hands and gently pull it towards you to remove it from the router
backplane.

Installing an ULTRIX-MODX-IO Blade into the ULTRIX-FR12 Chassis

The ULTRIX-MODX-IO blade is a complete unit. There are two screws and one bolt that affix the
blade to the chassis: a screw on each end of the blade and a Middle Retaining Bolt.
ESD Susceptibility
devices. Avoid handling circuit blades in high static environments such as carpeted areas and when
synthetic fiber clothing is worn. Always exercise proper grounding precautions when working on circuit
blades and related equipment.
To install an ULTRIX-MODX-IO blade into the ULTRIX-FR12 chassis
1. Using the card guides inside the chassis, gently slide the ULTRIX-MODX-IO blade into the chassis
while lifting up slightly to take the weight.
 Ensure the blade is oriented with the ULTRIX-MODX-IO logo on the bottom (the side nearest to
the slot silk-screen numbering on the chassis). Refer to the other blades installed in the chassis
for orientation.
2. Gently slide the blade in until you feel it start to resist as the edge connectors begin to mate.
This will occur approximately 1/8" (3mm) before the blade is fully seated. At this stage, the
Middle Retaining Bolt should be used to pull the blade into its final mated position.
3. Using a 3/16" socket, fully tighten the Middle Retaining Bolt. This bolt secures the blade to the
chassis from the interior, ensuring proper contacts between the blade and the router
backplane.
Caution
— You must first fully tighten the Middle Retaining Bolt before tightening the screws on the
ULTRIX-MODX-IO. Not doing so will damage the blade, the connectors on the backplane, or both.
ULTRIX-MODX-IO User Guide (v1.0)
— Static discharge can cause serious damage to sensitive semi-conductor
Installing the ULTRIX-MODX-IO • 21
