ULTRIX-MOD-SFP

This chapter outlines the ULTRIX-MOD-SFP features, and cabling designations.
For More Information on...
• installing an ULTRIX-MOD-SFP in the blade, refer to "Installing a Module".
• the SFP modules that the router supports, refer to the Ultrix SFP Module User Guide.
• configuring the ports, refer to "Configuration".

Features

Each ULTRIX-MOD-SFP provides:
• 4 UHD video I/O via UNDI and/or SDI links
• 64 Channels of audio
• Hot-plug detection of SFP modules in DashBoard
• One Multiviewer Head

Hardware Overview

Each ULTRIX-MOD-SFP provides up to 4 ports that can be populated with supported SFP modules.
The ports are labeled as 1-4 starting with the leftmost port. This numbering scheme is also reported
in the DashBoard interfaces.
 Figure 11 shows the ports unpopulated.
1
1) Retaining Screws
1. Retaining Screws
There is a retaining screw on each end of the module. These screws help to affix the module to
the blade.
2. SFP 1-4 Ports
Each port can be populated with a Small Form-factor Pluggable (SFP) module from the factory or
by installing modules in the field. When an SFP port is populated on the module, its status is
reported in DashBoard and options are provided for mapping and configuring the I/O as
required. For a list of SFP modules available from Ross Video, refer to the ULTRIX SFP Modules
Guide.
ULTRIX-MODX-IO User Guide (v1.0)
ULTRIX-MOD-SFP
1 2
2

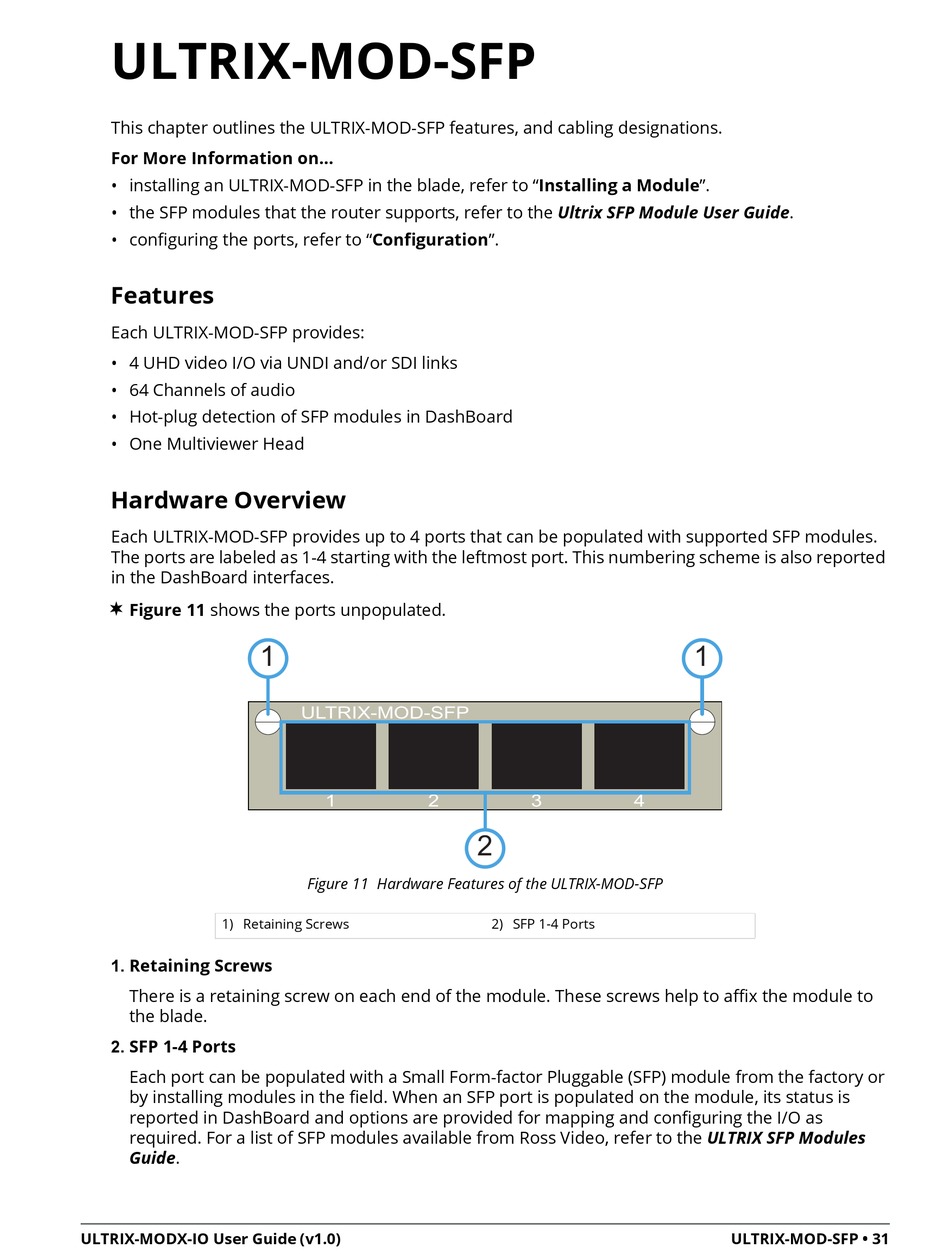

Figure 11 Hardware Features of the ULTRIX-MOD-SFP
3 4
2) SFP 1-4 Ports
