Ross ULTRIX-FR12 Replacing

This document outlines how to replace the front panel door of the ULTRIX-FR12 chassis.
Caution
move heavy items. Follow all safety rules of your workplace.

Required Equipment

You will need:
• a Replacement Door Kit (Ross P/N: 2101KR-020-01)
• a #2 Phillips screwdriver

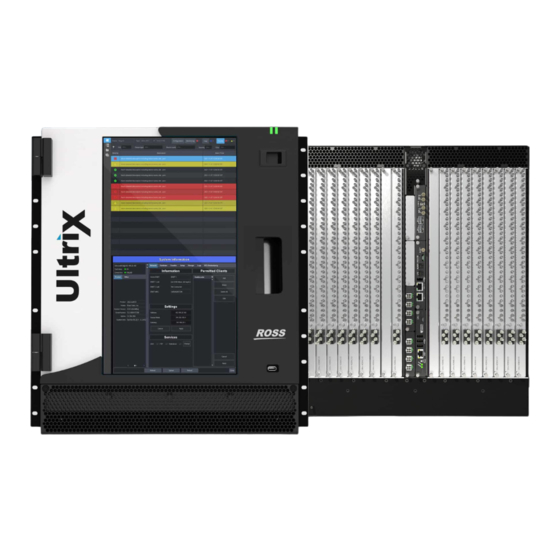

Removing the Front Panel Door from the ULTRIX-FR12 Chassis

The front panel door is hot-swappable for 24/7 operation.
To remove the front panel door

The front panel door is secured to the chassis with strong magnets and a retaining screw.
1. Locate the retaining screw on the bottom of the panel door.
2. Use a #2 Phillips screwdriver to loosen the retaining screw.
3. Locate the handle on the front panel.
4. Pull the handle towards you to open the door a minimum of half way.
2101DR-606-01
© 2022 Ross Video Limited. Ross® and any related marks are trademarks or registered trademarks of Ross Video Ltd. All other trademarks are the property of their re-
spective companies. PATENTS ISSUED and PENDING. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, mechanical, photocopying, recording or otherwise, without the prior written permission of Ross Video. While every precaution has been taken
in the preparation of this document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use
of the information contained herein.
— When servicing or moving equipment, always observe safe handling practices. Get help to

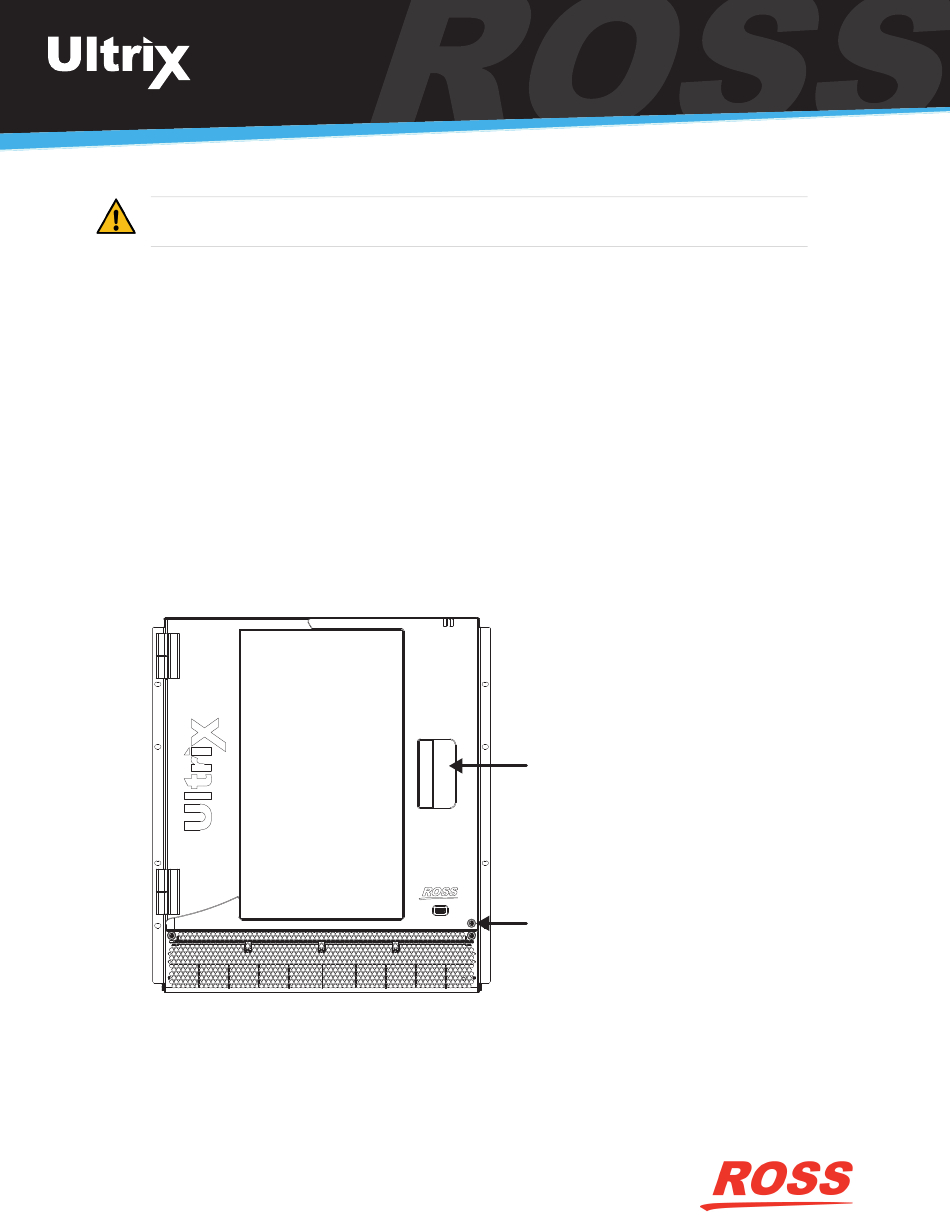

Replacing the Front Door of the ULTRIX-FR12
Door Handle
Retaining Screw
