before the blade can be removed from the chassis. You will need a 3/16" socket to disengage the
bolt (included in the kit shipped with your router).
Caution
— Steps must be followed in the presented order. Failing to do so can damage the blade.
To remove an existing blade from the ULTRIX-FR12 chassis
1. Power down the ULTRIX-FR12 and disconnect it from mains power.
2. Ensure all cabling is removed from the ports on the I/O Blade.
3. Disengage the retaining screws on either end of the I/O Blade. Refer to Figure 8.

We strongly recommend to disengage each screw until its head is approximately 0.25" away from
the faceplate. Do not fully extract the screws from the chassis.
1 2 3 4 5 6 7

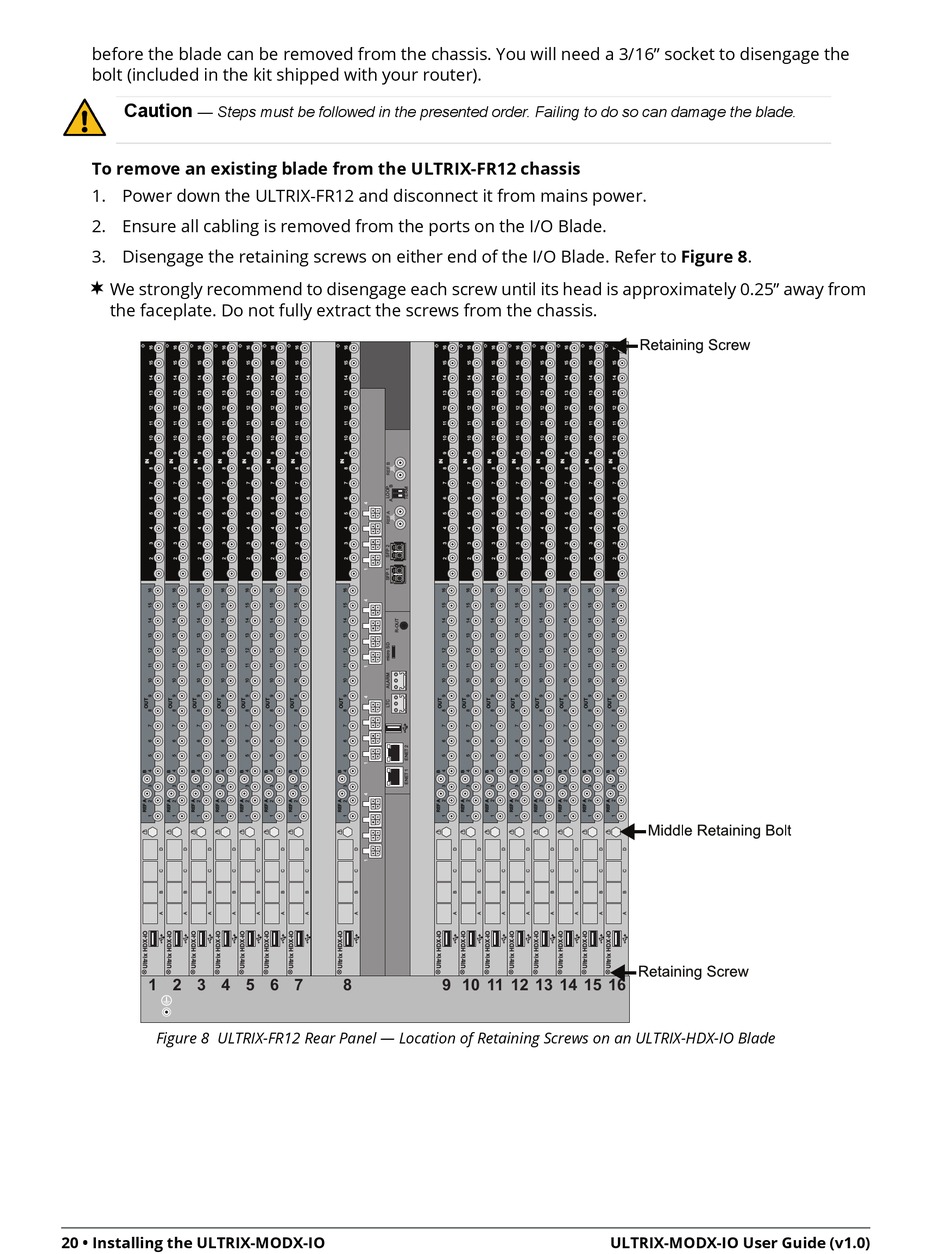

Figure 8 ULTRIX-FR12 Rear Panel — Location of Retaining Screws on an ULTRIX-HDX-IO Blade
20 • Installing the ULTRIX-MODX-IO
8 9 10 11 12 13 14 15 16
