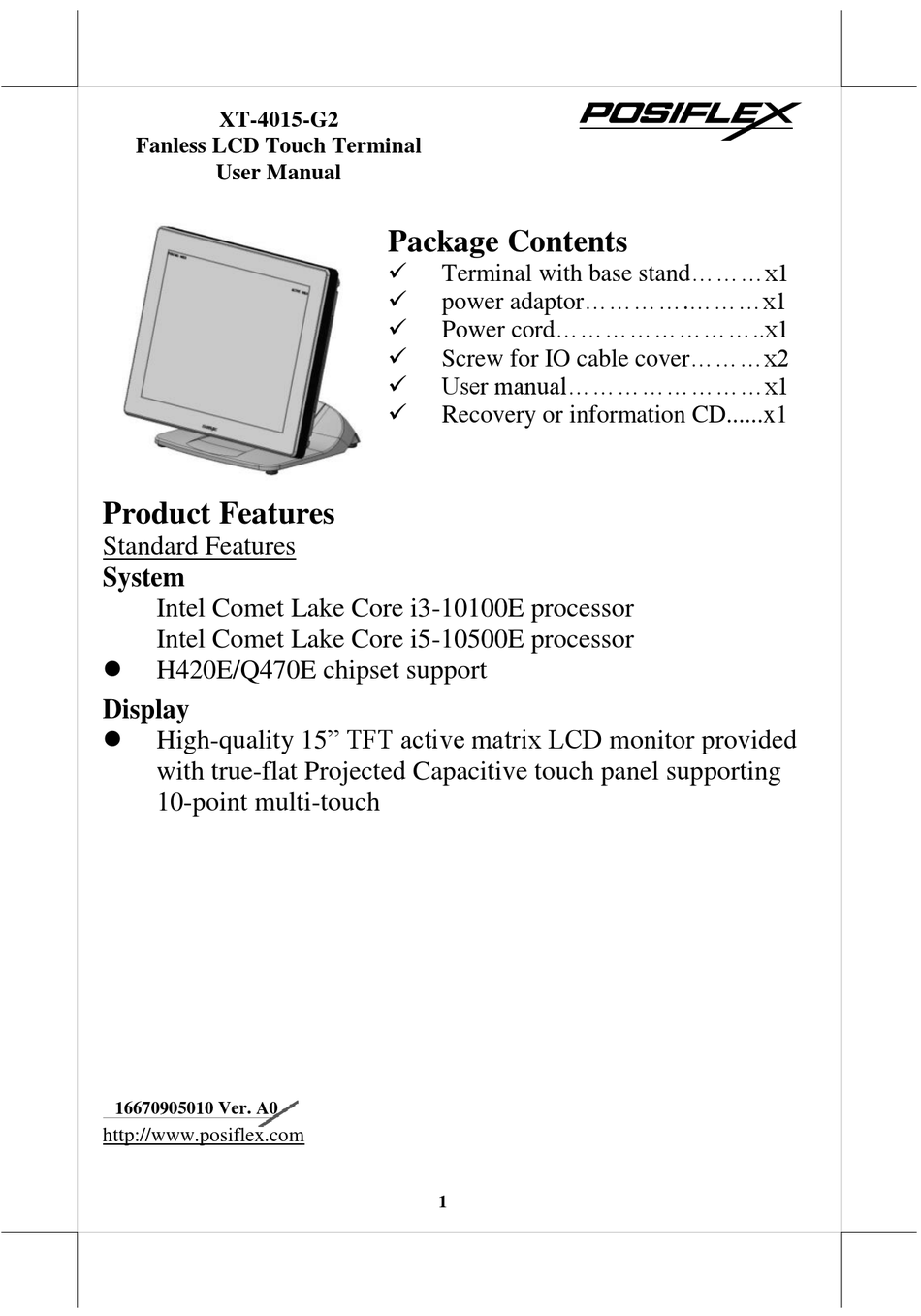

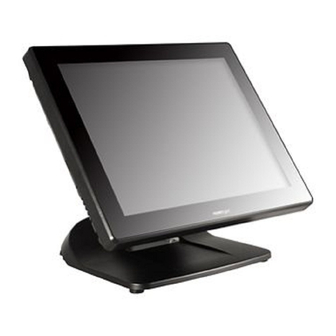

XT-4015-G2 Fanless LCD Touch Terminal User Manual Package Contents Terminal with base stand………x1 power adaptor………….………x1 Power cord……………………..x1 Screw for IO cable cover………x2 User manual……………………x1 Recovery or information CD..x1 Product Features Standard Features System Intel Comet Lake Core i3-10100E processor Intel Comet Lake Core i5-10500E processor ...
Page 2
SOME IMPORTANT NOTES FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 3
警告使用者 此為甲類資訊技術設備,於居住環境中使用時,可能會造成射頻擾動, 在此種情況下,使用者會被要求採取某些適當的對策。 BATTERY CAUTION NOTES Dispose of used batteries according to the instructions. Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types) Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery that can result in an explosion.
Page 4
PoweredUSB kit in GEN 8E base stand, such as PU-480 or PU-490 Back mount displays, such as LM/TM-3010/3014 and PD- 6307 Views of the XT-4015-G2 Front and Rear Views of Terminal with Gen 7E Base Stand LCD Touch Panel Hinge for main unit...
Page 5
Left Side View of Terminal with Gen 7E Base Stand Power Button Brightness Adjustment Button “+” Brightness Adjustment Button “-” USB 3.0 Port Locking Hook Bottom View of Terminal with GEN 7E Base Stand Bottom Plate Rubber Cushion Wrapping Screw Front and Rear Views of Terminal with GEN 8E Base Stand LCD Touch Panel Hinge...
Page 6
Left Side View of Terminal with GEN 8E Base Stand Power Button Brightness Adjustment Button “+” Brightness Adjustment Button “-” USB 3.0 Port Locking Hook Bottom View of Terminal with GEN 8E Base Stand UPS Chamber Bottom Plate Power Adaptor Chamber PoweredUSB Board Cover Rubber Cushion Wrapping Screw...
Page 7
Low Profile mode Full Extended mode In general, XT-4015-G2 will be set up beforehand in Flat Folded mode and then packaged into the box for shipping. After it is unpacked, you may re- adjust the terminal in either Low Profile mode or Full Extended mode according to your situation.
Page 8
Steady the base with one hand, and then tilt the screen downwards. Position your terminal in Full Extended mode After grabbing the bottom edge of the screen with your hand, gently move the screen upward until the screen is locked into place with a click sound.
Page 9
With the screen facing toward you, tilt the screen up or down to your desired angle. Please do not press on the LCD panel while setting up the tilt angle. Remove the cable cover from the base. Fix the base with two #/6/32-14L screws. Return your terminal back to Flat Folded mode from Full Extended mode.
Page 10
4.2 Remove the two screws from the base. Remove the two screws. 4.3 Tilt your screen in a horizontal position. 4.4 Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, move the display downwards until the lever is lifted off the hook as shown in the figure.
Page 11
LCD panel while setting up the tilt angle. XT-4015-G2 with Gen 8E Base Please refer to the following instructions on how to switch among different positioning modes to find an ideal viewing angle for XT-4015-G2 with Gen 8E base.
Page 12
Unpack XT-4015-G2, which is supposed to be set in flat folded mode, out of the package box and then lay your POS system on a flat surface. While steadying the terminal with your hand holding onto the base, tilt the screen down.
Page 13
Fix the base with two #6/32-14L screws. Push the cable cover back. Position the terminal in Low Profile mode. While keeping your terminal steady with your hand holding on to the base, tilt your terminal down. Then, remove the cable cover from the base.
Page 14
Remove the two screws from the base. Remove the two screws. Support the screen with one hand holding onto its bottom edge. Then, while pulling the lever backwards, move the display upwards or downwards until the lever is snapped into the upper hook to lower the screen as shown in the below figure.
Page 15
Return the terminal back to Flat Folded mode. While steadying your terminal with your hand holding onto the base, tilt your screen up. Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, release the lever back to the point above the upper hook as shown in the figure.
Page 16
Installing Power Adapter Kit onto GEN 8E Base Stand For the detailed description of installation of the 150W power adapter kit, refer to the XT-4015-G2 technical manual. Connecting Power Cable Connector to the Terminal Before turning turn ON the terminal, connect the power cable connector to the power jack of the terminal.
This product is highly professional equipment. Therefore, we do NOT encourage you to install any operating system into this machine. Posiflex Technology, Inc. shall not be responsible for any technical support to questions on this aspect. We suggest that you contact your dealer for OS installation.
Temp & Storage Temp.: 20 to 70℃, 10%RH – 90%RH Humidity ※ The product information and specification are subject to change without prior notice. To get the detailed information on XT-4015-G2, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
