Desoldering / Rework/Desoldering tool

Available in:
140 W high powers enable perfect desoldering for the components on multi-layer PWB
Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy
to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.
A wide selection of nozzle, with the addition of new types, is available for a variety of
desoldering works.
Applicable to even micro lands, components in a narrow space or flat type terminals on the PWB of
downsized devices like mobile phone.

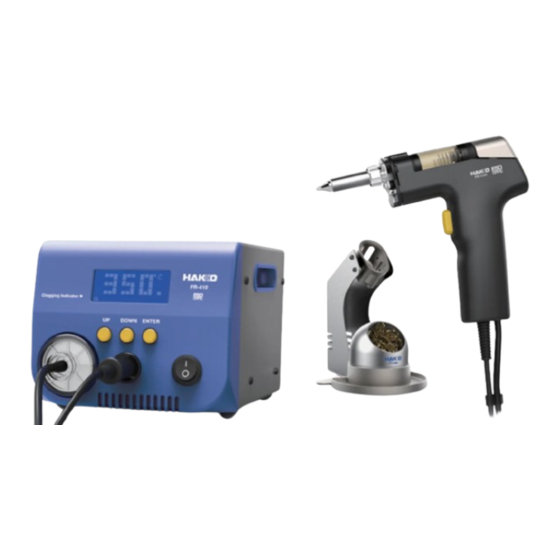

Desoldering tool with built-in vacuum pump
140 W high power enables perfect desoldering on multi-
layer PWB
New type nozzle can fit onto micro land patterns and
narrow space
Separate nozzle and heater ensure running cost
advantage for you

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR-410 and is the answer not in the manual?

Questions and answers

Related Manuals for Hakko Electronics FR-410

Summary of Contents for Hakko Electronics FR-410

  • Page 1 Desoldering / Rework/Desoldering tool Desoldering tool with built-in vacuum pump 140 W high power enables perfect desoldering on multi- layer PWB New type nozzle can fit onto micro land patterns and narrow space Separate nozzle and heater ensure running cost advantage for you Available in: 140 W high powers enable perfect desoldering for the components on multi-layer PWB...
  • Page 2 Secure desoldering, valve function that suctions with high pressure Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering. Reduction of solder clogging ・Improvement in heating core Heating ability for backside of heating core is increased to ensure suctioned solder be carried to filter pipe and avoid solder clogging.
  • Page 3 Filter size has been increased to protect the pump from contaminants, and transparent filter cover allows quick visual check of the filter condition. ・Tool box FR-410 comes with a tool box that contains of maintenance tools to keep nozzles and heater in a good condition.
  • Page 4 Featuring a large LCD display Very easy to see temperature on the large LCD display Vacuum indicator to check clogging...
