Hakko Electronics FG-460 Instruction Manual

FOOTWEAR TESTER
FG-460
Instruction Manual

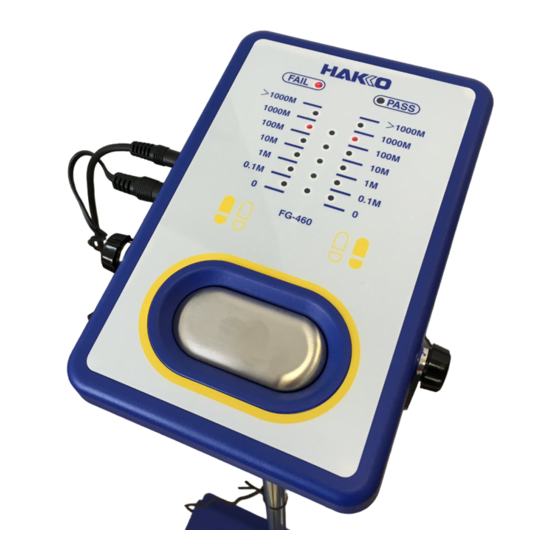

Thank you for purchasing the HAKKO FG-460 Footwear Tester.
The HAKKO FG-460 is a tester for determining the anti-static performance of safety
shoes while worn by the operator.
The operator needs only to step onto the tester plate
with one's shoes on and gently press the pad on the tester by hand.
The tester determines whether resistance is within the range specified in JIS T8103 and,
if the pair of shoes is good, displays the range that resistance falls in.
Please read this manual before operating the HAKKO FG-460.
Keep this manual readily accesible for reference.

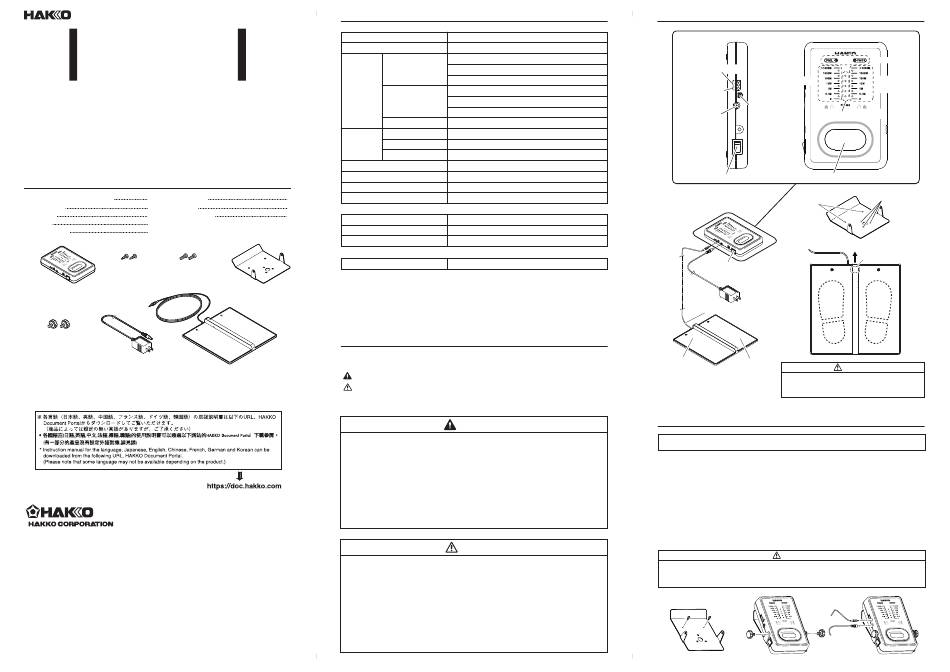

1. PACKING LIST
Please check to make sure that all items listed
below are included in the package.
1
HAKKO FG-460 Footwear Tester Pan head screw
Mounting base 1 Wood screw
AC adapter 1 Instruction Manual
Test plate 1
Mounting screw* 2
Wood Pan head
screw screw
HAKKO FG-460
Footwear Tester
(main unit)
Mounting screw*
* Delivered as they are
screwed onto the tester
main unit.
AC adapter
HEAD OFFICE
4-5, Shiokusa 2-chome, Naniwa-ku, Osaka 556-0024 JAPAN
TEL:+81-6-6561-3225 FAX:+81-6-6561-8466
http://www.hakko.com E-mail:sales@hakko.com
OVERSEAS AFFILIATES
U.S.A.: AMERICAN HAKKO PRODUCTS, INC.
TEL: (661) 294-0090 FAX: (661) 294-0096
Toll Free (800)88-HAKKO
4 2 5 5 6
http://www.hakkousa.com
HONG KONG: HAKKO DEVELOPMENT CO., LTD.
TEL: 2811-5588 FAX: 2590-0217
http://www.hakko.com.cn
E-mail:info@hakko.com.hk
SINGAPORE: HAKKO PRODUCTS PTE LTD.
TEL: 6748-2277 FAX: 6744-0033
http://www.hakko.com.sg
E-mail:sales@hakko.com.sg
Please access to the following address for the other Sales affiliates.
http://www.hakko.com
© 2016-2019 HAKKO Corporation. All Rights Reserved.
Company and product names are trademarks or registered
trademarks of their respective companies.
2. SPECIFICATIONS
Rating
Measurement Voltage
Upper evaluation limit
Measurement
Range (Ω)
Lower evaluation limit
Conductivity evaluation
R ＜ 0.1 MΩ
Evaluation
0.1 MΩ ≦ R ≦ 100 MΩ
level accuracy
100 MΩ ＜ R
Operating environment
Dimensions
Weight
2
Environmental condition
2
● Test plate
1
Cord length
Dimensions (w/o cord)
Weight (w/o cord)
● AC adapter
Output voltage
* HAKKO offers calibration service for the HAKKO FG-460.
Contact HAKKO for details.
Mounting base
* Specifications and design are subject to change without notice.
3. WARNINGS, CAUTIONS AND NOTES
Test plate
Warnings, cautions and notes are placed at critical points in this manual to direct the operator's
attention to significant items. They are defined as follows:
WARNING: Failure to comply with a WARNING may result in serious injury or death.
CAUTION : Failure to comply with a CAUTION may result in injury to the operator, or damage
to the items involved.
NOTE : A NOTE indicates a procedure or point that is important to the process
being described.
This appliance can be used by children aged from 8 years and
●
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in safe way and understand the hazards involved.
Children shall not play with the appliance.
●
Cleaning and user maintenance shall not be made by
●
children without supervision.
To prevent electrical shock and damage, observe the following precautions.
● Do not wet the product. And, do not perform measurements with wet hands.
● Do not subject the product to strong impacts. Do not hit or forcefully press the pad.
● Turn the power off when not in use, or left unattended.
● Unplug the power cable from its outlet before long periods of disuse.
● Use only genuine HAKKO replacement parts.
● Do not modify the HAKKO FG-460.
● Remove power and iron cords by holding the plug. not the wires.
● Thick socks can effect anti-static evaluation. Properly wear anti-static shoes as explained
in the instructions provided with the shoes.
● The mounting base is used when using the optional stand, therefore take good care of it.
● While using the HAKKO FG-460, don't do anything which may cause bodily harm or
physical damage.
2019.5
MA02770XZ190522
DC 24 V 33 mA
DC 20 V
1000 MΩ (1 × 10 Ω)
9
100 MΩ (1 × 10 8 Ω)
10 MΩ (1 × 10 7 Ω)
1 MΩ (1 × 10 6 Ω)
0.1 MΩ (1 × 10 5 Ω)
R ＜ 0.1 MΩ (1 × 10 5 Ω)
R ＜ 0.1 MΩ (1 × 10
5 Ω)
±5％
±10％
±8％
0 to 40℃, max.80% RH, without condensation
120 (W) × 30 (H) × 185 (D) mm (4.7 × 1.2 × 7.3 in.)
0.55 kg (1.2 lb.) (Including mounting base)
Applicable rated pollution degree 2 (According to IEC/UL61010-1)
1.6 m
300 (W) × 30 (H) × 300 (D) mm (11.8 × 1.2 × 11.8 in.)
1.9 kg (4.2 lb.)
DC 24 V
WARNING
CAUTION
4. PART NAMES
External output terminal*
Level indicators
1
2
(Left foot)
GND terminal 3
Test plate jack
Pass range indicator LEDs
AC adapter jack
Power switch Pad
About evaluation
* Refer to the "●
Installation holes
external output
"
for wall mounting
Connecting cable
Power switch
Left
Connecting cable
Test plate Test plate
(Left foot) (Right foot)
When setting up the test plate, make sure the toes
are facing towards the "UP" sign on the center
divider.
5. INITIAL SETUP
— NOTE —
The HAKKO FG-460 can be installed on a desk, wall or the optional stand.
● Mounting on the wall
1. Install the mounting base as shown in the diagram using the included wood screws or
pan head screws.
2. Place the HAKKO FG-460 on the mounting base and secure it to the base using the included
mounting screws.
3. Plug the connecting cord from the test plate and the AC adapter plug into the respective jacks on
the left side of the HAKKO FG-460.
4. Plug the AC adapter into a wall outlet.
CAUTION
Unplug the power cable from its outlet before long periods of disuse.
When the connecting cable is not fully inserted, it may cause malfunction. Please
make sure that the connecting cable is plugged in properly to the main unit.
Connecting cable
AC adapter
Evaluation result
Level indicators
(Right foot)
Installation holes for
optional stand
Mounting base
Toes face the
"UP" sign
UP
Right
CAUTION
