Tyco Electronics 2063195-1 Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Insulation Crimper
(Upper Die)
Wire Crimper
(Upper Die)
Die Set
2063195-2
Anvil (Lower)
Wire Die
DIE
ASSEMBLY
2063195-2

1. INTRODUCTION

All dimensions on this document are in metric
NOTE
units. Figures and illustrations are for
identification only and are not drawn to scale.
i

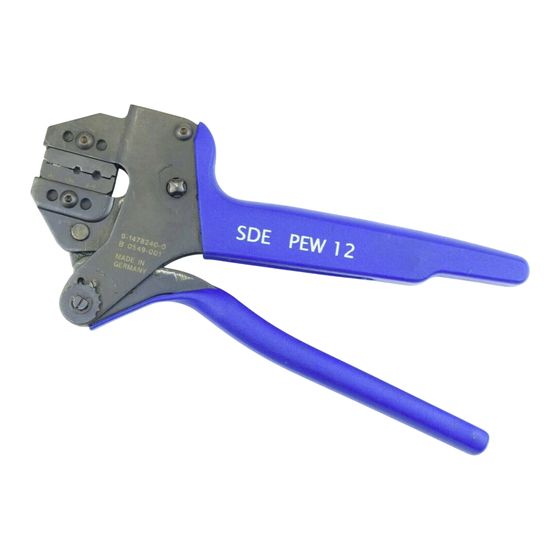

SDE PEW–12 Commercial Hand Tool Assembly
2063195–1 consists of SDE PEW–12 Frame
Assembly 9–1478240–0 (Instruction Sheet 408–8851)
and die set assembly 2063195–2. See Figure 1. The
tool is used to crimp terminal numbers provided in the
table in Figure 1.
E
2008 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
SDE PEW-12 Commercial
Hand Tool Assembly 2063195-1
with Die Assembly 2063195-2
Nut
Stationary
Jaw
Anvil (Lower)
Insulation Die
WIRE SIZE (mm
PART NO PART NO.
1.25-2.5
927779-[ ]
---
928818-[ ]
927783-[ ]
---
928876-[ ]
n n
927777-[ ]
963885-[ ]
n
927781-[ ]
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Spacer
Locator
Moving
Jaw
Ratchet Adjustment
Wheel
2
)
0.5-1.0
n n
1 4 2 3 1.4-2.3
n n
2 0 2 7 2.0-2.7
--- 2 1 3 1 2.1-3.1
--- 2.7-4.1

2. DESCRIPTION

The tool frame features two jaws, a handle, ratchet
adjustment wheel, and an emergency ratchet release.
The die set consists of an indenter (upper die) and an
anvil (lower die). The tool frame holds a die assembly
with two crimping chambers. See Figure 1. Die
retaining screws are used to secure the dies in the
tool frame.
The tool features a ratchet and an adjustment wheel
with a range of settings. The ratchet ensures that the
tool has completed the cycle and will not release until
the handles have been FULLY closed, unless the
emergency ratchet release is rotated to manually
release the ratchet. The adjustment wheel controls
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-10224
10 JUN 08 Rev A
Handle
Emergency
Ratchet
Release
Die Retention
Screws
INSULATION
SIZE STRIP LENGTH
4.0 4 0
4.3
1 of 5
LOC B
