Tyco Electronics SDE PEW-12 Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Wire Crimper
(Upper Die)
Die Set
2063195-2
Anvil (Lower)
Wire Die
DIE CONTACT
ASSEMBLY PART NO.
2063500-2 1600961-[ ]
1. INTRODUCTION
Dimensions in this instruction sheet are in
NOTE
millimeters with [inches in brackets]. Figures and
illustrations are for reference only and are not
i
drawn to scale.

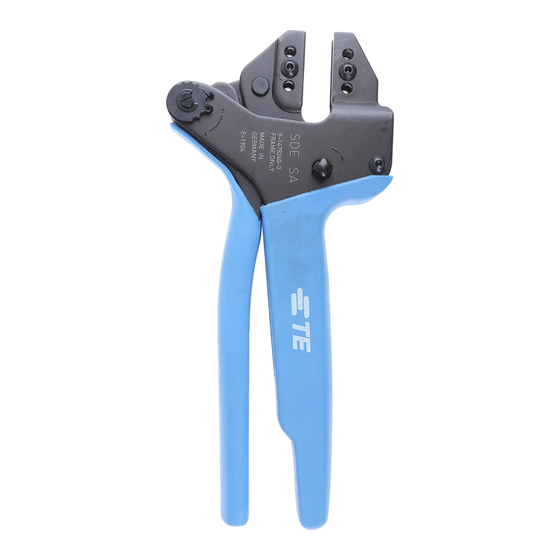

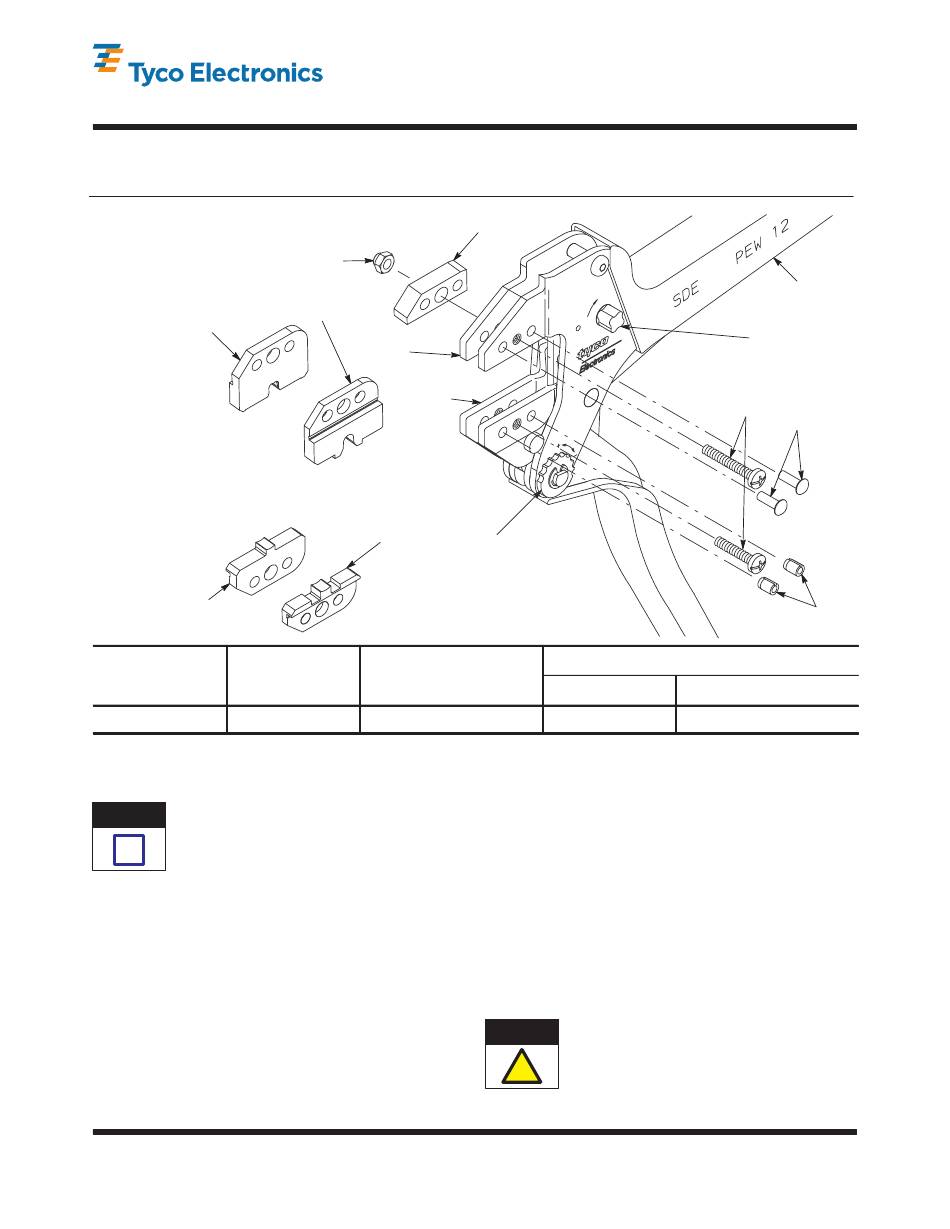

SDE PEW–12 Commercial Hand Tool Assembly
2063500–1 consists of SDE PEW–12 Frame
Assembly 9–1478240–0 (Instruction Sheet 408–8851)
and die set assembly 2063500–2. See Figure 1. The
tool is used to crimp terminal numbers provided in the
table in Figure 1.
2. DESCRIPTION
The tool frame features two jaws, a handle, ratchet
adjustment wheel, and an emergency ratchet release.
E
2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
SDE PEW-12 Commercial
Hand Tool Assembly 2063500-1
with Die Assembly 2063500-2
Terminal Support
Nut
Insulation Crimper
(Upper Die)
Stationary
Jaw
Moving
Jaw
Anvil (Lower)
Insulation Die
Ratchet Adjustment
Wheel
WIRE SIZE
2 2
mm [AWG]
2.0-3.4 [14-12]
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
INSULATION
SIZE
3.05-4.47 [.120-.176]
The die set consists of an indenter (upper die) and an
anvil (lower die). The tool frame holds a die assembly
with two crimping chambers. See Figure 1. Die
retaining screws are used to secure the dies in the
tool frame.
The tool features a ratchet and an adjustment wheel
with a range of settings. The ratchet ensures that the
tool has completed the cycle and will not release until
the handles have been FULLY closed, unless the
emergency ratchet release is rotated to manually
release the ratchet. The adjustment wheel controls
the amount of handle pressure exerted on the dies
during the crimping procedure.
The dies bottom before the ratchet releases. This
CAUTION
feature ensures maximum tensile performance of
the crimp. DO NOT re-adjust the ratchet.
!
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
Instruction Sheet
408-10281
02 MAR 09 Rev A
Handle
Emergency
Ratchet
Release
Die Retaining
Screws
Pins
Slotted Spring
Pins
STRIP LENGTH
5.97-6.73 [.235-.265]
1
of 4
www.tycoelectronics.com
