PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Locator
Assembly
(Supplied with
Die Assembly)
Front of Tool
(Locator Side)
Die
Assembly

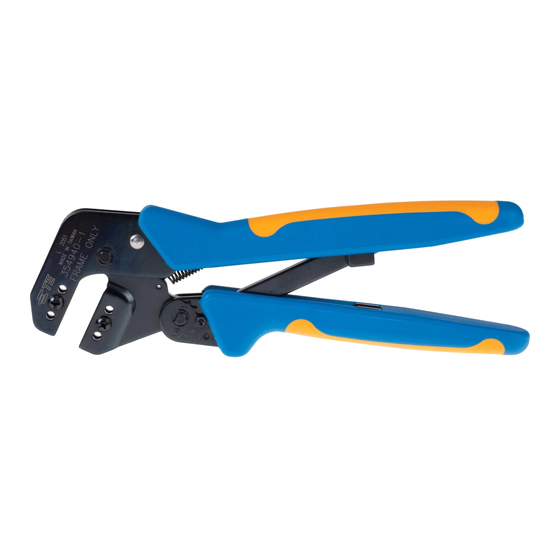

PRO-CRIMPER III Hand Crimping Tool is a Commercial" grade tool and is
designed primarily for field installation, repair, maintenance work, or prototyping
in industrial, commercial, or institutional applications. Product crimped with this
tool will meet the crimp height requirement for hand tools in the appropriate 114
series application specification, but may not comply with other feature parameters
of the specification. Tyco Electronics offers a variety of tools to satisfy your
performance requirements. For additional information, contact the Tooling
Assistance Center at 1-800-722-1111.
TE
TE
Die Assembly
Locator Assembly
224933-2
58515-1
{
Supplied with die assembly. Also available separately.
1. INTRODUCTION
PRO–CRIMPER III Hand Crimping Tool
Assembly 224933–1 consists of Die Assembly
224933–2 and PRO–CRIMPER III Hand Crimping
Tool Frame 354940–1. The die assembly consists of
crimping dies and a locator assembly.
E
2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.

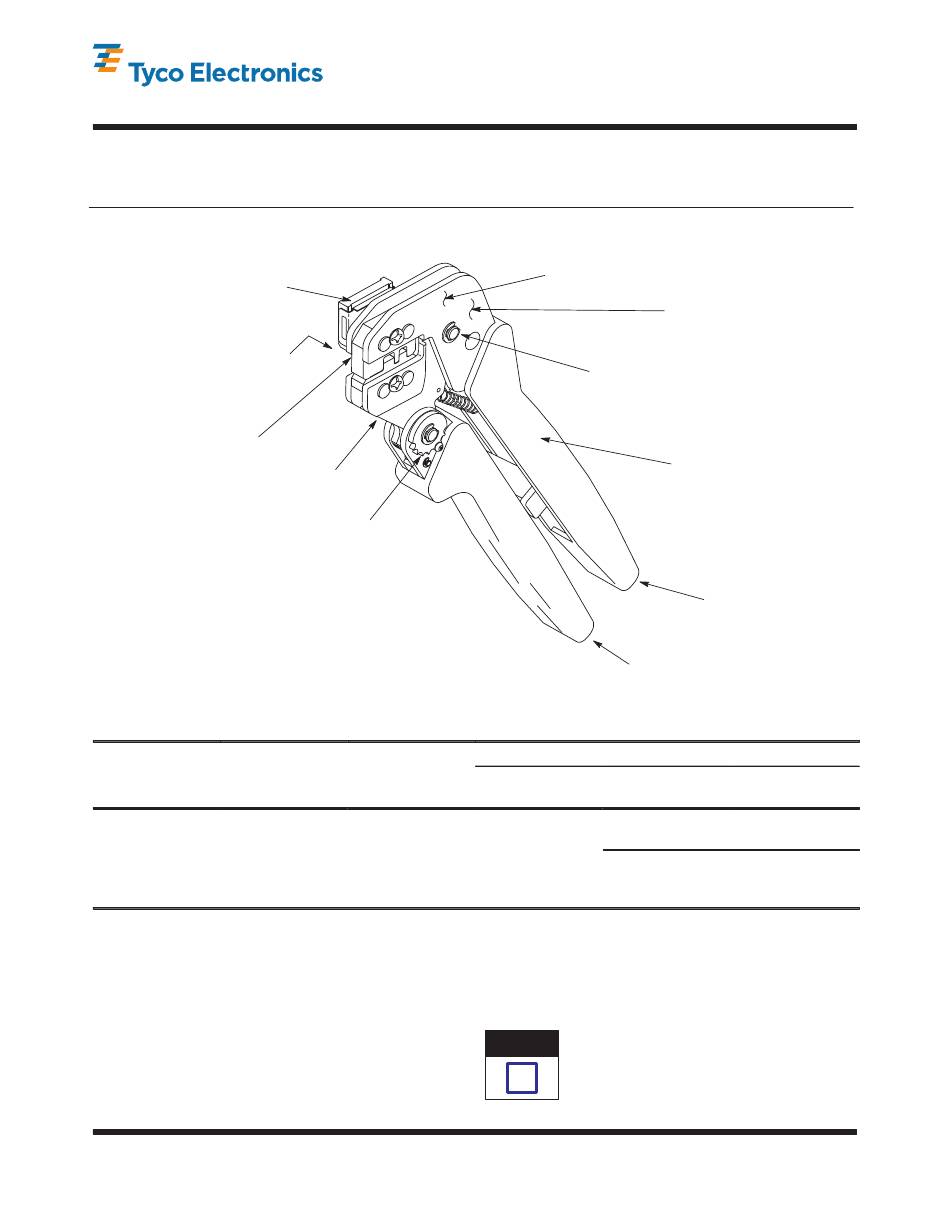

PRO-CRIMPER* III Hand Crimping
Tool Assembly 224933-1
with Die Assembly 224933-2
Moving Jaw
Ratchet
Adjustment
Wheel
TE
TE
{
Connector
Connector
}
Family
INFOPORT*
Series III
S
Shield Kit
}
Contact the Tooling Assistance Center or Product Information Center (below) for specific
shield part numbers.
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Stationary Jaw
Pivot Pin
Moving Handle
Cable
Size
Insulation
(AWG)
Diameter
3.43 to 3.81 mm
[.135 to .150 in.]
28-32
5.72 x 3.68 mm
[.225 x .145 in.]
OVAL
Read these instructions thoroughly before crimping.
Dimensions on this instruction sheet are in
NOTE
millimeters [with inch equivalents provided in
i
brackets]. Figures and illustrations are for
identification only and are not drawn to scale.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-4160
11 MAY 09
Rev A
Back of Tool
(Wire Side)
PRO-CRIMPER III Hand
Crimping Tool Frame
354940-1
(408-9930)
Stationary
Handle
Shield
Type
Small
Large
1 of 4
