Tyco Electronics 220189 Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Die Retaining Screws
Indenter Die
Crimping Die
Assembly (Ref)
Anvil Die
Center Contact
Crimping Chamber
DIE ASSEMBLY PART NUMBER
220189-1, 220189-2
220189-3
58330-1
1. INTRODUCTION
This instruction sheet covers the use and
maintenance of Crimping Die Assemblies listed in
Figure 1. The dies are used in PRO–CRIMPER III
Frame Assembly 354940–1 to crimp 50– and
75–Ohm BNC, and 50–Ohm TNC Dual–Crimp
Connectors onto various size cable. Refer to Figure 1
for a list of connectors that are compatible with the
die assemblies. Refer to Catalog 82074 for additional
product part number information. For part numbers
not listed, contact Tyco Electronics Product
Engineering for recommendations.
E
2008 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
Crimping Die Assemblies
220189-[ ] and 58330-1
Stationary Jaw
Moveable
Jaw
Ferrule Crimping
Chamber

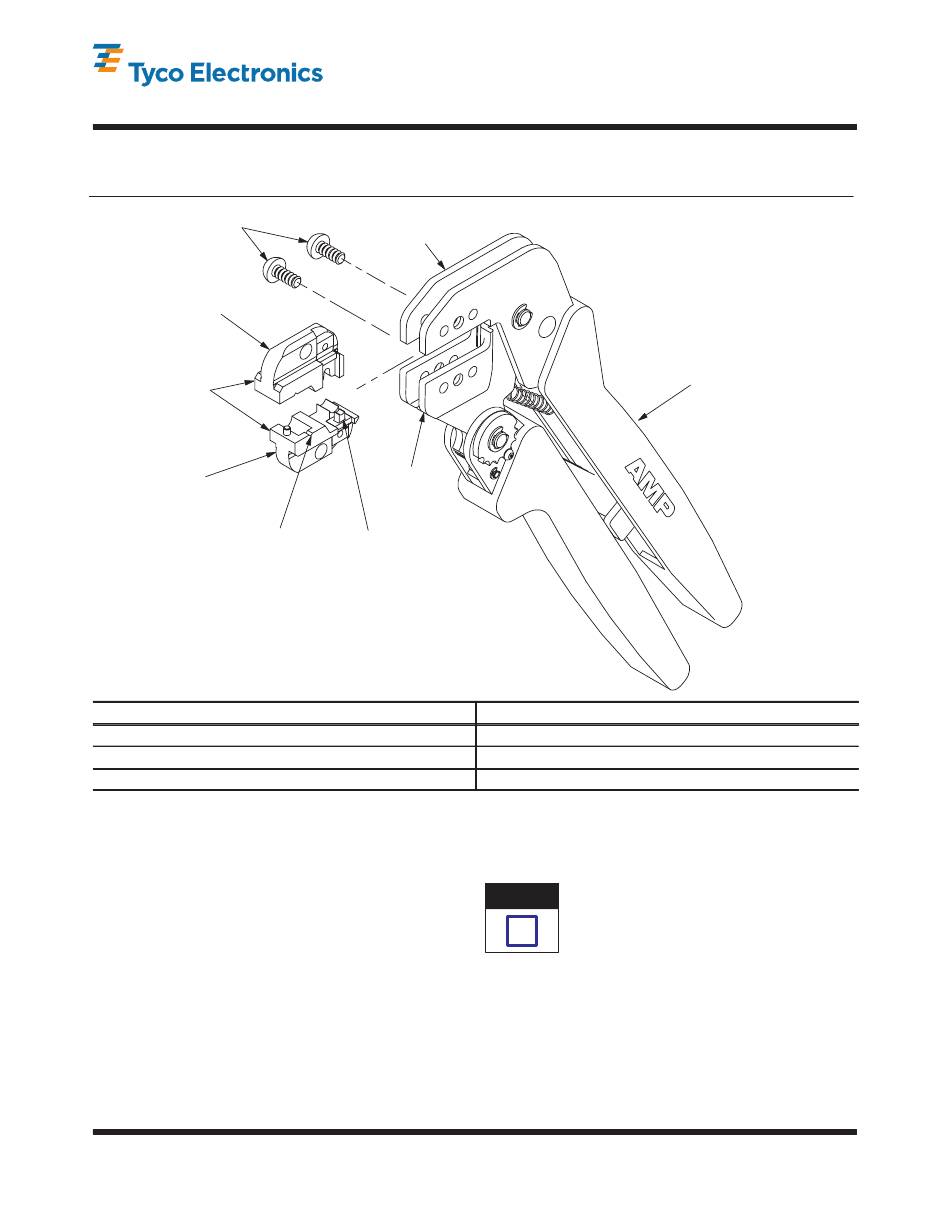

Figure 1
Reasons for reissue are provided in Section 8,
REVISION SUMMARY.
NOTE
i
2. DESCRIPTION
Each die assembly consists of an indenter die and an
anvil die, which when mated form two crimping
chambers. The large crimping chamber crimps the
connector ferrule and the small crimping chamber
crimps the connector center contact. Each die is held
in the tool by a single screw. See Figure 1.
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Instruction Sheet
PRO-CRIMPER* III
Frame Assembly
354940-1 (Ref)
CONNECTOR BASE PART NUMBER
227000, 227079, 228980, 228979
225395, 225396, 225397, 225398
227079
All dimensions in this document are in millimeters
[with inches in brackets]. Figures and Illustrations
are for reference only and are not drawn to scale.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
www.tycoelectronics.com
visit our website at
408-2786
17 DEC 08 Rev H
1
of 5
LOC B
