Tyco Electronics 91391-1 Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.

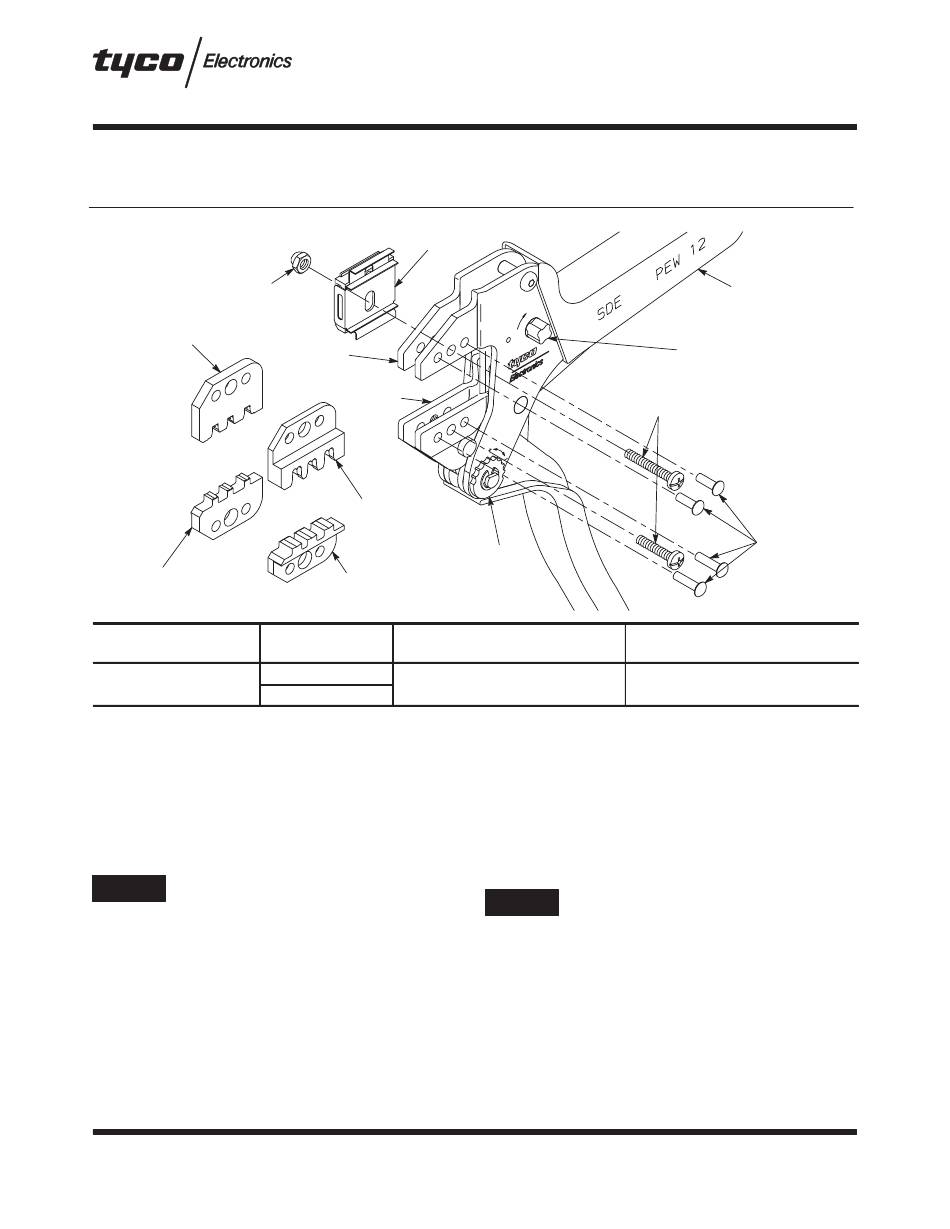

Nut
Wire Crimper
(Upper Die)
Die Set 91391-2
Anvil (Lower)
Wire Die
DIE ASSEMBLY
PART NUMBER
91391-2 91391 2

1. INTRODUCTION

SDE PEW–12 Hand Tool Assembly 91391–1 consists
of SDE PEW–12 Frame Assembly 9–1478240–0 and
die set assembly 91391–2. See Figure 1. The tool is
used to crimp 30–20 AWG Micro Mate–N–Lok Pin
and Socket Contacts.
Dimensions in this instruction sheet are in
NOTE
millimeters [with inches in brackets]. Figures and
illustrations are for reference only and are not
drawn to scale.

2. DESCRIPTION

The tool frame features two jaws, a handle, ratchet
adjustment wheel, and an emergency ratchet release.
The die set consists of an indenter (upper die) and an
anvil (lower die). The tool frame holds a die assembly
with two crimping chambers. See Figure 1. Die
retaining pins and die retaining screws are used to
position and secure the dies in the tool frame.
E
2005 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
Tyco is a trademark. *Trademark
Other products, logos, and company names used are the property of their respective owners.
SDE PEW-12
Hand Tool Assembly 91391-1
with Die Assembly 91391-2
Locator
Stationary
Jaw
Moving
Jaw
Insulation
Crimper
(Upper Die)
Anvil (Lower)
Insulation Die
CONTACT SIZE,
INSULATION DIAMETER
AWG
30-26
0.89-1.53 [.035-.060] 0 89 1 53 [ 035
24-20
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Die Retention
Screws
Ratchet
Adjustment
Wheel
060]
The tool features a ratchet and an adjustment wheel
with a range of settings. The ratchet ensures that the
tool has completed the cycle and will not release until
the handles have been FULLY closed, unless the
emergency ratchet release is rotated to manually
release the ratchet. The adjustment wheel controls
the amount of handle pressure exerted on the dies
during the crimping procedure.
The dies bottom before the ratchet releases. This
CAUTION
feature ensures maximum tensile performance of
the crimp. DO NOT re-adjust the ratchet.
3. INSTALLATION AND REMOVAL OF DIE SET
AND LOCATOR ASSEMBLY (Figure 1)
1. Open the tool handles and remove the two die
retaining screws from the tool jaws.
2. Place the wire anvil and insulation anvil so that
their chamfered sides and their marked surfaces
face outward, when mounted in the moving jaw of
the tool frame.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
Instruction Sheet
408-10043
03 NOV 05 Rev A
Handle
Emergency Ratchet
Release
Retaining Pins
(4) Required
WIRE STRIP LENGTH
2.90-3.53 [.114-.139] 2 90 3 53 [ 114 139]
of 4
1
www.tycoelectronics.com
LOC B
