IEI Technology PUZZLE-9030 Series User Manual

1u network appliance with amd epyc milan 7543 processors, up to 4tb ddr4, m.2 nvme, u.2 nvme, gen-z 4c+ interfaces, redundant 1300w psu, rack mount, and rohs compliant
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

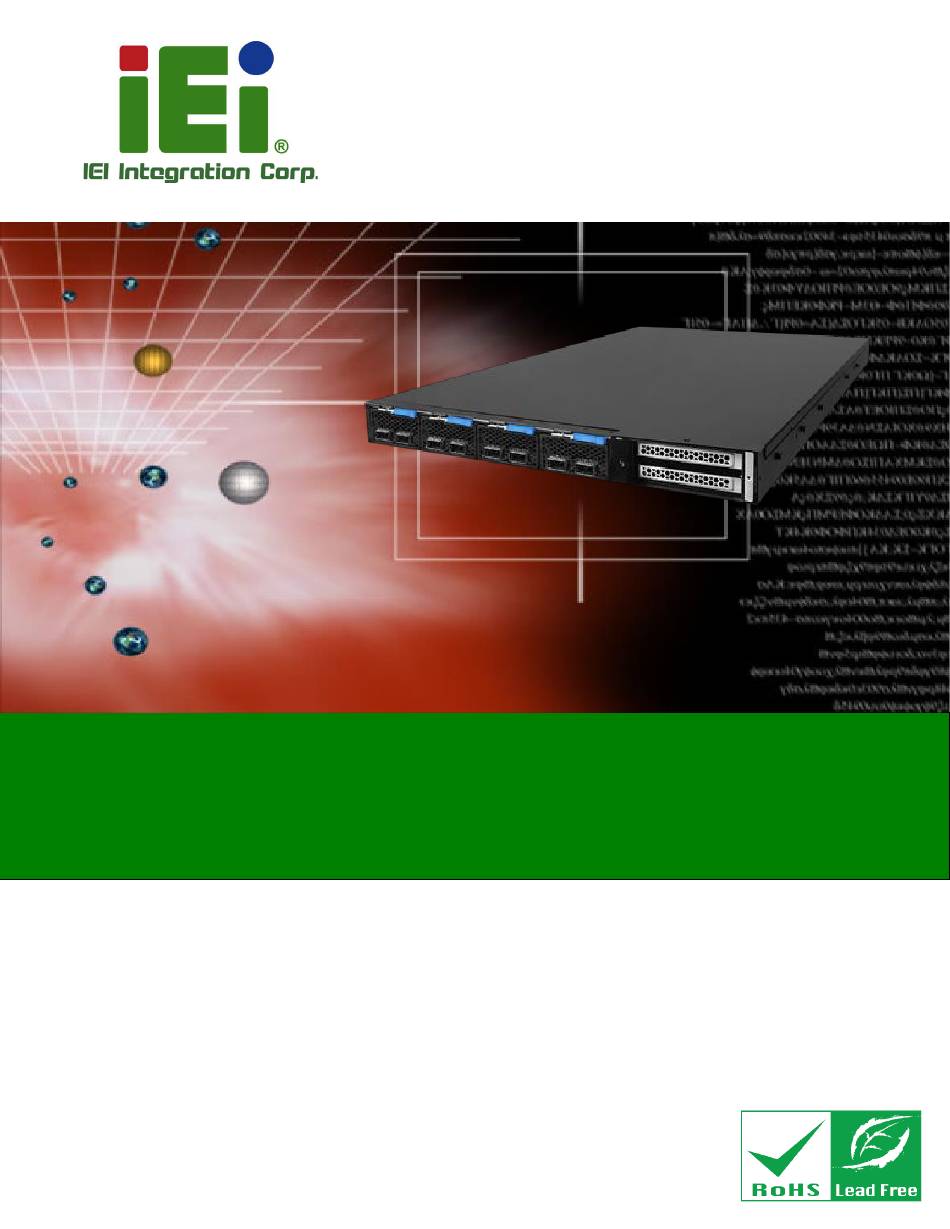

PUZZLE-9030
MODEL:
PUZZLE-9030
1U Network Appliance with AMD® EPYC™ Milan 7543 Processors,
Up to 4TB DDR4, M.2 NVMe, U.2 NVMe, Gen-Z 4C+ Interfaces,
Redundant 1300W PSU, Rack Mount, and RoHS Compliant
User Manual
Page 1
Rev. 1.00 – September 18, 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUZZLE-9030 Series and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology PUZZLE-9030 Series

Summary of Contents for IEI Technology PUZZLE-9030 Series

  • Page 1 PUZZLE-9030 MODEL: PUZZLE-9030 1U Network Appliance with AMD® EPYC™ Milan 7543 Processors, Up to 4TB DDR4, M.2 NVMe, U.2 NVMe, Gen-Z 4C+ Interfaces, Redundant 1300W PSU, Rack Mount, and RoHS Compliant User Manual Page 1 Rev. 1.00 – September 18, 2023...
  • Page 2 PUZZLE-9030 Revision Date Version Changes September 18, 2023 1.00 Initial release Page 2...
  • Page 3 PUZZLE-9030 Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 PUZZLE-9030 Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. NOTE These messages inform the reader of essential but non-critical information.

  • Page 5: Table Of Contents

    PUZZLE-9030 Table of Contents 1 INTRODUCTION ......................10 1.1 O ......................... 11 VERVIEW 1.2 F ......................... 12 EATURES 1.3 F ......................12 RONT ANEL 1.4 R ......................13 ANEL 1.5 T ..................14 ECHNICAL PECIFICATIONS 1.6 D ......................16 IMENSIONS 2 UNPACKING .......................
  • Page 6 PUZZLE-9030 3.12.1 Power Supply Unit Replacement ..............42 3.12.2 Fan Module Replacement ................43 3.12.3 Jumper Settings ....................44 3.12.3.1 Clear CMOS .................... 44 4 INTERFACE CONNECTORS ................... 45 4.1 P ..............46 ERIPHERAL NTERFACE ONNECTORS 4.2 I ..............46 NTERNAL ERIPHERAL ONNECTORS...
  • Page 7 PUZZLE-9030 B.2.2 Cleaning Tools ....................72 C ERROR BEEP CODE ....................73 C.1 PEI B ..................... 74 ODES C.2 DXE B ....................74 ODES D HAZARDOUS MATERIALS DISCLOSURE ............75 D.1 R HS II D (2015/863/EU) ............... 76 IRECTIVE D.2 C HS ......................
  • Page 8 PUZZLE-9030 List of Figures Figure 1-1: PUZZLE-9030 Series ....................11 Figure 1-2: PUZZLE-9030 Front Panel ..................12 Figure 1-3: PUZZLE-9030 Rear Panel ..................13 Figure 1-4: Physical Dimensions (millimeters) ................16 Figure 3-1: Top Cover Removal ....................23 Figure 3-2: DIMM Slot Locations ....................24 Figure 3-3: HDD Bracket Retention Screws ................
  • Page 9 PUZZLE-9030 List of Tables Table 1-1: Technical Specifications .................... 15 Table 3-1: LAN Pinouts ........................ 34 Table 3-2: RJ-45 Ethernet Connector LEDs ................34 Table 3-3: RJ-45 Serial Port Pinouts ................... 35 Table 1-6: Clear BIOS Jumper Settings ..................44 Table 4-1: Peripheral Interface Connectors ................

  • Page 10: Introduction

    PUZZLE-9030 Chapter Introduction Page 10...

  • Page 11: Overview

    PUZZLE-9030 1.1 Overview Figure 1-1: PUZZLE-9030 Series The PUZZLE-9030 is a 1U network appliance series powered by two AMD® EPYC™ Milan 7543 processors, which is made for cybersecurity vendors that require faster CPU performance to accelerate SD-WAN architecture, and secure access service edge (SASE) solutions.

  • Page 12: Features

    PUZZLE-9030 1.2 Features The PUZZLE-9030 features are listed below:  Powered by two AMD® EPYC™ Milan 7543 processors  Support 16 DDR4 3200 MHz ECC & register RDIMM/LRDIMM (system max. 4 TB)  Support multiple storage options, including M.2 NVMe SSD, U.2 NVMe SSD and 2.5"...

  • Page 13: Rear Panel

    PUZZLE-9030 1.4 Rear Panel An overview of the PUZZLE-9030’s rear panel is shown in F igure 1-3 below. The rear 6 9 1 H 6 9 1 panel also contains several LED indicators:  PSU LED  Fan module LED ...

  • Page 14: Technical Specifications

    PUZZLE-9030 1.5 Technical Specifications The PUZZLE-9030 technical specifications are listed in Table 1-1. System Form Factor CPU (SoC) 2 x AMD® EPYC™ Milan 7543 Chipset Integrated in CPU Memory Technology: ECC & Register DDR4 3200 MHz memory, up to 256GB per DIMM Capacity: RDIMM/LRDIMM, up to 4TB Socket: 16 x 288-pin DIMM (8 DIMM/CPU), eight channels IPMI...

  • Page 15: Table 1-1: Technical Specifications

    PUZZLE-9030 Type/Watt YM-2132EAR 90 ~ 132VAC @900W 100 ~ 132VAC @1000W 110 ~ 132VAC @1100W 180 ~ 264VAC @1300W Processor Cooling 2 x CPU heatsink System Cooling 6 x Individual hot-swappable cooling fans Environmental and Mechanical Mounting 1U rack mount Operating Temperature 0C~40C (32F~104F) Storage Temperature...

  • Page 16: Dimensions

    PUZZLE-9030 1.6 Dimensions The physical dimensions are shown below: Figure 1-4: Physical Dimensions (millimeters) Page 16...

  • Page 17: Unpacking

    PUZZLE-9030 Chapter Unpacking Page 17...

  • Page 18: Anti-Static Precautions

    PUZZLE-9030 2.1 Anti-static Precautions WARNING: Failure to take ESD precautions during installation may result in permanent damage to the PUZZLE-9030 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PUZZLE-9030. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PUZZLE-9030 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 19: Packing List

    PUZZLE-9030 2.3 Packing List NOTE: If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the PUZZLE-9030 from or contact an IEI sales representative directly.
  • Page 20 PUZZLE-9030 Optional Item Image USB to console cable (P/N: 32013-004000-100-RS) RS-232 to console cable (P/N: 32005-005100-100-RS) Page 20...

  • Page 21: Installation

    PUZZLE-9030 Chapter Installation Page 21...

  • Page 22: Installation Precautions

    PUZZLE-9030 3.1 Installation Precautions CAUTION! The PUZZLE-9030 series has more than one power supply connection point. To reduce the risk of electric shock, disconnect all power sources before installing or servicing the PUZZLE-9030 series. During installation, be aware of the precautions below: ...

  • Page 23: Top Cover Removal

    PUZZLE-9030 3.2 Top Cover Removal WARNING: Never open the equipment. For safety reasons, the equipment should be opened only by qualified skilled person. Before installing or maintaining the internal components, the top cover must be removed from the PUZZLE-9030. Follow the steps below to complete the task. Step 1: Remove the three retention screws indicated in Figure 3-1.

  • Page 24: Dimm Installation

    PUZZLE-9030 3.3 DIMM Installation CAUTION: For multiple channel configuration, always install identical memory modules that feature the same capacity, timings, voltage, number of ranks and the same brand. To install the DIMM module, please follow the steps below. Step 1: Remove the top cover from the PUZZLE-9030.

  • Page 25: Hdd/Ssd Installation

    PUZZLE-9030 To remove a DIMM, push both handles outward. The memory module is ejected by a mechanism in the socket.Step 0: 3.4 HDD/SSD Installation The PUZZLE-9030 allows installation of two 3.5" SATA HDD/SSD or two 2.5" U.2 NVMe SSD. To install SSDs into the system, please follow the steps below. 3.4.1 3.5"...

  • Page 26: Figure 3-4: Secure Hdd To The Bracket

    PUZZLE-9030 Figure 3-4: Secure HDD to the Bracket Step 4: Re-connect the SATA cable to the motherboard. Secure the bracket to the chassis with four screws removed previously (Figure 3-5). Figure 3-5: HDD Installation Step 5: Re-install and secure the top cover to the system. Page 26...

  • Page 27: U.2 Ssd

    PUZZLE-9030 3.4.2 2.5" U.2 SSD Step 1: Remove the top cover from the PUZZLE-9030. Please follow the instruction described in Section 3.2. Step 2: Remove the 3.5" HDD bracket from the system. To do this, remove the four retention screws indicated below and disconnect the SATA cable from the motherboard.

  • Page 28: Figure 3-8: Secure Ssd To The Bracket

    PUZZLE-9030 Step 4: Place an U.2 SSD onto the bracket and secure it with four retention screws (M3*4). Figure 3-8: Secure SSD to the Bracket Step 5: Insert the SSD into the SATA connector on the motherboard. Secure the bracket to the chassis with four screws removed previously.

  • Page 29: Pcie Expansion Card Installation

    PUZZLE-9030 3.5 PCIe Expansion Card Installation The PUZZLE-9030 allows installation of two PCIe x16 card. To install a PCIe expansion card, please follow the steps below. Step 1: Remove the top cover from the PUZZLE-9030 (refer to Section 3.2). Step 2: Remove the four riser card module retention screws indicated below.

  • Page 30: Figure 3-12: Pcie Expansion Card Installation

    PUZZLE-9030 Step 5: Align the expansion card to the PCIe slot. Press gently, but firmly, to seat the expansion card correctly in the slot. Install the bracket screw to secure the card to the expansion slot module. Figure 3-12: PCIe Expansion Card Installation Step 6: Place the riser card module back to the original position.

  • Page 31: Iei Networking Module Installation

    PUZZLE-9030 3.6 IEI Networking Module Installation The PUZZLE-9030 allows installation of four IEI PulM networking modules. To install a networking module, please follow the steps below. Step 1: Disconnect all power sources from the system. NOTE: To install or replace the networking module, the power supply must be fully disconnected before installation.

  • Page 32: Figure 3-15: Inserting Networking Module

    PUZZLE-9030 Figure 3-15: Inserting Networking Module Step 4: Clip the latch to the frame and push the latch inwards. Step 5: Secure the latch by pushing it leftwards first and then inwards. Figure 3-16: Securing Networking Module Step 6: Re-install the top cover. Page 32...

  • Page 33: Module Installation

    PUZZLE-9030 3.7 M.2 Module Installation The two M.2 slots are both keyed in the M position and provide mounting screw position for 2280-size M.2 modules. To install an M.2 module, please follow the steps below. Step 1: Remove the top cover from the PUZZLE-9030. See Section 3.2. Step 2: Locate the M.2 slots on the motherboard.

  • Page 34: Lan Connection

    PUZZLE-9030 3.8 LAN Connection The LAN connectors on the front panel allow connection to an external network. The pinouts of the LAN connectors are listed below. Description Description TRD0+ TRD2- TRD0- TRD1- TRD1+ TRD3+ TRD2+ TRD3- Table 3-1: LAN Pinouts Figure 3-17: RJ-45 Ethernet Connector The RJ-45 Ethernet connector has two status LEDs, one yellow and one green/orange.

  • Page 35: Console Connection

    PUZZLE-9030 3.9 Console Connection The PUZZLE-9030 has one RJ-45 serial device connector on the front panel. The RJ-45 connector for the serial port can be identified easily as the RJ-45 for the network has two LEDs on the port, while the connectors for the serial cables don’t. The pinouts of the serial port are listed below.
  • Page 36 PUZZLE-9030 Step 3: Open a serial console application, PuTTY, as an example. Step 4: Set the speed of the serial connection to “115200”, and choose “Serial” for Connection Type. Step 5: Click “Open” on PuTTY. Page 36...
  • Page 37 PUZZLE-9030 Step 6: Enter the following command: sudo vi /lib/systemd/system/ttyS0.service Step 7: Ensure the information shown match the followings: [Unit] Description=Serial Console Service [Service] ExecStart=/sbin/getty -L 115200 ttyS0 vt102 Restart=always [Install] WantedBy=multi-user.target Step 8: Run the following commands one by one: sudo systemctl daemon-reload sudo systemctl enable ttyS0 sudo systemctl start ttyS0...

  • Page 38: Power-On Procedure

    PUZZLE-9030 3.10 Power-On Procedure WARNING: 1. Make sure a power supply with the correct input voltage is being fed into the system. Incorrect voltages applied to the system may cause damage to the internal electronic components and may also cause injury to the user. 2.

  • Page 39: Available Drivers

    PUZZLE-9030 3.11 Available Drivers All the drivers for the PUZZLE-9030 are available on IEI Resource Download Center (https://download.ieiworld.com). Type PUZZLE-9030 and press Enter to find all the relevant software, utilities, and documentation. Figure 3-19: IEI Resource Download Center NOTE: To install software from the downloaded ISO image file in Windows 10, double-click the ISO file to mount it as a virtual drive to view its content.

  • Page 40: Driver Download

    PUZZLE-9030 3.11.1 Driver Download To download drivers from IEI Resource Download Center, follow the steps below. Step 1: Go to https://download.ieiworld.com. Type PUZZLE-9030 and press Enter. Step 2: All product-related software, utilities, and documentation will be listed. You can choose Driver to filter the result. Step 3: Click the driver file name on the page and you will be prompted with the ...

  • Page 41: Maintenance

    PUZZLE-9030 3.12 Maintenance WARNING: The following instructions should only be performed by an authorized and trained technician. Before starting, please ensure that you turn off the PUZZLE-9030, disconnect the power cords, network cable(s), and also remove any other device/cable that is attached to the server. Take Anti-Static precautions whenever maintenance is being carried out on the system components.

  • Page 42: Power Supply Unit Replacement

    PUZZLE-9030 3.12.1 Power Supply Unit Replacement The two power supply unites (PSU) of the PUZZLE-9030 series are hot-swappable, which means users can replace the PSU when the system is up and running. To replace a failed power supply unit, please follow the steps below.

  • Page 43: Fan Module Replacement

    PUZZLE-9030 3.12.2 Fan Module Replacement The system fan modules of the PUZZLE-9030 series are hot-swappable. To replace a failed fan module, please follow the steps below. Step 1: Loosen the two fan module captive screws. Pull out the fan module.

  • Page 44: Jumper Settings

    PUZZLE-9030 3.12.3 Jumper Settings To configure the jumper settings, please follow the steps below. Step 1: Remove the top cover. See Section 3 .2. 7 5 1 H 7 5 1 H 6 2 9 H Step 2: Locate the jumper on the embedded motherboard. Step 3: Make the jumper settings in accordance with the settings described and defined in the following sections.

  • Page 45: Interface Connectors

    PUZZLE-9030 Chapter Interface Connectors Page 45...

  • Page 46: Peripheral Interface Connectors

    PUZZLE-9030 4.1 Peripheral Interface Connectors The connector locations of the PUZZLE-9030’s motherboard are shown below. The connector pinouts for these connectors are listed in the following sections. 4.2 Internal Peripheral Connectors Internal peripheral connectors on the motherboard and are only accessible when the motherboard is outside of the chassis.

  • Page 47: Bmc Debug Connector (Db1)

    PUZZLE-9030 Connector Type Label Debug port connector 12-pin wafer DBG_PORT1 EC debug connector 20-pin FPC EC_DBG1 Fan board power connector 4-pin connector FAN_PWR1 Fan board connector 40-pin edge connector FAN1 I/O board connector 40-pin connector IO1, IO2 M.2 M-key slots M.2 M-key 2280 M2_M1, M2_M2 Memory slots...

  • Page 48: Bmc Programming Connectors (J_Bmc1)

    PUZZLE-9030 4.2.2 BMC Programming Connectors (J_BMC1) PIN NO. DESCRIPTION VCC3.3 MISO MOSI Table 4-3: BMC Programming Connector (J_BMC1) Pinouts 4.2.3 CPLD Programming Connector (J_CPLD1) PIN NO. DESCRIPTION VCC3.3 Table 4-4: CPLD Programming Connector (J_CPLD1) Pinouts 4.2.4 Debug Port Connector (DBG_PORT1) PIN NO.

  • Page 49: Ec Debug Connector (Ec_Dbg1)

    PUZZLE-9030 LPC_LAD2 LPC_LAD1 LPC_LAD0 LPC_FRAME RESET LPC_CLK Table 4-5: Debug Port Connector (DBG_PORT1) Pinouts 4.2.5 EC Debug Connector (EC_DBG1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION KSI0 KSO9 KSO0 KSO10 KSO1 KSO12 KSO2 KSI1 KSO3 KSO11 KSO4 KSI2 KSO5 KSI3 KSO6 KSO7 KSO8 Table 4-6: EC Debug Connector (EC_DBG1) Pinouts...

  • Page 50: Fan Board Connector (Fan1)

    PUZZLE-9030 4.2.7 Fan Board Connector (FAN1) Description Description VCC5 FAN_IN_3A VCC5 FAN_CTL_3B VCC5 FAN_IN_3B VCC5 FAN_CTL_4A FAN_IN_4A FAN_CTL_4B FAN_IN_4B DET_FAN3_4# FAN_CTL_1A FAN_LED3-4 FAN_IN_1A FAN_CTL_1B FAN_CTL_5A FAN_IN_1B FAN_IN_5A FAN_CTL_2A FAN_CTL_5B FAN_IN_2A FAN_IN_5B FAN_CTL_2B FAN_CTL_6A FAN_IN_2B FAN_IN_6A DET_FAN1_2# FAN_CTL_6B FAN_LED1-2 FAN_IN_6B DET_FAN5_6# FAN_CTL_3A FAN_LED5-6 Table 4-8: Fan Board Connector (FAN1) Pinouts...

  • Page 51: Table 4-9: I/O Board Connectors (Io1) Pinouts

    PUZZLE-9030 Description Description VCC5 I210-1_MDI3_N LAN_LINK_ACT I210-1_MDI3_P LAN_PW LAN_100 GBE_MDI0_N LAN_1000 GBE_MDI0_P GBE_LED_ACT GBE_LED_PW GBE_MDI1_N GBE_LED_LINK GBE_MDI1_P GBE_LED_LINK_ACT GBE_MDI2_N GBE_MDI2_P I210-1_MDI0_N I210-1_MDI0_P GBE_MDI3_N GBE_MDI3_P I210-1_MDI1_N Table 4-9: I/O Board Connectors (IO1) Pinouts Description Description VCC5 ALARM_LED VCC5 VCC5 USB2_EXT1_DN VCC5 USB2_EXT1_DP VCC5 VCC5...

  • Page 52: Power Button Connector (Pwr_Btn1)

    PUZZLE-9030 Description Description USB3_EXT2_RX_DN USB3_EXT2_RX_DP CONSOL_DET RST_BTN USB3_EXT2_TX_DN USB3_EXT2_TX_DP STATUS_LED Table 4-10: I/O Board Connectors (IO2) Pinouts 4.2.9 Power Button Connector (PWR_BTN1) PIN NO. DESCRIPTION PWR_BTN+ PWR_BTN- Table 4-11: Power Button Connector (PWR_BTN1) Pinouts 4.2.10 Power Input Connector (PSU1, PSU2) Description Description P2-1...

  • Page 53: Reset Button Connector (Rst_Btn1)

    PUZZLE-9030 Description Description PSKILL ALERT CR_SHARE PSU_A0 PRESENT Table 4-12: Power Input Connector (PSU1, PSU2) Pinouts 4.2.11 Reset Button Connector (RST_BTN1) PIN NO. DESCRIPTION RESET+ RESET- Table 4-13: Reset Button Connector (RST_BTN1) Pinouts 4.2.12 SATA Power Connector (SATA_PWR1, SATA_PWR2) PIN NO. DESCRIPTION VCC12 VCC12...

  • Page 54: Spi Flash Connector (J_Spi1)

    PUZZLE-9030 4.2.13 SPI Flash Connector (J_SPI1) PIN NO. DESCRIPTION +3.3V SPI_CS SPI_SO SPI_CLK SPI_SI Table 4-15: SPI Flash Connector (J_SPI1) Pinouts 4.2.14 SPI Flash Connector - EC (J_EC1) PIN NO. DESCRIPTION +3.3V SPI_CS#0_CN_EC SPI_SO_SW_EC SPI_CLK_SW_EC SPI_SI_SW_EC Table 4-16: SPI Flash Connector - EC (J_EC1) Pinouts Page 54...

  • Page 55: Tpm Connector (Tpm1)

    PUZZLE-9030 4.2.15 TPM Connector (TPM1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION TPM_PG VCC3.3 MISO MOSI VCC3.3 Table 4-17: TPM Connector (TPM1) Pinouts 4.2.16 USB 2.0 Connector (JUSB1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION     USB_DATA- USB_DATA+   USB_DATA+ USB_DATA- ...

  • Page 56: Networking Module Gen-Z 4C+ Slots (Pcie3, Pcie4, Pcie5, Pcie6)

    PUZZLE-9030 4.2.17 Networking Module Gen-Z 4C+ Slots (PCIE3, PCIE4, PCIE5, PCIE6) PIN NO. DESCRIPTION PIN NO. DESCRIPTION PERST2 PERST3 WAKE DATA_IN ARB_IN DATA_OUT ARB_OUT SLOT_ID1 SLOT_ID0 RBT_TX_EN RBT_RXD1 RBT_TXD1 RBT_RXD0 RBT_TXD0 BO10 AO10 BO11 AO11 BO12 AO12 BO13 AO13 BO14 RTB_CRS_DV AO14 RBT_CLK_IN...
  • Page 57 PUZZLE-9030 PETp0 PERp0 PETn1 PERn1 PETp1 PERp1 PETn2 PERn2 PETp2 PERp2 PETn3 PERn3 PETp3 PERp3 PETn4 PERn4 PETp4 PERp4 PETn5 PERn5 PETp5 PERp5 PETn6 PERn6 PETp6 PERp6 PETn7 PERn7 PETp7 PERp7 PRSNTB0 PRSNTB1 PETn8 PERn8 PETp8 PERp8 PETn9 PERn9 PETp9 PERp9 PETn10 PERn10...

  • Page 58: Pcie Riser Card Slot (Pcie1)

    PUZZLE-9030 PETn11 PERn11 PETp11 PERp11 PETn12 PERn12 PETp12 PERp12 PETn13 PERn13 PETp13 PERp13 PETn14 PERn14 PETp14 PERp14 PETn15 PERn15 PETp15 PERp15 PPS_IN PPS_OUT PRSNTB3 LANMDA Table 4-19: Networking Module Gen-Z 4C+ Slot Pinouts 4.2.18 PCIe Riser Card Slot (PCIE1) PIN NO. DESCRIPTION PIN NO.
  • Page 59 PUZZLE-9030 PPS_OUT PPS_IN VCC3.3SB VCC3.3SB VCC3.3SB VCC3.3SB SCL_B SCL_A SDA_B SDA_A RESET_B RESET_A WAKE_B WAKE_A PRSNT_B PRSNT_A CLK100M_B_P CLK100M_A_P CLK100M_B_N CLK100M_A_N PET_A_p0 PER_A_p0 PET_A_n0 PER_A_n0 PET_A_p1 PER_A_p1 PET_A_n1 PER_A_n1 Page 59...
  • Page 60 PUZZLE-9030 PET_A_p2 PER_A_p2 PET_A_n2 PER_A_n2 PET_A_p3 PER_A_p3 PET_A_n3 PER_A_n3 PET_A_p4 PER_A_p4 PET_A_n4 PER_A_n4 PET_A_p5 PER_A_p5 PET_A_n5 PER_A_n5 PET_A_p6 PER_A_p6 PET_A_n6 PER_A_n6 PET_A_p7 PER_A_p7 PET_A_n7 PER_A_n7 PET_A_p8 PER_A_p8 PET_A_n8 PER_A_n8 PET_A_p9 PER_A_p9 PET_A_n9 PER_A_n9 PET_A_p10 PER_A_p10 PET_A_n10 PER_A_n10 PET_A_p11 PER_A_p11 PET_A_n11 PER_A_n11 PET_A_p12 PER_A_p12...
  • Page 61 PUZZLE-9030 PET_A_n13 PER_A_n13 PET_A_p14 PER_A_p14 PET_A_n14 PER_A_n14 PET_A_p15 PER_A_p15 PET_A_n15 PER_A_n15 PET_B_p0 PER_B_p0 PET_B_n0 PER_B_n0 PET_B_p1 PER_B_p1 PET_B_n1 PER_B_n1 PET_B_p2 PER_B_p2 PET_B_n2 PER_B_n2 PET_B_p3 PER_B_p3 PET_B_n3 PER_B_n3 B100 A100 B101 A101 B102 A102 B103 A103 B104 PET_B_p4 A104 PER_B_p4 B105 PET_B_n4 A105 PER_B_n4...

  • Page 62: Table 4-20: Pcie Riser Card Slot (Pcie1) Pinouts

    PUZZLE-9030 B112 A112 B113 PET_B_p7 A113 PER_B_p7 B114 PET_B_n7 A114 PER_B_n7 B115 A115 B116 PET_B_p8 A116 PER_B_p8 B117 PET_B_n8 A117 PER_B_n8 B118 A118 B119 PET_B_p9 A119 PER_B_p9 B120 PET_B_n9 A120 PER_B_n9 B121 A121 B122 PET_B_p10 A122 PER_B_p10 B123 PET_B_n10 A123 PER_B_n10 B124 A124...

  • Page 63: A Regulatory Compliance

    PUZZLE-9030 Appendix Regulatory Compliance Page 63...
  • Page 64 PUZZLE-9030 DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive 2014/30/EU  Low-Voltage Directive 2014/35/EU  RoHS II Directive 2011/65/EU  If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 65 PUZZLE-9030 Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
  • Page 66 PUZZLE-9030 Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 1999/5/CE. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
  • Page 67 PUZZLE-9030 FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and  This device must accept any interference received, including interference that ...

  • Page 68: B Safety Precautions

    PUZZLE-9030 Appendix Safety Precautions Page 68...

  • Page 69: Safety Precautions

    PUZZLE-9030 B.1 Safety Precautions WARNING: The precautions outlined in this appendix should be strictly followed. Failure to follow these precautions may result in permanent damage to the PUZZLE-9030. Please follow the safety precautions outlined in the sections that follow: B.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times.

  • Page 70: Anti-Static Precautions

    PUZZLE-9030 B.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the PUZZLE-9030 may result in permanent damage to the PUZZLE-9030 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PUZZLE-9030.

  • Page 71: Product Disposal

    PUZZLE-9030 B.1.3 Product Disposal CAUTION: Risk of explosion if the battery is replaced by an incorrect type; Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;...

  • Page 72: Maintenance And Cleaning Precautions

    PUZZLE-9030 B.2 Maintenance and Cleaning Precautions When maintaining or cleaning the PUZZLE-9030, please follow the guidelines below. B.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the PUZZLE-9030, please read the details below.  The interior of the PUZZLE-9030 does not require cleaning. Keep fluids away from the PUZZLE-9030 interior.

  • Page 73: C Error Beep Code

    PUZZLE-9030 Appendix Error Beep Code Page 73...

  • Page 74: Pei Beep Codes

    PUZZLE-9030 C.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available C.2 DXE Beep Codes Number of Beeps...

  • Page 75: D Hazardous Materials Disclosure

    PUZZLE-9030 Appendix Hazardous Materials Disclosure Page 75...

  • Page 76: Rohs Ii Directive (2015/863/Eu)

    PUZZLE-9030 D.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 77: China Rohs

    PUZZLE-9030 D.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 77...
