- Page 1 PUZZLE-M901 MODEL: PUZZLE-M901 Desktop Network Appliance with Marvell CN9130 Processor, Six 2.5GbE, On-board 4GB eMMC, One M.2 slot and RoHS Compliant User Manual Page i Rev. 1.00 – August 25, 2021...
- Page 2 PUZZLE-M901 Revision Date Version Changes August 25, 2021 1.00 Initial release Page ii...
- Page 3 PUZZLE-M901 Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
- Page 4 PUZZLE-M901 Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. NOTE These messages inform the reader of essential but non-critical information.
-
Page 5: Table Of Contents
PUZZLE-M901 Table of Contents 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 F ........................2 EATURES 1.3 F ......................3 RONT ANEL 1.4 R ....................... 4 ANEL 1.5 B ....................... 4 LOCK IAGRAM 1.6 T ..................5 ECHNICAL PECIFICATIONS 1.7 D ....................... - Page 6 PUZZLE-M901 B.1.3 Product Disposal ..................... 24 B.2 M ............25 AINTENANCE AND LEANING RECAUTIONS B.2.1 Maintenance and Cleaning ................25 B.2.2 Cleaning Tools ....................25 C HAZARDOUS MATERIALS DISCLOSURE ............26 C.1 R HS II D (2015/863/EU) ............... 27 IRECTIVE C.2 C HS ......................
- Page 7 PUZZLE-M901 List of Figures Figure 1-1: PUZZLE-M901 Series ....................2 Figure 1-2: Front Panel ........................3 Figure 1-3: Rear Panel ........................4 Figure 1-4: Physical Dimensions (millimeters) ................6 Figure 3-1: System Connection ....................12 Figure 3-2: IEI Resource Download Center ................15...
- Page 8 PUZZLE-M901 List of Tables Table 1-1: Technical Specifications ....................6 PUZZLE-M901 Page viii...
-
Page 9: Introduction
PUZZLE-M901 Chapter Introduction Page 1... -
Page 10: Overview

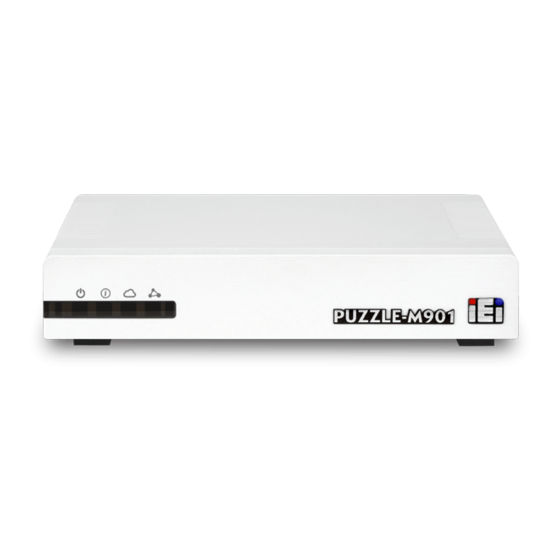

PUZZLE-M901 1.1 Overview Figure 1-1: PUZZLE-M901 Series The PUZZLE-M901 is a high-speed software defined router powered by OpenWrt. The integrated 2.5GbE ports are ideally suited for a wide range of applications, such as SOHO and SMB networking infrastructure. The PUZZLE-M901 supports six 2.5GbE ports for high-speed network applications. The network interfaces can be defined with various combinations to adopt the SMB network environment. -
Page 11: Front Panel
PUZZLE-M901 1.3 Front Panel The overview of the front panel is shown in Figure 1-2. Figure 1-2: Front Panel The default states of the LED indicators located on the front panel are listed below. Power off Power Yellow-green Power on Device is turned off Blinking amber Device is booting... -
Page 12: Rear Panel
PUZZLE-M901 1.4 Rear Panel An overview of the PUZZLE-M901 rear panel is shown in Figure 1-3 below. Figure 1-3: Rear Panel 1.5 Block Diagram The following diagram shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Page 4... -
Page 13: Technical Specifications
PUZZLE-M901 1.6 Technical Specifications The PUZZLE-M901 technical specifications are listed in Table 1-1. System ® ® CPU (SoC) Marvell CN9130 quad-core Armv8 Cortex -72 processor @ up to 2200 MHz Memory On-board 4GB DDR4 eMMC 4 GB eMMC M.2 SSD 1 x M.2 2242 M-key slot (PCIe 3.0 x2) Ethernet IC Aquantia AQR112R... -
Page 14: Dimensions
PUZZLE-M901 Temperature Operating: 0°C – 40°C (32°F – 104°F) Storage: -20°C – 75°C (-4°F – 167°F) Operating Humidity 5% – 90%, non-condensing, wet bulb: 27°C Safety CE, FCC, BSMI (BSMI safety), VCCI, LVD Physical Dimensions 166.4 mm x 145.7 mm x 34.0 mm (W x D x H) Operating System OpenWrt Forum: OpenWrt forum (https://forum.openwrt.org/) -
Page 15: Unpacking
PUZZLE-M901 Chapter Unpacking Page 7... -
Page 16: Anti-Static Precautions
PUZZLE-M901 2.1 Anti-static Precautions WARNING: Failure to take ESD precautions during installation may result in permanent damage to the PUZZLE-M901 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PUZZLE-M901. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PUZZLE-M901 or any other electrical component is handled, the following anti-static precautions are strictly adhered to. -
Page 17: Packing List
PUZZLE-M901 2.3 Packing List NOTE: If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the PUZZLE-M901 from or contact an IEI sales representative directly. -
Page 18: Installation
PUZZLE-M901 Chapter Installation Page 10... -
Page 19: Installation Precautions
PUZZLE-M901 3.1 Installation Precautions During installation, be aware of the precautions below: Read the user manual: The user manual provides a complete description of the PUZZLE-M901, installation instructions and configuration options. DANGER! Disconnect Power: Power to the PUZZLE-M901 must be disconnected during the installation process. -
Page 20: Figure 3-1: System Connection
PUZZLE-M901 Step 1: Connect the power adapter shipped with the PUZZLE-M901 to the power jack on the rear panel. Step 2: Use a power cord to connect the power adapter and the power source. Ensure to connect the power cord to a socket-outlet with earthing connection. Step 3: The power LED indicator on the front panel turns to green. -
Page 21: Configure Led Indicators
PUZZLE-M901 3.3 Configure LED Indicators The user can use command line in OpenWrt terminal console to configure the four LED indicators on the system front panel. 3.3.1 Initial Baud Rate Set baud rate to 115200 # stty -F /dev/ttyS1 115200 3.3.2 Change LEDs The user can use the following command lines to configure on/off/blink status of the LEDs. -
Page 22: Led3
PUZZLE-M901 3.3.2.3 LED3 LED3 ON # echo -n -e "\x40\x52\x32\x30\x10" > /dev/ttyS1 LED3 OFF # echo -n -e "\x40\x52\x32\x31\x11" > /dev/ttyS1 LED3 Blink 1HZ # echo -n -e "\x40\x52\x32\x32\x12" > /dev/ttyS1 LED3 Blink 5HZ # echo -n -e "\x40\x52\x32\x33\x13" > /dev/ttyS1 3.3.2.4 LED4 LED4 ON # echo -n -e "\x40\x52\x33\x30\x11"... -
Page 23: Resource Download
PUZZLE-M901 3.4 Resource Download All the resources for the PUZZLE-M901 are available on IEI Resource Download Center (https://download.ieiworld.com). Type PUZZLE-M901 and press Enter to find all the relevant software, utilities, and documentation. Figure 3-2: IEI Resource Download Center Page 15... -
Page 24: A Regulatory Compliance
PUZZLE-M901 Appendix Regulatory Compliance Page 16... - Page 25 PUZZLE-M901 DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive 2014/30/EU Low-Voltage Directive 2014/35/EU RoHS II Directive 2015/863/EU If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
- Page 26 PUZZLE-M901 Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
- Page 27 PUZZLE-M901 Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 1999/5/CE. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
- Page 28 PUZZLE-M901 FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
-
Page 29: B Safety Precautions
PUZZLE-M901 Appendix Safety Precautions Page 21... -
Page 30: Safety Precautions
PUZZLE-M901 B.1 Safety Precautions WARNING: The precautions outlined in this appendix should be strictly followed. Failure to follow these precautions may result in permanent damage to the PUZZLE-M901. Please follow the safety precautions outlined in the sections that follow: B.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times. -
Page 31: Anti-Static Precautions
PUZZLE-M901 B.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the PUZZLE-M901 may result in permanent damage to the PUZZLE-M901 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PUZZLE-M901. -
Page 32: Product Disposal
PUZZLE-M901 B.1.3 Product Disposal CAUTION: Risk of explosion if the battery is replaced by an incorrect type; Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;... -
Page 33: Maintenance And Cleaning Precautions
PUZZLE-M901 B.2 Maintenance and Cleaning Precautions When maintaining or cleaning the PUZZLE-M901, please follow the guidelines below. B.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the PUZZLE-M901, please read the details below. The interior of the device does not require cleaning. Keep fluids away from the device interior. -
Page 34: C Hazardous Materials Disclosure
PUZZLE-M901 Appendix Hazardous Materials Disclosure Page 26... -
Page 35: Rohs Ii Directive (2015/863/Eu)
PUZZLE-M901 C.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU). -
Page 36: China Rohs
PUZZLE-M901 C.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 28...
