SPX FLOW W70 Series Instruction Manual page 57

Waukesha Cherry-Burrell
W72RS Mix Proof Seat Lift Valve with Steam Adapter
Notes:
* Recommended Spare Parts
2. For one-piece body, qty. 2 are required for item 6 and item 18; for a clamped body, qty. 3 are required.
4. Unless otherwise noted, quantity required is 1.
5. EPDM recommended on all steam-contact seals.
6. POA = Part # on availability; N/A = not available with this design.
9. Part number includes lower stem and inner stem, which are assembled together.
11. Part number includes upper stem, outer stem and coupling sleeve, which are assembled together.
10/2023
®
Brand W70 Series Mix Proof Valves
95-03087
34429

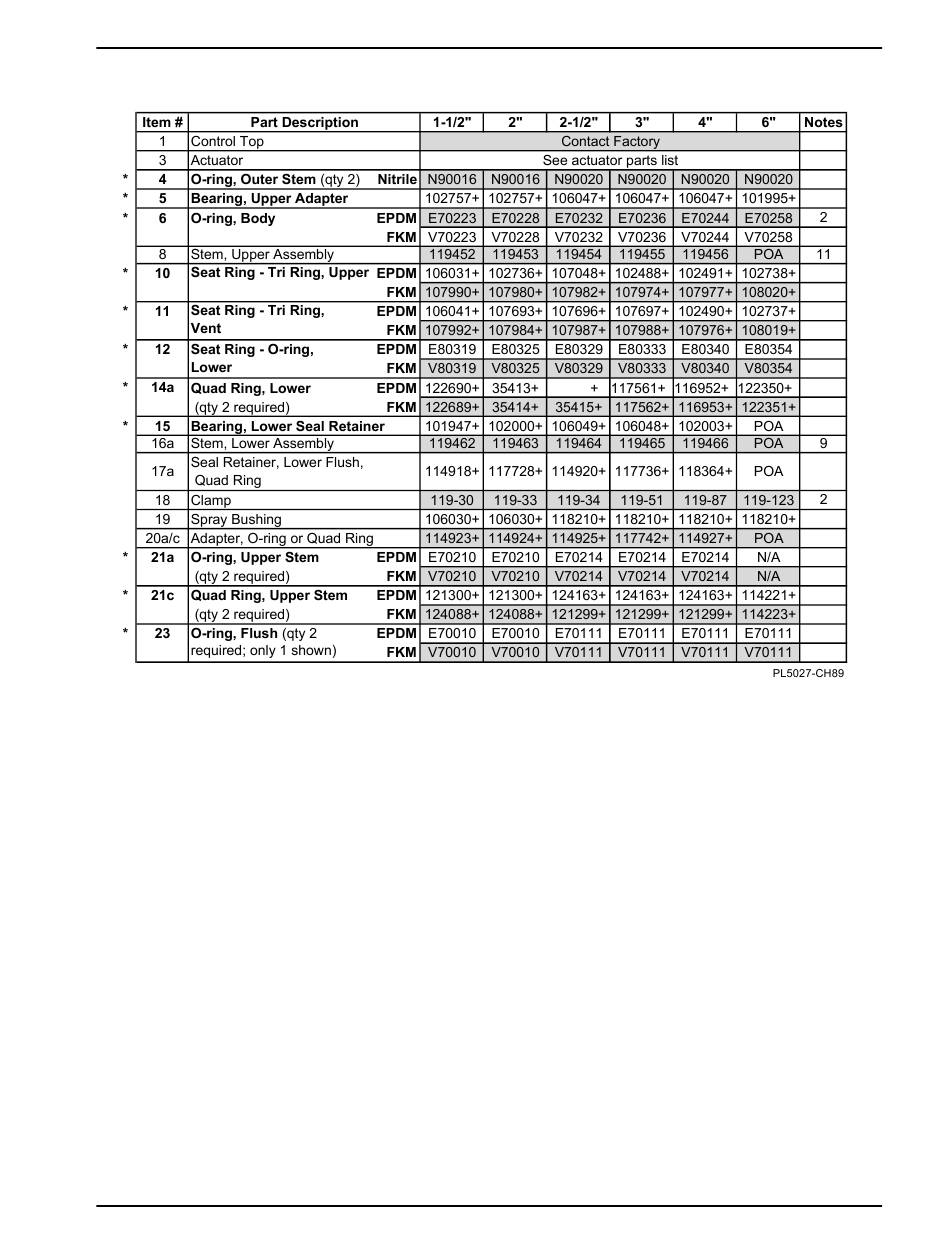

Parts Lists
Page 57
